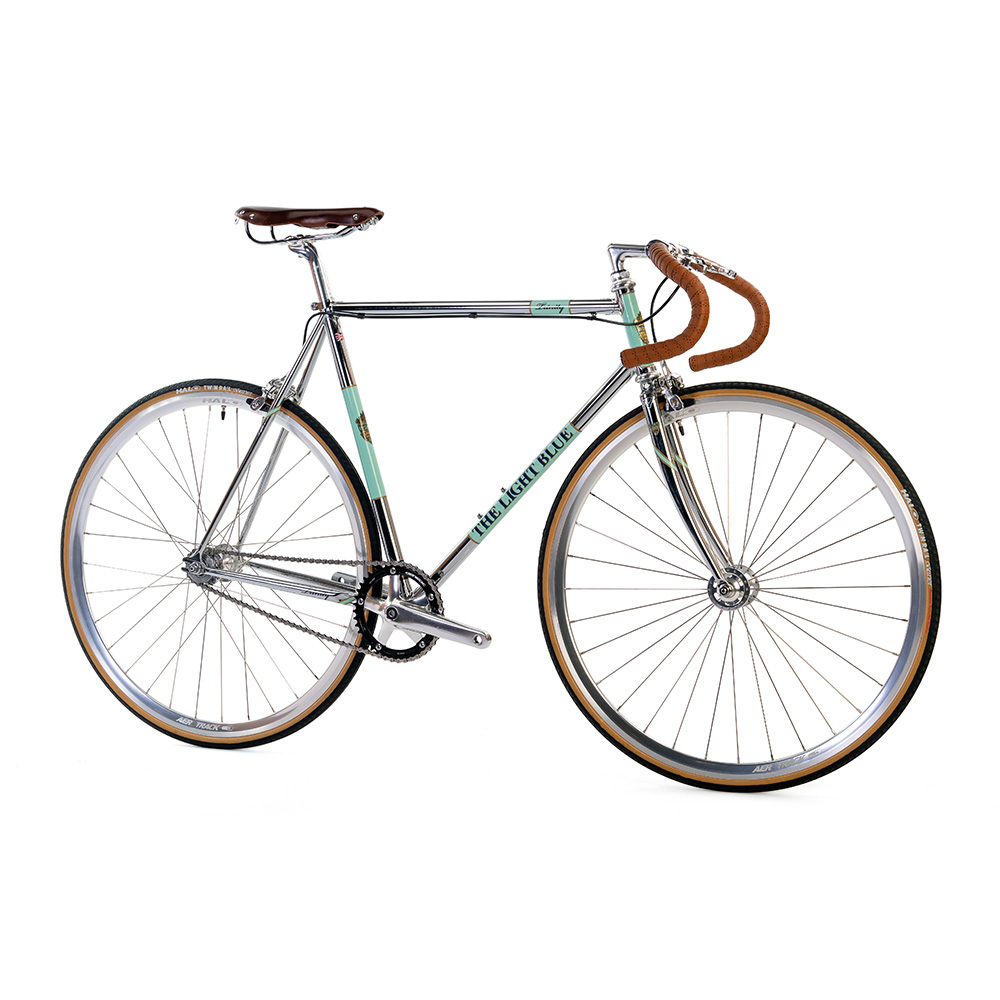

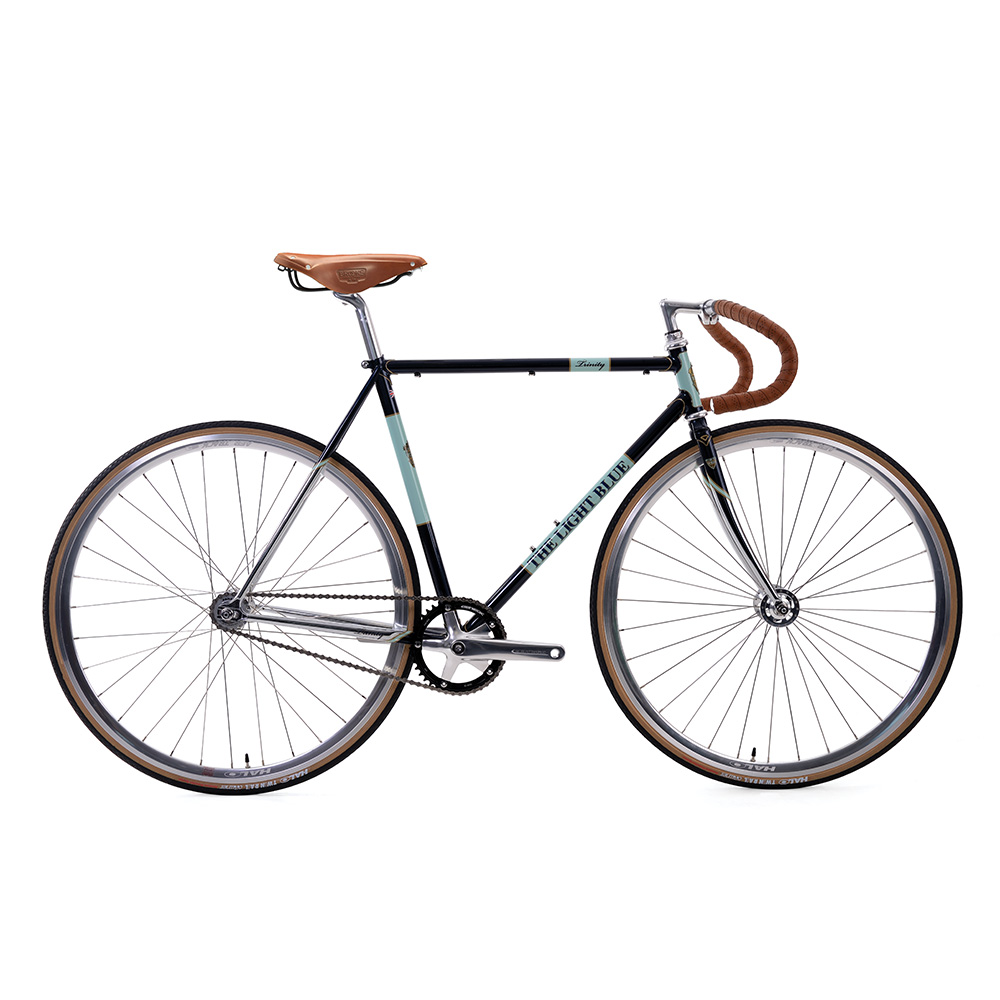

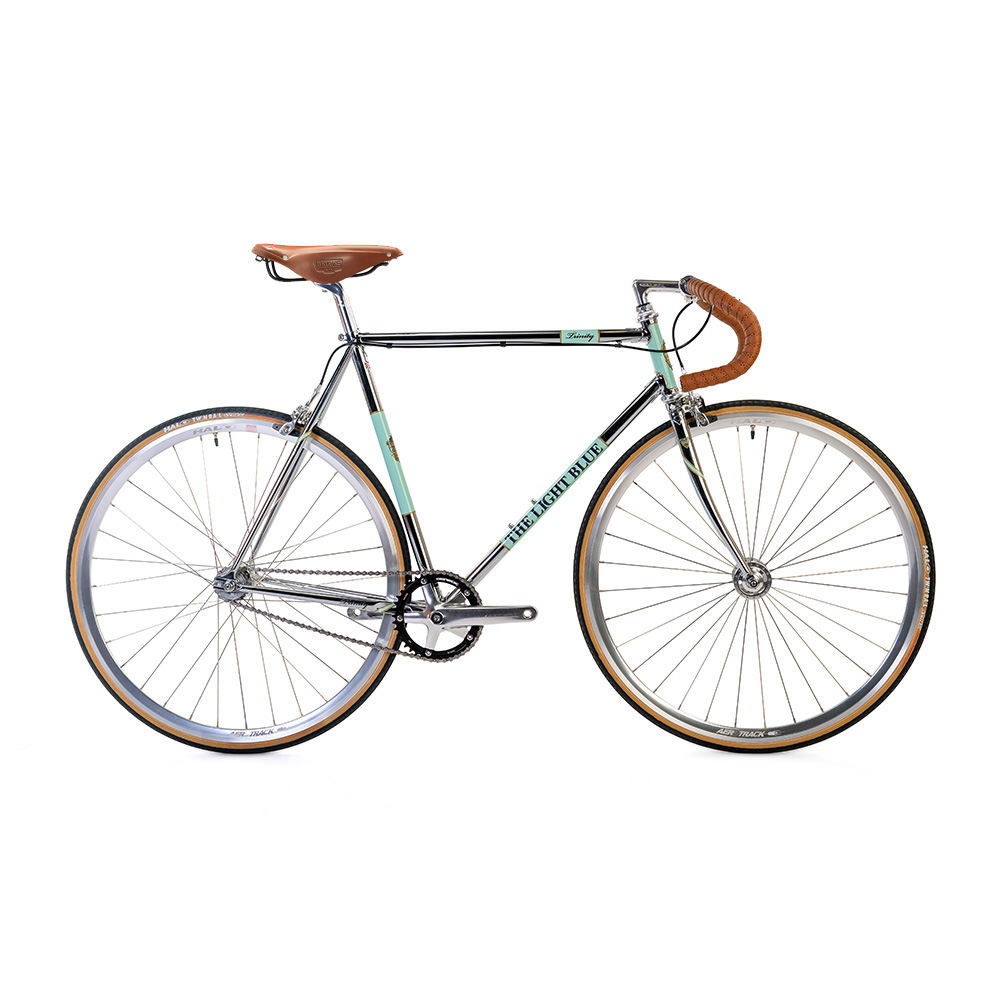

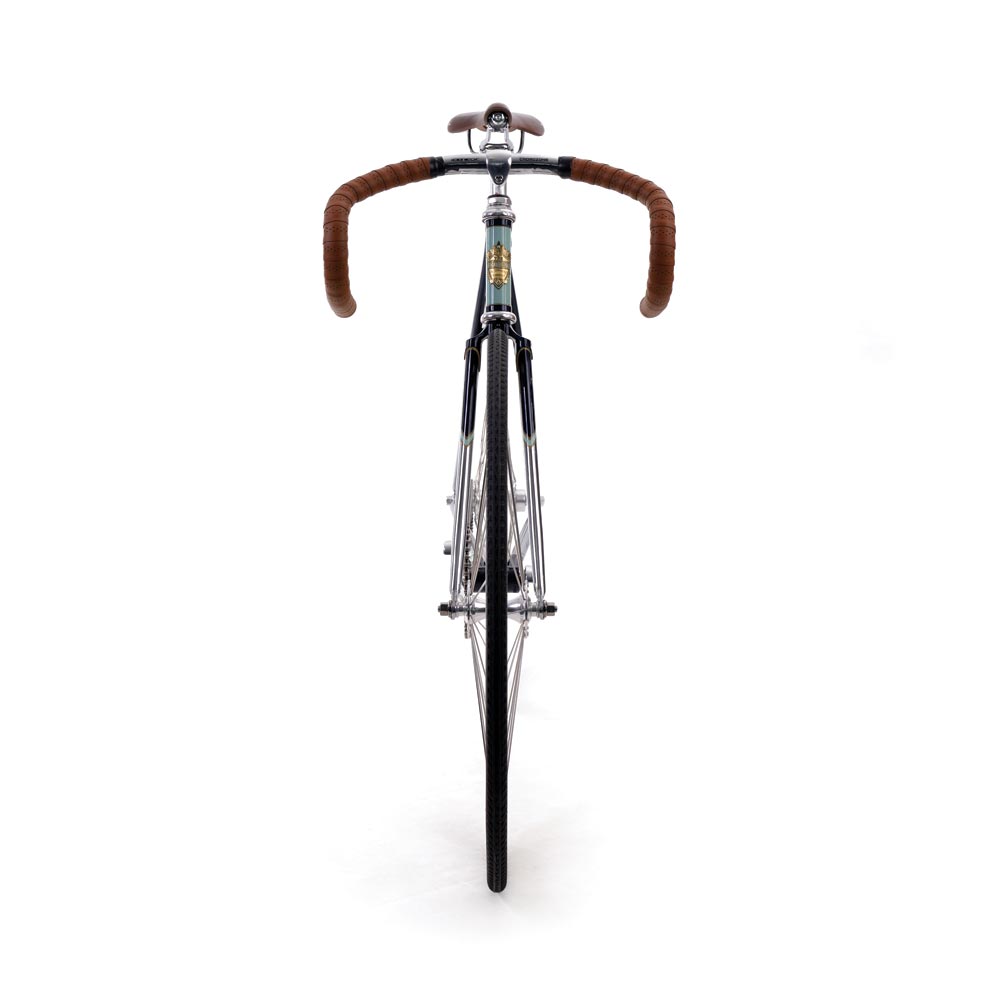

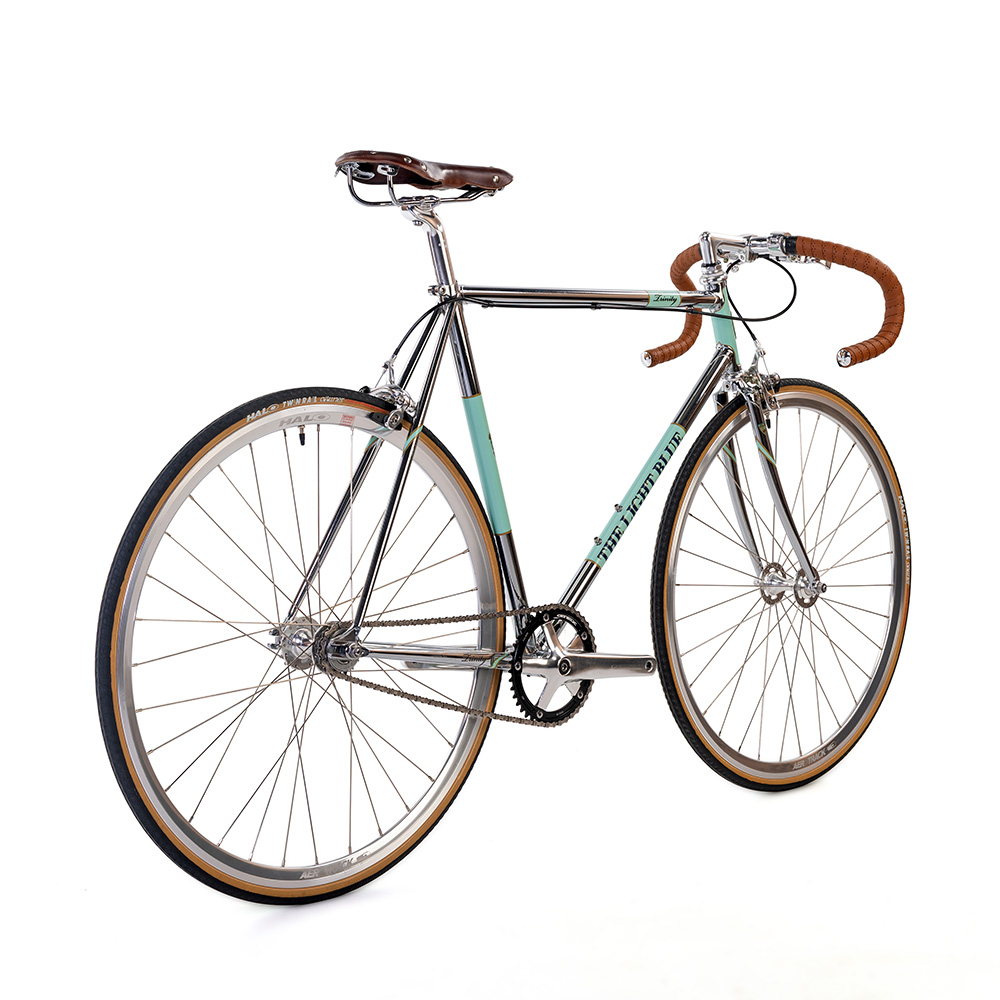

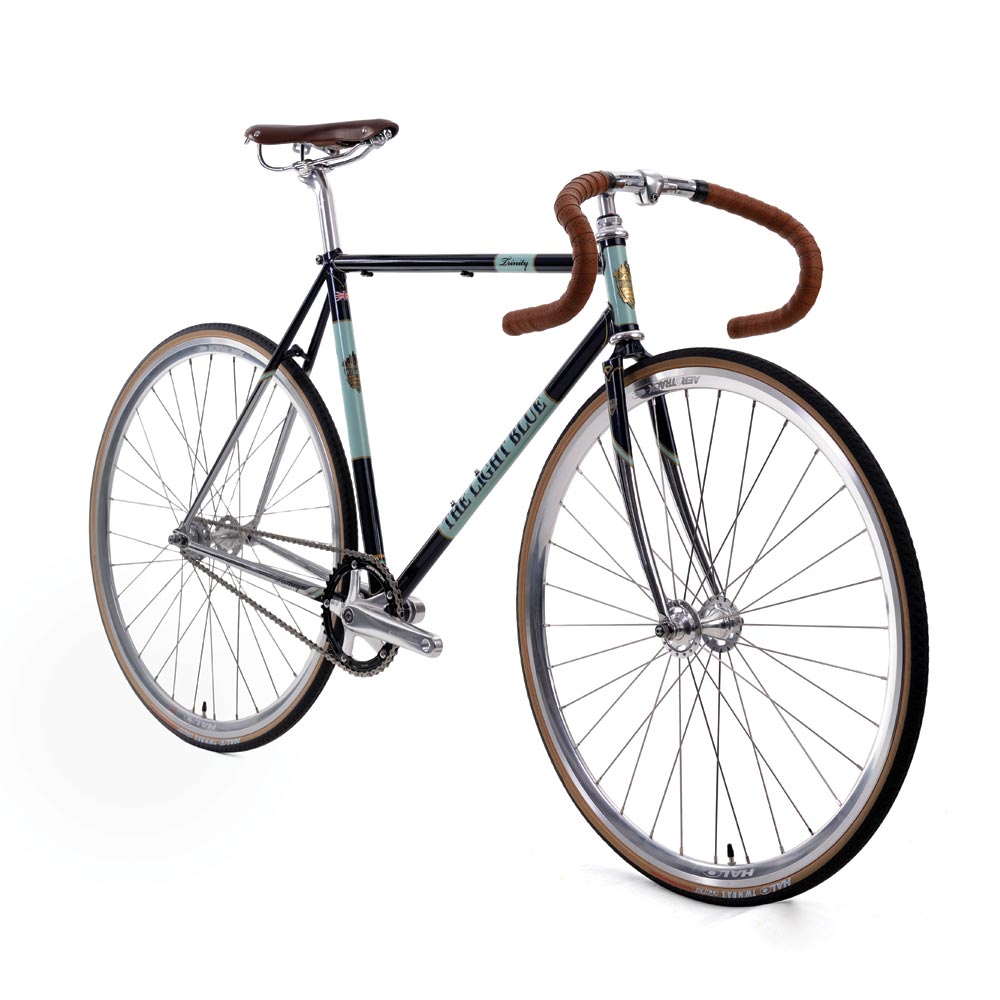

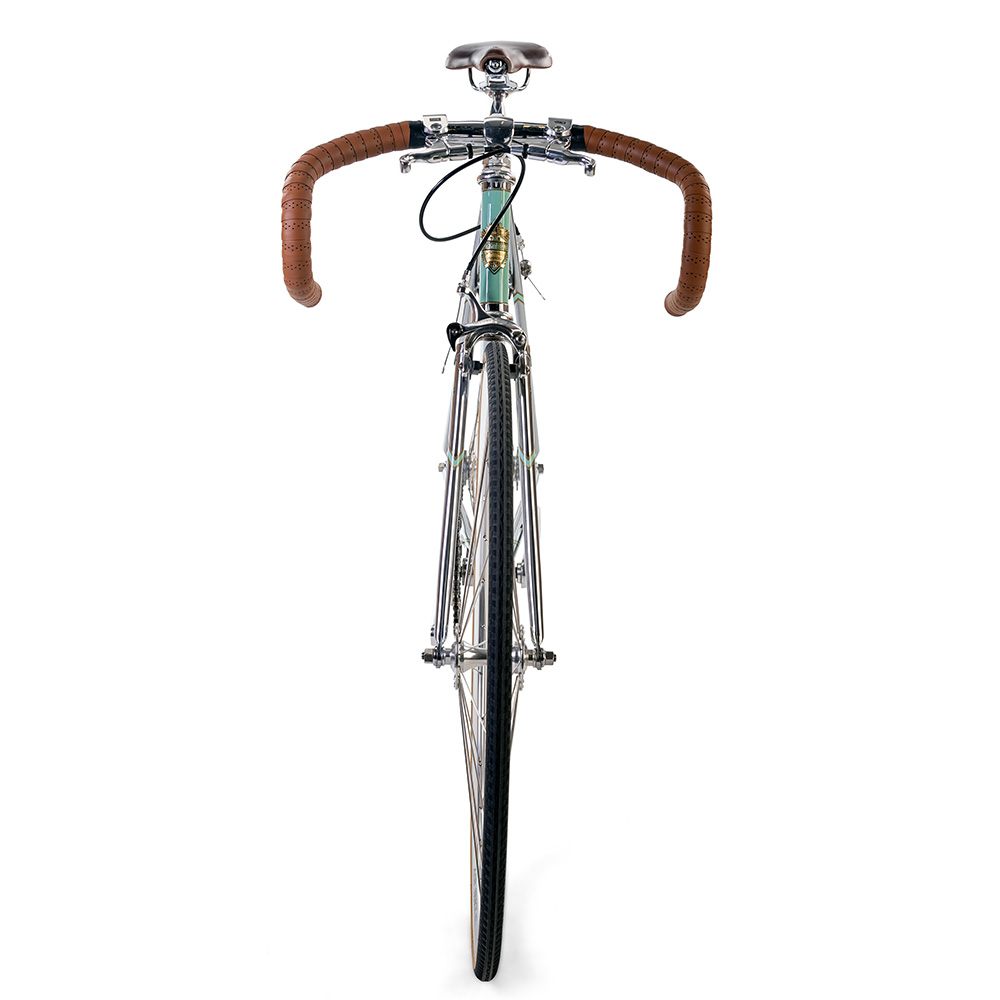

Trinity Pista

STYLISH REYNOLDS 531 FIXIE/TRACK BIKE

A classically beautiful, Reynolds 531 streel retro track style bike for the cycling enthusiast who wants something special.

This frameset is a modern work of retro art with its narrow Reynolds 531 double-butted tubing joined together using classic brazed lugs and mated to triple-butted, tapered Cr-mo curved forks.
A 1" threaded headset and a 68mm BSA threaded bottom bracket keep those fittings classically simple. Designed for 120mm width ‘track’ rear hubs and drilled to accept side-pull brake calipers front and rear for safety.
Finished in either a gleaming polished and lacquered full chrome or a beautiful high gloss metallic Blue paint with half chrome forks and rear stays. Panelled graphics and gold lug lining complete the outstanding looks.

Hand-assembled into a classically styled track machine or single speed/fixie, the Trinity gives a stylish and comfortable ride.

The wheels are the legendary Halo Aerotracks in silver and come supplied with both a 16T fixed sprocket and a Sturmey-Archer single-speed freewheel on the Halo sealed bearing Flip-Flop track rear hub, which means you can choose to have Fixed or Freewheel drive. Halo 24mm Courier tyres complete the wheel package.

Genetic's high-performance 170mm Tibia polished alloy cranks and Genetic CNC machined 42T track chainring running on a sealed bearing BB give smooth power delivery, whist the Dia Compe BRS101 calipers and Dirt Harry levers provide dependable braking.

The finishing kit is also in keeping with the overall retro styling. A forged and polished aluminium Genetic Hyoid quill-type stem is mated with Genetic's Cromo-zone steel track bars wrapped in comfortable Faux leather perforated padded tape. A beautifully crafted, Brookes B17 Narrow leather saddle sits on top of the polished and laser-etched aluminium Genetic Heritage seat post to add that extra finishing touch.



Download Catalogue



Specifications

• Frame Reynolds 531 double butted steel, lugged
• Fork Compliant, butted curved Cr-Mo forks
• Headset 1" Threaded alloy looseball
• Handlebar Genetic Cromozone Steel - track bend.
• Stem Genetic Hyoid 1 Alloy Quill
• Bar Tape Genetic Faux leather, perforated and padded
• Saddle Brookes B17 Narrow Leather
• Seatpost Genetic Heritage – polished 27.2mm
• Chain 4-Jeri Gang Chain - Chrome 1/2 x 1/8
• Crankset Genetic Tibia polished with 42T CNC black alloy C-Ring
• Rear Sprockets 16T Fixed & 16T Sturmey Archer Freewheel
• Bottom Bracket Genetic Cromozone sealed, Square taper
• Brake Levers Dia Compe Dirt Harry - hinged - left & right.
• Brakes Dia Compe BRS101 dual pivot sidepull
• Rear Axle 120mm x10mm nutted track type Cr-Mo
• Wheels Halo Aerotrack, polished 32H
• Front Hub Halo Sealed bearing track, M9 nutted
• Rear Hub Halo Sealed bearing track, flip-flop, 120mm M10
• Spokes Stainless Steel 14g
• Tyres Halo Twinrail Courier 700x24C
• Colour Metallic Blue with 1/2 chrome stays or full Chrome
• Size 49, 53, 56, 59 or 62cm Limited Availability
