MT Supadrive Hub - Silver

Our MT series hubs are our flagship mountain bike hub range. The MT series encompasses everything we feel hubs for mountain biking should offer.

Durability, modularity and light weights make the MT Series a simple choice.

Suited best to XC, trail and enduro bikes alike, the MT Supadrive hub offers a 120-point near instant engagement with the ability to withstand substantial torque loads, such as those found with wide-range cassettes. With multiple World Championship titles across a range of disciplines, the Supadrive system is tried and tested to the very highest level and is our most advanced and reliable drive system to date.

Wide spoke flanges, sealed cartridge bearings and a Cr-Mo tube axle in the MT Supadrive hub ensure longevity.

Designed to be run with mountain bike gearing, the MT Supadrive hub is available with SRAM XD or Cr-Mo SHIMANO MS or HG (MTB width) freehub options.

Please refer to the GXC Supadrive for an 11-speed road cassette compatible hub.

An additional Boost adaptor kit is also available, to retrofit this hub into Boost compatible frames.

Replacement axle kits for Supadrive hub:

  • HXHASVTMHG – Suitable for HG type freehub includes 135mm QR and 142x12mm End cones
  • HXHASVTMXD – Suitable for XD type freehub includes 135mm QR and 142x12mm End cones

Specifications

  • Material 6061 Alloy forged hub shell
  • Axle Cro Mo with 135mm QR/12x142mm thru ends included
  • Disc Mount IS 6-Bolt
  • Ratchet 120 teeth triple-wedge pawl mechanism
  • Freehub Body Cro-Mo Shimano HG (MTB width), SHIMANO MS or SRAM XD
  • PCD 58mm
  • Centre to Flange Left: 34mm, Right: 20mm
  • Bearings Hub body: 6902 x2. Freehub: HG 6902 x2, MS 6802 x3, XD 15267 x3
  • OLD (Spacing) 135/142mm
  • Model Ref S-DRV-FG
  • Colour Silver

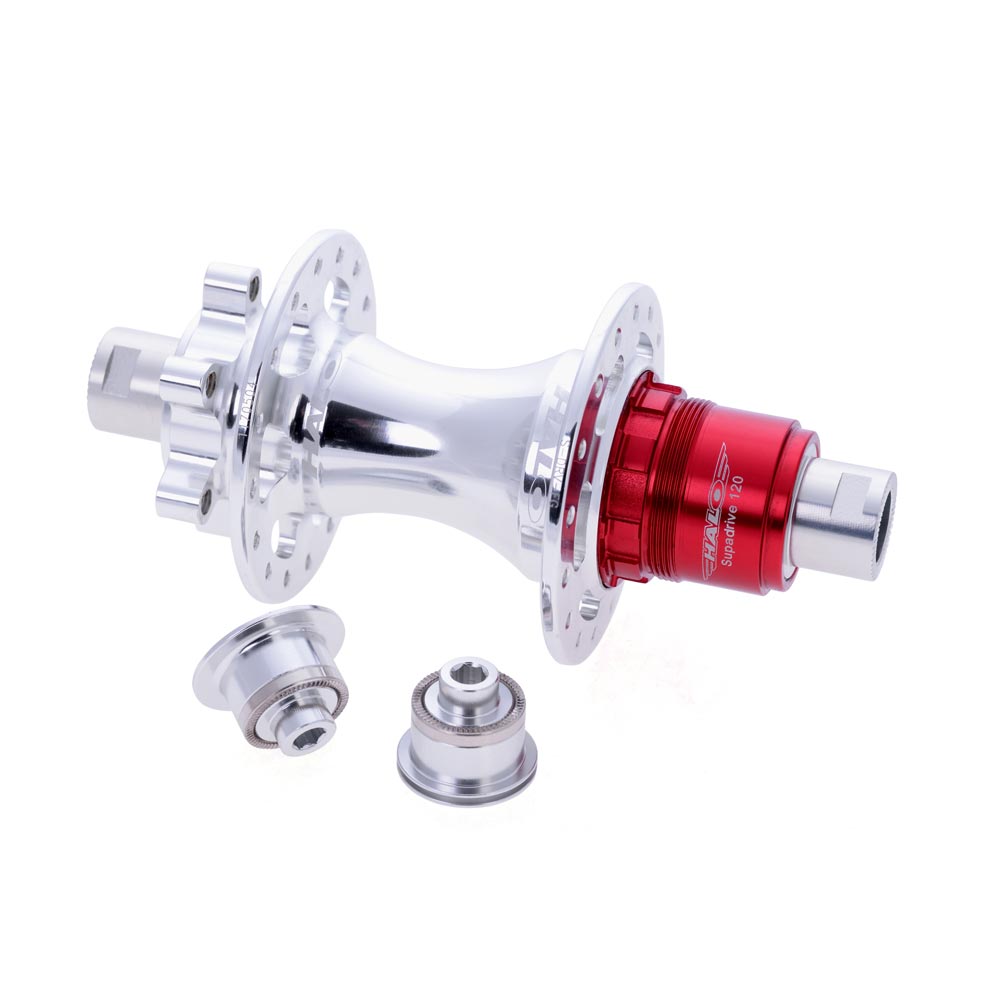

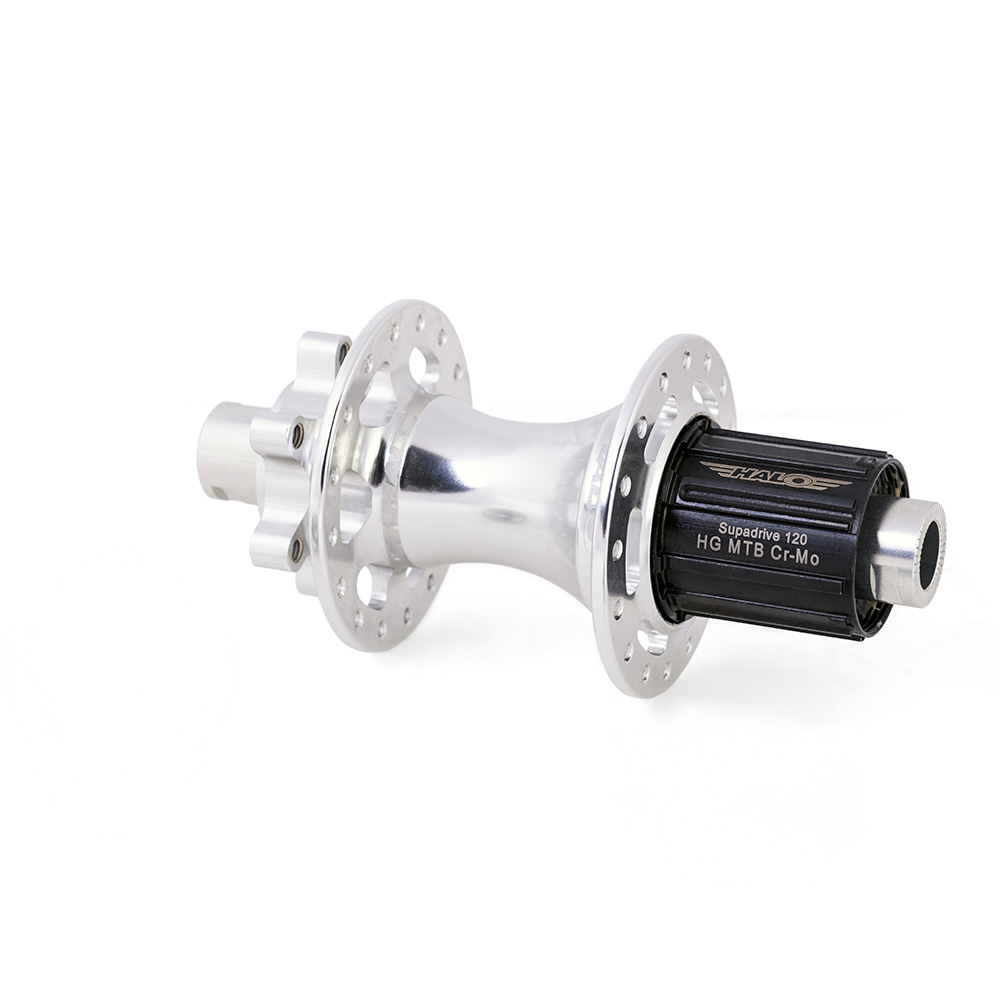

Halo MT Supadrive Hub - Silver
Halo MT Supadrive Hub - Silver
Click image to enlarge

To find out where to buy  Click Here

Description Colour Size Wt(g) Part No. Stock Lvl Unit RRP Pack Qty
MT Supadrive HG, Rr Alloy SB hub, 142x12 Thru/135 QR Cr-Mo axle IS 6 bolt, HG MTB F/hub.Silver32H360HUHASVH2S£189.99Each
MT Supadrive XD, Rr Alloy SB hub, 142x12 Thru/135 QR Cr-Mo axle IS 6 bolt, XD MTB F/hub.
Limited Availability
Silver32H335HUHASVX2S£189.99Each
  • Good stock levels
  • Low stock levels, Qtys may not be available
  • +24h Components are available, add 24/48hrs for assembly
  • Special Order Currently non-stock item, contact us for info
  • Out of stock. Expected availability date will be displayed if known.
  • Discontinued. This product is no longer available.
  • M Mixed Quantity discount available
Description Colour Size Wt(g) Part No. Stock Lvl Unit RRP Pack Qty
MT Supadrive HG, Rr Alloy SB hub, 142x12 Thru/135 QR Cr-Mo axle IS 6 bolt, HG MTB F/hub.Silver32H360HUHASVH2S£189.99Each
MT Supadrive XD, Rr Alloy SB hub, 142x12 Thru/135 QR Cr-Mo axle IS 6 bolt, XD MTB F/hub.
Limited Availability
Silver32H335HUHASVX2S£189.99Each
