RD 6Drive Hub Adapters

Adapter kits to change Halo 6D Road Rear Disc hubs from 130mm OLD to 135mm OLD.

Option A. Use to fit a 135mm Disc frame with standard 130mm spaced cranks.
(Fits most crankset spacings).

  • Select the required Freehub option.
  • Select your choice of suitable disc only or universal rim.

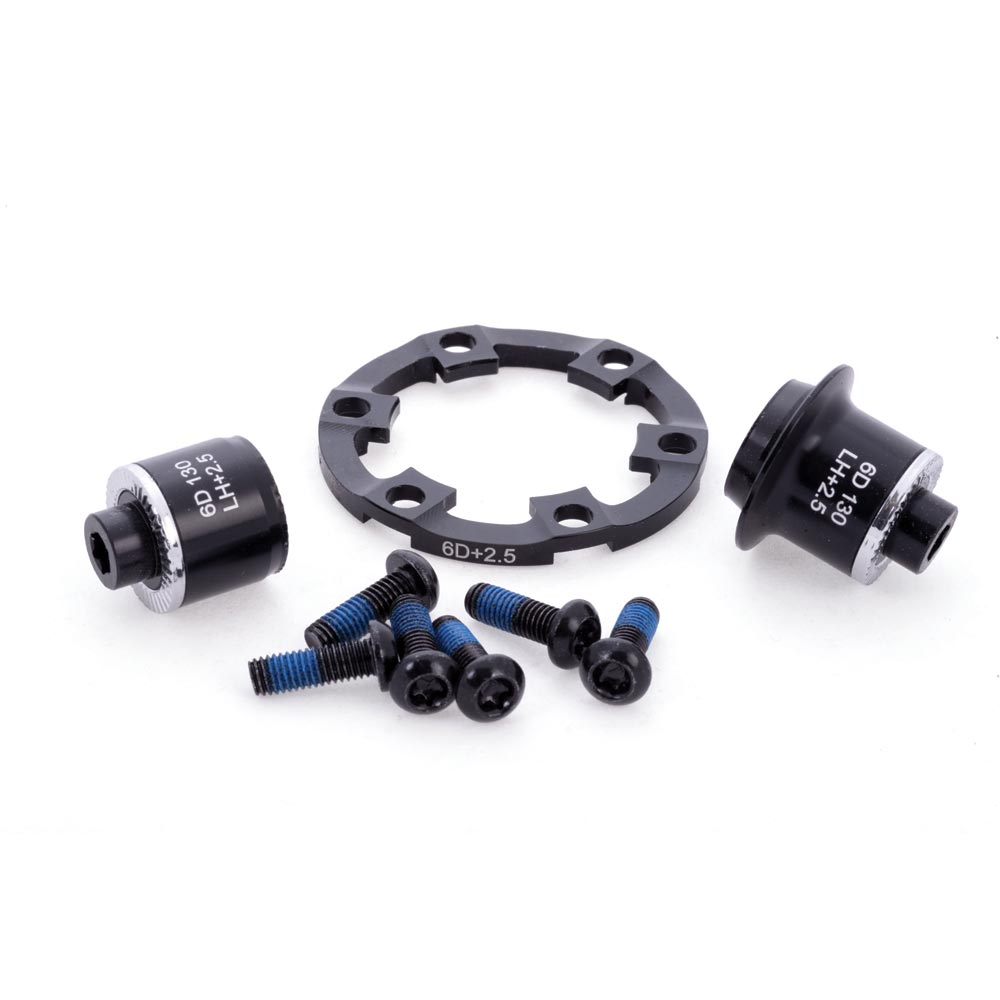

  • Select the +2.5mm symmetrical adaptor kit. (LH 2.5mm and RH 2.5mm cones).

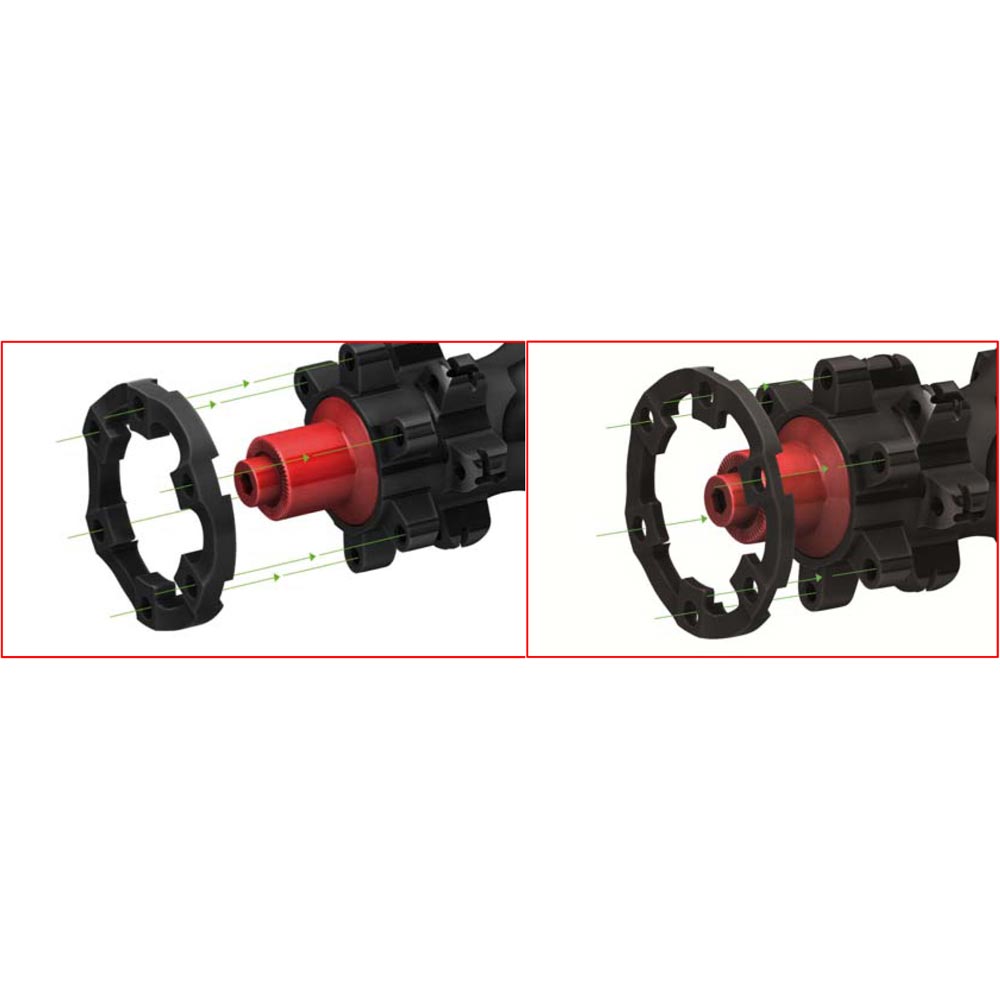

  • Mount the adapter with XL bolts (supplied).
  • Mount an IS disc rotor.

Option B. Use to fit a 135mm Disc frame with 135mm specific spaced cranks.
(Use with SRAM road 135mm cranksets with 2.5mm off-set).

  • Select the required Freehub option.
  • Select your choice of suitable disc only or universal rim.

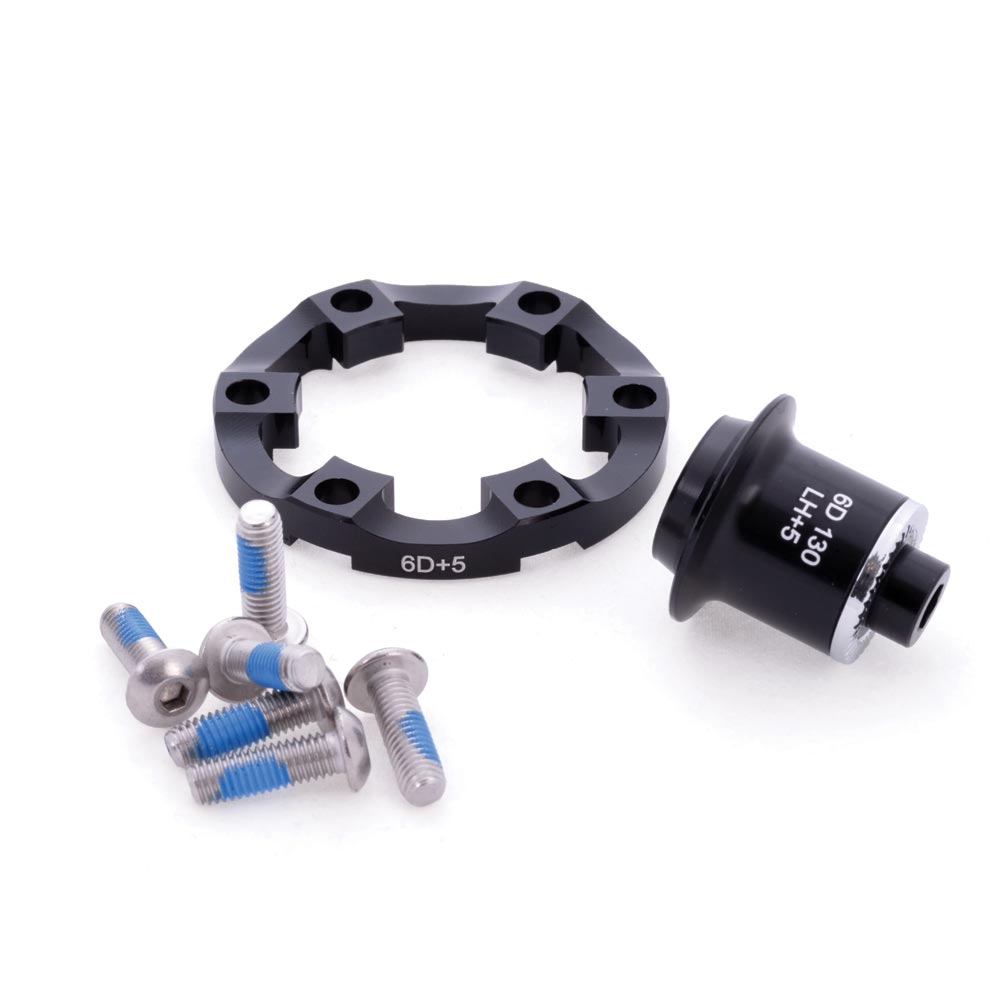

  • Select the +5mm asymmetrical adaptor kit. (LH 1 x 5mm cone, RH use Std cone)*.
  • Mount the adapter with XL bolts (supplied).
  • Mount an IS disc rotor.

Note: : this option requires the wheel to be re-dished 2.5mm towards the non-drive side to ensure more equalised spoke tension


Note:
In some circumstances, if using an MTB specific 10spd cassette in conjunction with a 135mm frame and a 130mm crank set-up (using the 2.5mm symmetric adaptor set) it is possible that you may encounter running difficulties in large sprocket to large chainwheel. This is due to a difference in cassette offset between Shimano MTB and Road 10spd sprockets. Fitting a Road-specific cassette will often solve the issue, or alternatively, switch to the asymmetric +5mm adaptor set and re-dish the wheel.

Halo RD 6Drive Hub Adapters
Halo RD 6Drive Hub Adapters
Click image to enlarge
Information

To find out where to buy  Click Here

Description Colour Size Wt(g) PartNo Stock Lvl RRPPack
Units
RD 6Drive 135 Adaptor, 130-135mm Rear Disc Adaptor kit - 2.5mm Symmetrical Black 2.5mmHUHARDRBA2
£24.99Each
RD 6Drive 135 Adaptor, 130-135mm Rear Disc Adaptor kit - 5mm Asymmetrical Black 5mmHUHARDRBA5 Low Stock£22.50Each
  • Good stock levels
  • Out of stock. Expected availability date will be displayed if known.
  • Discontinued. This product is no longer available.
  • Special Order Please contact us for delivery times.
Description Colour Size Wt(g) PartNo Stock Lvl RRPPack
Units
RD 6Drive 135 Adaptor, 130-135mm Rear Disc Adaptor kit - 2.5mm Symmetrical Black 2.5mmHUHARDRBA2
£24.99Each
RD 6Drive 135 Adaptor, 130-135mm Rear Disc Adaptor kit - 5mm Asymmetrical Black 5mmHUHARDRBA5 Low Stock£22.50Each
