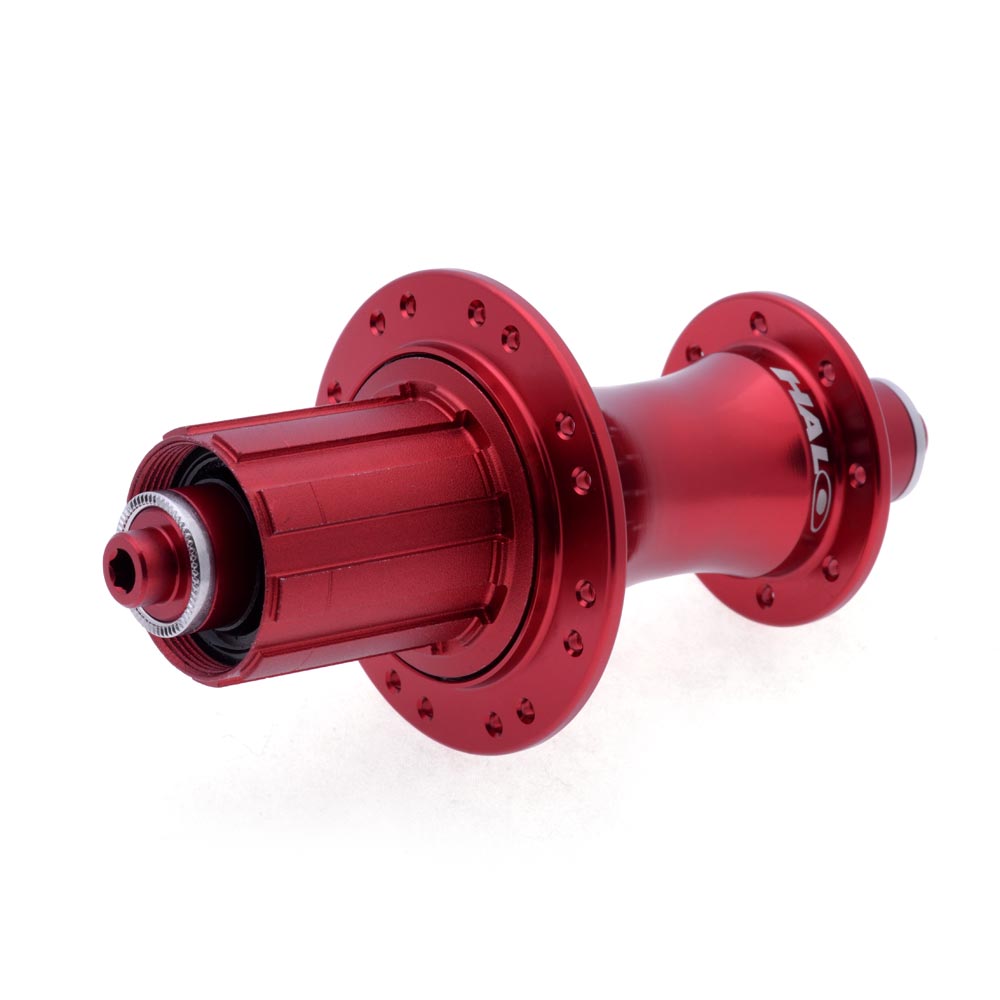

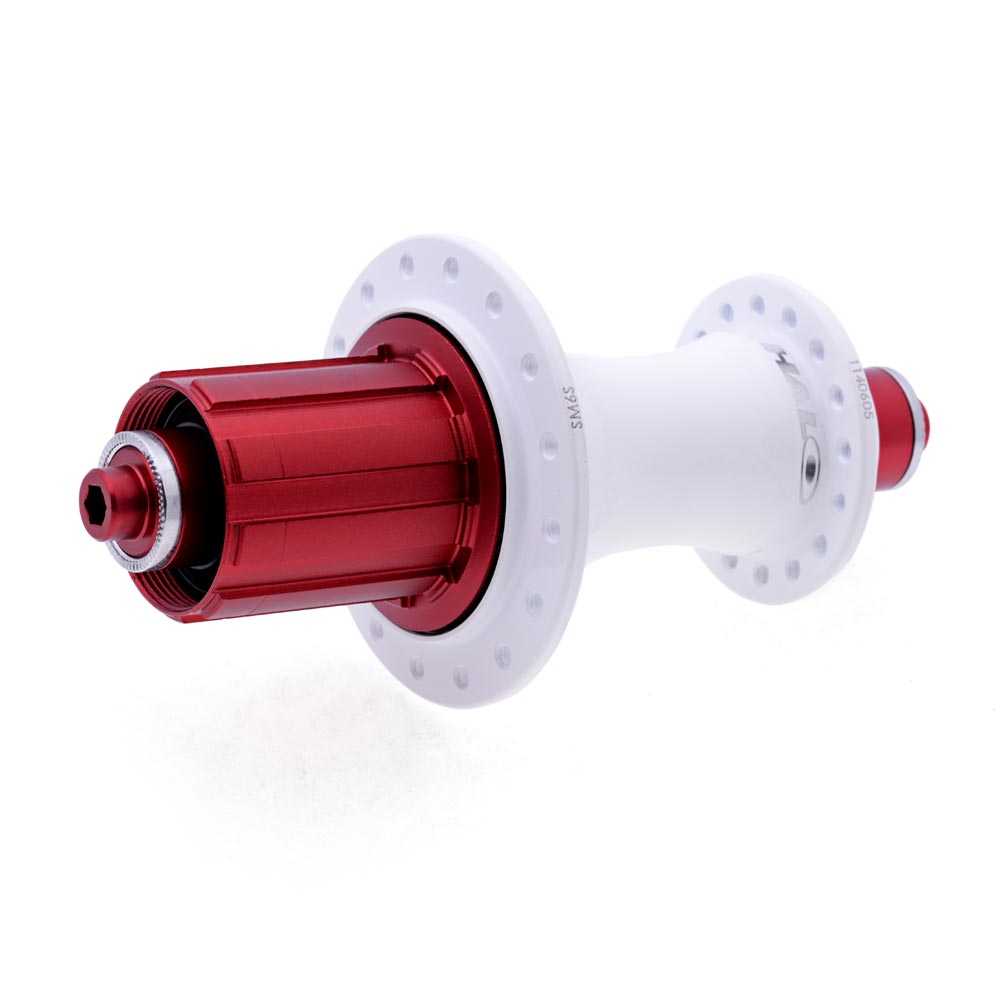

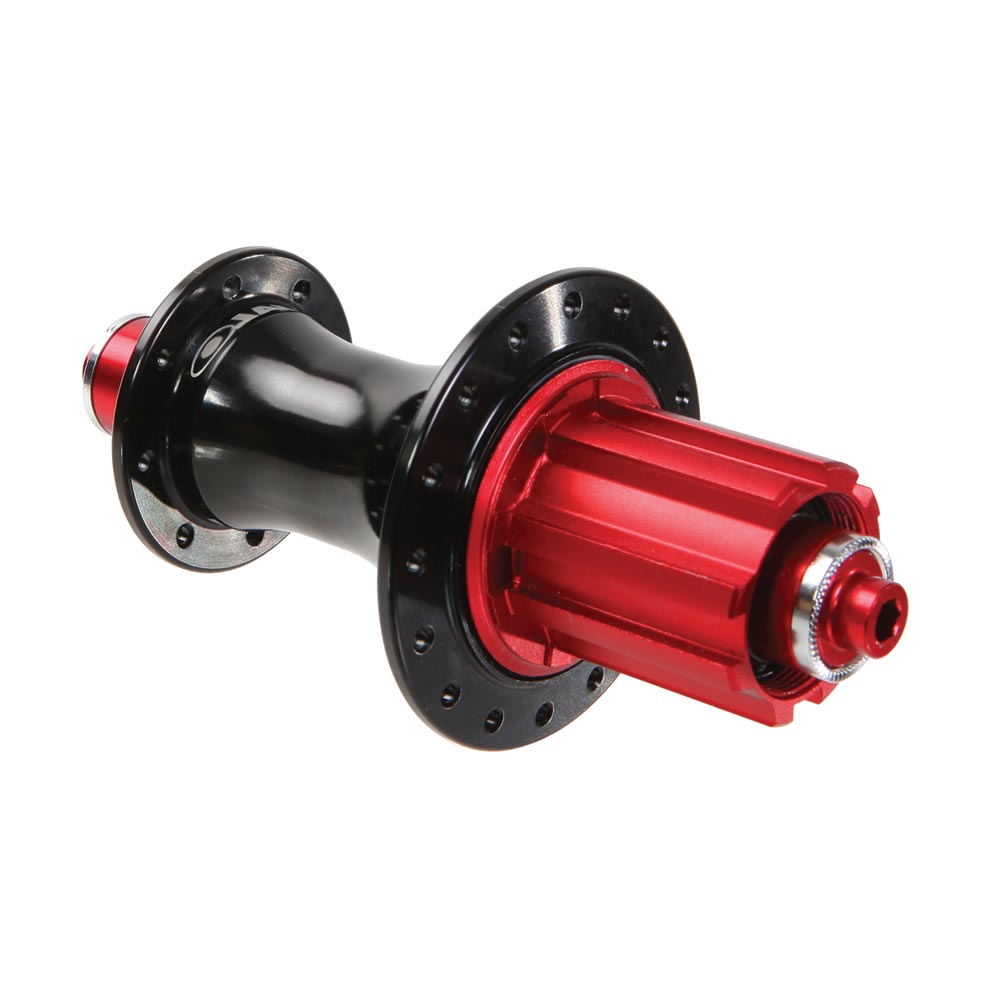

RS 6Drive Hub

The RS series is our go to range for road racing duties.

Engineered to outperform, the RS series are blisteringly fast and offer minimal weights.

Rolling around our 6Drive system, our RS 6Drive hub features six independently sprung twin tipped pawls which engage simultaneously, offering a dependable and quiet engagement.

Lightweight, smooth and fast, the RS 6Drive hub is also reliable.

Formerly called "Spin Master 6D Road Rear Hub"

NOTE - This has now been replaced by the RS2 Supadrive hub - HUHARSR4KH

Specifications

• Material Forged and CNC machined
• Drillings J-Bend, 24H (offset 16/8) or 32H (16/16)
• Axle 15mm alloy tube for 10mm QR
• Spacing 130mm
• Freehub Shimano/SRAM or Campag
• Freehub Body 11 speed, Shimano or Campag
• Drive System 6 Pawl, 30T engagement
• Spoke Hole Circle Diameter (PCD) Left: 40mm, Right: 58mm
• spoke hole size (diameter) 2.5mm
• Centre to Flange Left: 41mm, Right: 15mm
• Bearings 1 x 6902 1 x 15268 (hub) 1 x 6902 1 x 15268 (HG f/hub) or 2 x 15268 (Camp)
• OLD 130mm
• Model Ref SM6S
• Colour Black, Red or White with Red axle caps
