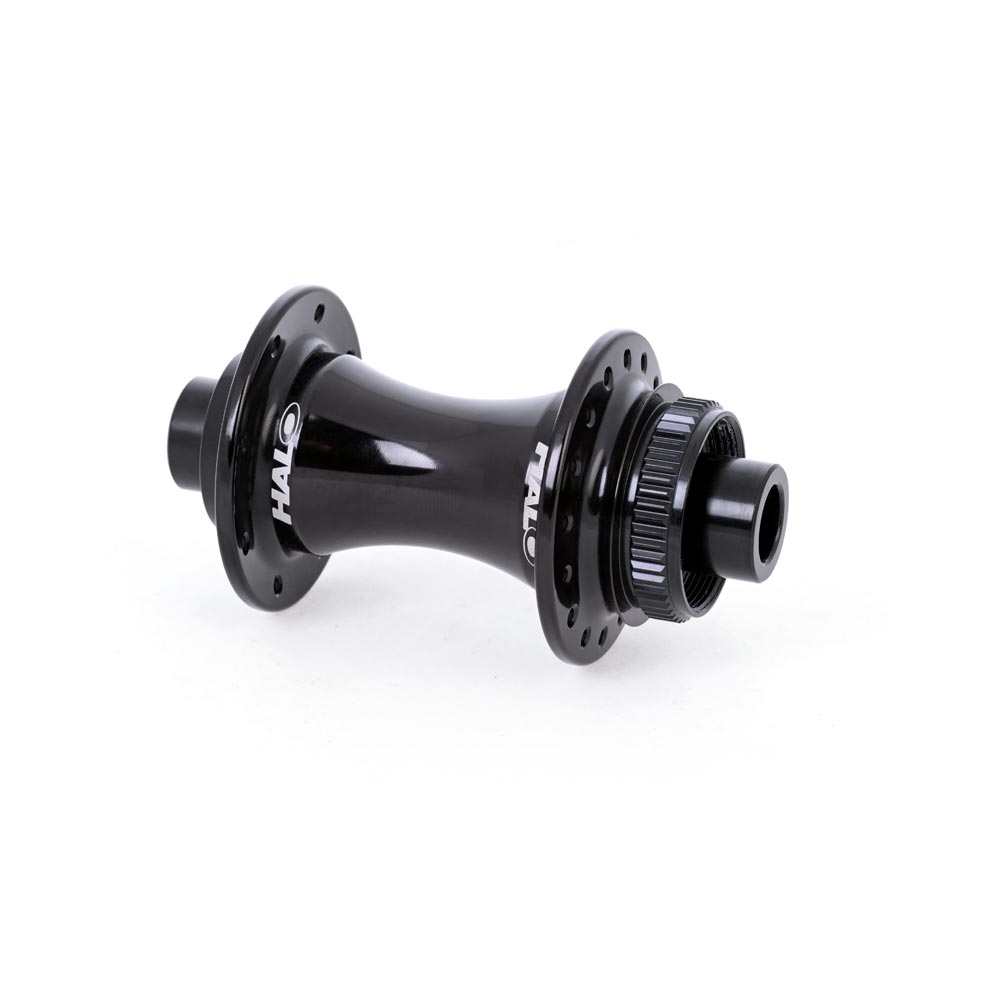

RD2 Front Hub

Halo RD2 series of hubs have been designed ground up for the highest performance road disc brake applications.

Forged alloy shell, with CNC machined finishing ensures high strength and low weight.

Lightweight alloy core-axle and sealed bearings offer smooth, durable performance.

Conventional J-bend spoke compatibility ensures easy maintenance, anywhere.

Constructed with wide spoke flange spacing and unique 16/8E spoke drilling that helps to equalise spoke tension on a 24 spoke wheel - the RD2 Front hub builds into wheels that last

Disc Brake Compatibility

Standard Halo RD2 hub features a Shimano type Centerlock spline rotor fitment.

(Lockring not included, lockrings are usually part of the rotor assembly)

Optional for use with ‘6-BOLT’ IS standard rotors,

please fit the optional extra Halo Centerlock Adaptor. Item#: BDHACLA (includes lockring)

(search for Halo: ‘Centerlock Adaptor’ for more information or see related products)

Rim Compatibility:

The 16/8E drilling configuration offers 16 spokes on the Disc brake side and 8 on the non-brake side to offer dishing force which pulls the rim to centre in the wheel from the spoke count rather than using excess spoke tension difference.

Note: Only suitable for use with specific 16/8E drilled rims.

Fork/Axle Compatibility

The Halo RD2 hub is designed to fit with ‘100mm’ wide forks.

Halo RD2 front features press-in modular end caps (end cones).

Supplied as standard with the more common standard 12mm Thru-axle end caps for use with 12mm road Thru-axles, the RD2 hub can easily be adapted for use with alternative forks.

Standard fitment

100 x 12mm Thru-axle ‘road’ type forks

Closed hole dropouts with a 12mm Thru-axle and 19mm hub recess

With optional extra end caps

• 100 x 15mm Thru-axle ‘road’ type forks:

Closed hole dropouts with a 15mm Thru-axle and 19mm hub recess

Select: Halo end cap Item#: HUHAZGXFA5 – 15/19mm

• 100 x 15mm Thru-axle ‘MTB’ type forks:

Closed hole dropouts with a 15mm Thru-axle and 21mm hub recess

Select: Halo end cap Item#: HUHAZGXFAM – 15/21mm

• 100mm QR type forks:

9mm open slot dropouts that use a 5mm diameter ‘skewer’ rod (QR).

Select: Halo end cap Item#: HUHAZGXFAQ – QR5/9

(search for Halo: ‘GXC, RD2 and MTC Hub End Caps’ for more information or see related products)

Specifications

• Drillings 16/8e
• Spoke Hole Circle Diameter (PCD) 45mm
• Centre to Flange C-L 22mm C-R 32mm
• Bearings 2 x 15267
• Model Ref RD2-F16-8
• Colour Anodised Black
