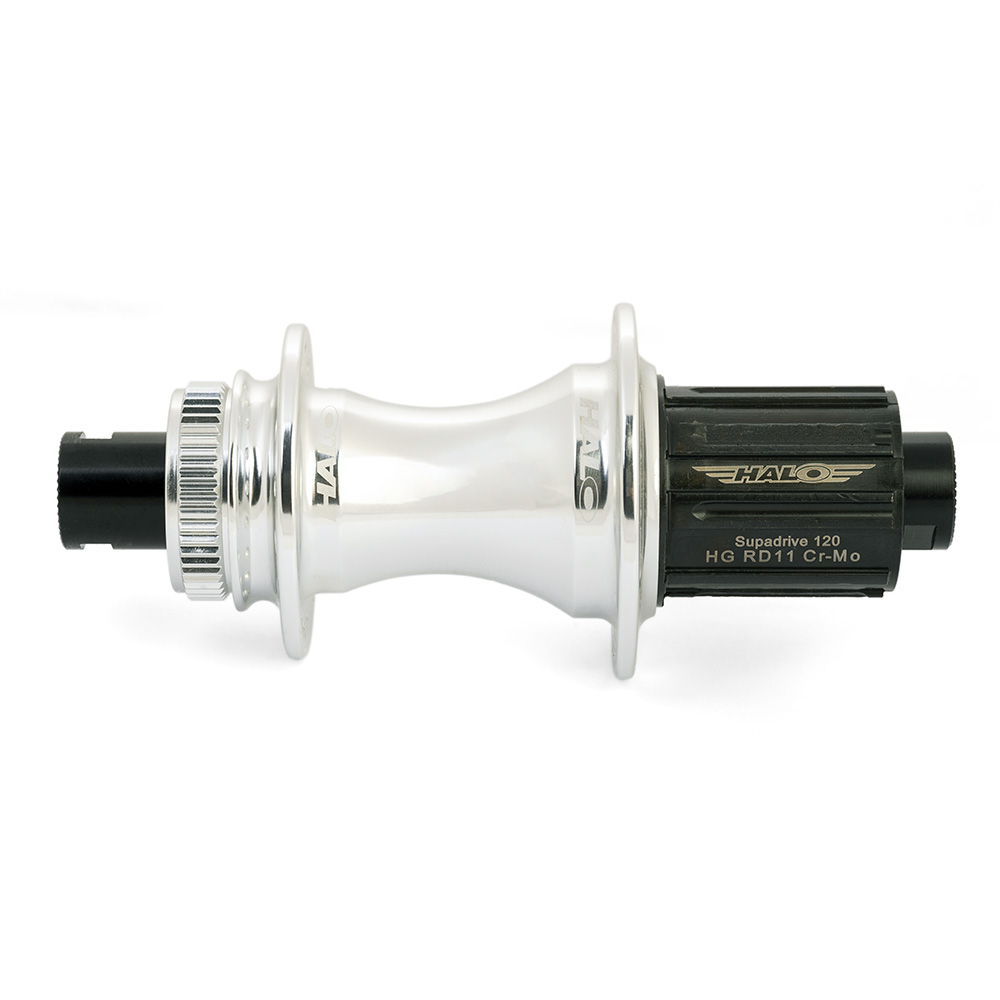

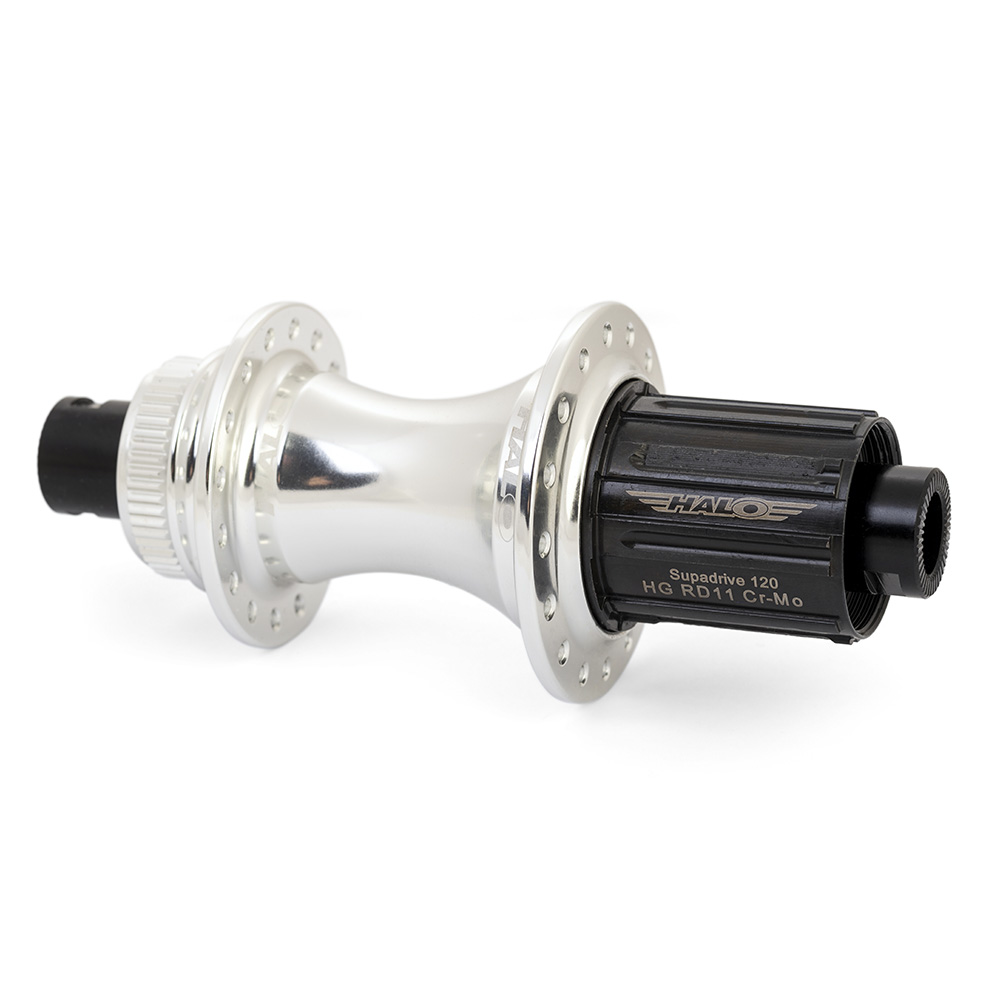

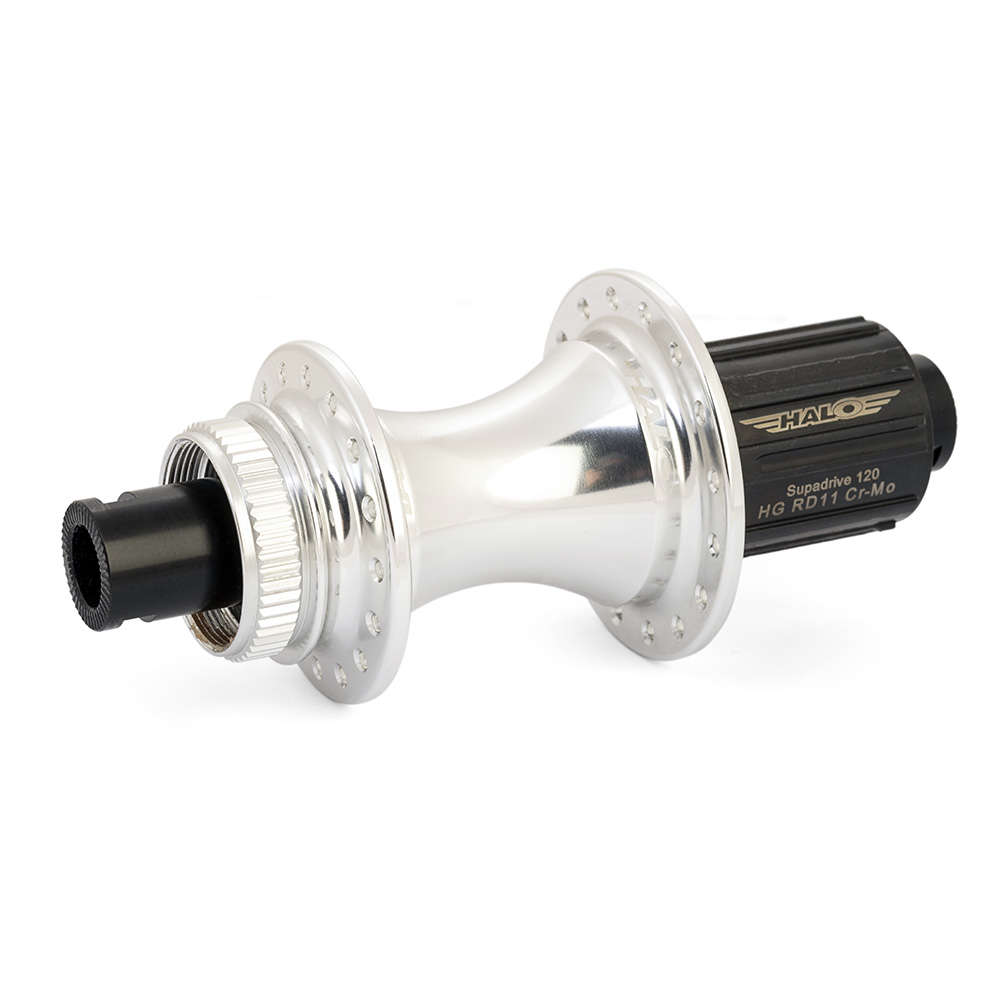

GXC Supadrive Hub - Silver

Our GXC series of hubs have been designed ground up for paved or off road long distance endurance efforts as well as XC racing and riding.

GXC hubs are fast and durable for the long-term.

Supadrive is our most advanced and reliable drive system to date.

Well suited to gravel, endurance road, touring and XC bikes alike, the GXC Supadrive hub offers a 120 point near instant engagement with the ability to withstand substantial torque loads. With multiple World Championship titles across a range of disciplines the Supadrive system is tried and tested to the very highest level.

Wide spoke flanges, sealed cartridge bearings and a Cr-Mo tube axle in the GXC Supadrive hub ensure longevity. Light, fast and designed for use with up to 11 speed road cassettes, the GXC Supadrive hub is at the pinnacle of lightweight performance

Specifications

• Drillings 32H
• Axle 12mm thru - QR available aftermarket
• Disc Mount Centerlock (optional 6 bolt adaptor available aftermarket)
• Freehub Shimano Road 11 HG
• Drive System Supadrive - 120 engagement points (3 degree), 3 wedge pawls
• PCD Left 45mm Right 52mm
• Centre to Flange C-L 33mm C-R 19mm
• Bearings Hub - 2 x 6902. Freehub - HG 2x 6902 - XDR 1x 6802 1x15267 - MS 3x 6802
• OLD (Spacing) 142mm
• Colour Silver
