Voyager V2 Frame

The Voyager frame has steeper 75.25º heat tube, shorter 12.5” slammed chainstay, and a higher 9.25” seat tube height. Also features a very simple straight gauge tubing, hour glass head tube, and 4mm thick laser cut and welded dropouts.

Full 4130 CRMO heat treated tubing, top and bottom gussets for added strength, removable brake mounts, and S chainstays for bigger tyre clearance.

Voyager Team Frame
Top Tube: 20.75″, 21″ and 21.25″
Chainstay: 12.5″ (Slammed)
BB height: 11.7″
Seat Tube height: 9.25″
Head Tube Angle: 75.25°
Seat Tube Angle: 71°
Seat Post: 25.4
Headtube: Integrated (45°X45° Campy Spec)
Brake Mounts: Removable Seatstay Mounts
Dropouts: Heat Treated, 4mm thick. Clears hub guards and pegs of all sizes.

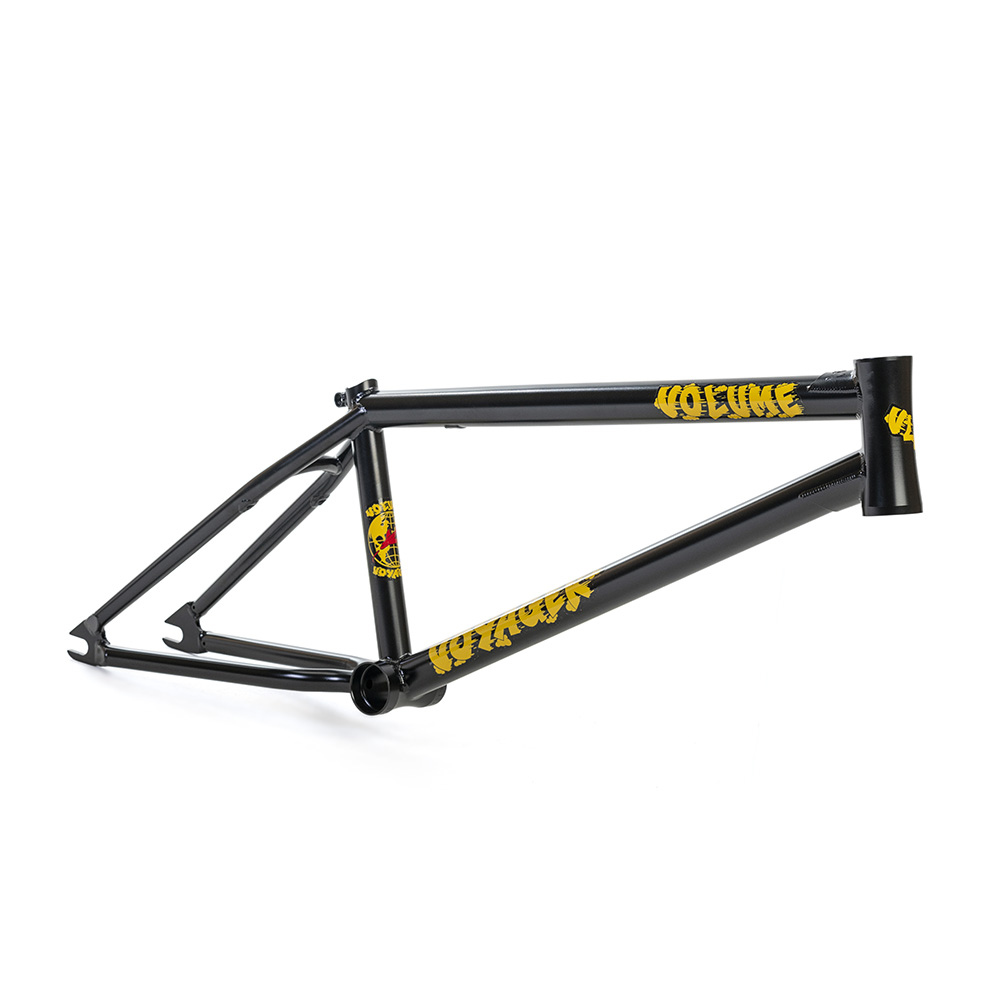

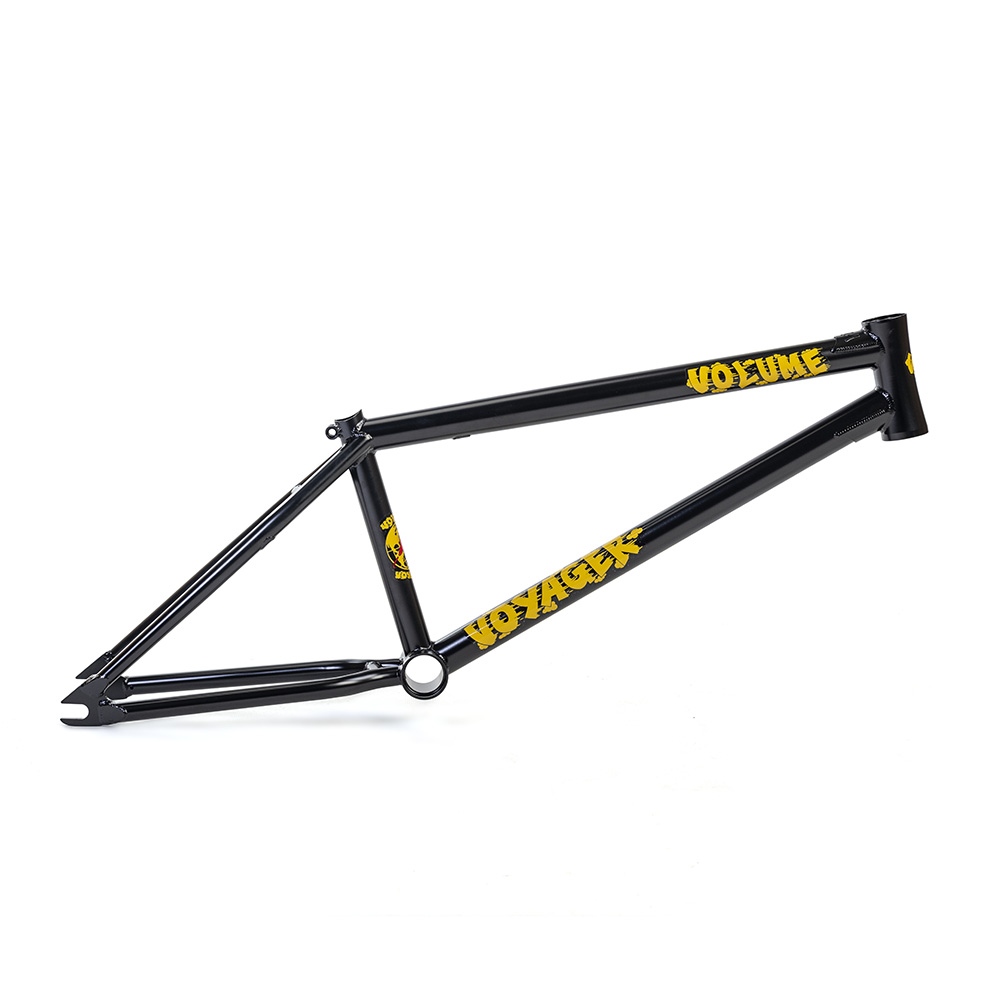

Volume Voyager V2 Frame
*Click image to enlarge*

To find out where to buy Click Here

Description	Colour	Size	Wt(g)	Part No.	Stock Lvl	Unit RRP	Pack Qty
Voyager v2, 21.0" TT, 12.5" Chainstays, 9.25" Seattube, 75.25d Head angle, Integrated chain tensioner Limited Availability	ED Black	21"	2350	FMVLVG23K		£419.99	Each

Good stock levels
Low stock levels, Qtys may not be available
+24h Components are available, add 24/48hrs for assembly
Special Order Currently non-stock item, contact us for info
Out of stock. Expected availability date will be displayed if known.
Discontinued. This product is no longer available.
M Mixed Quantity discount available

Description	Colour	Size	Wt(g)	Part No.	Stock Lvl	Unit RRP	Pack Qty
Voyager v2, 21.0" TT, 12.5" Chainstays, 9.25" Seattube, 75.25d Head angle, Integrated chain tensioner Limited Availability	ED Black	21"	2350	FMVLVG23K		£419.99	Each
