Zig Zag Frameset - Golden Leopard

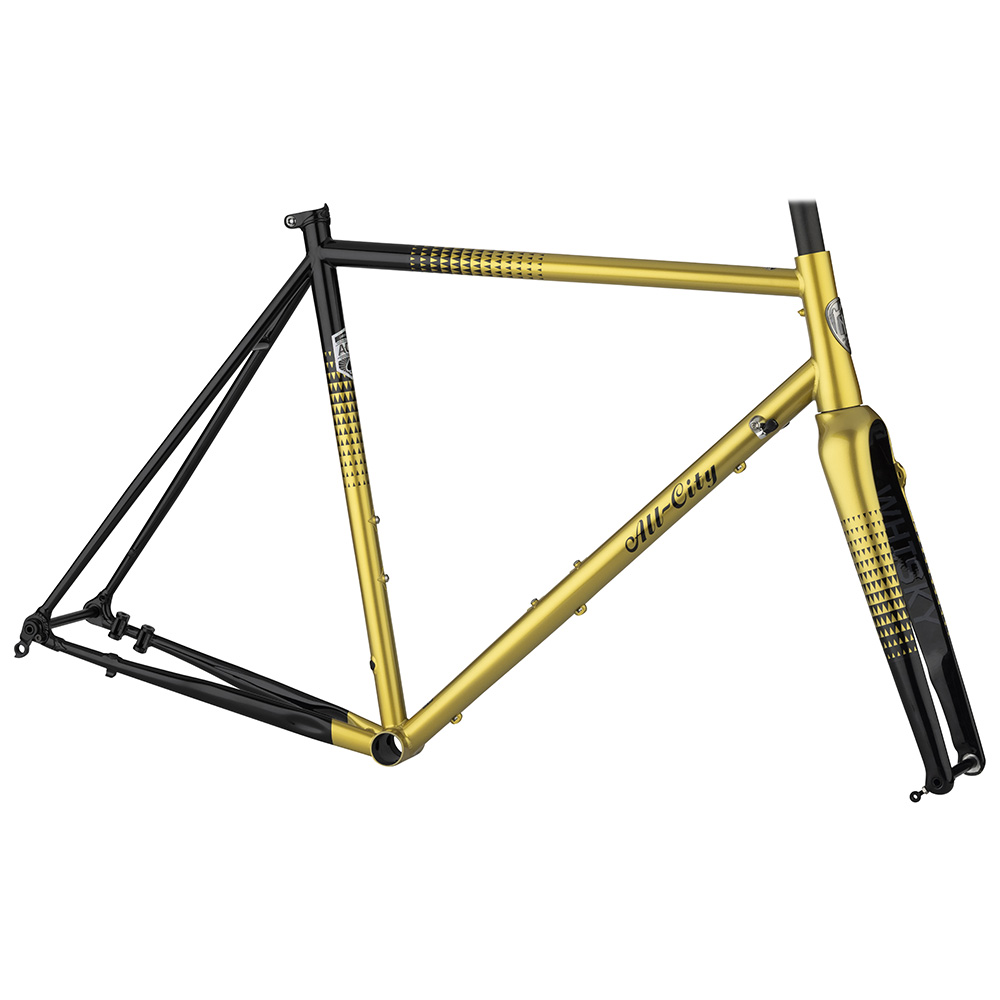

Our answer to what a modern road bike should be, the Zig Zag is a ripping-fast and efficient machine built to help you go farther, faster, and have more fun.

The Zig Zag is designed to keep riders feeling strong from golden-hour sprints to all-day rides that flirt with fading light. It dares you to escape the familiar, take tight turns at full speed, guzzle adrenaline on descents, and chase epic views from the saddle of an elegant, carefully crafted road machine.

Specifications

• Frame Construction All-City A.C.E. Air-Hardened, Custom, Extruded steel
• Fork Construction Whisky No.9 thru-axle, carbon blades, tapered carbon steerer tube, Flat-mount disc brake
• Rear Dropout Replaceable derailleur hanger; '687' (FS2339)
• Rear Hub Spacing 142 x 12mm; thru-axle; Ø12 x 167mm , TP=1.5, TL=12
• Front Hub Spacing 100 x 12mm; thru-axle; Ø12 x 120mm , TP=1.5, TL=12
• Rear Brake Flat mount, 140mm to 160mm
• Front Brake Flat mount, 140mm to 160mm
• Headtube 1 1/8" - 1 1/2" tapered
• Steerer Tube Ø28.6mm
• Crown Race Ø40mm
• Headset Upper (S.H.I.S) EC34
• Headset Lower (S.H.I.S) EC44
• Seat Collar All-City Brazed-on Clamp
• Seatpost 27.2mm
• Front Derailleur 28.6 Band Clamp
• Max Chainring (CL) 1x crankset: max 54t, min 38t, 2x crankset: max 53/39, min: 46/32, 3x crankset: 50/39/30
• Tyre Clearance Frame 700c x 35mm w/o Mudguards; 700c x 32mm w/ Mudguards
• Tyre Clearance Fork 700x35
• Rigid Fork Spec 386mm Axle to Crown; 51mm offset
• Bottle Mounts Frame two mounts, inside front triangle
• Other Features E.D. coated for durability and rust prevention
