15x100mm Thru-axle Hub Conversion Axle

This relatively simple axle kit allows the standard QR type Identiti Rebate fork to work with a 15mmx100mm Thru-axle type front hub.


Features

15x100mm alloy axle installs into most Non-Boost thru-axle front hubs and is tightened using robust 9.5mm (3/8”) diameter Cr-Mo bolts on either end.
Supplied with neat finishing CNC alloy head covers for the bolts.
(Allen key tools not included)

In the event that one of the bolts becomes stubborn and spins the axle instead of releasing the alloy axle features an internal 6mm hex key broach, allowing you to hold the axle with a 2nd Hex (Allen type) key.

Specifications

  • 15x100mm Aluminium Thru-type axle.
  • 6mm Hex key internal broach
  • 8mm Hex Key Cr-Mo bolts with 9.5x30mm threaded shaft.
  • 22mm outer diameter CNC alloy cap.

Safety notice: The 22mm alloy cover will not lock into the Rebate fork’s 22mm safety dropout recess area. This axle must be fitted with standard 21.5mm outer diameter washers that sit inside the lips of the safety dropouts of the forks and prevent accidental release of the wheel.

Do not use this axle without a safety lip or safety washer being in use in event that a bolt loosens.

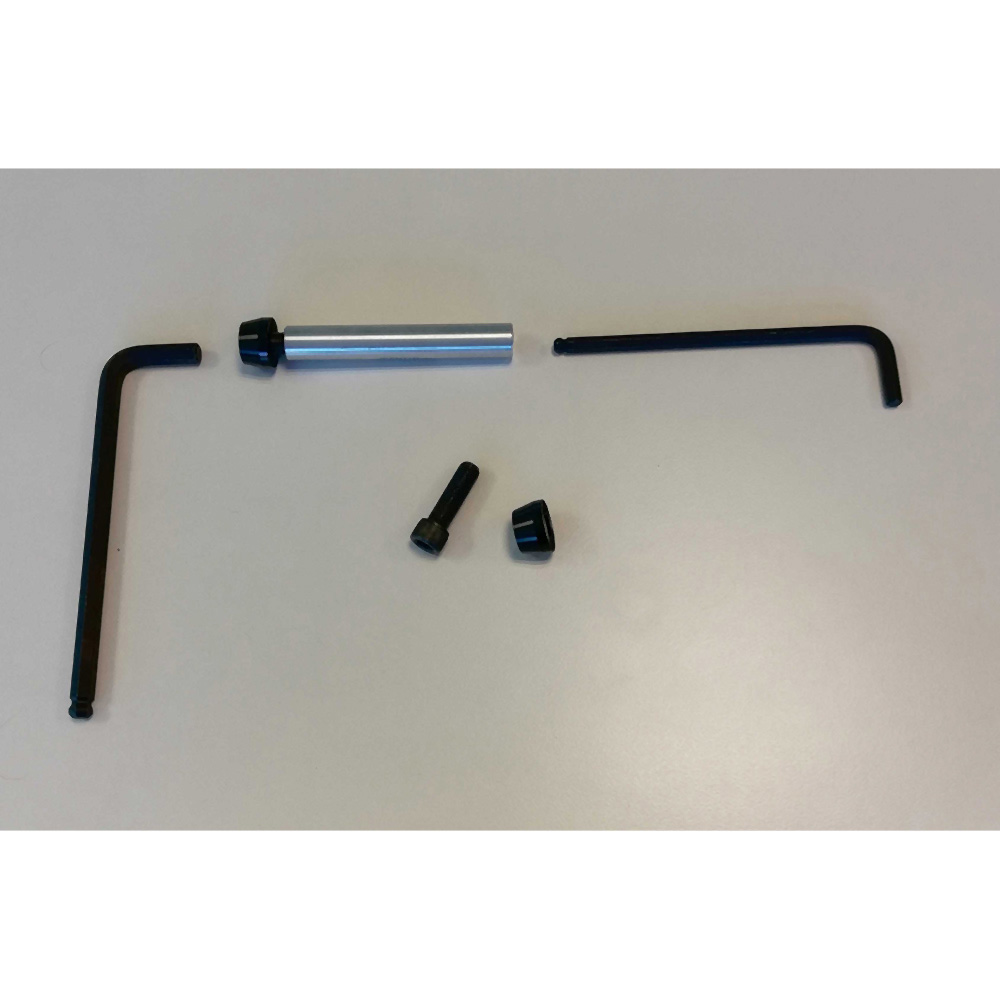

Identiti Rebate 15x100 Axle Kit
Identiti Rebate 15x100 Axle Kit
Click image to enlarge

To find out where to buy  Click Here

Description Colour Size Wt(g) Part No. Stock Lvl RRP Pack Unit
Rebate 15x100 Axle Kit, Bolt-In Axle kit to fit 15mm Thru axle hubs into QR Rebate forksBlack15x100mm91FKITRA15£27.99Each
  • Good stock levels
  • Low stock levels, Qtys may not be available
  • +24h Components are available, add 24/48hrs for assembly
  • Special Order Currently non-stock item, contact us for info
  • Out of stock. Expected availability date will be displayed if known.
  • Discontinued. This product is no longer available.
  • M Mixed Quantity discount available
Description Colour Size Wt(g) Part No. Stock Lvl RRP Pack Unit
Rebate 15x100 Axle Kit, Bolt-In Axle kit to fit 15mm Thru axle hubs into QR Rebate forksBlack15x100mm91FKITRA15£27.99Each
