FFX-45 Disc 700C Fixie Fork

A Disc variation on our original hardcore Fixie fork in strong and lightweight heat-treated Cr-Mo steel.

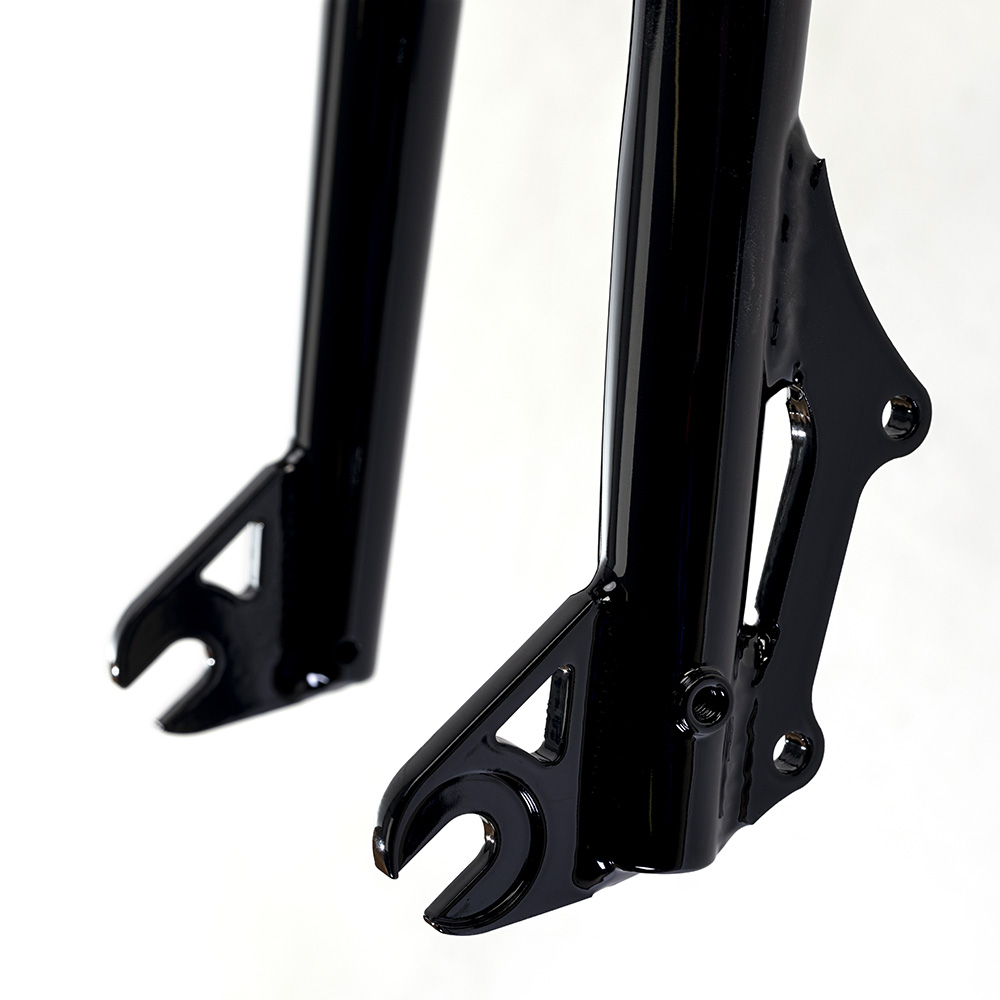

True tracking single butted and tapered straight legs with BMX style CNC machined tig welded dropouts.

Includes 'hidden' mid-blade, and outside lower leg, M6 threaded inserts for fitting mudguards, racks and other accessories (or not).

ED coated (inside & out) for corrosion resistance before gloss paint is applied.

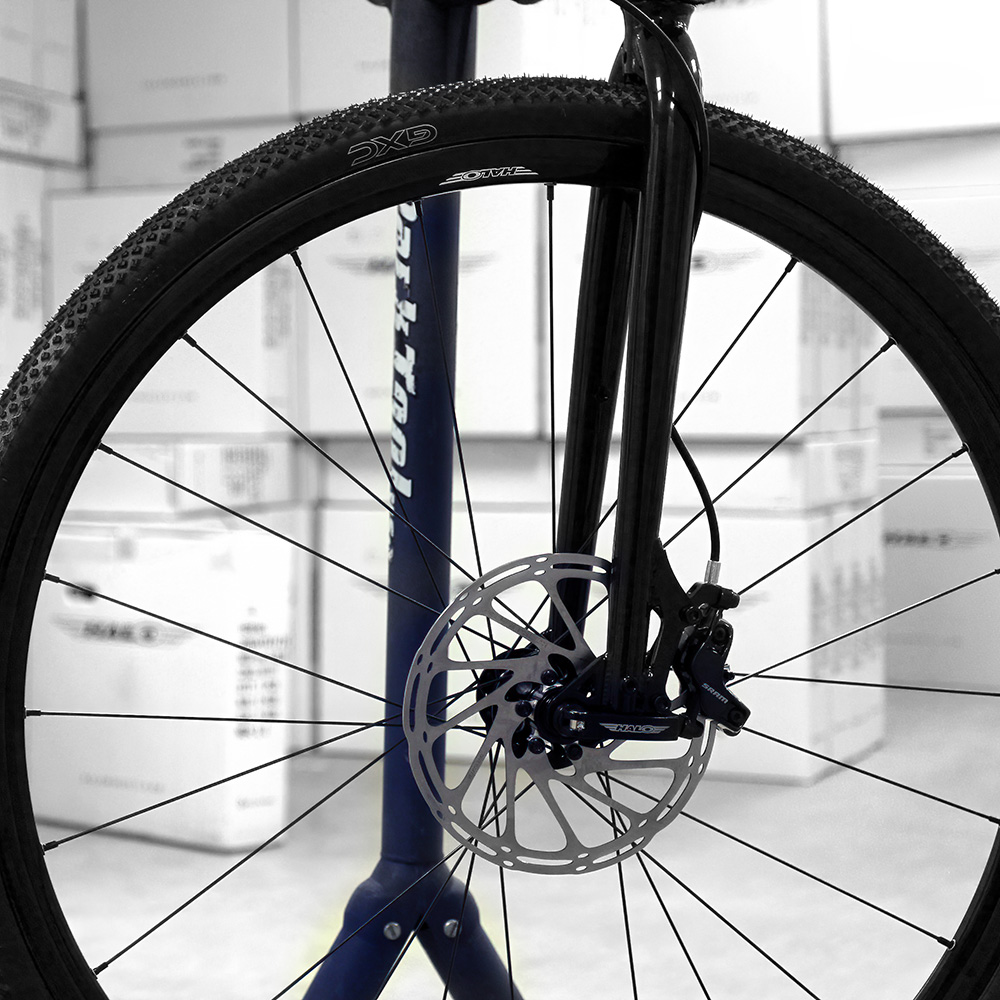

Can be used with either a recessed bolt type rim brake caliper or an IS Disc brake to keep you legal on the street

Rim brake requires a 43-57mm drop recessed bolt type caliper.

Non-disc brake version also available

Specifications

  • Axle to Crown Measurement 393mm
  • Steerer Straight 1 1/8th x 280mm
  • Brake Mount IS standard disc or recessed bolt type caliper
  • Rake 45mm
  • Dropouts 100 x 9mm slotted with safety lip (for QR type hub or nutted 9mm track hub)
  • Max Rotor Size 180mm
  • Tyre Clearance 700 x 42 or 650 x 47
  • Colour ED finish under high gloss black paint
Identiti

Click image to enlarge

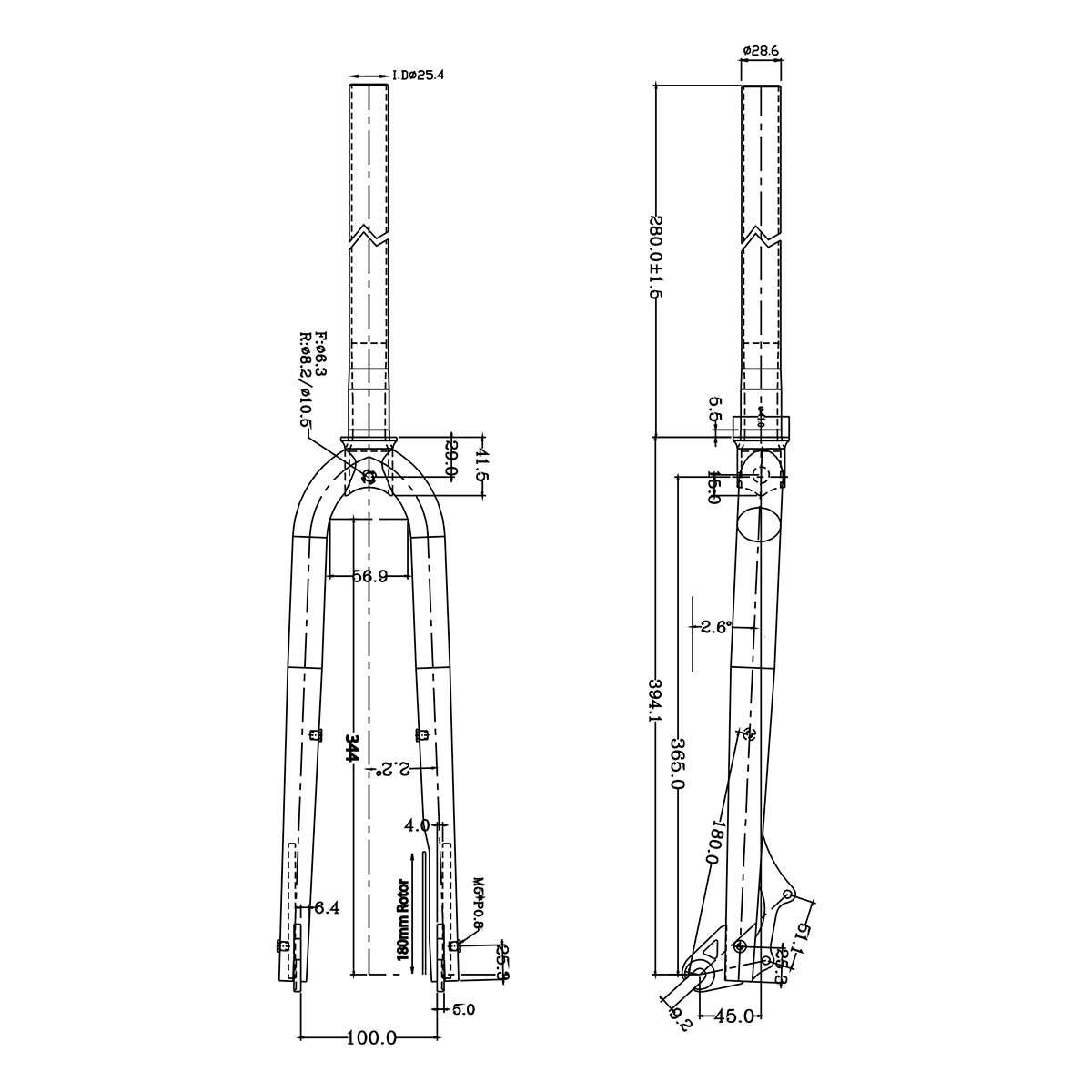

image of Identiti FFX-45 Disc 700C Fixie Fork image of Identiti FFX-45 Disc 700C Fixie Fork image of FFX-45 Disc 700C Fixie Fork disc mount image of Identiti FFX-45 Disc 700C Fixie Fork Dimensions image of FFX-45 Disc 700C Fixie Fork
Identiti FFX-45 Disc 700C Fixie Fork
Information

To find out where to buy  Click Here

Description Colour Size Wt(g) Part No. Stock Lvl Unit RRP Pack Qty
FFX-D 700c Fork, Fixie Disc - Cr-Mo,9mm D/Outs,45mm Rake, A-C 393mm 280mm steerer.Black11/8"1190FKITFD74K£129.99Each
  • Good stock levels
  • Low stock levels, Qtys may not be available
  • +24h Components are available, add 24/48hrs for assembly
  • Special Order Currently non-stock item, contact us for info
  • Out of stock. Expected availability date will be displayed if known.
  • Discontinued. This product is no longer available.
  • M Mixed Quantity discount available
Description Colour Size Wt(g) Part No. Stock Lvl Unit RRP Pack Qty
FFX-D 700c Fork, Fixie Disc - Cr-Mo,9mm D/Outs,45mm Rake, A-C 393mm 280mm steerer.Black11/8"1190FKITFD74K£129.99Each
