Five Square Taper Crankset

Featuring a JIS square taper standard, oversized bottom bracket interface, which showcases a step-down shape specific to the crank arm-length meeting at the pedal boss.

Unlike alternative options, no two lengths are the same. These durable cold-forged cranksets are available in sizes from 135mm through 170mm and employ a 5-bolt 110 BCD chainring pattern.

All JIS square taper standard cranks are compatible with all BSA European-style square taper bottom brackets



SPECIFICATIONS:

  • Material: Cold-Forged & CNC 6061-T6 Aluminium
  • Finish: Anodized w/Laser-Etched Graphics
  • Chainline: 44.5mm
  • Q Factor: 168mm
  • Torque Specs: 12-14 Nm
  • Spindle: JIS Square Taper
  • Chainring: 5 Bolt 110 BCD
  • Available in 5 sizes from 135mm to 155mm

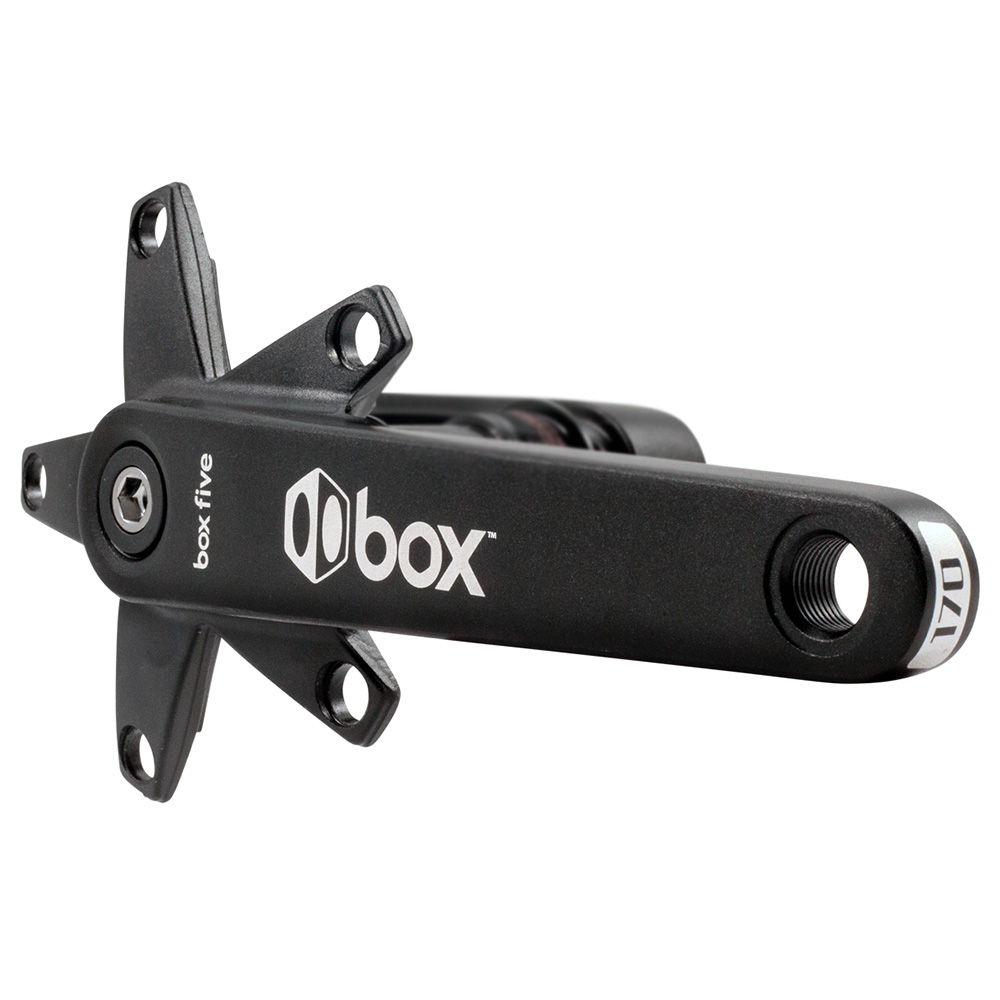

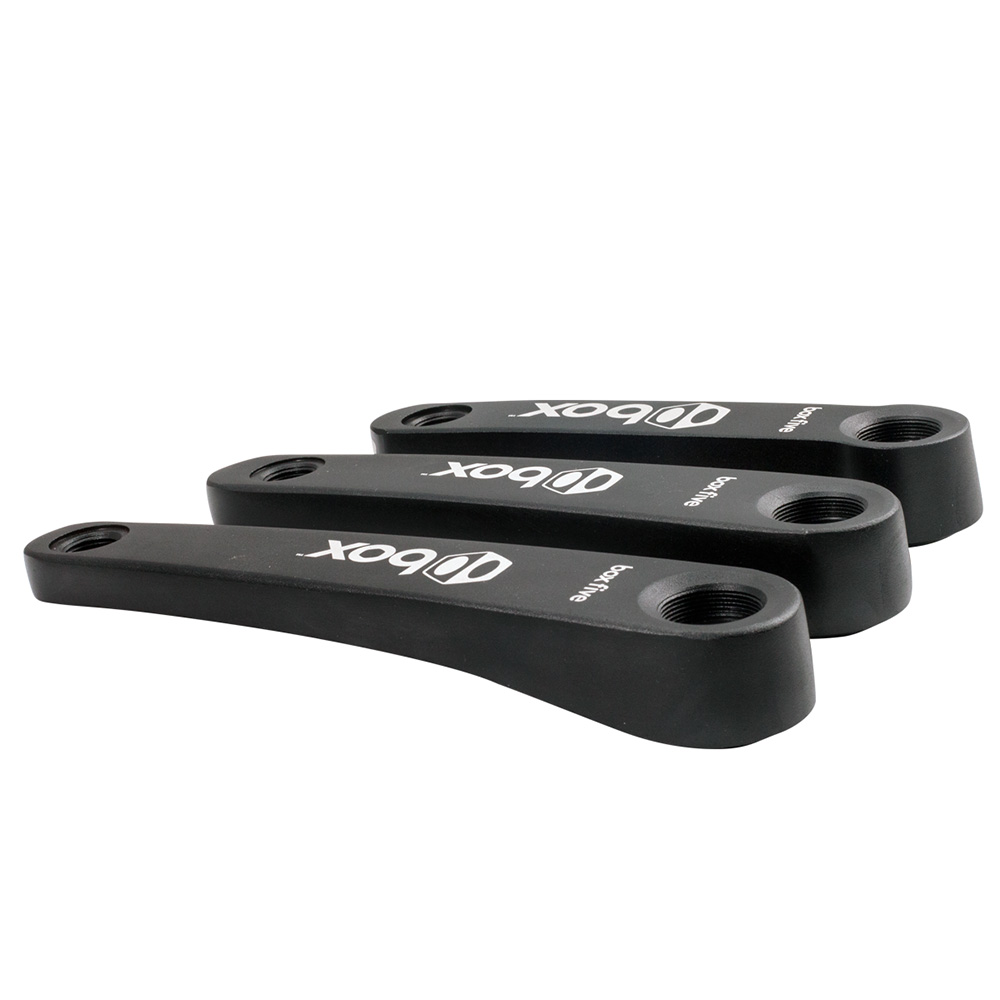

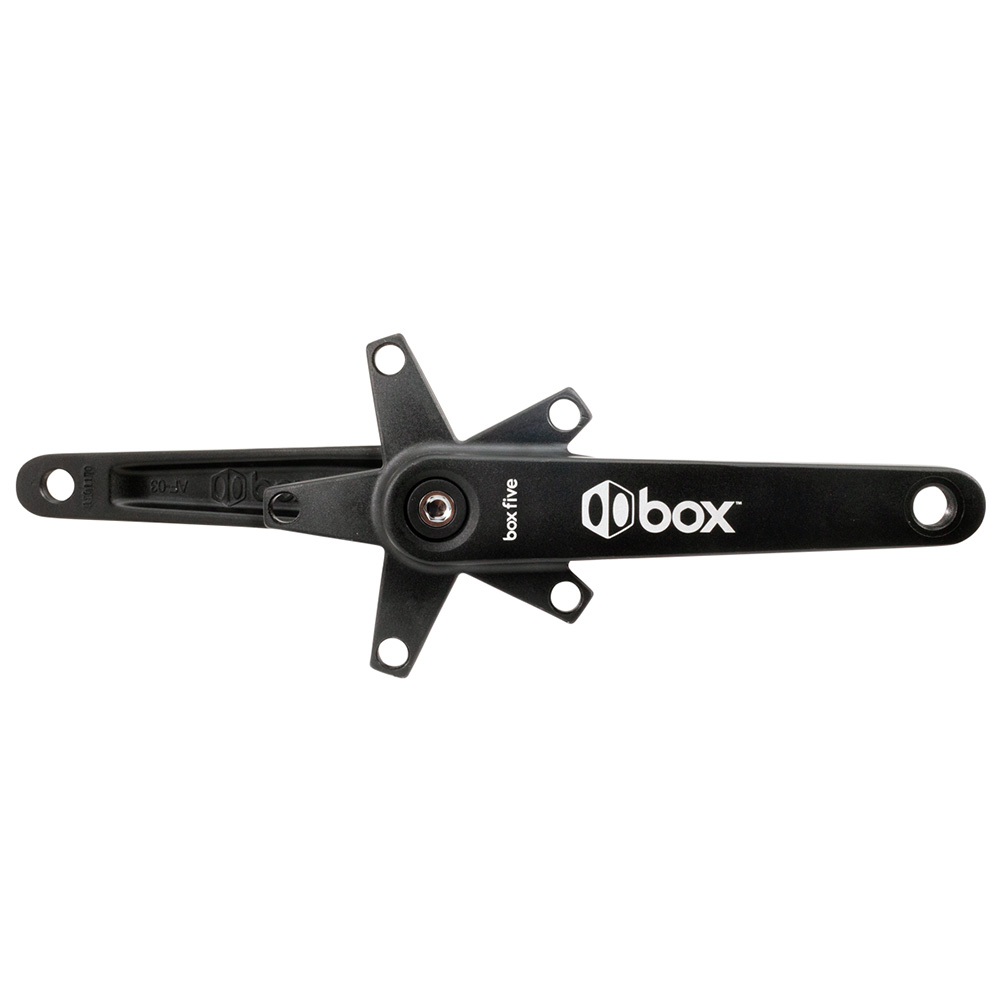

Box Five Square Taper Crankset
Box Five Square Taper Crankset
Click image to enlarge

To find out where to buy  Click Here

Description Colour Size Wt(g) Part No. Stock Lvl Unit RRP Pack Qty
FIVE Square Taper Cranks, 110BCD, 5-Bolt, Cold Forged 6061-T6 Alloy, BB NOT Included (Requires Sq Taper 108/113 BB)Black135mm480CKBX5SQAK£69.99Each
FIVE Square Taper Cranks, 110BCD, 5-Bolt, Cold Forged 6061-T6 Alloy, BB NOT Included (Requires Sq Taper 108/113 BB)Black140mm480CKBX5SQBK£69.99Each
FIVE Square Taper Cranks, 110BCD, 5-Bolt, Cold Forged 6061-T6 Alloy, BB NOT Included (Requires Sq Taper 108/113 BB)Black145mm490CKBX5SQCK
ETA: September 2024
£69.99Each
FIVE Square Taper Cranks, 110BCD, 5-Bolt, Cold Forged 6061-T6 Alloy, BB NOT Included (Requires Sq Taper 108/113 BB)Black150mm520CKBX5SQDK£69.99Each
FIVE Square Taper Cranks, 110BCD, 5-Bolt, Cold Forged 6061-T6 Alloy, BB NOT Included (Requires Sq Taper 108/113 BB)Black155mm520CKBX5SQEK
Low Stock.
£69.99Each
  • Good stock levels
  • Low stock levels, Qtys may not be available
  • +24h Components are available, add 24/48hrs for assembly
  • Special Order Currently non-stock item, contact us for info
  • Out of stock. Expected availability date will be displayed if known.
  • Discontinued. This product is no longer available.
  • M Mixed Quantity discount available
