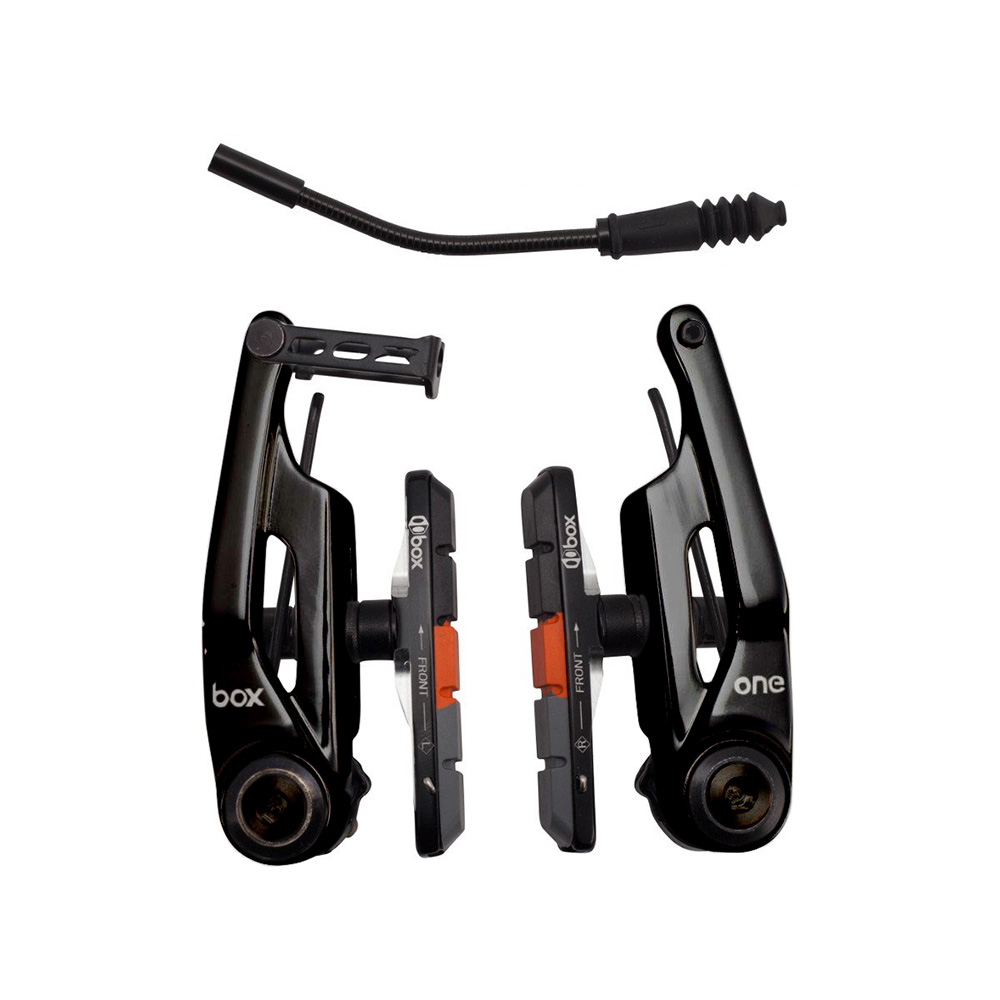

Box One Oversized V-Brake 85mm

The Box One V-Brake are the only brakes in the Box line-up to be blessed with Oversized Technology. They are also the only model to use sealed precision bearings to further reduce non-rotational movement. The 108mm long-reach brakes are excellent for BMX, mountain, city, urban and tandem bicycles using linear-pull-compatible levers. The 85-mm short-reach (mini-V) brakes are also an excellent choice for cyclocross or drop-bar gravel bikes.

Box has limited the use of our Oversized Technology to the V area since the levers need to be minimalist and largely act as a remote for the V-Brakes. To reduce lateral deflection at the V we chose to enlarge the pivot areas and arms while tightening tolerances at their interfaces. Box have robbed material from unloaded sections to reinforce these zones of high stress. Not only are you going to be more efficient with brake power delivery, but you’ll also feel the instant response of deceleration.

Features

• Oversized Technology™
• Precision Sealed Bearing Pivots
• Titanium And Stainless Steel Hardware
• Allen Key Tensions Bolt
• Flexible Cable Noodle
• Streamlined Cable Fixing Point
• Cold Forged Arm
• 85mm Arm for tyres under 1 x 1/8"
• 108 mm Arm for tyres over 1 x 1/8" tyres
• 35 mm Of Vertical Brake Pad Adjustment
• Designed in USA/Made in Taiwan

Specifications

• Material: 6061-T6 Aluminium
• Hardware: Titanium
• Finish: Anodised w/Laser-Etched Graphics
• Weight: 85mm:189g/6.7oz
• Weight: 108mm:198g/7oz
