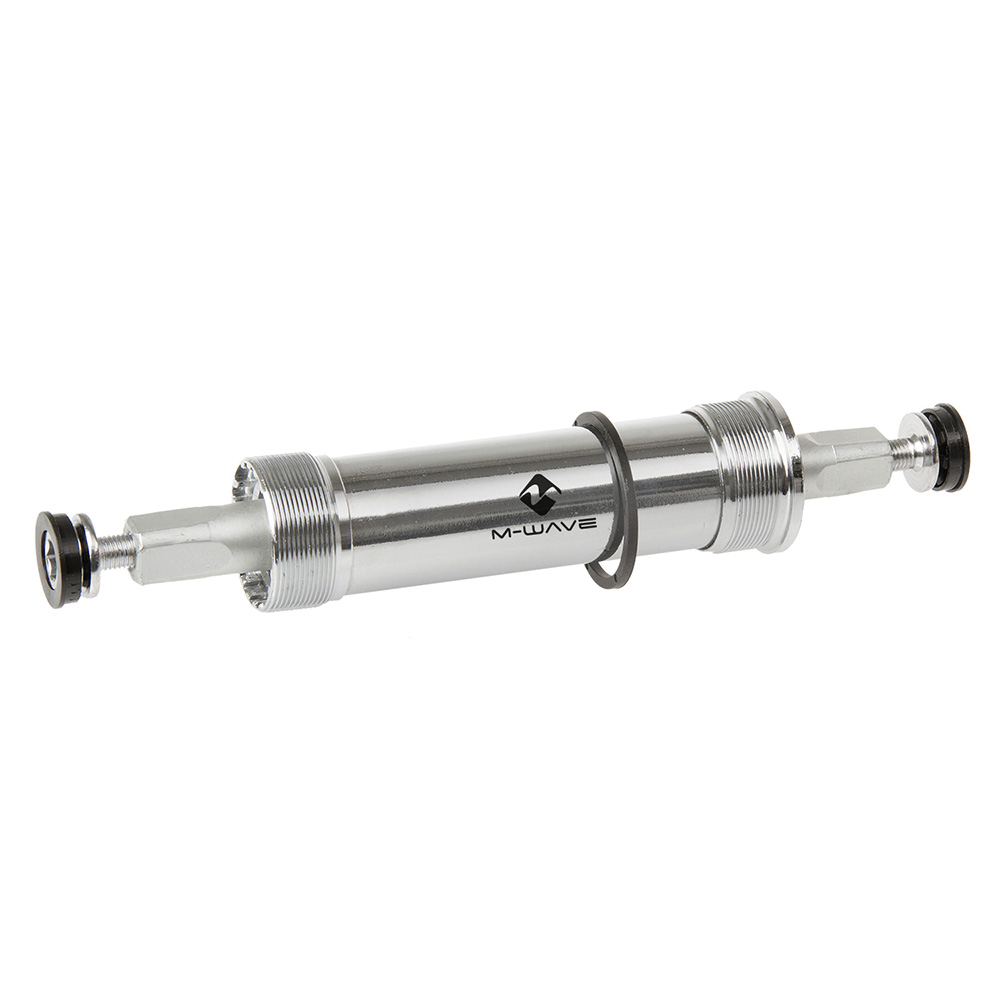

Fat Bike Square Taper Bottom Bracket
XL wide FAT bike cartridge BB for use with JIS Square taper crank arms.
Reliable steel cup cartridge sealed bearing BB with XL long Boron steel axle and crank bolts.
2 BB shell width options: 100mm and 120mm
Specifications
- BB Cups: Steel Cups with UN type spline tool fitting.
- BB type: BSA (English) 1.37”x24Tpi threaded.
- Bearings: Sealed Cartridge
- Axle: JIS Square Taper axle, Boron steel.
- Colour: Silver

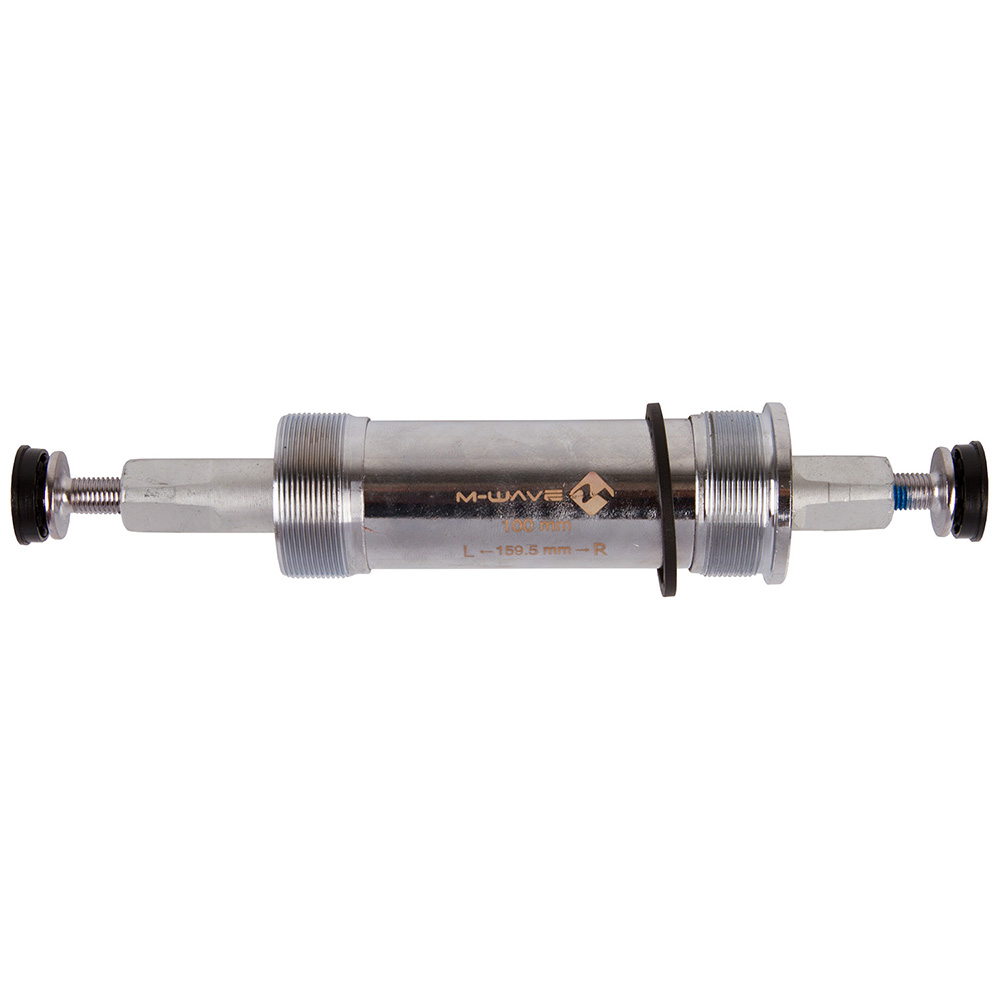

Size 100mm (BBMWF100)
- BB shell Width: 100mm.
- Axle: Overall Length 159.5mm
- Axle cup to R/H end: 25.2mm
- Weight (approx.) 480g

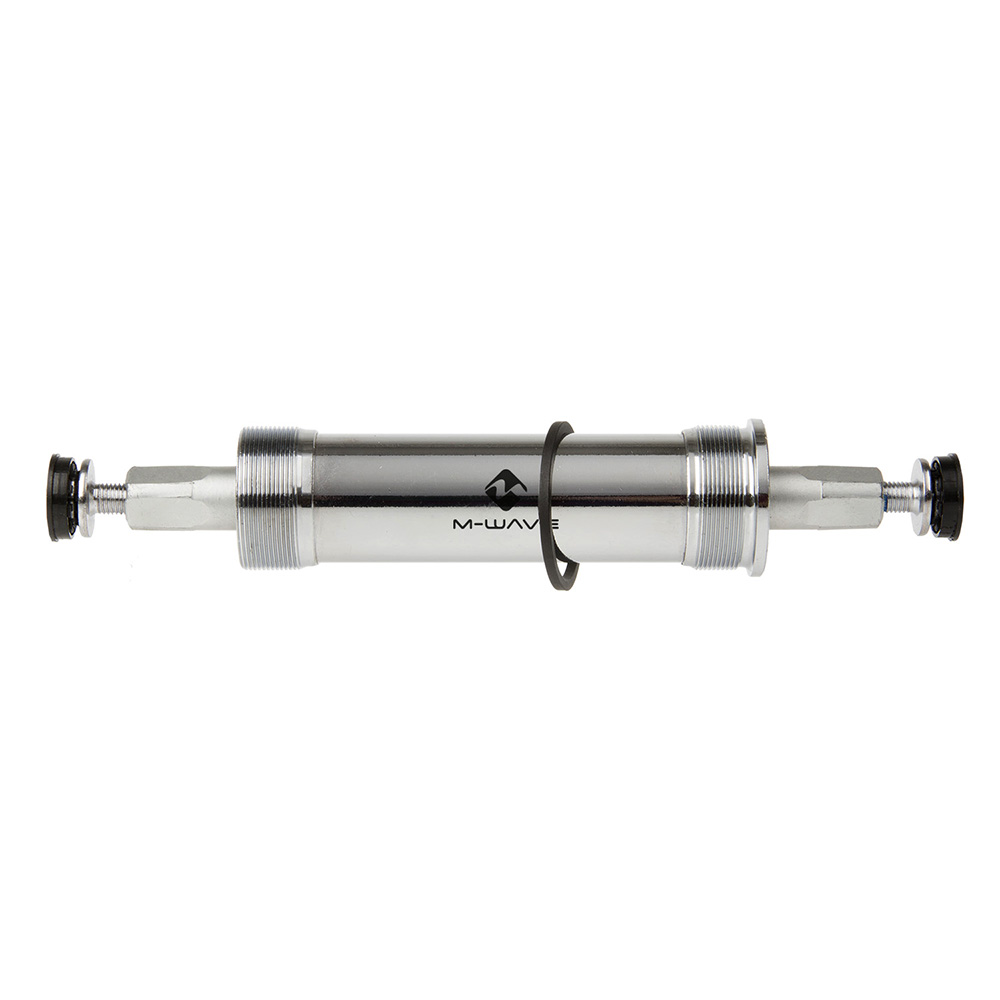

Size 120mm (BBMWF120)
- BB shell Width: 120mm.
- Axle: Overall length 179.5mm
- Axle cup to R/H end: 28.7 (or 31.2mm with 2.5mm BB spacer inc.)
- Weight (approx.) 500g
