Box Two Oversized 30mm Bottom Bracket

Several of the upper-tier Box bottom brackets were engineered using Box Oversized Technology. These were developed in concert with the crank sets. We all know that there is no use pushing hard on your pedals if you can’t deliver most of that power to the rear wheel. During the creation of our bottom brackets, Box were obsessed with Power delivery/pedalling stiffness. To reduce lateral deflection, we chose to oversize the bottom bracket and therefore subsequently enlarged the spindle and the crank arm’s interfaces. This made room for larger bearing rings contributing to a vast increase in contact area. Box removed material from unloaded sections to reinforce the zones of high stress. Not only are you going to be more efficient with power delivery, but you’ll also feel the instant response of acceleration. Seen through another lens, less energy will be required to achieve the same elapsed time.

Key differences: The Box Two M30 bottom bracket is a slightly less acute embodiment of our Oversized technology seen in the M35. Generously sized ABEC-5 bearings help reduce power loss to defection. The larger 30mm cross section is designed to mate up with the rest of the M30 line of Oversized cranksets.

Specifications

  • Material Forged & CNC-machined alloy cups, ABS Plastic sleeve
  • Bearings Abec-5 Sealed Bearings
  • Fitting BSA (Euro) Threaded, 68mm/73mm shell width
  • Compatibility Box/Praxis™ M30 only
  • Finish Hard Anodised
  • Colour Black

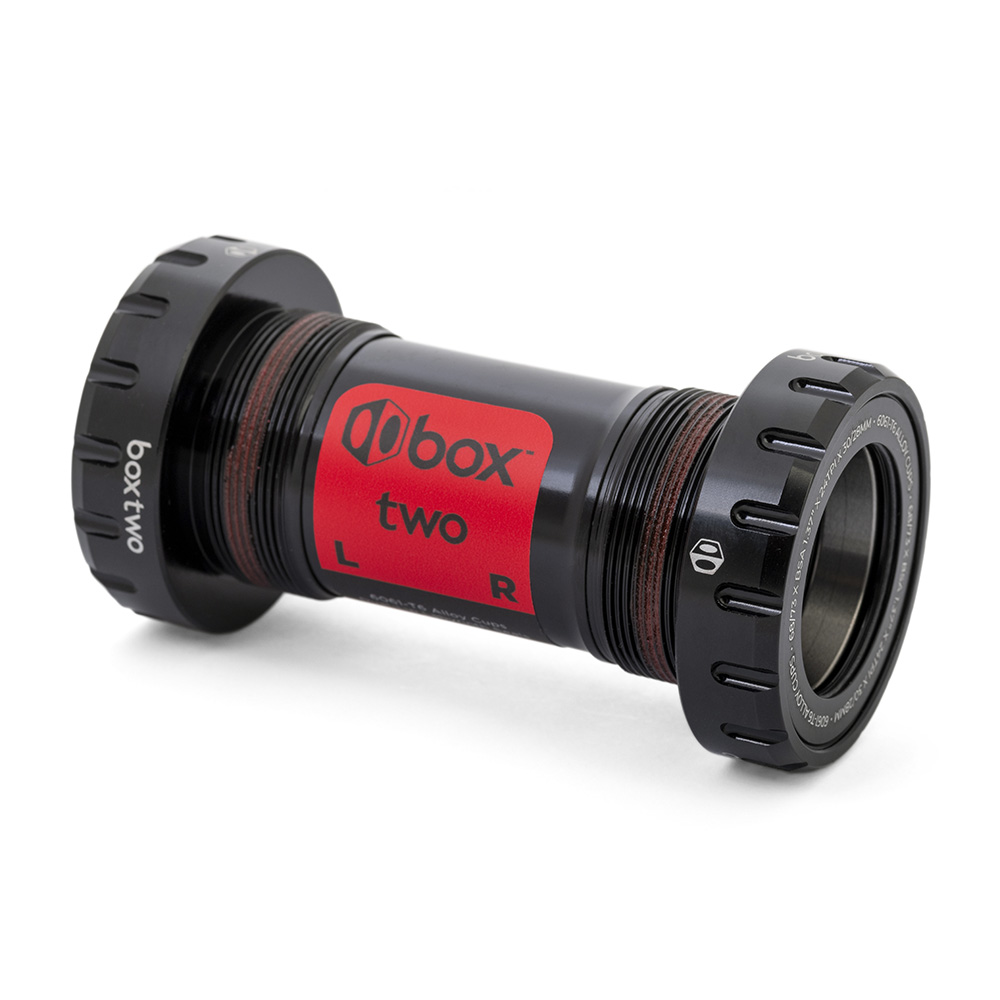

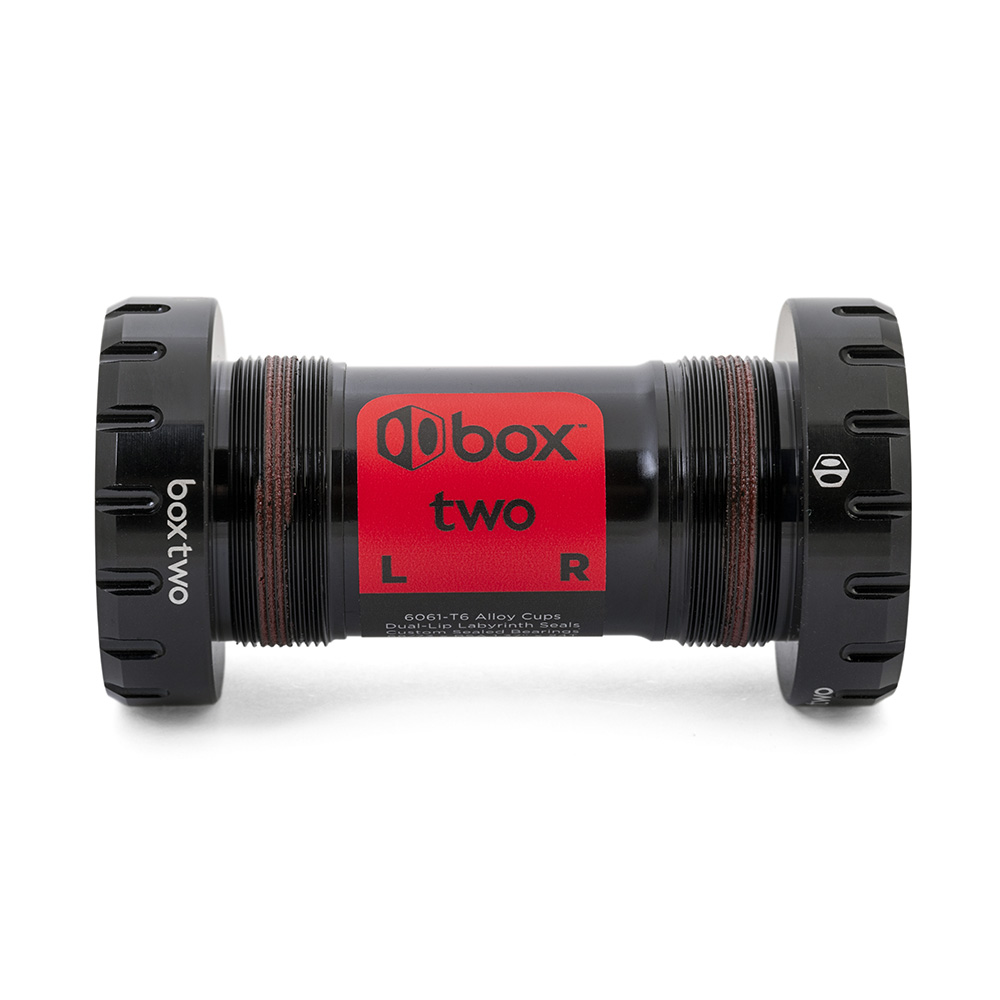

Box Two Oversized 30mm Bottom Bracket
Box Two Oversized 30mm Bottom Bracket
Click image to enlarge

To find out where to buy  Click Here

Description Colour Size Wt(g) Part No. Stock Lvl Unit RRP Pack Qty
TWO External BB Set, External Sealed Bearing, 68/73mm x 30mmBlack68/73mm110BBBX2E30K
ETA: April 2024
£64.99Each
  • Good stock levels
  • Low stock levels, Qtys may not be available
  • +24h Components are available, add 24/48hrs for assembly
  • Special Order Currently non-stock item, contact us for info
  • Out of stock. Expected availability date will be displayed if known.
  • Discontinued. This product is no longer available.
  • M Mixed Quantity discount available
Description Colour Size Wt(g) Part No. Stock Lvl Unit RRP Pack Qty
TWO External BB Set, External Sealed Bearing, 68/73mm x 30mmBlack68/73mm110BBBX2E30K
ETA: April 2024
£64.99Each
