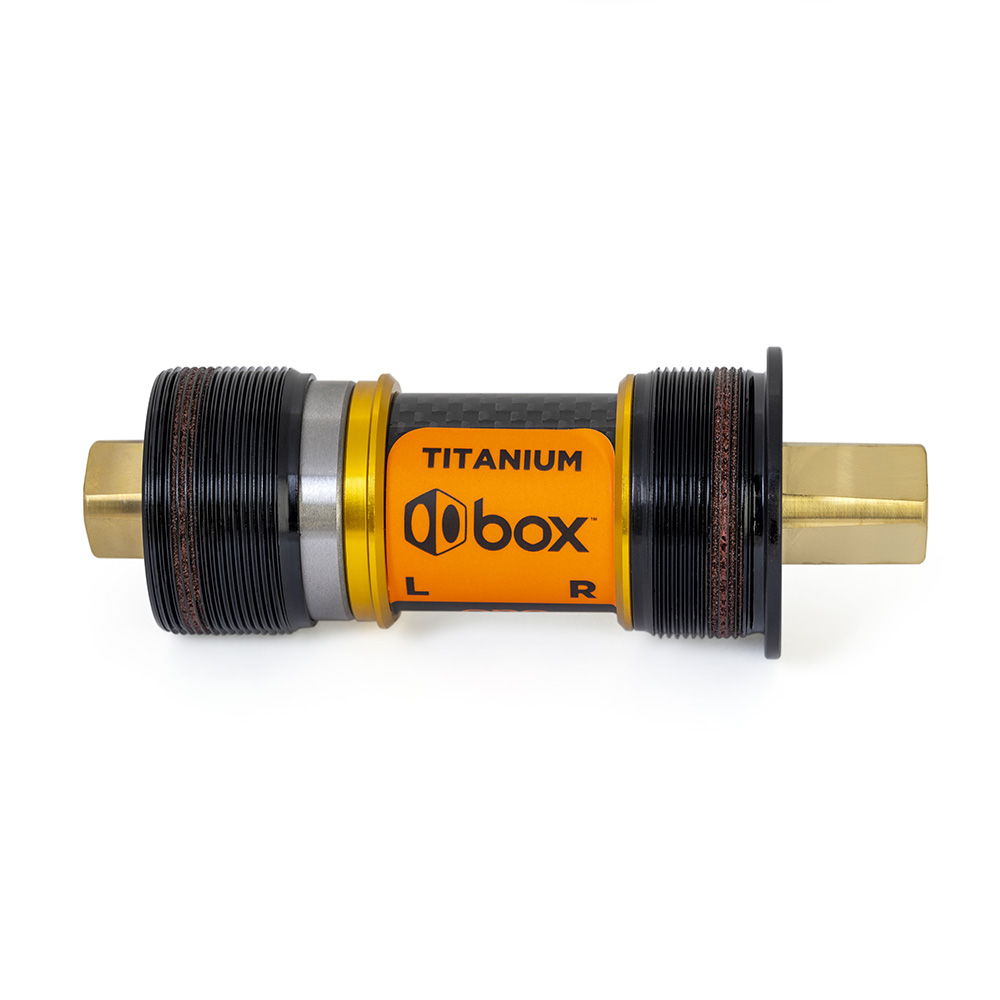

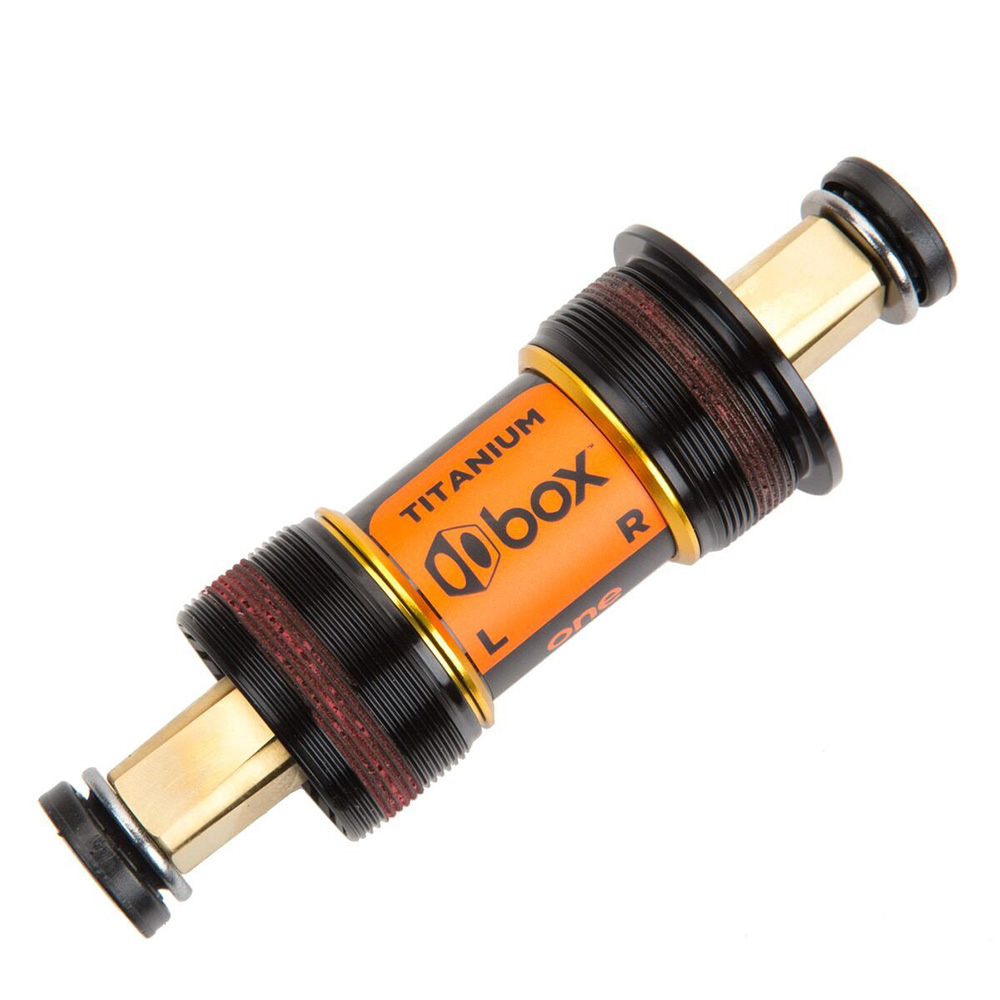

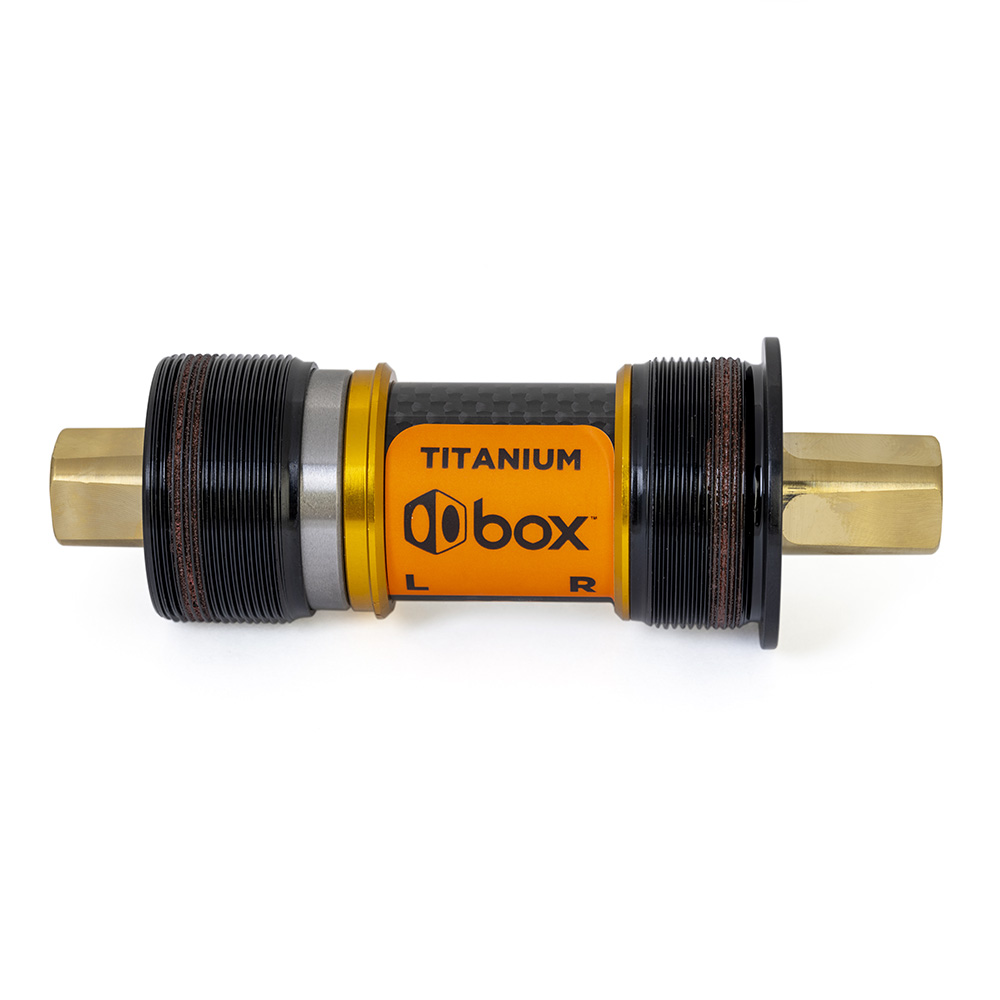

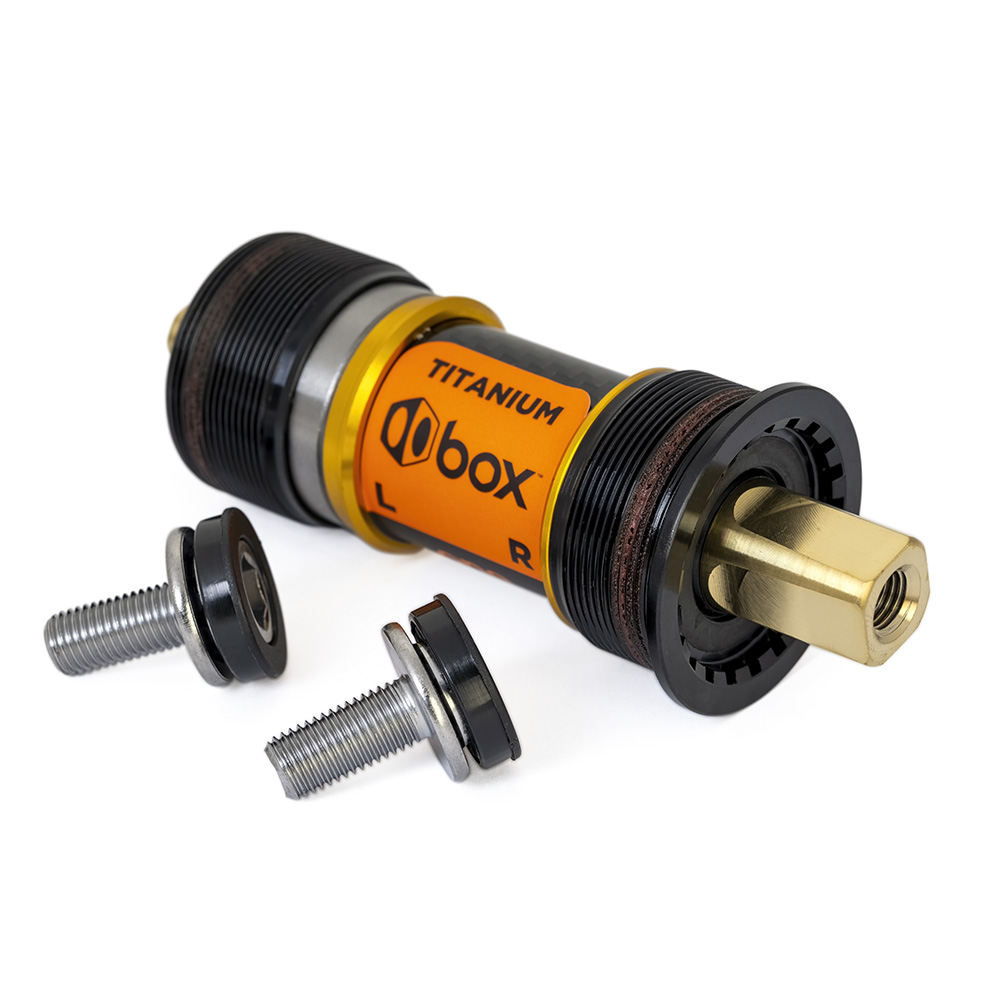

Box One Bottom Bracket Square Taper Titanium/Carbon
With precision sealed bearings and cold-forged, aluminium CNC machined cups, the Box One™ Titanium Square Taper bottom brackets are the best option for young BMX racers and other users. It is a three-piece crank in search of performance gains and weight savings.
They have hollow, custom titanium-nitride-coated titanium spindles and carbon fibre centre seals, helping keep the weight down between 185 and 190 grams (well below that of other square taper bottom brackets on the market).
Other features include cups that are anodised black with anodised gold inner seals and a JIS tapered spindle that comes in either 108 or 113 mm.
Features:
- Precision Abec-5 Sealed Bearings
- Lightweight Non-Structural Carbon Components
- Extra Rigid Titanium Spindle
Specifications
- Spindle: Extra rigid Titanium
- Cups: CNC Machined Alloy
- Sleeve: Carbon Fibre
- Bearing: Precision Abec-5 Sealed bearings
- Finish: Titanium Nitride Coated
- Spindle Type: JIS Square Taper
- Spindle Length: 108mm or 113mm
- Shell Width: 68mm
- Thread: 1.37" x 24 TPI
- Compatibility: BSA Threaded
- Weight: 199-204g/7-7.2 oz (+/- 5%)
- Rider Weight Limit: 115kg (253 lbs) with limitations as per Category 2 of EN 16054:2012 Standard
