Box One Oversized 31.8 X 1-1/8" Top Load Stem

All Box One top load stems are engineered and crafted using Oversized Technology. As we follow the load paths down the handlebars and have focused attention on the stem-to-bar interface.

Since the Oversized handlebars have an increased wall thickness and tube diameter in this sector, we have reciprocated with an augmented stem interface with greater surface area. By moving material from low-stress areas. This has greatly minimised twist and contributed to responsiveness. As the stem is mated with the handlebars, we have contributed to increased pedalling stiffness by providing a backstop to the 'lifting' phenomenon. There is no point pushing hard on your pedals if you can’t pull up on your handlebars and deliver that power. Power can easily be lost to handlebar-to-stem deflection and the consequences can be poor power delivery and steering control. When combined with Box’s other Oversized components, you’ll experience heightened responsiveness and reduced latency.

This particular model stem not only shifts material from low-stress zones to the Oversized interface but also provides rigidity through the side skirt design. Using a reverse development process for the delta stem, the structure was created from the outside-in vs. the traditional inside-out method. These stems are engineered for larger-sized, stronger racers.

Specifications

  • Material: Cold-Forged 6061-T6 Aluminium
  • Hardware: Chromoly Clamping Bolts
  • Finish: Anodised w/Laser-Etched Graphics
  • Length: 48mm, 53mm
  • Clamp Diameter: 31.8mm
  • Stack Height: 28mm
  • Rise: +/-5 degree
  • Steerer Tube: 1-1/8”
Box One Oversized 31.8 X 1-1/8
Box One Oversized 31.8 X 1-1/8" Top Load Stem

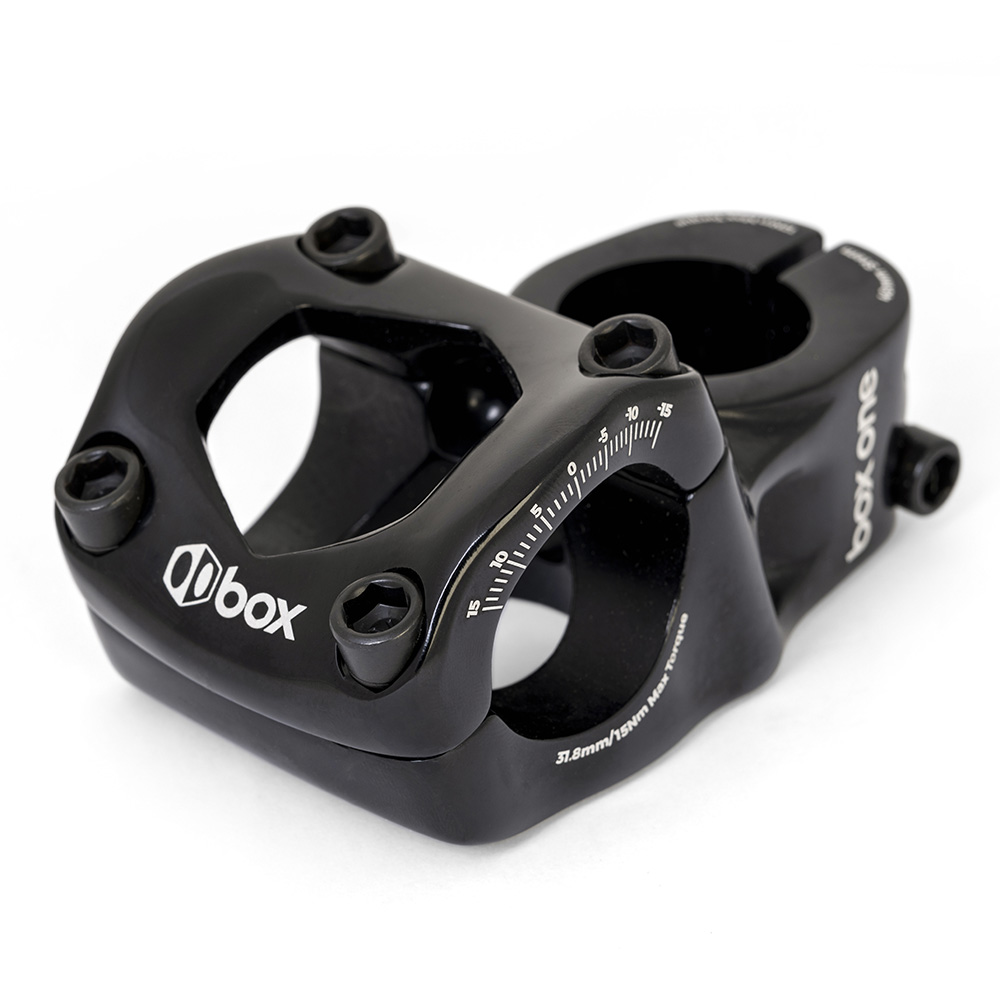

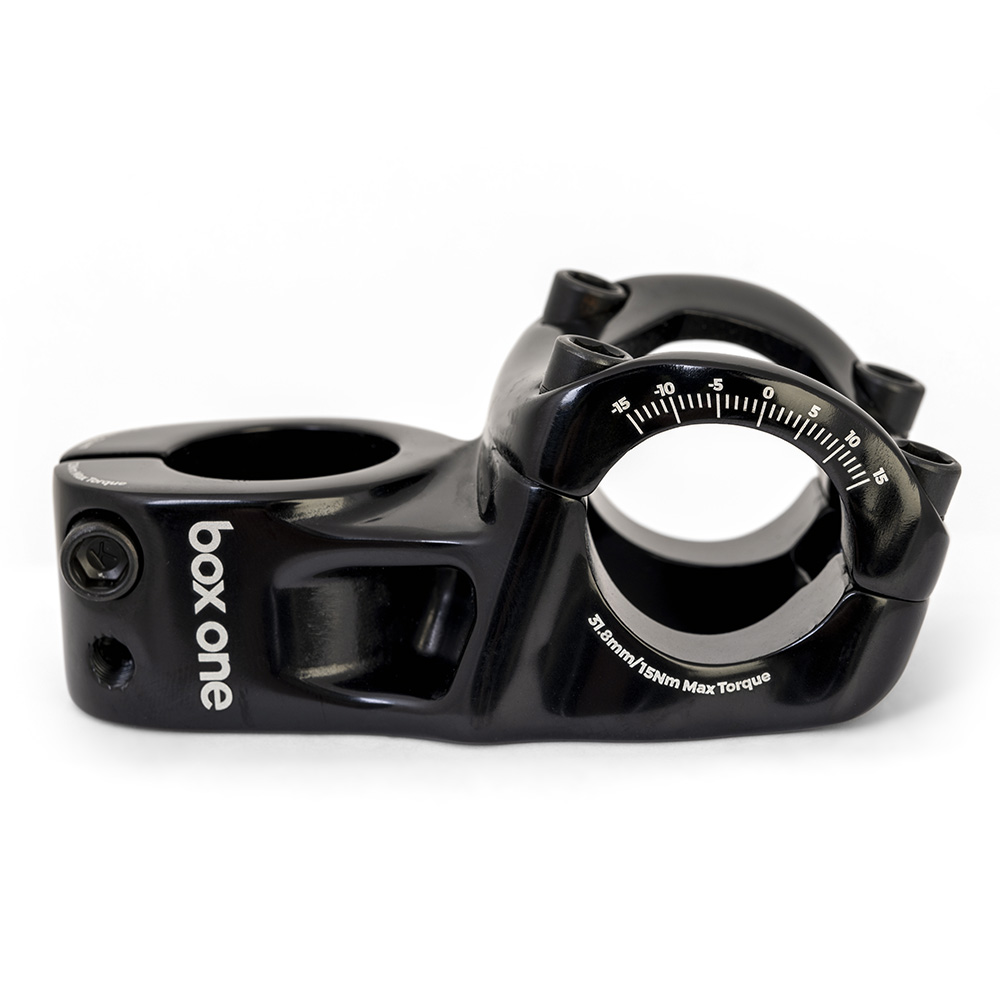

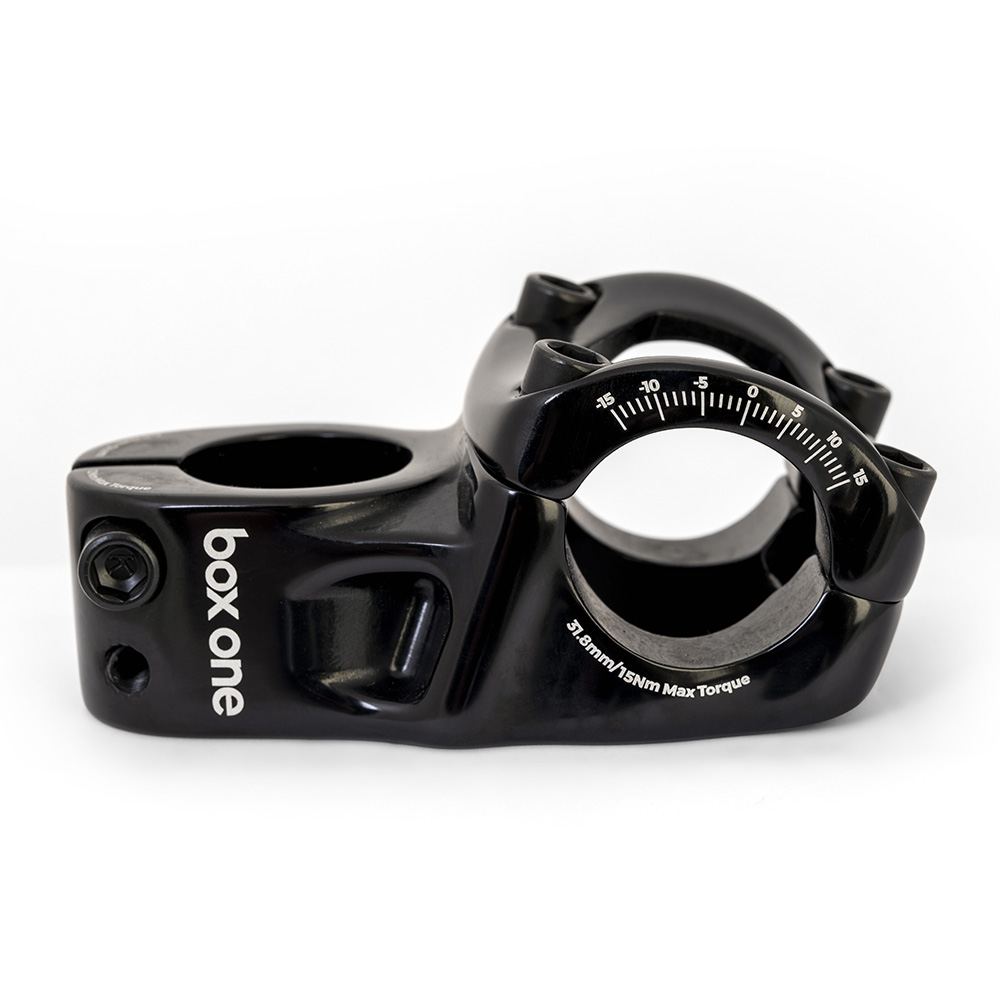

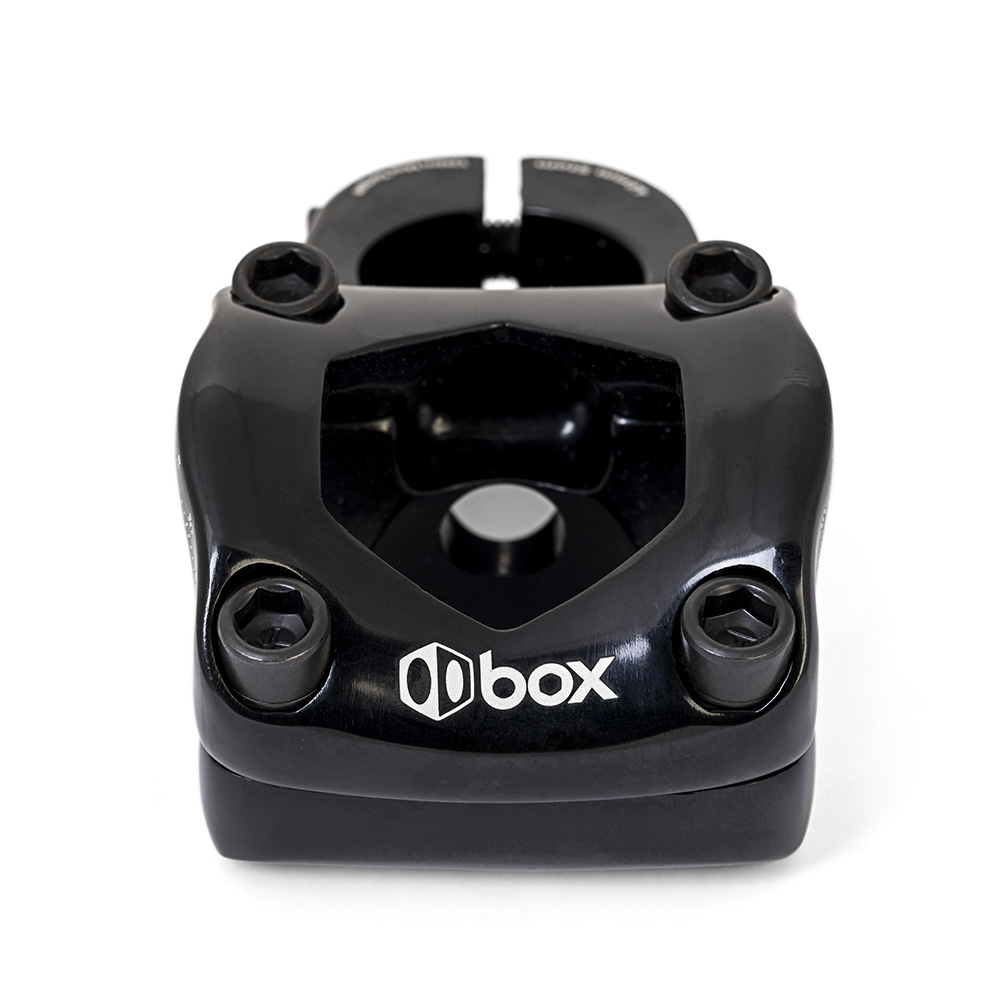

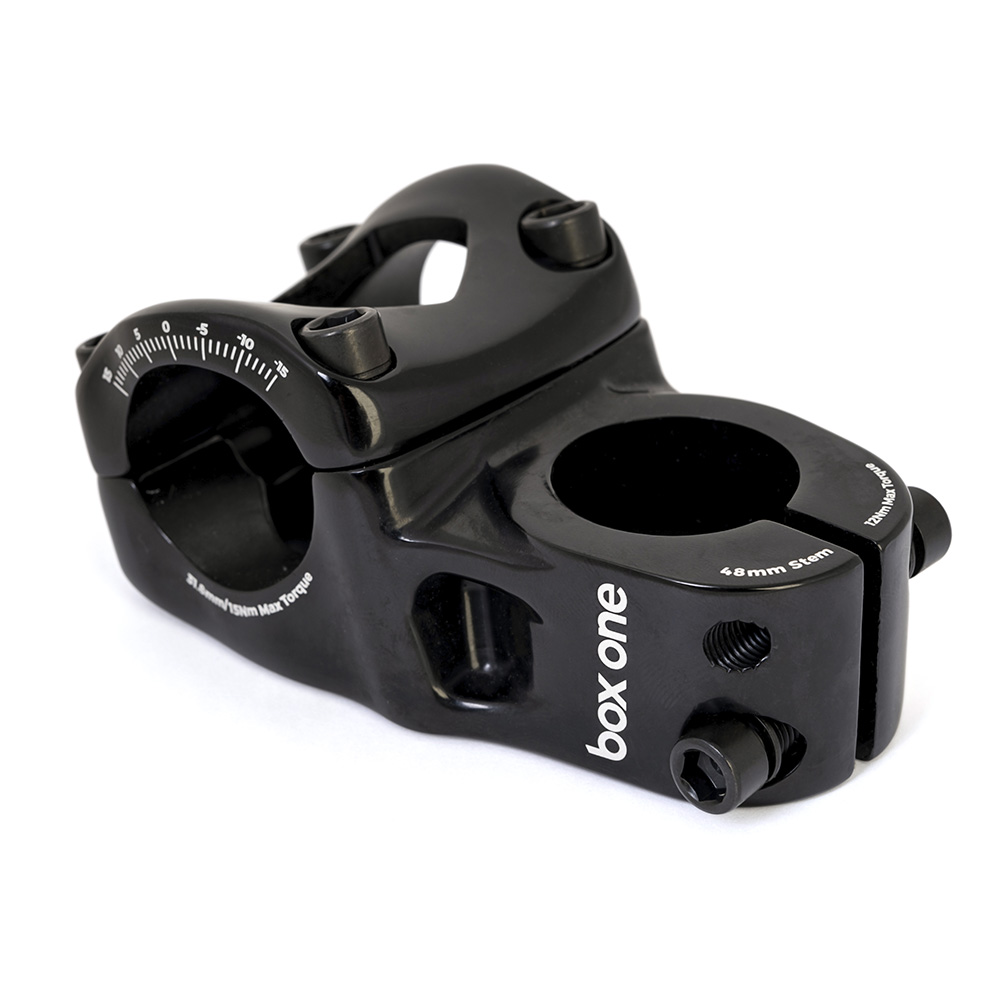

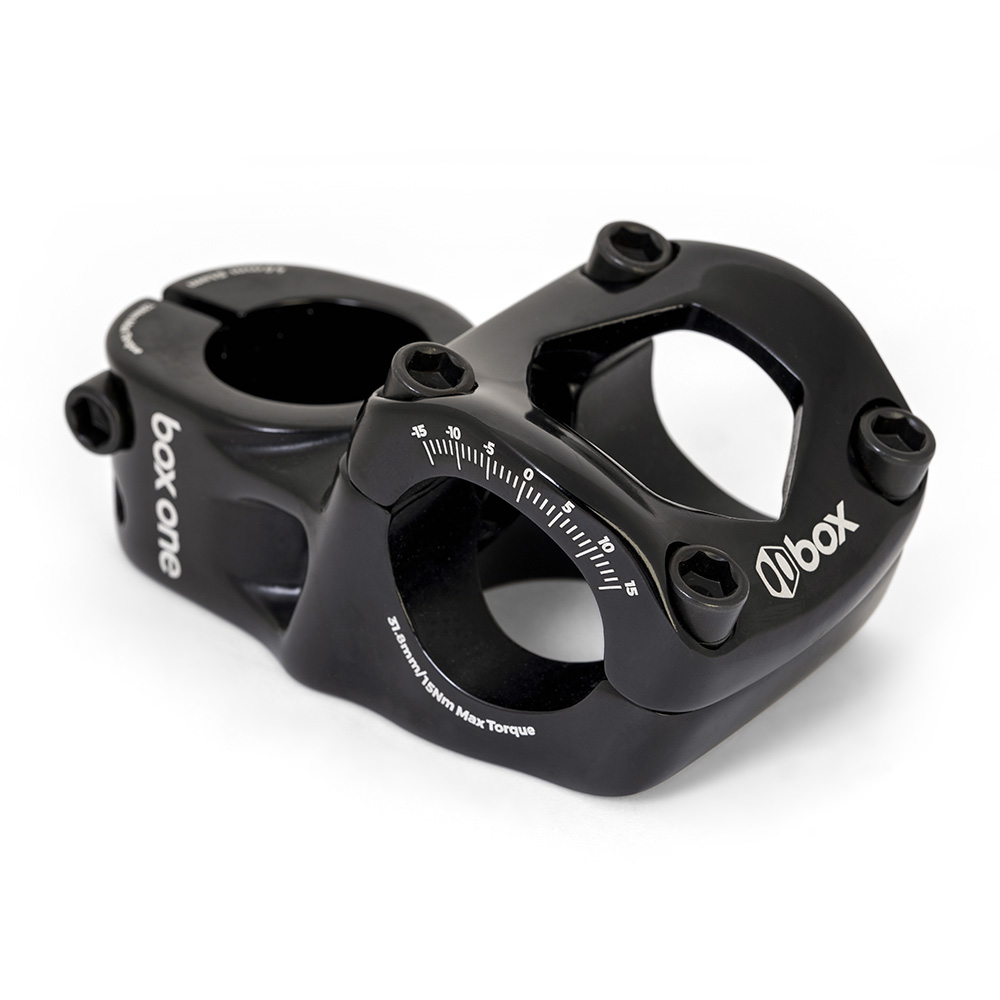

Click image to enlarge

To find out where to buy  Click Here

Description Colour Size Wt(g) Part No. Stock Lvl Unit RRP Pack Qty
ONE Top Load Stem, Cold Forged 6061-T6 Alloy, 11/8" - 31.8mm bar ClampBlack48mm263ASBX1T348K£69.99Each
ONE Top Load Stem, Cold Forged 6061-T6 Alloy, 11/8" - 31.8mm bar ClampBlack53mm267ASBX1T353K£69.99Each
ONE Top Load Stem, Cold Forged 6061-T6 Alloy, 11/8" - 31.8mm bar ClampBlack60mm ASBX1T360K£69.99Each
  • Good stock levels
  • Low stock levels, Qtys may not be available
  • +24h Components are available, add 24/48hrs for assembly
  • Special Order Currently non-stock item, contact us for info
  • Out of stock. Expected availability date will be displayed if known.
  • Discontinued. This product is no longer available.
  • M Mixed Quantity discount available
Description Colour Size Wt(g) Part No. Stock Lvl Unit RRP Pack Qty
ONE Top Load Stem, Cold Forged 6061-T6 Alloy, 11/8" - 31.8mm bar ClampBlack48mm263ASBX1T348K£69.99Each
ONE Top Load Stem, Cold Forged 6061-T6 Alloy, 11/8" - 31.8mm bar ClampBlack53mm267ASBX1T353K£69.99Each
ONE Top Load Stem, Cold Forged 6061-T6 Alloy, 11/8" - 31.8mm bar ClampBlack60mm ASBX1T360K£69.99Each
