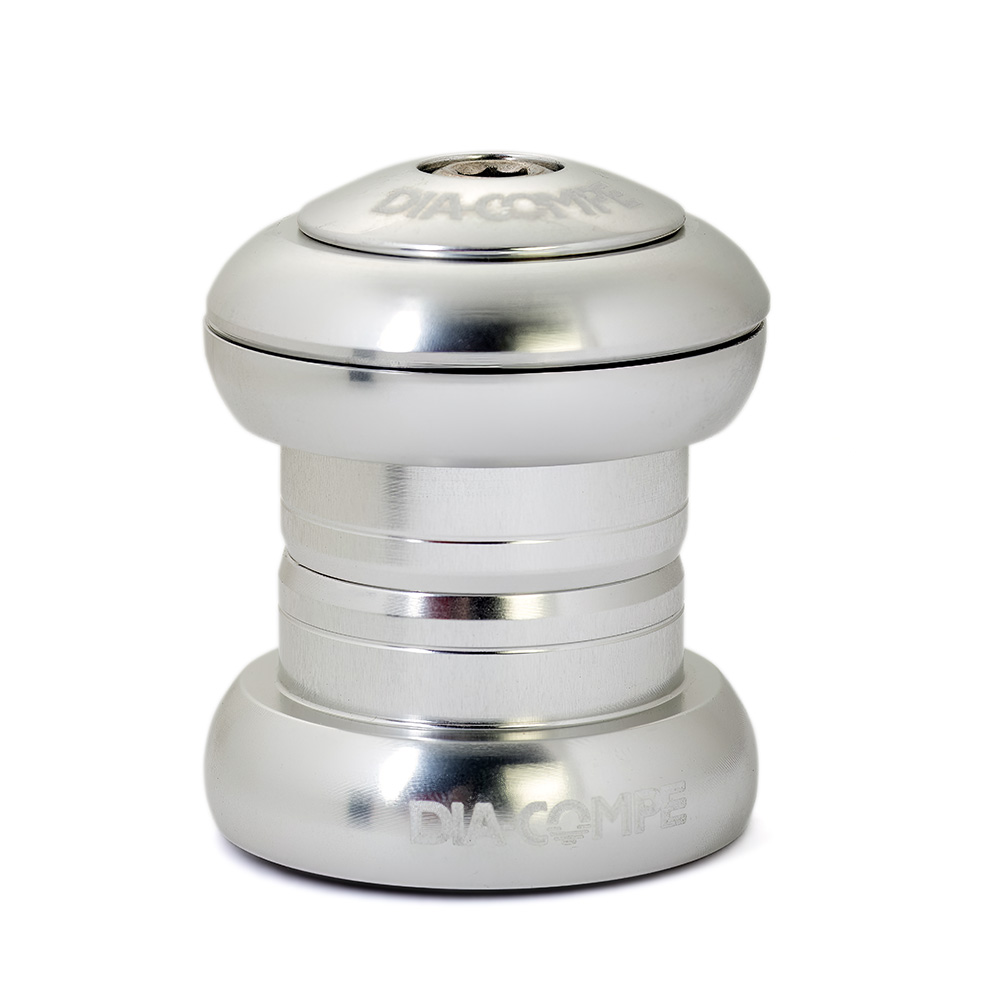

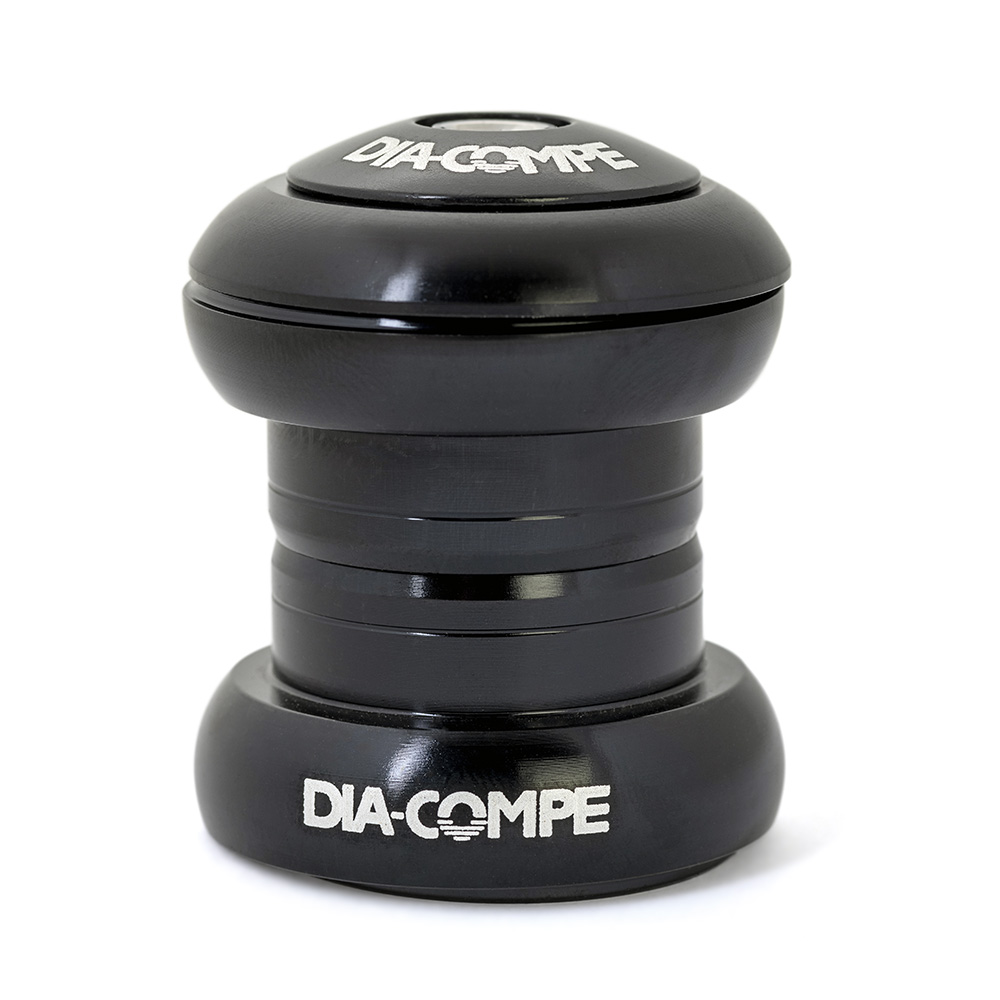

NB-1 Headset
Lightweight, precision sealed bearing alloy headset for use on 1" threadless system forks.
ISO standard type sizing.
Features
- Aluminum Headset cups
- Sealed cartridge angular contact bearings
- Star nut and aluminium Top Cap included
- Size: 1" ISO

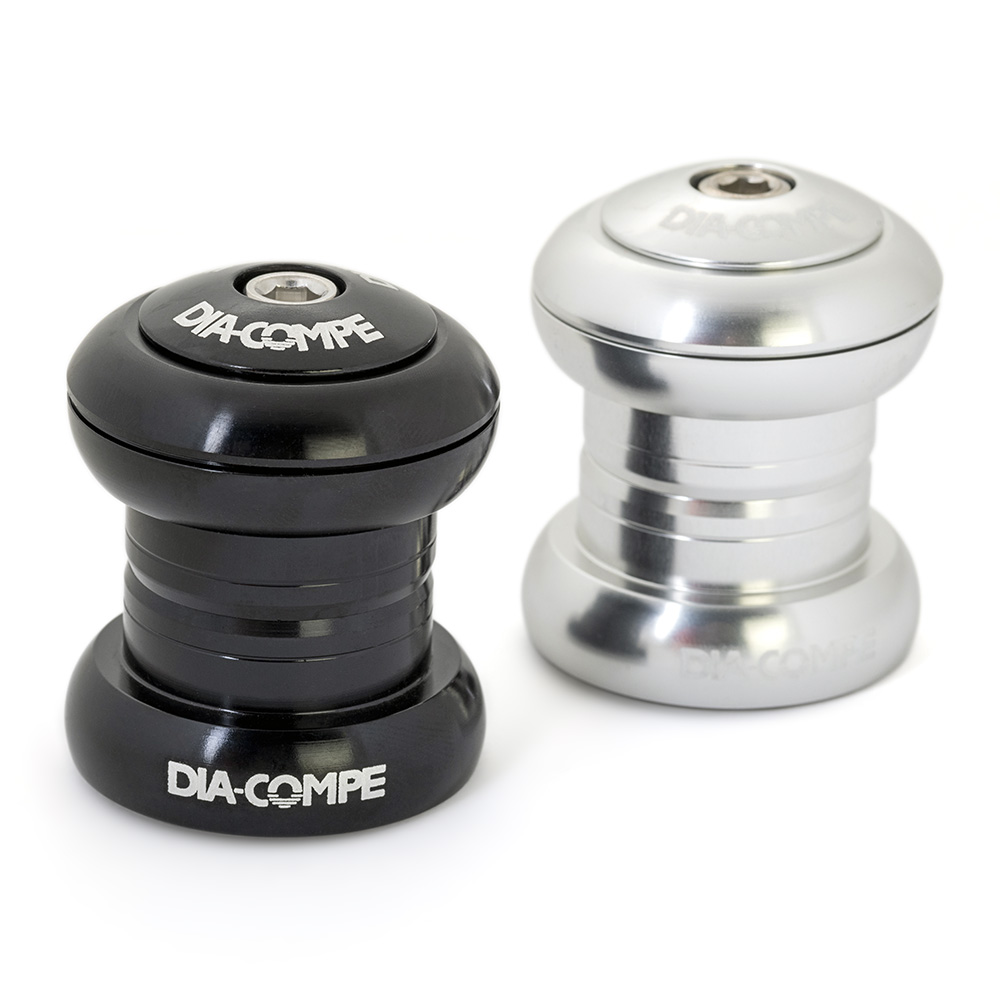

- Colour: Silver or Black anodised
Specifications
- Upper stack height: 14mm
- Lower stack height: 11mm
- 1" ISO specification sizing:
- Crown race: 26.4mm
- Headtube ID: 30.2mm
- Fork steerer OD: 25.4mm
Note: Please pay particular attention to the diameters, as 0.2mm is a significant difference.
Installing an incorrect size part will damage frames or forks.
Do not use Star Nut insert on Carbon forks.
Seek assistance from an experienced Bicycle mechanic if in any doubt
