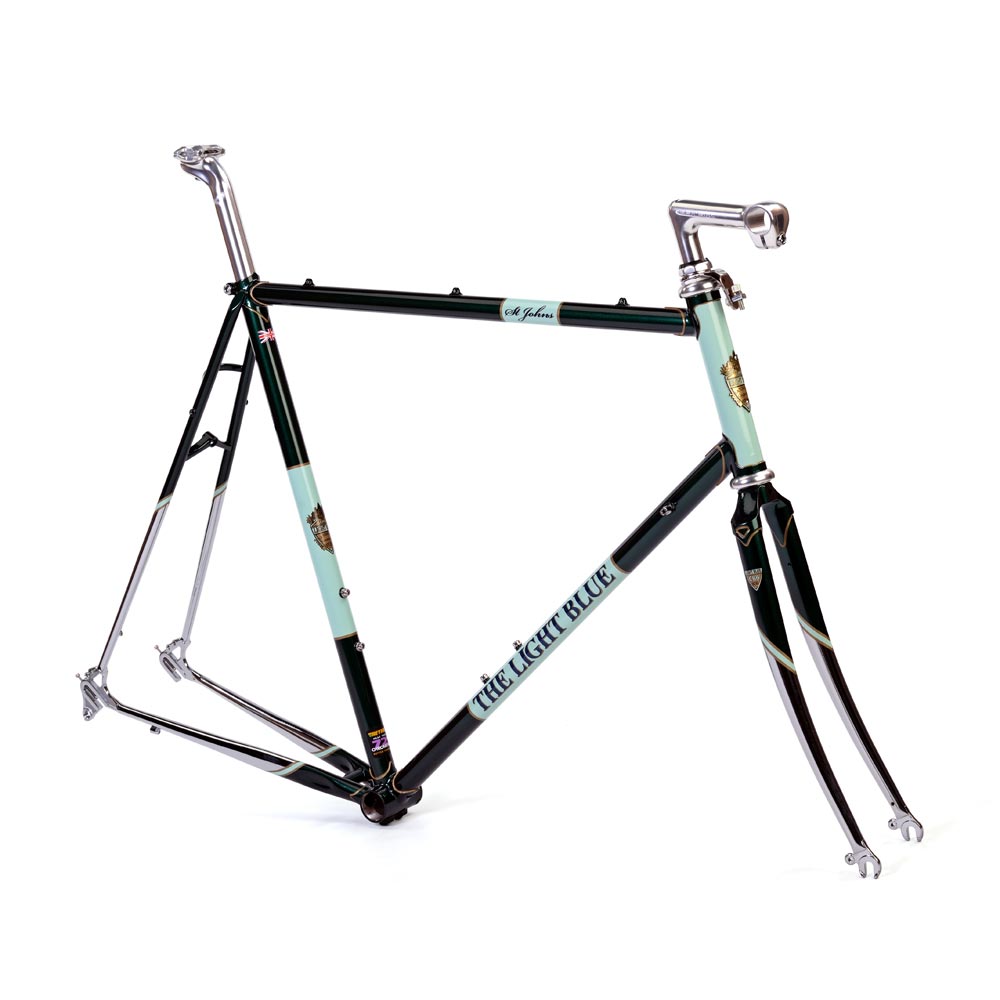

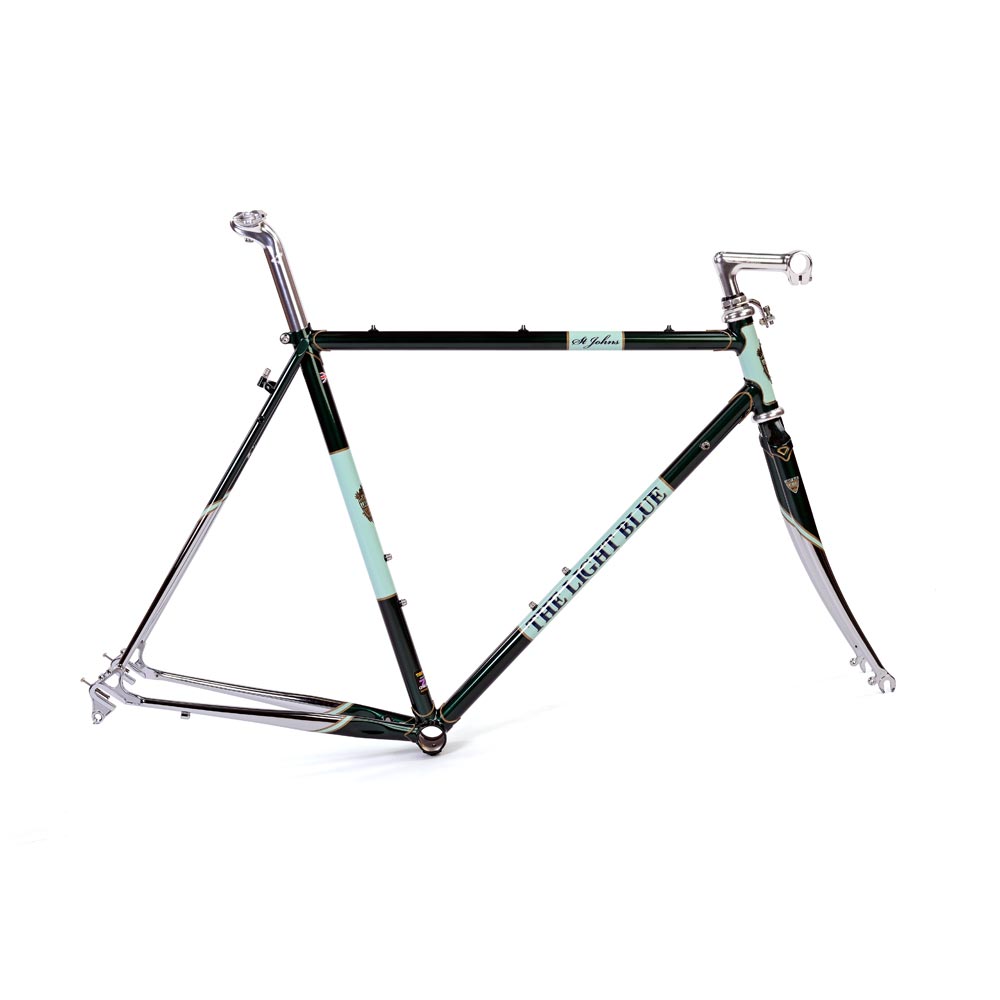

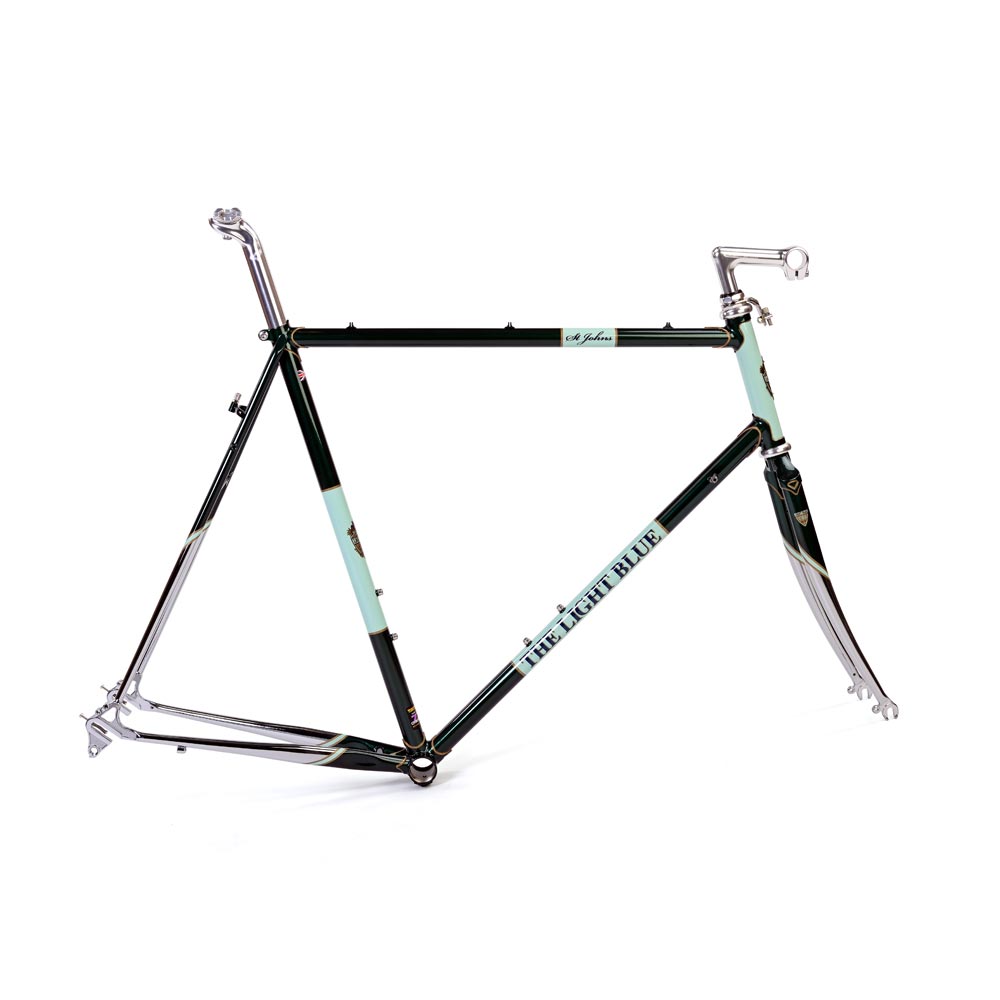

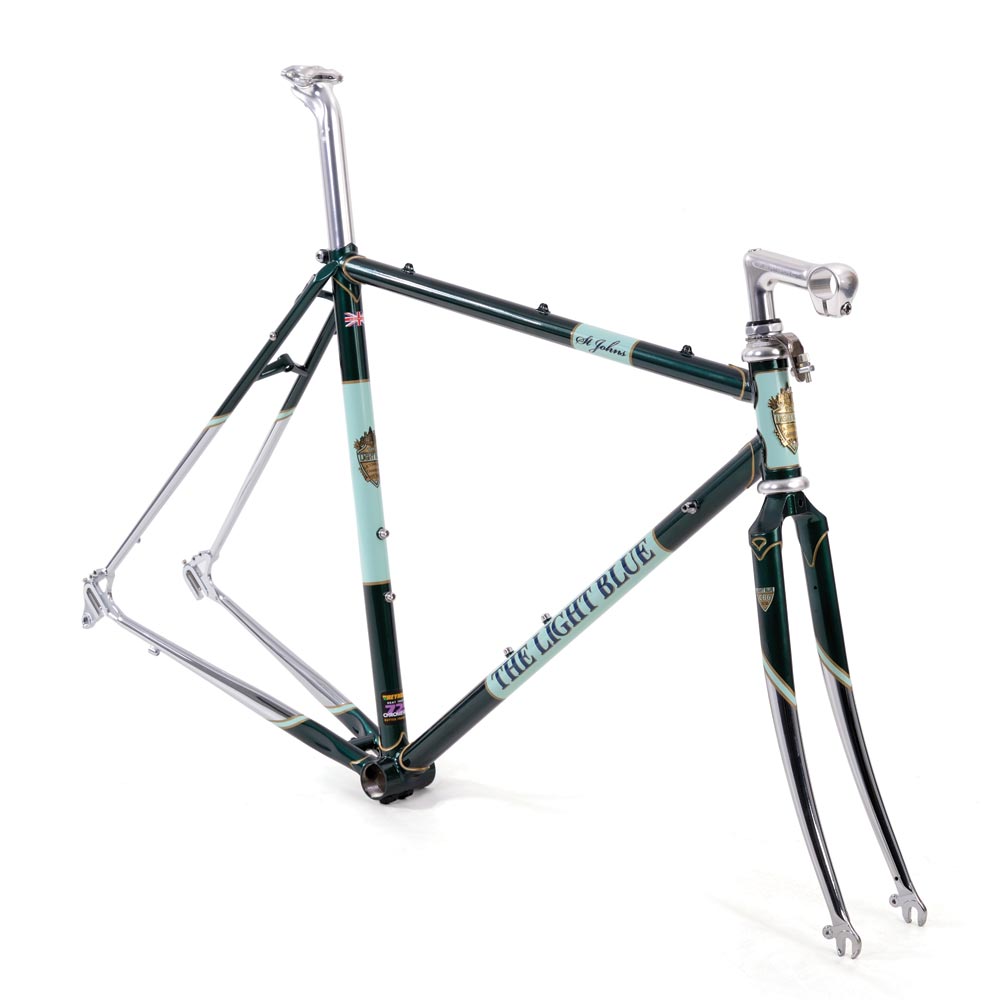

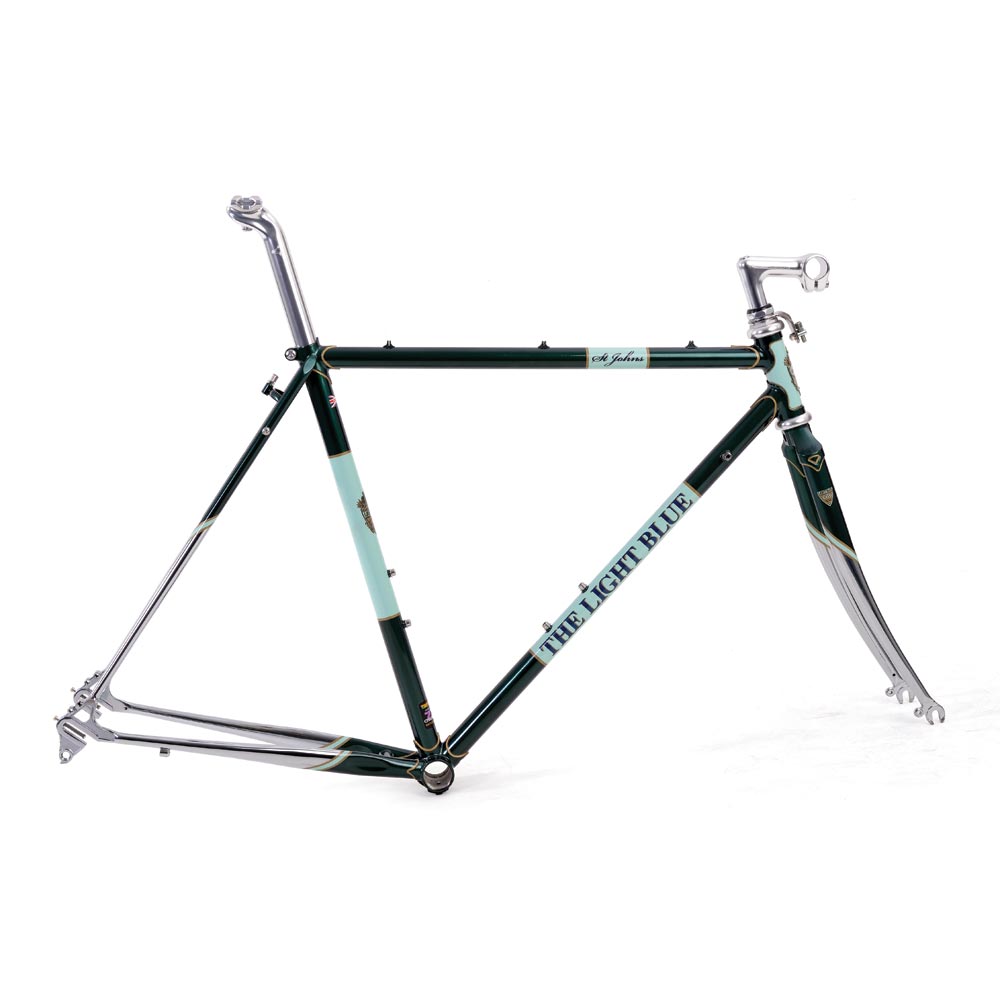

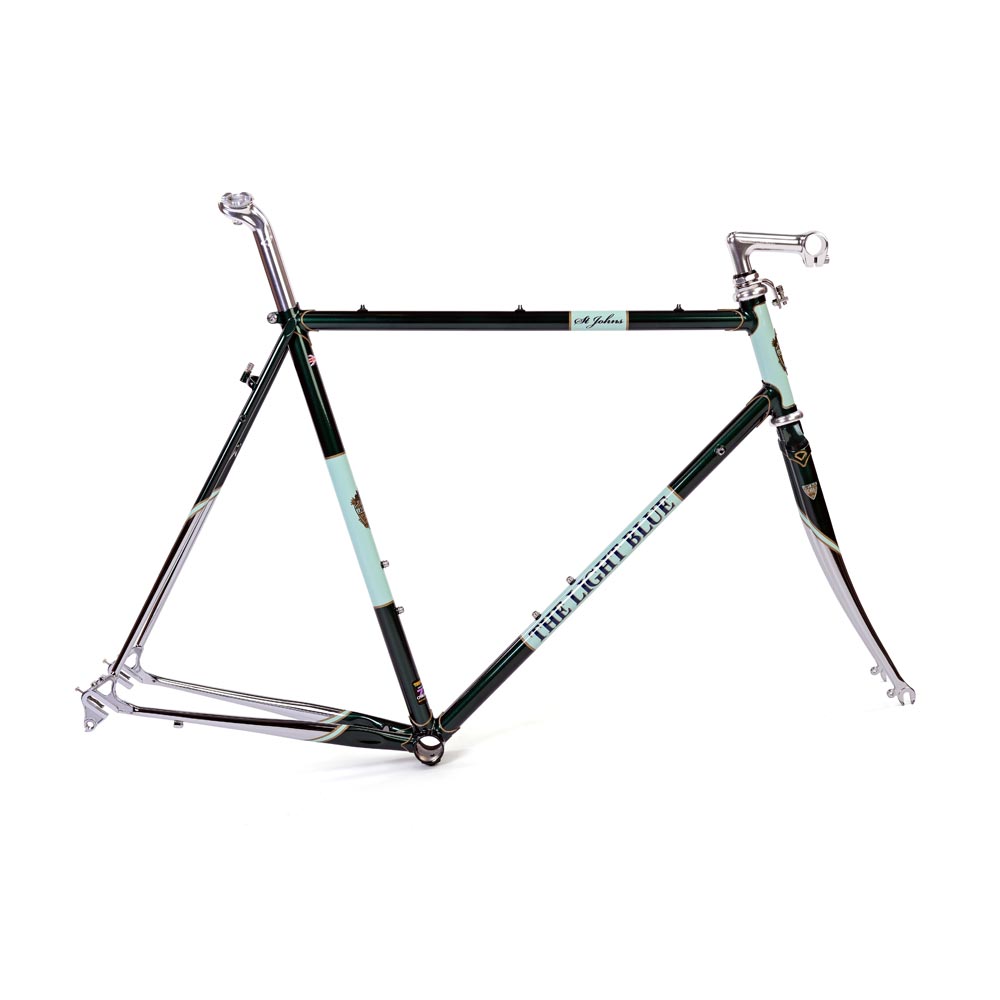

St Johns Frameset

For Sunday morning rides, sportives, commuting, light touring and Audax rides, this bike can do it all.

Retro style, lugged, sports frame, made with modern Reynolds 725 tubing and designed to fit the legendary Dia-Compe GC610 centre pull brake calipers.

With variable size sports geometry and ample clearance for up to 700x32C tyres (or 28C with mudguards), the St Johns is the club cyclist’s, new, best, old friend.

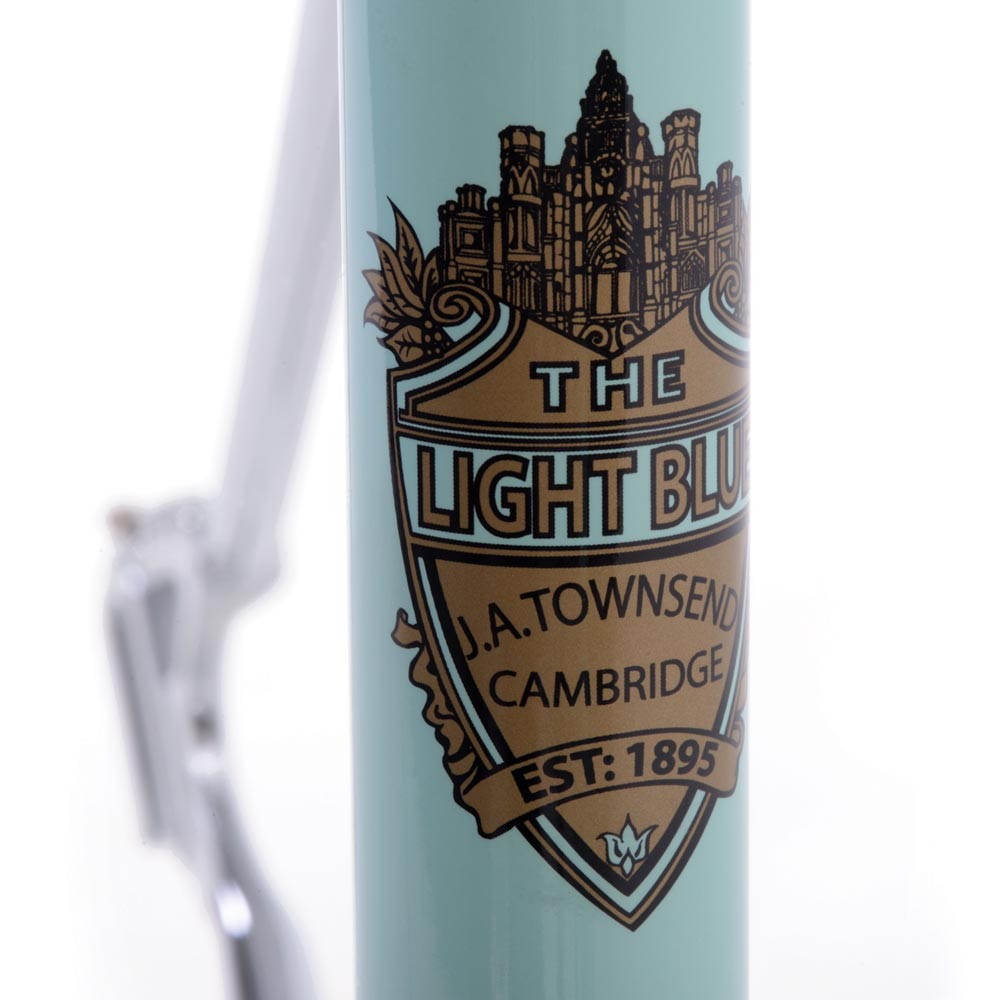

Classic panel type graphics and ½ Chrome rear stays and forks, neatly finished with hand painted finished gold lug lining makes this sleek, stylish, retro frameset a true work of modern bike art.

Features

  • Double butted Reynolds 725 steel main triangle
  • Comfortable Triple butted CB6 Cr-mo steel. Cast sloping crown

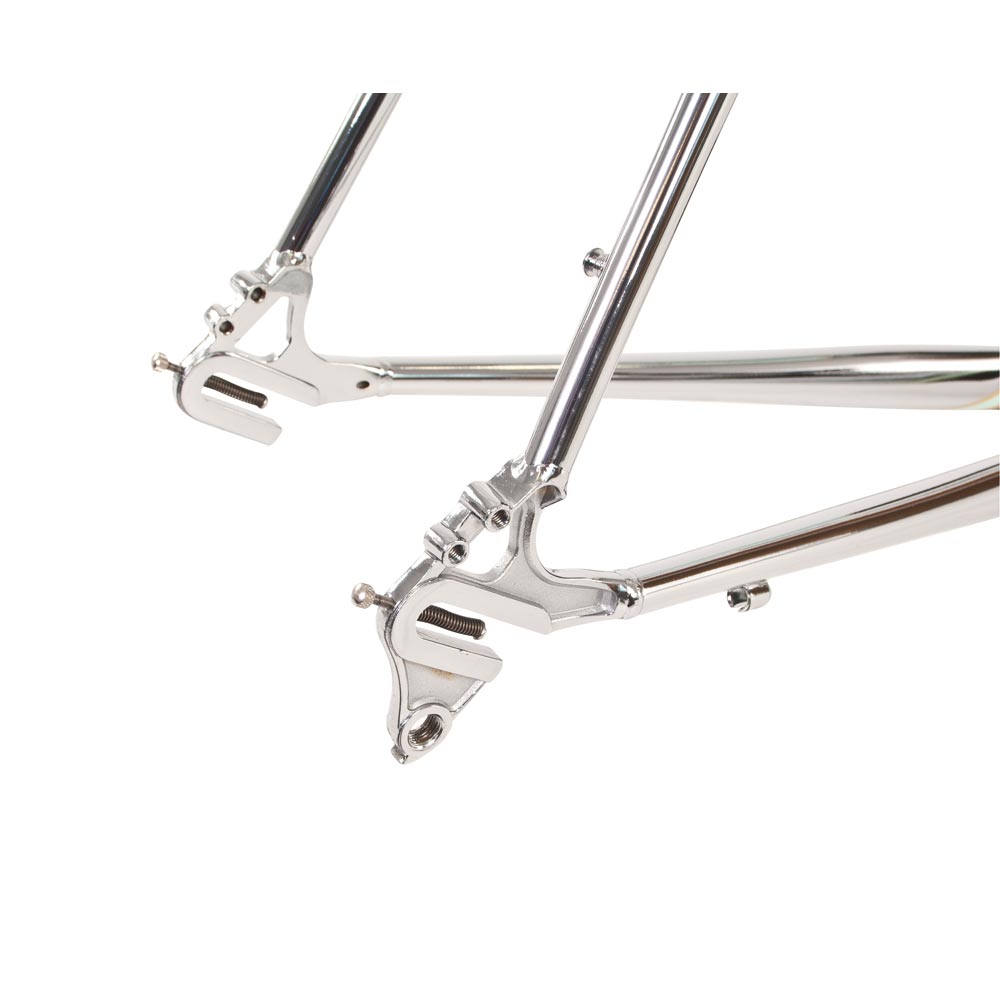

  • Forged, stainless steel, semi horizontal dropouts with screw adjusters.
  • Classic style brazed lugs with hand painted gold lining.

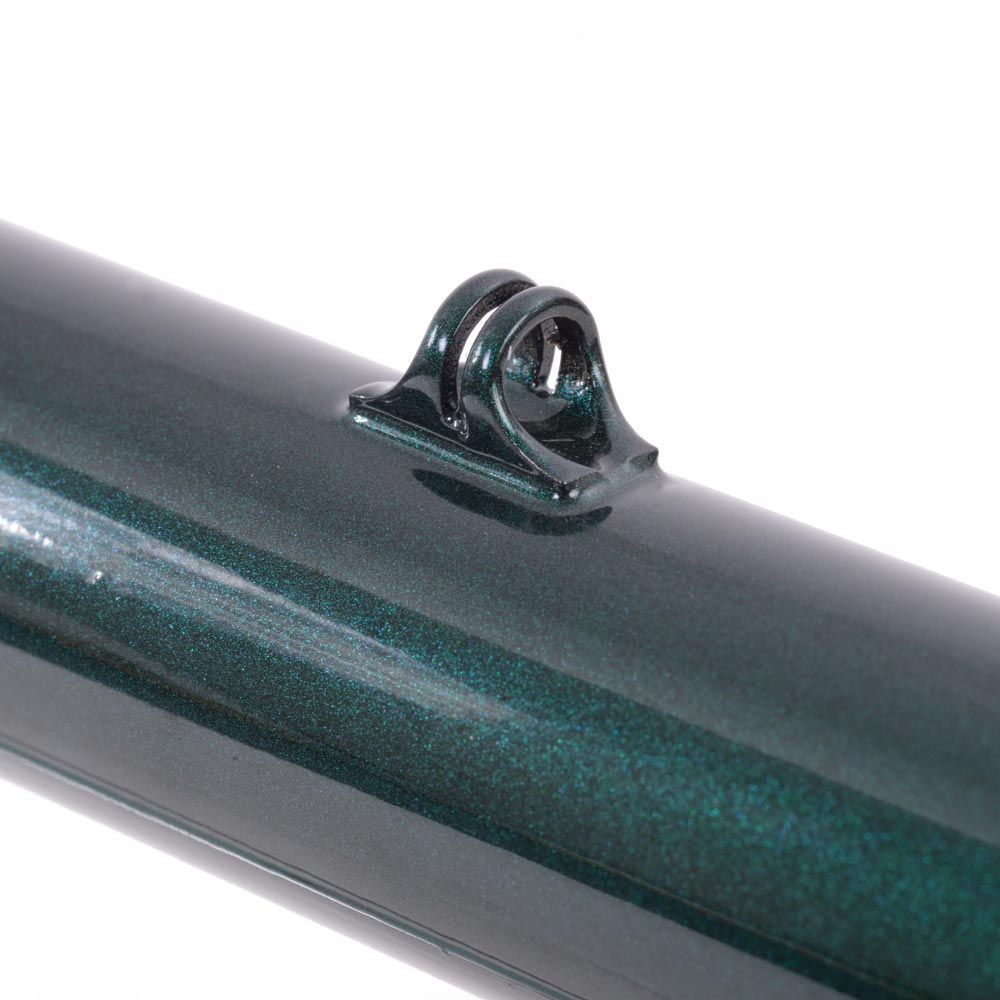

  • Brazed on down tube shifter bosses and cable guides.

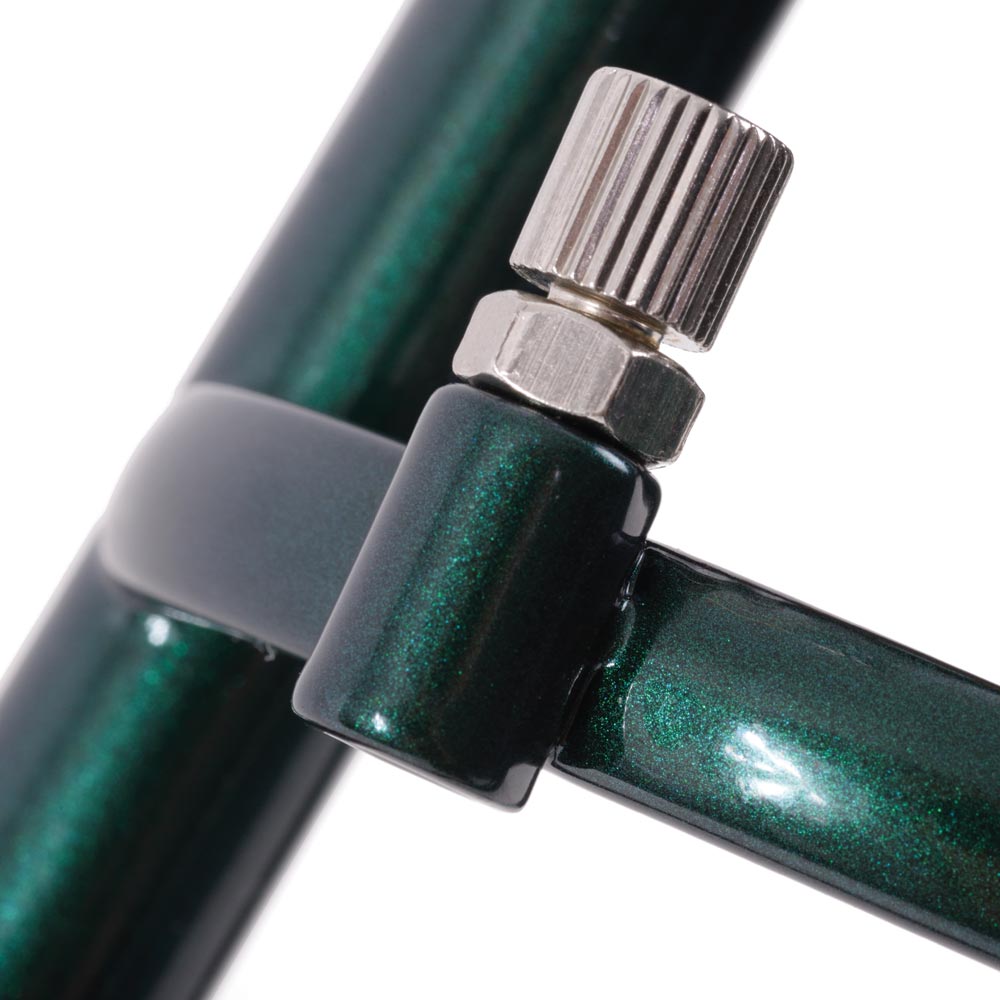

  • Rear brake hanger and top tube cable routing for centre pull brakes.

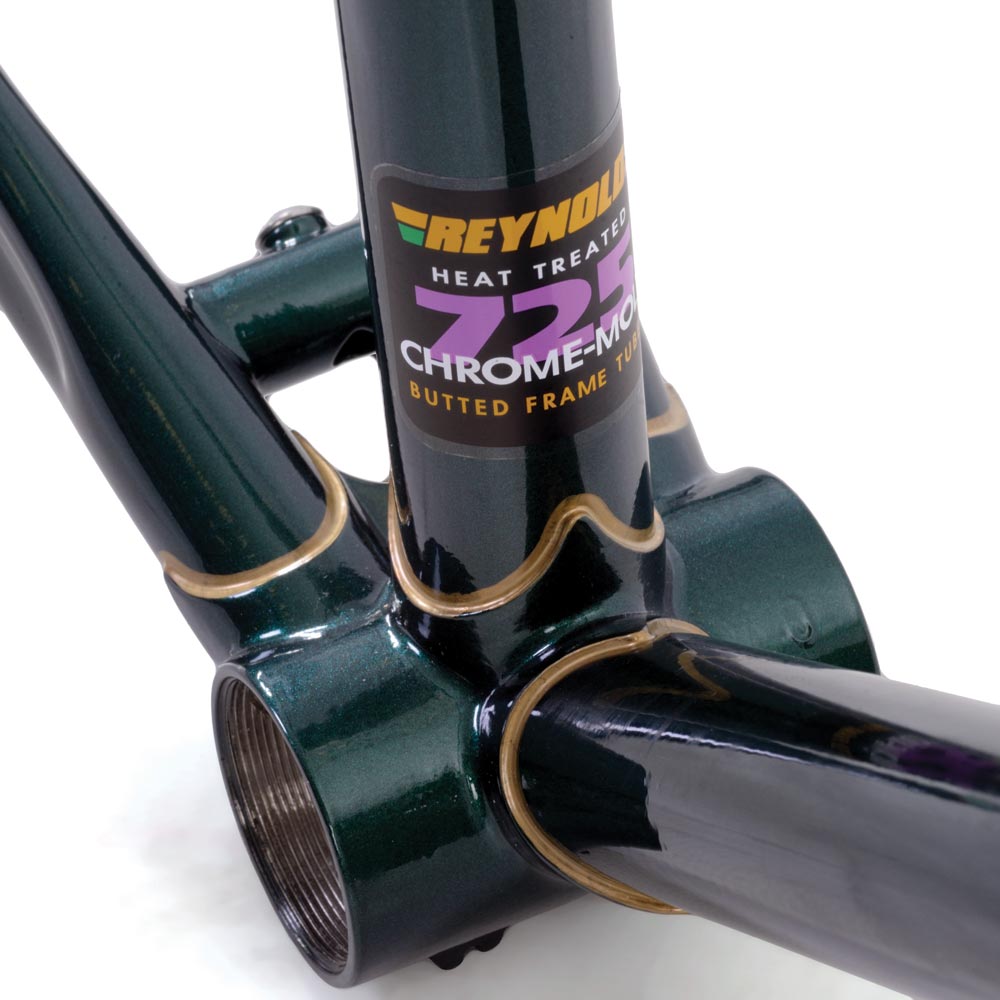

  • Reliable, tried and trusted, creak free BSA threaded bottom bracket.
  • Mudguard and rear pannier carrier bosses.
  • Boxed frameset includes: Genetic threaded Cranium headset, Hyoid forged alloy quill stem (26.00mm bar clamp. 53cm & 56cm: 80mm, 59cm: 100mm),Heritage seat post (300 x 27.2mm 3D forged and polished).

Specifications

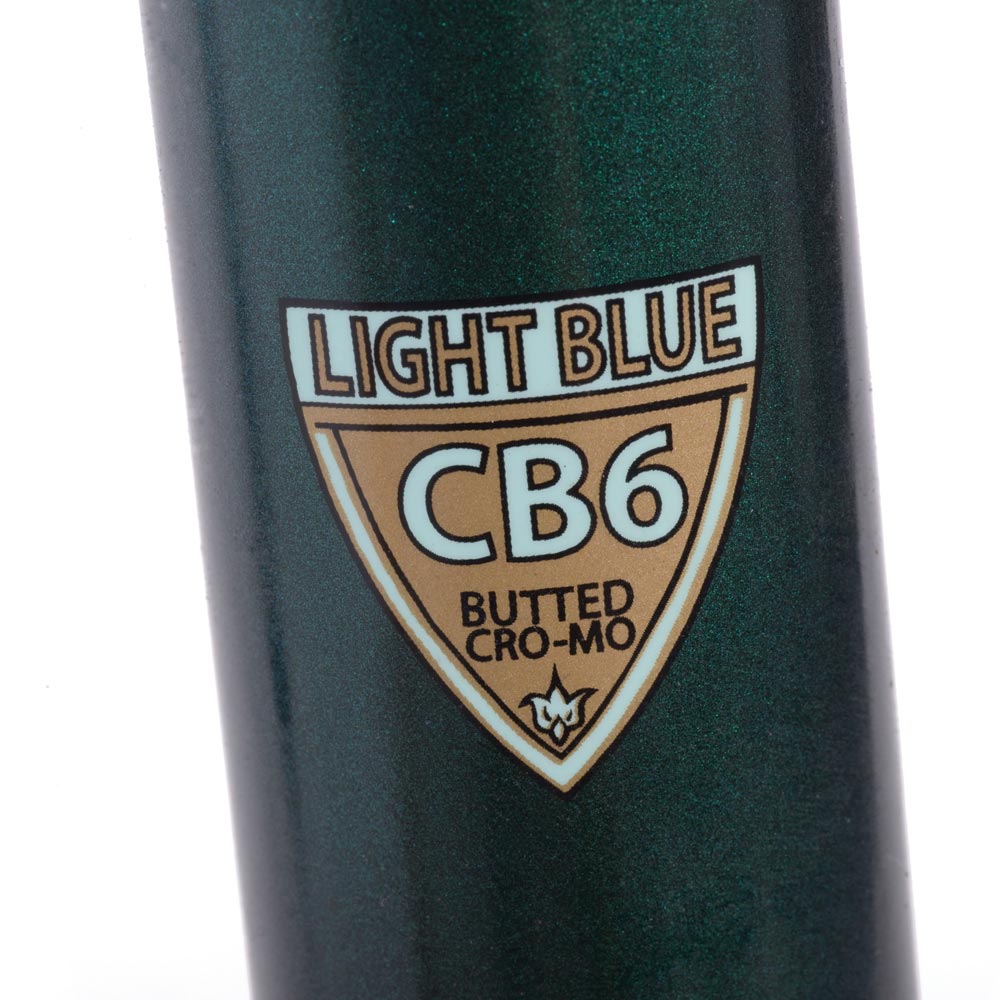

  • Fork Triple butted CB6 Cr-mo steel. Cast sloping crown
  • Headset Compatibility 1" ITA threaded
  • Seatpost 27.2mm
  • Seat Clamp Classic Hex Key Seat Bolt
  • BB Shell English thread 68mm
  • Rear spacing 130mm
  • Tyre Clearance 700x32C without mudguards, 700x28C with mudguards
  • Colour Deep Metallic Green with Chrome
  • Frame Weight 2120g (4.67lb) 56cm frame
  • Fork Weight 730g (1.61lb)

All weights are approximate and are offered in good faith.

St Johns Frameset
St Johns Frameset
Click image to enlarge
Information

To find out where to buy  Click Here

Description Colour Size Wt(g) Part No. Stock Lvl RRP Pack Unit
St John Frameset, Sport R720 lugged. Inc. 1" cr-mo fork, H/set & Quill stem.Green/Chrome50cm FMLBS50G£799.99Each
St John Frameset, Sport R720 lugged. Inc. 1" cr-mo fork, H/set & Quill stem.Green/Chrome53cm FMLBS53G£799.99Each
St John Frameset, Sport R720 lugged. Inc. 1" cr-mo fork, H/set & Quill stem.Green/Chrome56cm2125FMLBS56G£799.99Each
St John Frameset, Sport R720 lugged. Inc. 1" cr-mo fork, H/set & Quill stem.Green/Chrome59cm FMLBS59G£799.99Each
St John Frameset, Sport R720 lugged. Inc. 1" cr-mo fork, H/set & Quill stem.Green/Chrome62cm FMLBS62G
ETA: 28th Feb 2020
£799.99Each
  • Good stock levels
  • +24h Please allow 24/48 hrs for assembly
  • Special Order Currently not in stock, contact us for details
  • Out of stock. Expected availability date will be displayed if known.
  • Discontinued. This product is no longer available.
