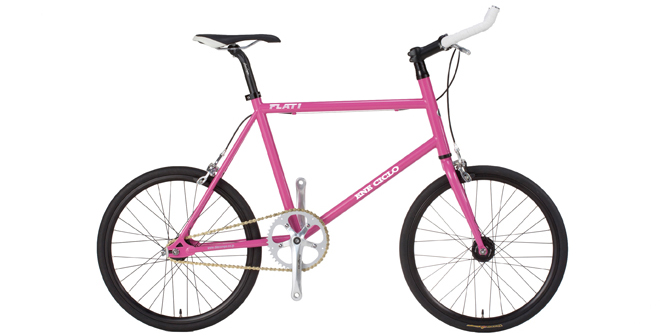

ENE Ciclo Flat-1 Frameset

The Flat-1 is the ultimate urban mini velo frameset. Designed for the streets of Japan, this frame was born out of the need for a compact bike on narrow streets and to store at home.

Available in one adult size, this single speed/fixed gear format frameset accepts 20 x 1 3/8 or 20 x 1.75 wheels (406 or 451 ETRTO) meaning the brake drop will alter depending on the wheel size used. Example – when using a 20 x 1 3/8 wheel size we recommended using our BRS 101 brakes which have a drop of 43-57mm.

We these framesets its important to think about gearing when selecting components for the build, due to the small wheel size a larger gearing should be considered to give a ‘normal’ gear ratio (i.e if running a 16t freewheel, then the chainring will probably want to be circa 50t+)



Geometry

  • Head Angle 73 deg
  • Top tube 529mm
  • Seat Tube 460mm
  • Chainstay 380mm
  • BB to fork 572mm
  • Rear dropout 120mmx10mm
  • Axle to brake 280mm

Specifications

  • Material Tig welded 4130 Cr-Mo
  • Headset Compatibility Threadless 1 1/8"
  • Seatpost 27.2mm

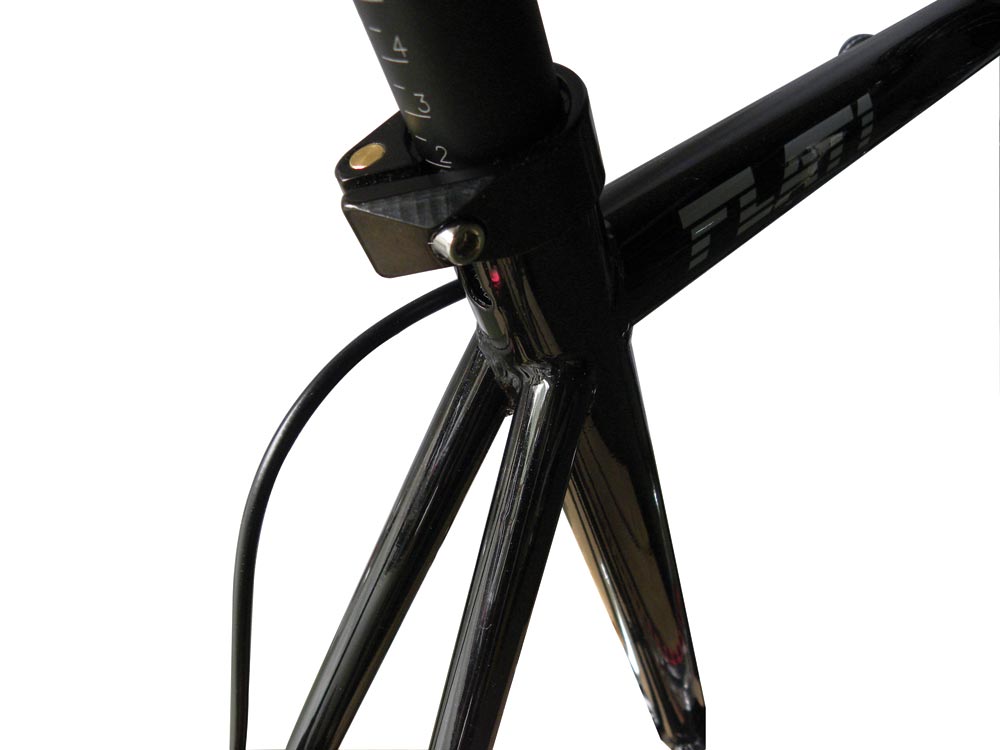

  • Seat Clamp 31.8mm
  • Max tyre clearance 451 = 40mm

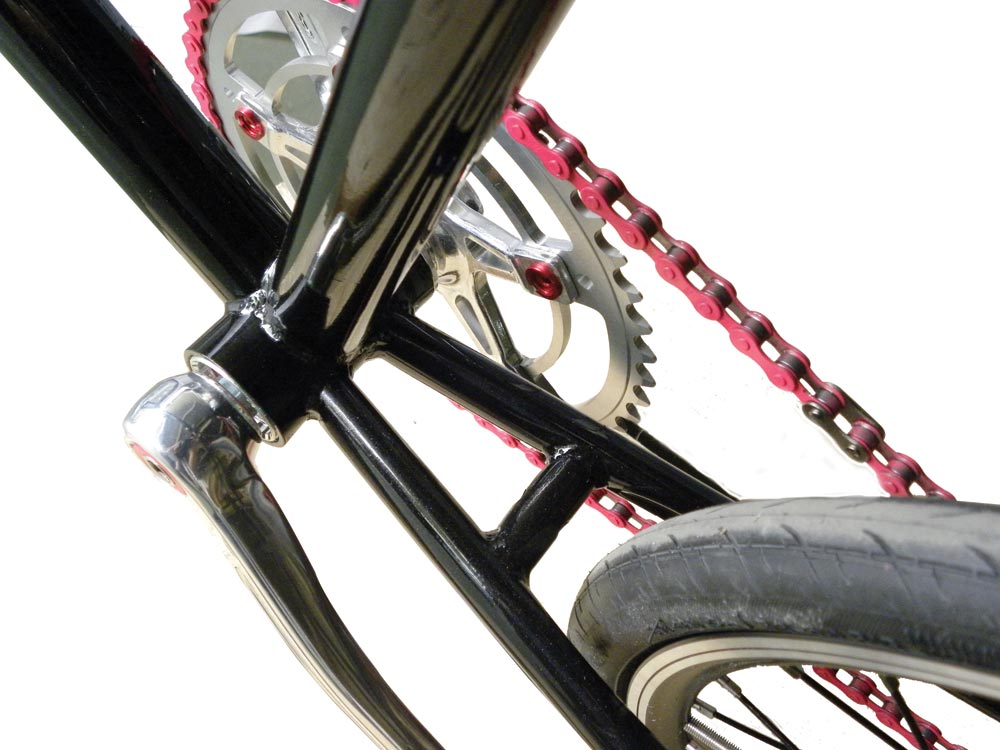

  • Bottom bracket BSA Threaded 68mm



Specifications

  • Material Tig welded 4130 Cr-Mo
  • Headset Compatibility Threadless 1 1/8"
  • Seatpost 27.2mm
  • Seat Clamp 31.8mm

All weights are approximate and are offered in good faith.

ENE Ciclo Flat-1 Frameset
ENE Ciclo Flat-1 Frameset
Click image to enlarge

To find out where to buy  Click Here

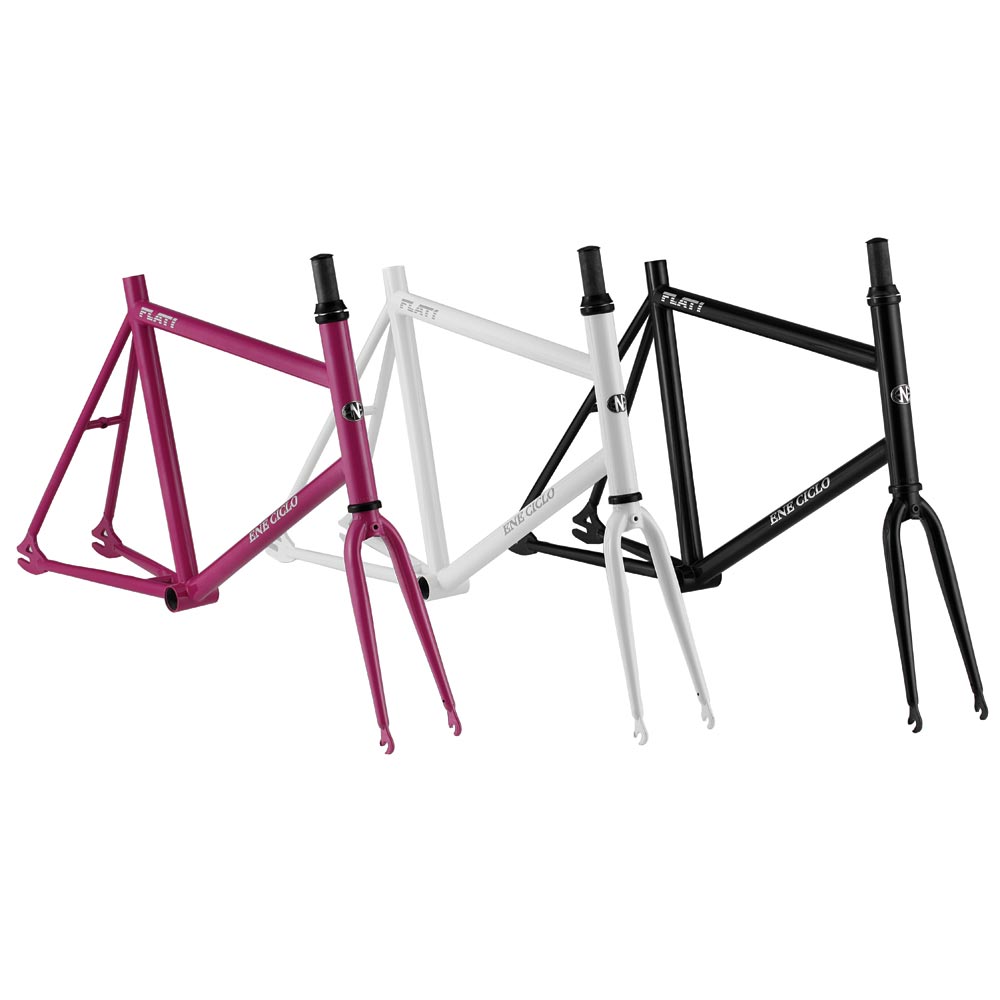

Description Colour Size Wt(g) Part No. Stock Lvl RRP Pack Unit
ENE Ciclo Flat-1 Frameset, City frame, 4130 Cro-Mo, inc. 11/8" Cro-Mo fork, Suit 20x11/8" wheelsBlack460mm FMDCEF1K£499.99Each
ENE Ciclo Flat-1 Frameset, City frame, 4130 Cro-Mo, inc. 11/8" Cro-Mo fork, Suit 20x11/8" wheelsPink460mm FMDCEF1P£499.99Each
ENE Ciclo Flat-1 Frameset, City frame, 4130 Cro-Mo, inc. 11/8" Cro-Mo fork, Suit 20x11/8" wheelsWhite460mm FMDCEF1W
ETA: 25th Aug 2021
£499.99Each
