1XR 4-Arm 96BCD Chainring

The Renthal 1XR chainring tooth profiling ensures the highest level of chain retention, in all conditions. Alternating width teeth interlock with the chain for ultimate security, with no loss of efficiency.

Intricate tooth profiling increases mud clearance and extends longevity.

The Renthal 1XR offers ultimate chain retention performance and market leading durability.

Wide Narrow

Alternating 1.8 / 3.5mm teeth interlock, in sequence, with the inner and outer links of 9, 10, 11 or 12 speed chain, to give the highest levels of chain retention and efficiency.

The tall, square tooth profile ensures the very high level of chain retention isn't reduced as the tooth face wears.

All Weather

Mud grooves, located in each tooth bed combined with ample clearance below the outer chain plates, allows dirt and mud to be purged clear of the drivetrain, improving performance and durability.

High Strength A CAD I-Beam cross section is utilised to give the maximum strength and stiffness, with the lowest possible weight.

CNC Machined

The 1XR is fully CNC machined from 7075 T6 aluminium alloy. Utilising CNC machining production allows accurate tooth face profiling and the maximum width contact area with the chain rollers, for greater longevity.

Ultra Durable

After CNC machining, the 1XR chainring is hard anodised to give an incredibly durable surface finish. The chainring is further enhanced with the application of a 3-D graphic in a CNC machined recess.

Specifications

  • Material 7075 T6 Aluminium
  • Fitting 4 Arm
  • Speed 8-12 speed (12 speed SRAM chain only)
  • BCD 96 (For 2016 Shimano XTR & XT)
  • Teeth 30, 32, 34, 36T
  • Colour Hard Anodised

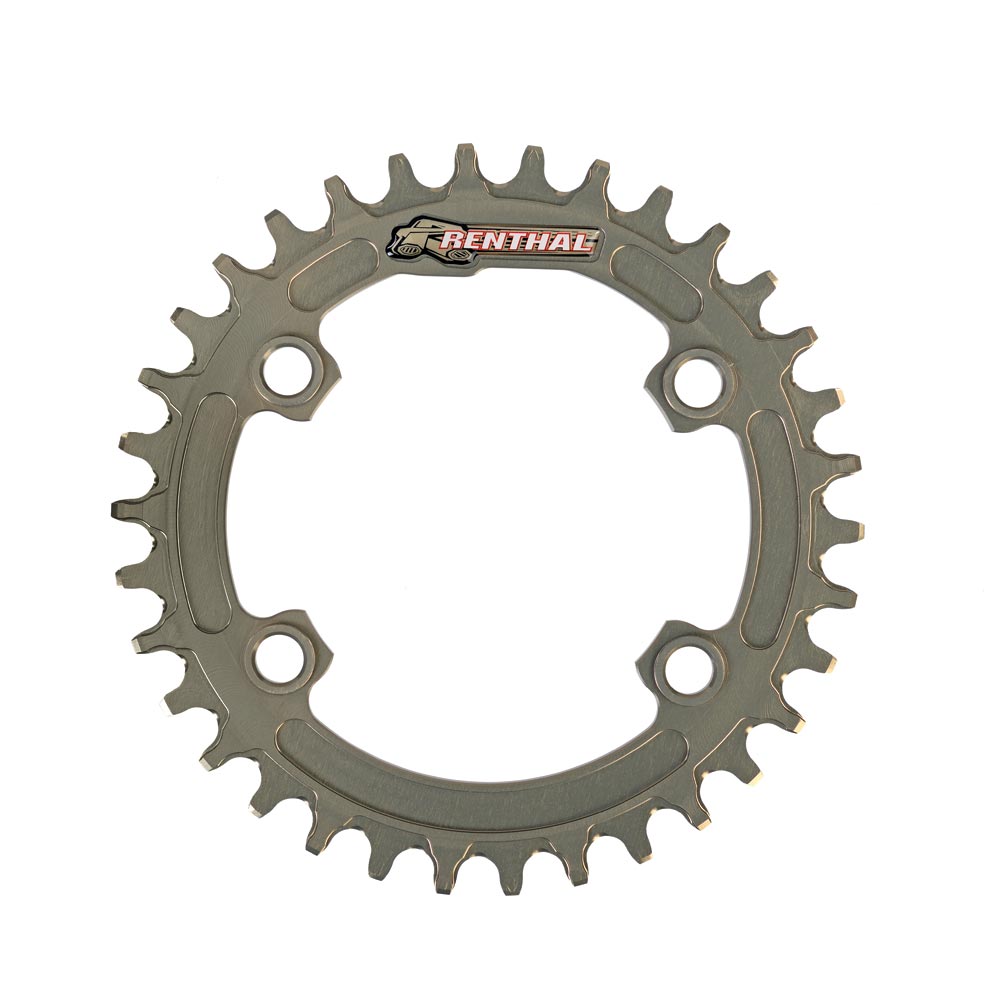

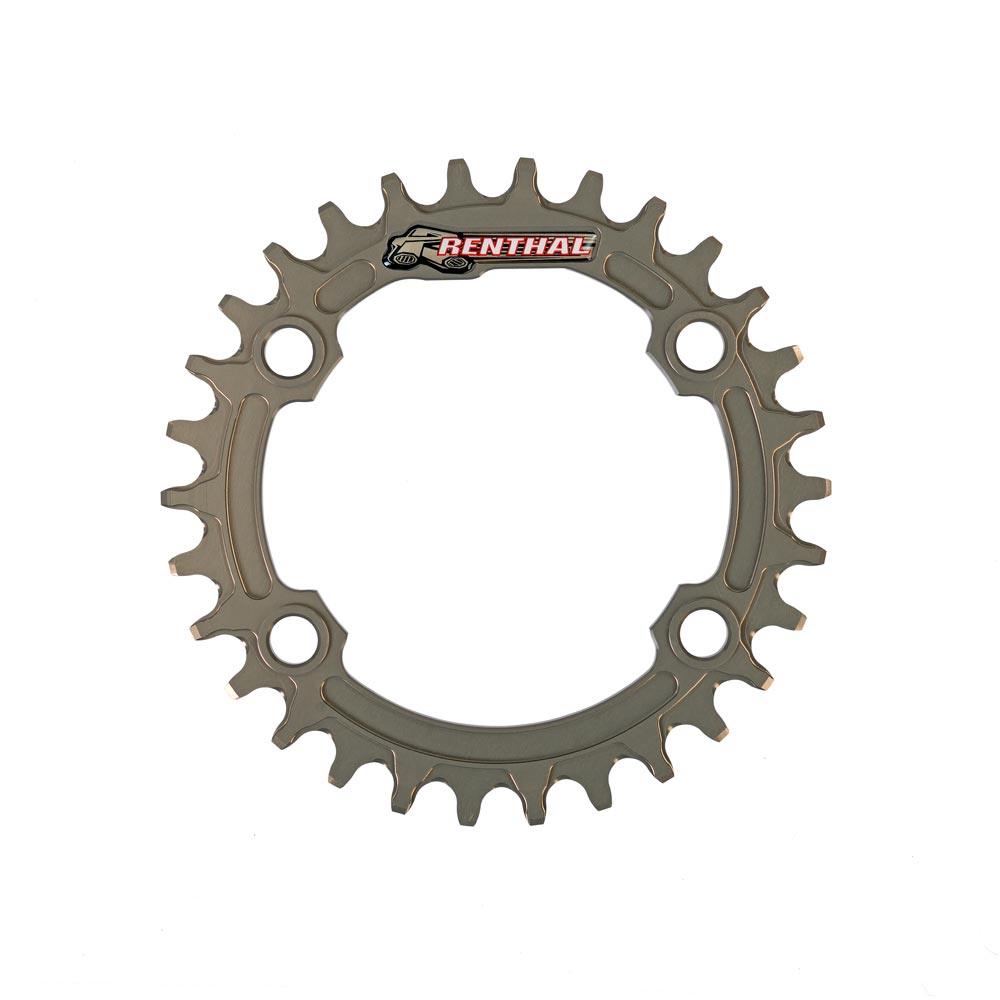

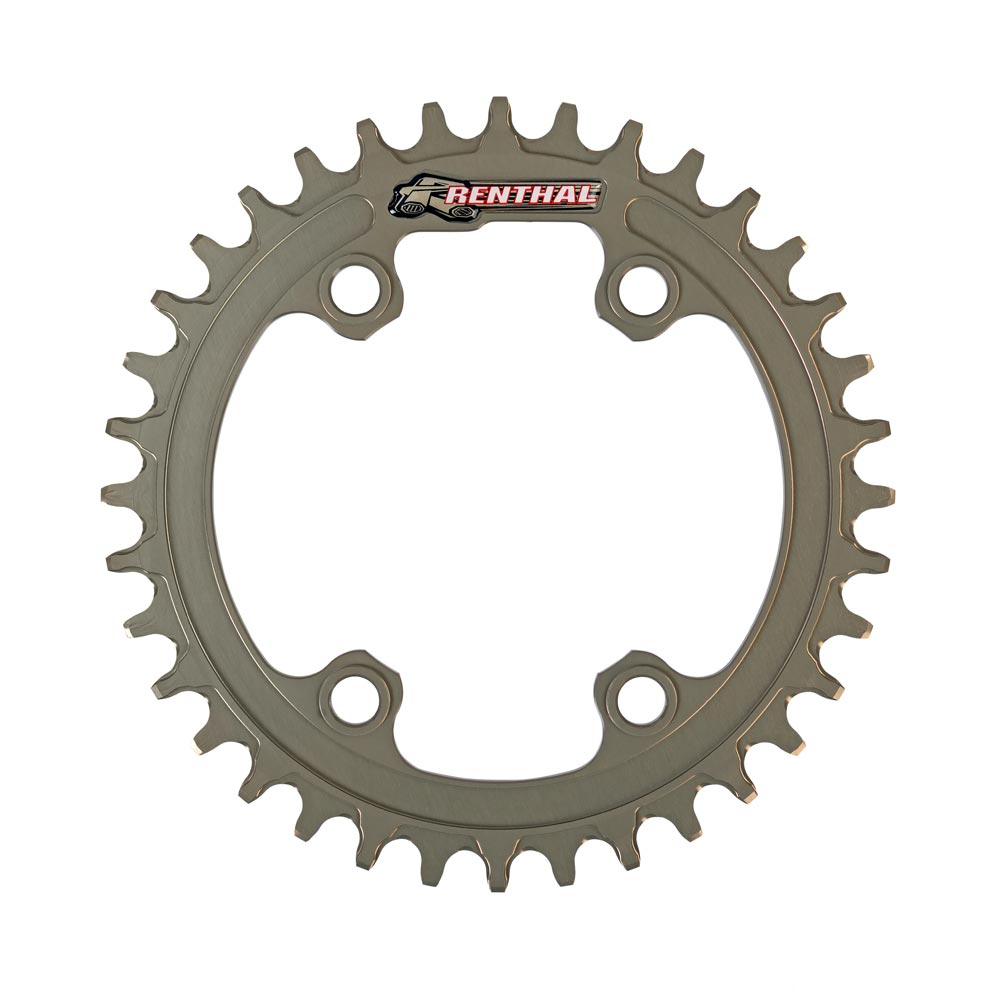

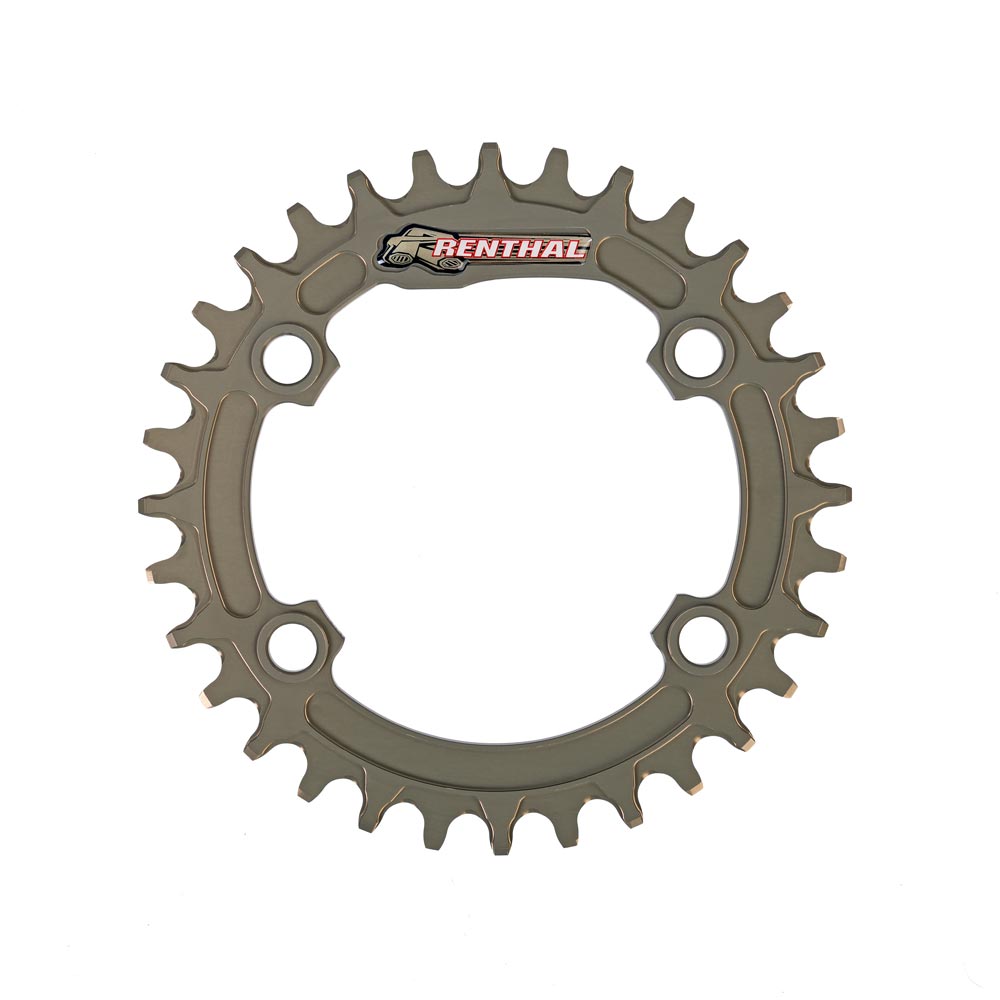

Renthal 1XR 4-Arm 96BCD Chainring
Renthal 1XR 4-Arm 96BCD Chainring
Click image to enlarge

To find out where to buy  Click Here

Description Colour Size Wt(g) Part No. Stock Lvl Unit RRP Pack Qty
Ultralite 1XR Ring (XT), Fat/Thin chain retaining - CNC 7075 Alloy 96BCD 5/64" 9-12spHard Ano30T56CRRN1T30£63.45Each
Ultralite 1XR Ring (XT), Fat/Thin chain retaining - CNC 7075 Alloy 96BCD 5/64" 9-12spHard Ano32T58CRRN1T32£63.45Each
Ultralite 1XR Ring (XT), Fat/Thin chain retaining - CNC 7075 Alloy 96BCD 5/64" 9-12spHard Ano34T65CRRN1T34£63.45Each
Ultralite 1XR Ring (XT), Fat/Thin chain retaining - CNC 7075 Alloy 96BCD 5/64" 9-12spHard Ano36T72CRRN1T36£63.45Each
  • Good stock levels
  • Low stock levels, Qtys may not be available
  • +24h Components are available, add 24/48hrs for assembly
  • Special Order Currently non-stock item, contact us for info
  • Out of stock. Expected availability date will be displayed if known.
  • Discontinued. This product is no longer available.
  • M Mixed Quantity discount available
