1XR 4-Arm 94BCD Chainring

Ultimate chain retention. All conditions.

The Renthal 1XR chainring tooth profiling ensures the highest level of chain retention, in all conditions.

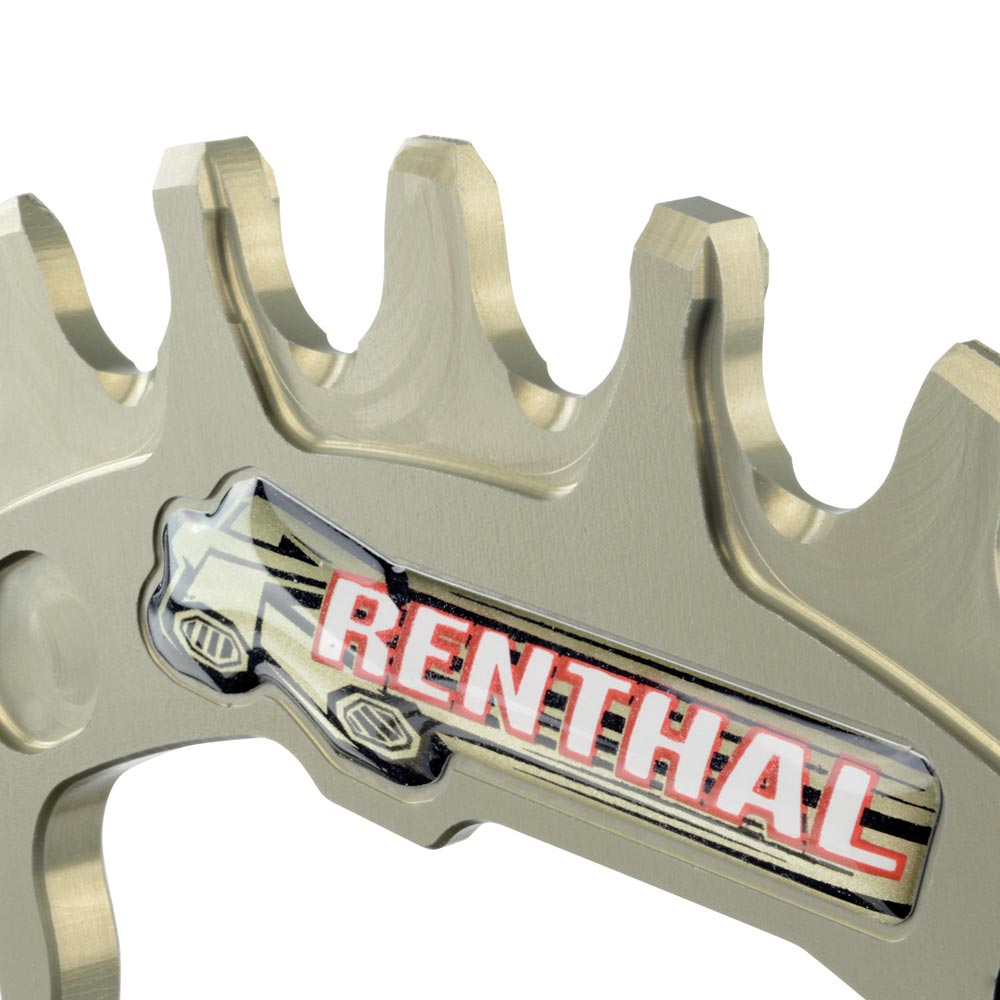

Alternating 1.8 / 3.5mm width teeth interlock with the chain for ultimate security, with no loss of efficiency.

The reduced frontal profile of the 3.5mm wide teeth increases mud clearance for the inner chain plates and extends longevity.

Durability of the hard wearing 7075 T6 aluminium construction is maximised with a hard anodised surface treatment and mud evacuation grooves in the tooth bed.

Specifically designed to fit SRAM X01, X1 and GX cranksets.

Features:

  • Alternating 1.8 / 3.5mm width teeth.
  • CNC machined 7075 T6 Aluminum.
  • Hard anodised surface finish
  • Mud grooves in the tooth bed
  • Ultra stiff I-Beam cross section
  • Mud clearance and wear-proof profiling
  • 94mm BCD (for SRAM X01, X1 and GX cranksets).


Sizes: 30, 32, 34, 36 and 38t.

Weight:

  • 30t 40g
  • 32t 42g
  • 34t 46g
  • 36t 50g
  • 38t 54g



Specifications

  • Material 7075 T6 aluminium
  • Fitting 4 Arm
  • Speed 8-11 speed
  • BCD 94 (for SRAM X01, X1 and GX cranksets)
  • Teeth 30, 32, 34, 36 or 38T
  • Colour Hard anodised

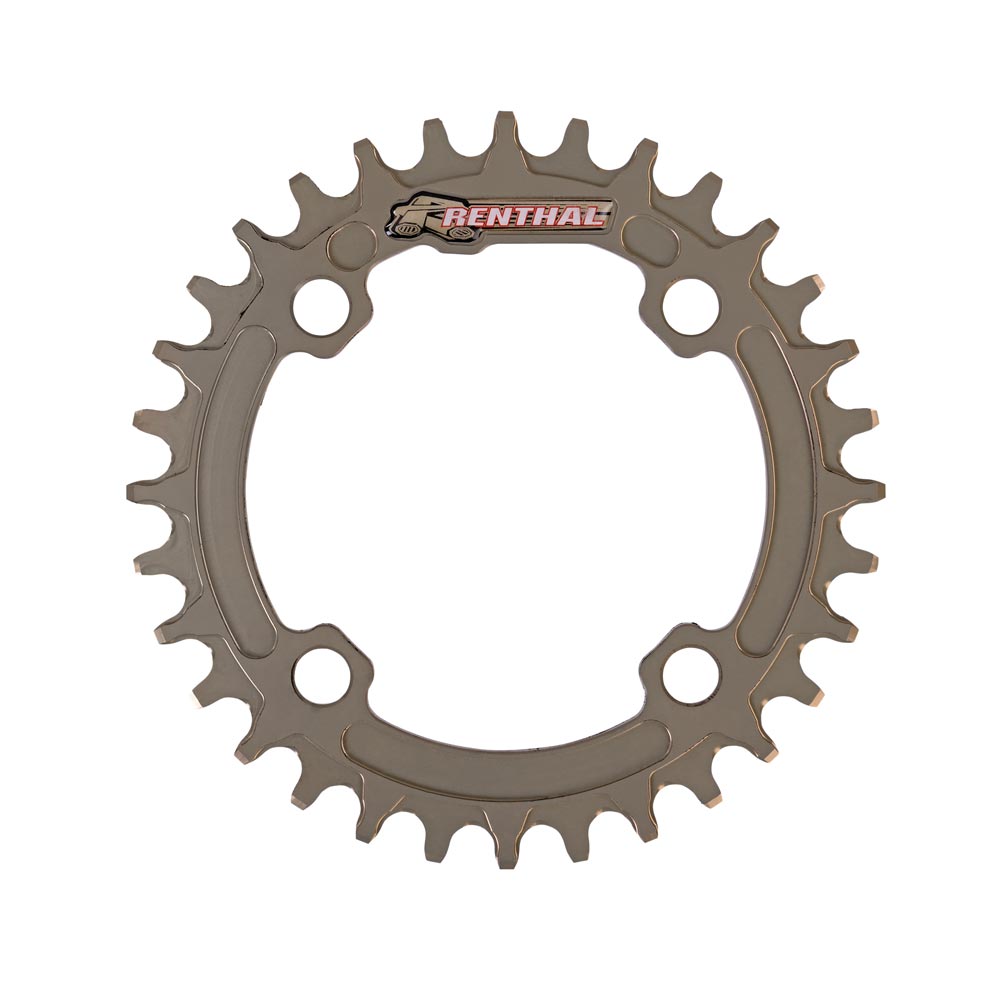

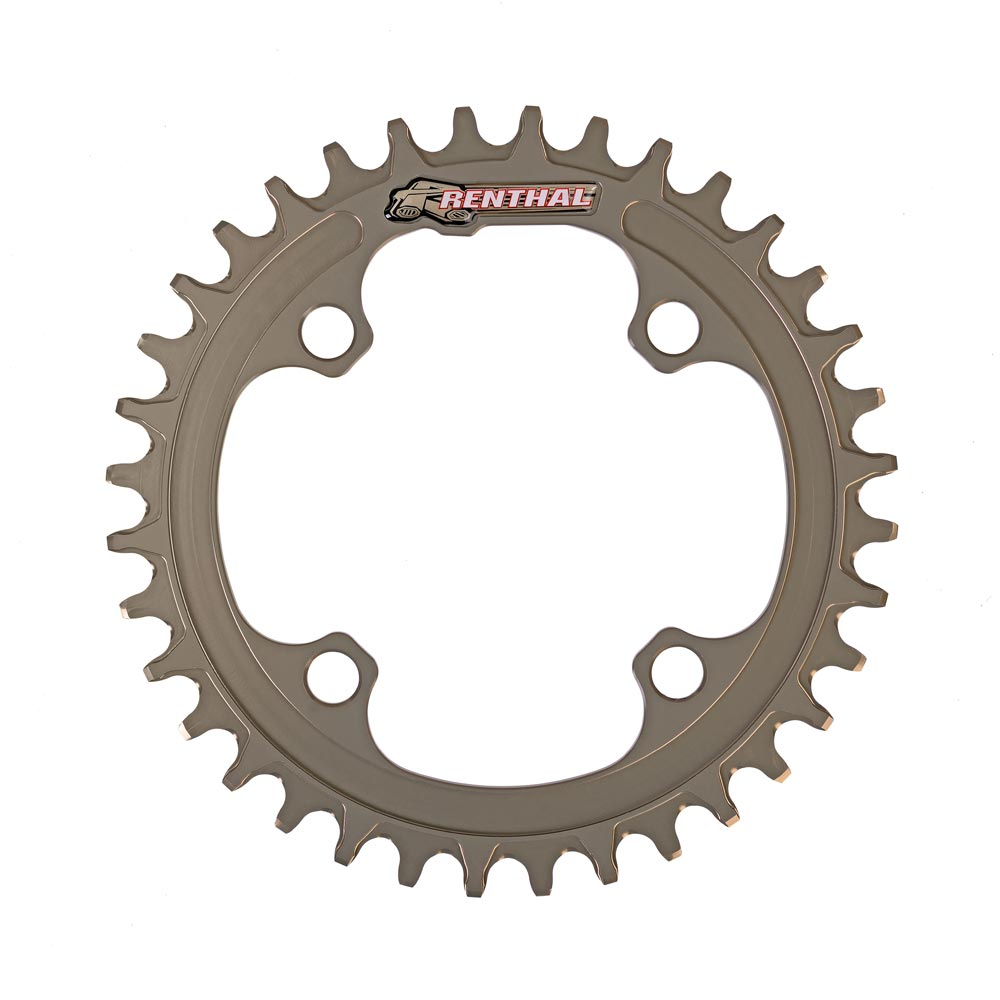

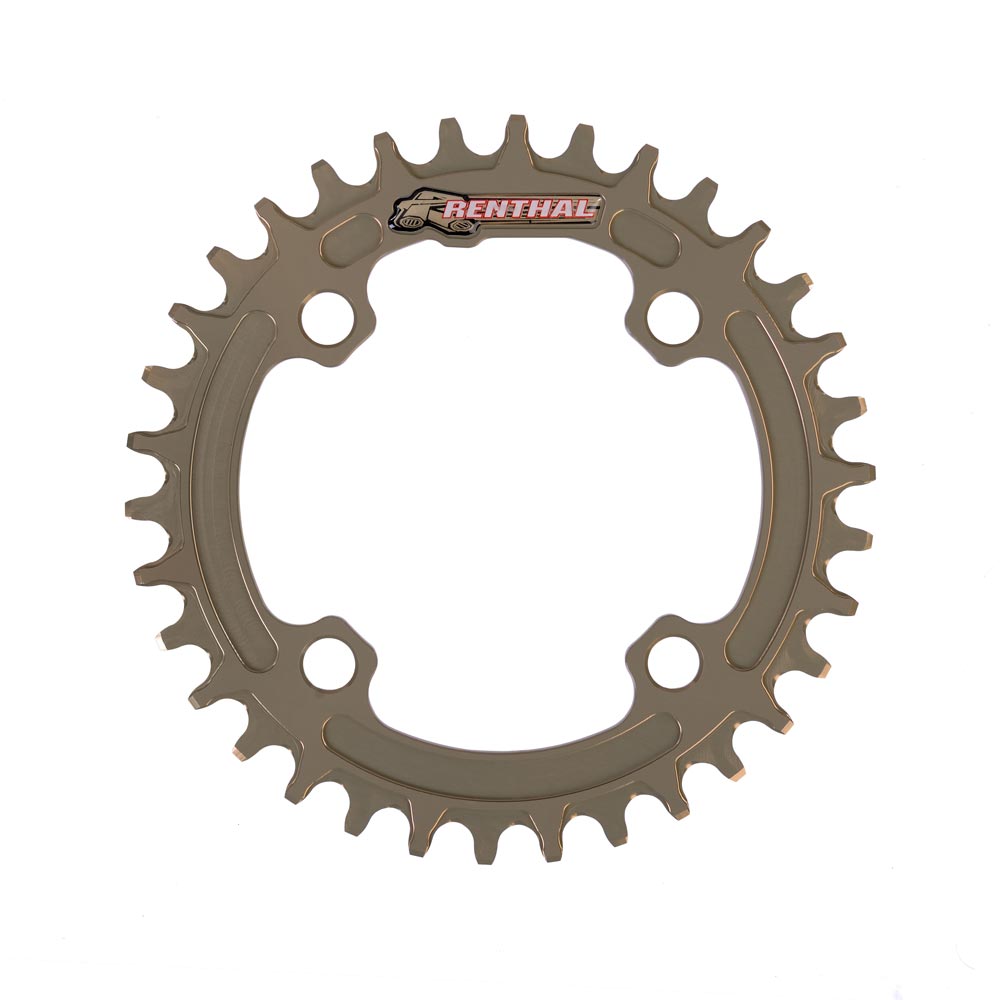

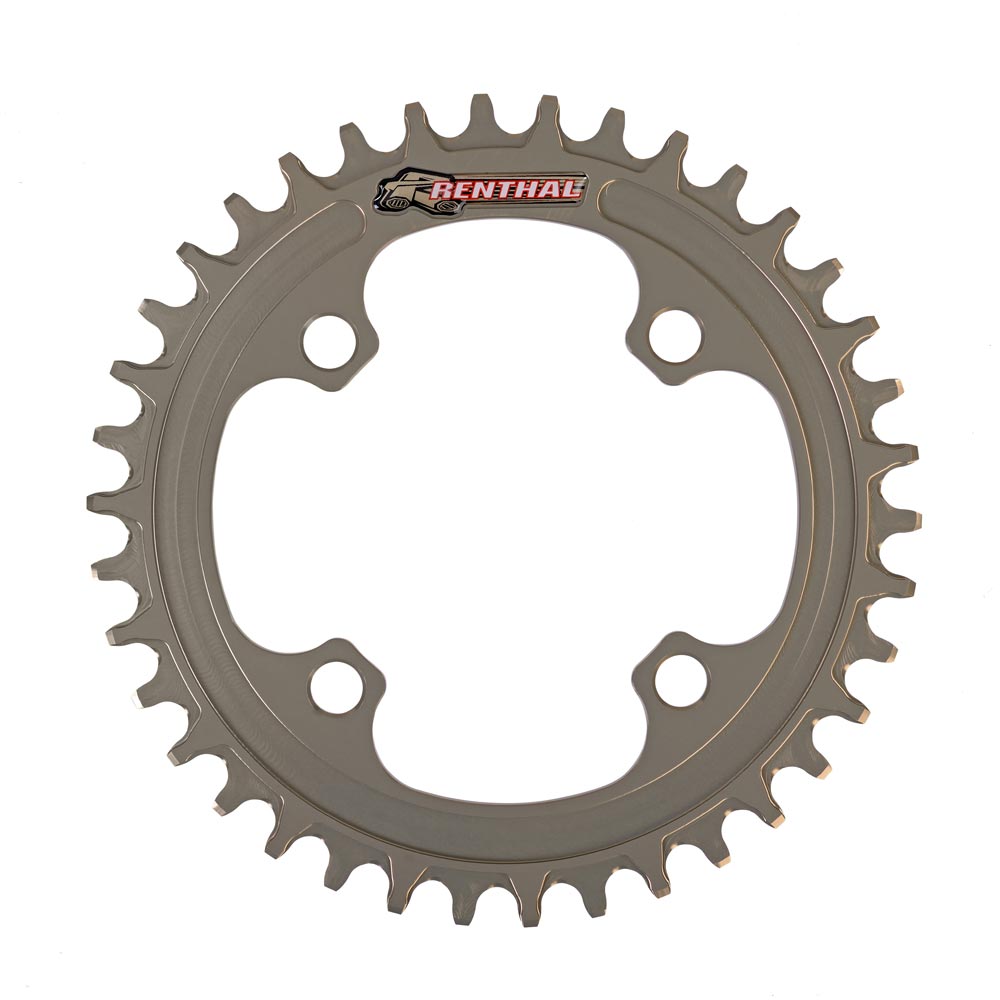

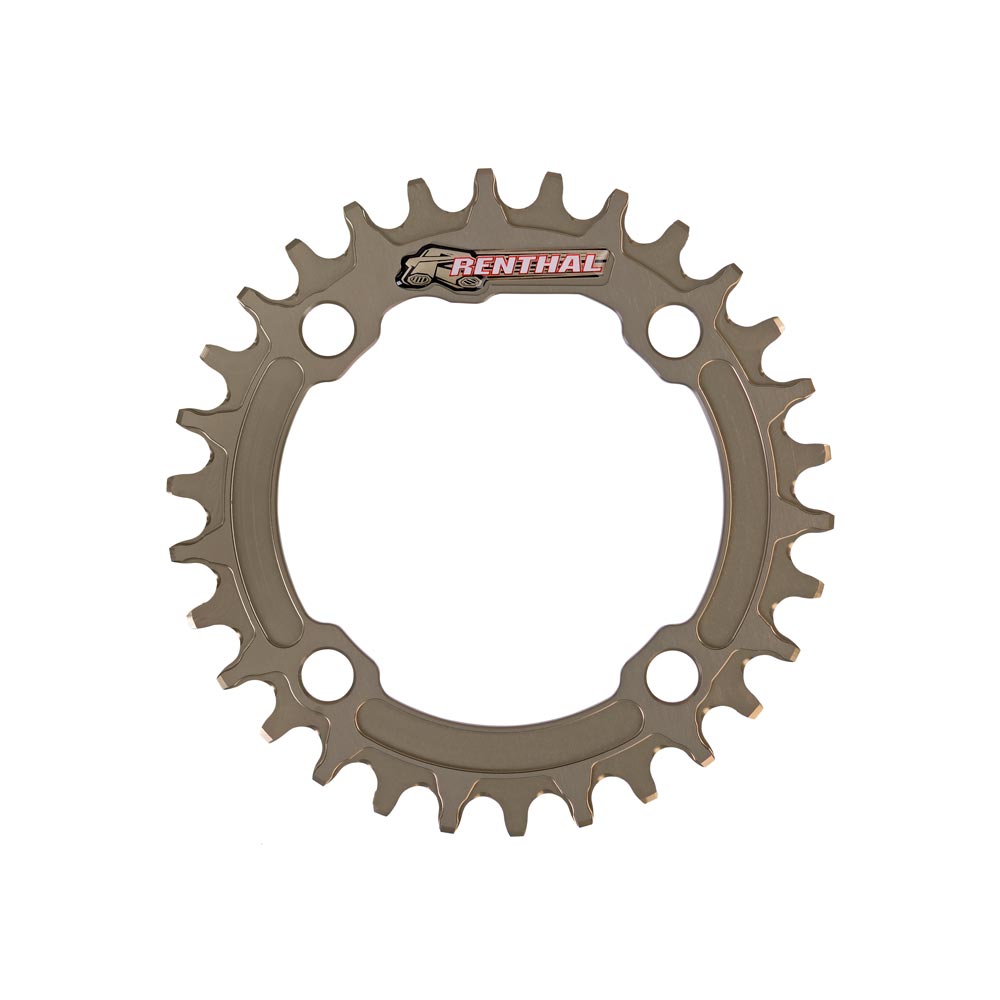

Renthal 1XR chainring
Renthal 1XR chainring
Click image to enlarge

To find out where to buy  Click Here

Description Colour Size Wt(g) Part No. Stock Lvl RRP Pack Unit
Ultralite 1XR Ring (SRAM), Fat/Thin chain retaining - CNC 7075 Alloy 94BCD 5/64" 8-11spHard Ano30T CRRN1M30£49.95Each
Ultralite 1XR Ring (SRAM), Fat/Thin chain retaining - CNC 7075 Alloy 94BCD 5/64" 8-11spHard Ano32T CRRN1M32£49.95Each
Ultralite 1XR Ring (SRAM), Fat/Thin chain retaining - CNC 7075 Alloy 94BCD 5/64" 8-11spHard Ano34T CRRN1M34 Low Stock£49.95Each
Ultralite 1XR Ring (SRAM), Fat/Thin chain retaining - CNC 7075 Alloy 94BCD 5/64" 8-11spHard Ano36T CRRN1M36£49.95Each
Ultralite 1XR Ring (SRAM), Fat/Thin chain retaining - CNC 7075 Alloy 94BCD 5/64" 8-11spHard Ano38T CRRN1M38£49.95Each
