Integra II Stem

The new Integra II Direct Mount stems feature the same lightweight, 6-bolt design as the original Integra and Renthal have improved the structure of the stem.

The Integra II uses the same C-shape clamping system as the Apex stem range, which has been increased in size to cope with the demands of top level DH racing. The use of two independent, C-shape handlebar clamps allows the stem body material to be reduced to a minimum, whilst maintaining an incredibly stiff and strong structure.

The ultra-wide, 64mm handlebar clamping area increases torsional rigidity and the use of just six bolts vastly reduces overall weight. In addition, the uninterupted clamp on the underside of the handlebar eliminates stress risers found on most other clamps, which can lead to handlebar failure.

The size range has also now increased to include 45mm and 50mm lengths. Both of which are available in either zero rise or +10mm rise giving you four options:

  • 45 x Zero. Length 45mm. Rise zero. Bar clamp 31.8mm.
  • 45 x +10mm. Length 45mm. Rise +10mm. Bar clamp 31.8mm.
  • 50 x Zero. Length 50mm. Rise zero. Bar clamp 31.8mm.
  • 50 x +10mm. Length 50mm. Rise +10mm. Bar clamp 31.8mm.


All of them suit Boxxer/IS.

Weights:

  • 45mm x Zero: 130g
  • 45mm x 10mm: 155g
  • 50mm x Zero: 145g
  • 50mm x 10mm: 175g

Dirt 100 2016 "Super light, easy to install and bomber strong, the Integra 2 is another hit from UK brand Renthal. With a finish and looks second to none and used by the pro's this stem oozes moto cool".

RENTHAL INTEGRA II stem
Renthal Integra 2
Click image to enlarge

To find out where to buy  Click Here

Description Colour Size Wt(g) Part No. Stock Lvl RRP Pack Unit

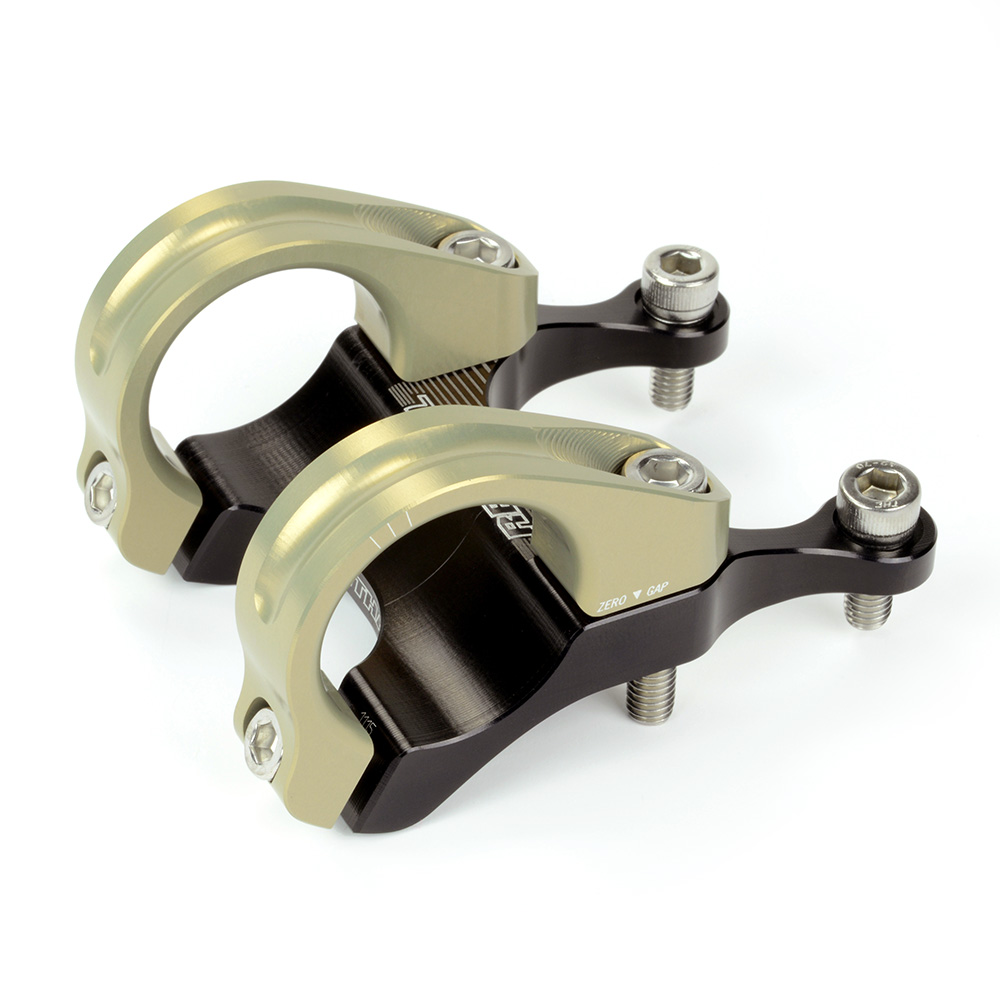

Integra II DM Stem, 0mm Rise - 45mm Extension, 31.8mm, CNC Alloy 3-Piece Design.Black/Gold45mm130ASRNI240£99.95Each

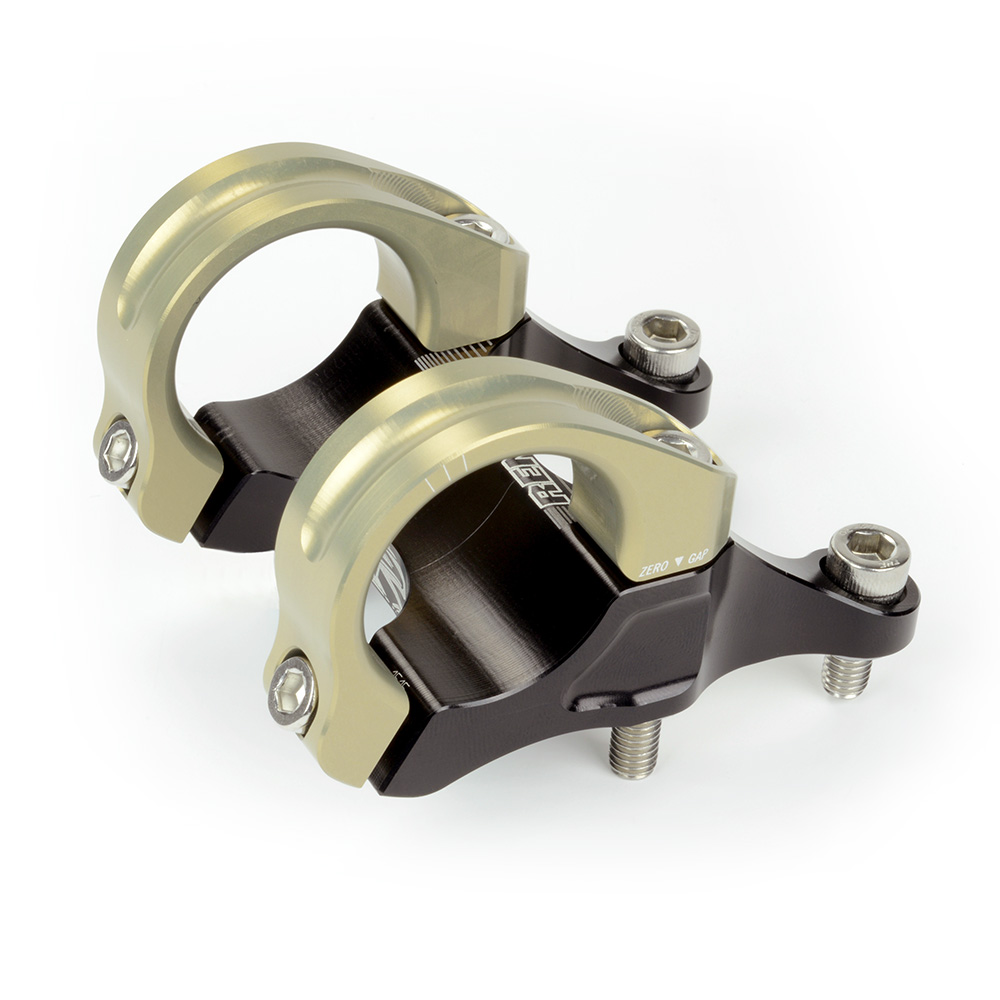

Integra II DM Stem, 10mm Rise - 45mm Extension, 31.8mm, CNC Alloy 3-Piece Design.Black/Gold45mm155ASRNI241£99.95Each

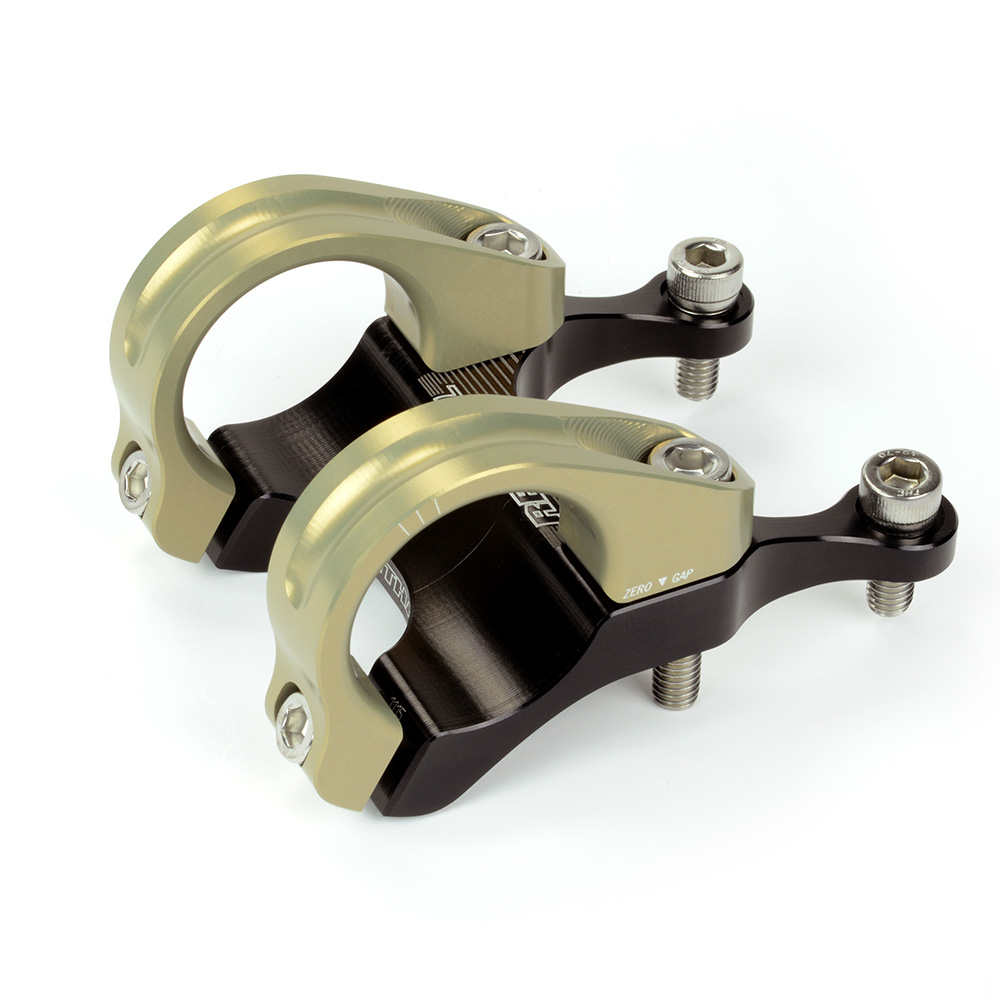

Integra II DM Stem, 0mm Rise - 50mm Extension, 31.8mm, CNC Alloy 3-Piece Design.Black/Gold50mm145ASRNI250£99.95Each

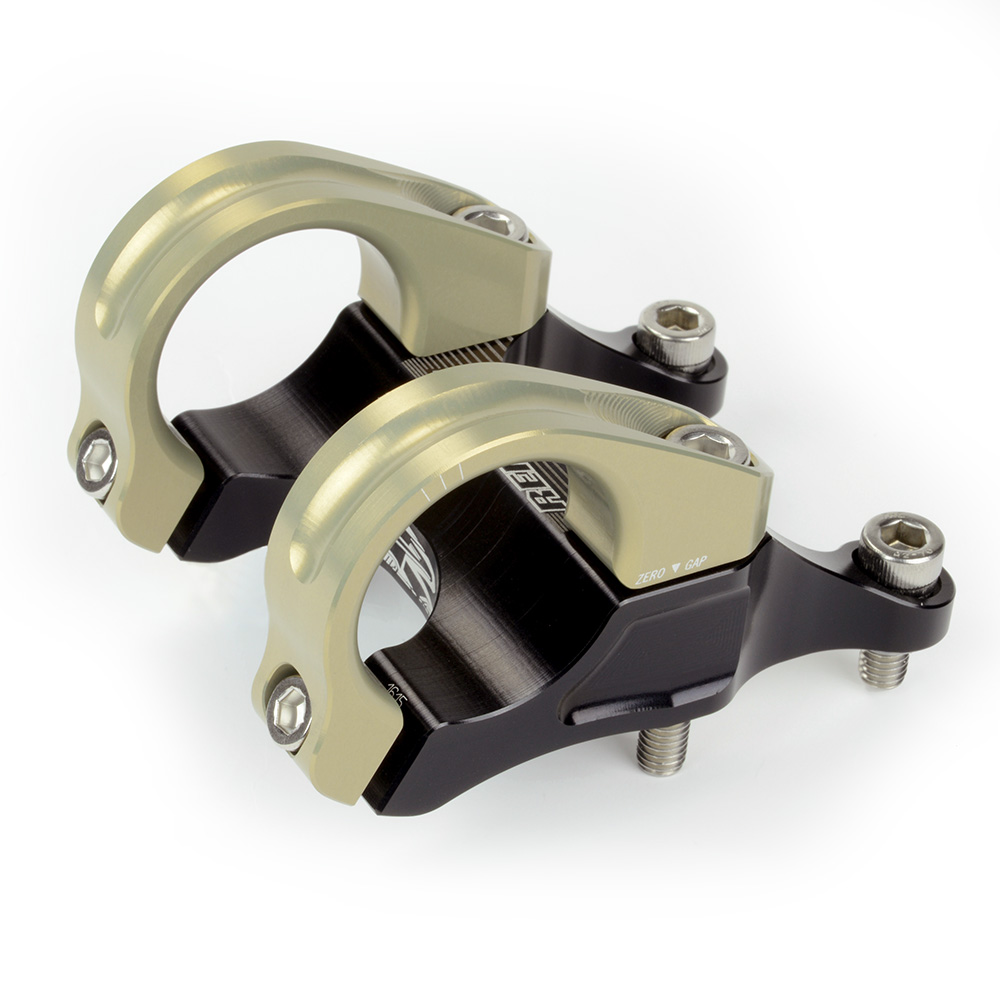

Integra II DM Stem, 10mm Rise - 50mm Extension, 31.8mm, CNC Alloy 3-Piece Design.Black/Gold50mm175ASRNI251£99.95Each
  • Good stock levels
  • +24h Please allow 24/48 hrs for assembly
  • Special Order Currently not in stock, contact us for details
  • Out of stock. Expected availability date will be displayed if known.
  • Discontinued. This product is no longer available.
