Carbaura RCD 50mm Wheelsets

The latest version of our Carbaura RCD wheels have been designed to maximise aerodynamic benefit and with excellent linear compliance and lateral stiffness these wheels will keep you a bike length ahead of the competition!

Built around an optimised, Computational Fluid Dynamics tested, aerodynamic profile in a Carbon Fibre chassis, low weights, linear compliance, and lateral stiffness were our primary aims with the Carbaura RCD wheelsets.

Developed with a 21mm internal and 28mm external rim width which allows you to run a wide range of traditional or tubeless tyres. Optimised for a modern compliant and supple 28c tyre, delivering enhanced comfort and ultimate grip in any situation.

At the centre of the Carbaura RCD wheelsets are our RD2 hubs equipped with centre lock, to accept disc brakes for consistently powerful braking in all weathers and to eliminate rim wear.

The RD2 hub set also incorporates Supadrive, which offers a 120 point near-instant engagement with the ability to withstand substantial torque loads. With multiple World Championship titles across a range of disciplines, the Supadrive system is tried and tested to the very highest level and is our most advanced and reliable drive system to date.

Handcrafted with lightweight bladed aero spokes to decrease resistance and widely spaced hub flanges, the Carbaura RCD wheelsets have been built to reduce any possible lateral flex and increase power transfer. Both front and rear wheels use a 16/8e lacing pattern to balance spoke tensions and withstand torque and braking forces from the centre of the wheels.

Now available in three depths:

  • 35mm – a classic climber and all rounder
  • 50mm- a midweight racer option
  • 80mm – an ultimate speed set for crit racer or time trial specialist.

Specifications

  • Spokes Halo Black Aero Racing Stainless spokes
  • Nipples Black brass nipples
  • Rim Depth 50mm
  • Internal Rim Width 21mm
  • External Rim Width 28mm
  • Front Hub Spacing 12mm x 100mm (100mm - QR Available aftermarket)
  • Rear Hub Spacing 12 x 142mm (QR available aftermarket)
  • Freehub Campag, Shimano HG or SRAM XDR
  • Drive System Supadrive
  • Disc Mount Centre-lock
  • Spoke pattern F16/8H | R16/8H
  • Recommended Tyre size 25 - 32c
  • Recommended inflation pressure tubeless ready
  • Colour Anodised black hub. Matte finished rim with Stealth decals

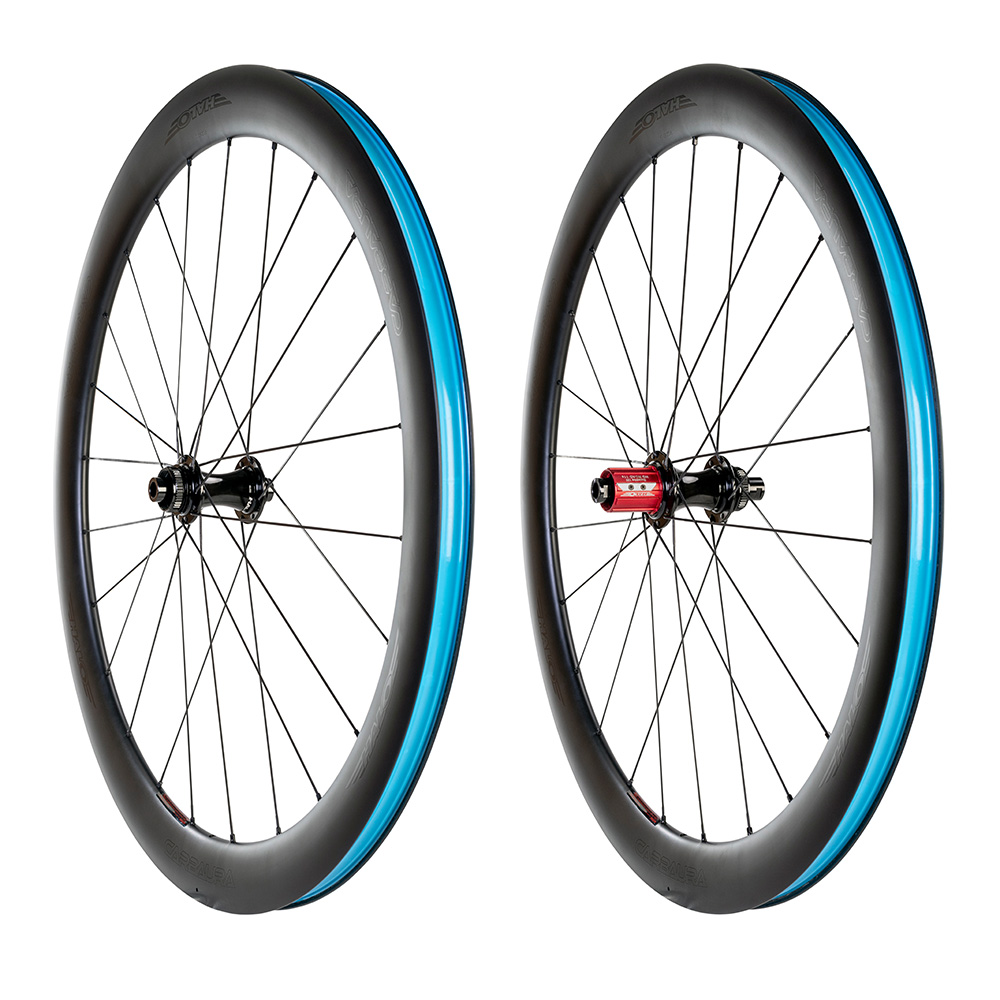

Halo Carbaura RCD 50mm Wheelset
Halo Carbaura RCD 50mm Wheelset
Click image to enlarge

To find out where to buy  Click Here

Description Colour Size Wt(g) Part No. Stock Lvl Unit RRP Pack Qty
Carbaura RCD50 Road Pair, 50mm deep carbon Disc rim, 16/8H Ft/Rr CampagBlack700c1620WHHACD5PCSpecial Order£1,049.95Pair
Carbaura RCD50 Road Pair, 50mm deep carbon Disc rim, 16/8H Ft/Rr 13sp Campag N3WBlack700c1620WHHACD5PESpecial Order£1,049.95Pair
Carbaura RCD50 Road Pair, 50mm deep carbon Disc rim, 16/8H Ft/Rr ShimanoBlack700c1620WHHACD5PS
£1,049.95Pair
Carbaura RCD50 Road Pair, 50mm deep carbon Disc rim, 16/8H Ft/Rr SRAM XD-RBlack700c1620WHHACD5PX
£1,049.95Pair
  • Good stock levels
  • Low stock levels, Qtys may not be available
  • +24h Components are available, add 24/48hrs for assembly
  • Special Order Currently non-stock item, contact us for info
  • Out of stock. Expected availability date will be displayed if known.
  • Discontinued. This product is no longer available.
  • M Mixed Quantity discount available
Description Colour Size Wt(g) Part No. Stock Lvl Unit RRP Pack Qty
Carbaura RCD50 Road Pair, 50mm deep carbon Disc rim, 16/8H Ft/Rr CampagBlack700c1620WHHACD5PCSpecial Order£1,049.95Pair
Carbaura RCD50 Road Pair, 50mm deep carbon Disc rim, 16/8H Ft/Rr 13sp Campag N3WBlack700c1620WHHACD5PESpecial Order£1,049.95Pair
Carbaura RCD50 Road Pair, 50mm deep carbon Disc rim, 16/8H Ft/Rr ShimanoBlack700c1620WHHACD5PS
£1,049.95Pair
Carbaura RCD50 Road Pair, 50mm deep carbon Disc rim, 16/8H Ft/Rr SRAM XD-RBlack700c1620WHHACD5PX
£1,049.95Pair
  • Good stock levels
  • Low stock levels, Qtys may not be available
  • +24h Components are available, add 24/48hrs for assembly
  • Special Order Currently non-stock item, contact us for info
  • Out of stock. Expected availability date will be displayed if known.
  • Discontinued. This product is no longer available.
  • M Mixed Quantity discount available
