Vortex Rim 27.5"

With a generous 33mm internal width Vortex wheels increase tyre volume and maximise the available grip on offer.

Using an asymmetric design we have equalised spoke tensions and built a package that leaves descents in its wake, whilst cutting down weight where it isn’t needed for energy sapping climbs.

To compensate for the differences in wall length and strength of an asymmetric design, the wall thicknesses have been proportioned to balance out impact forces equally.

The Vortex offers offset wheel benefits, without compromise.

Vortex Mini Site

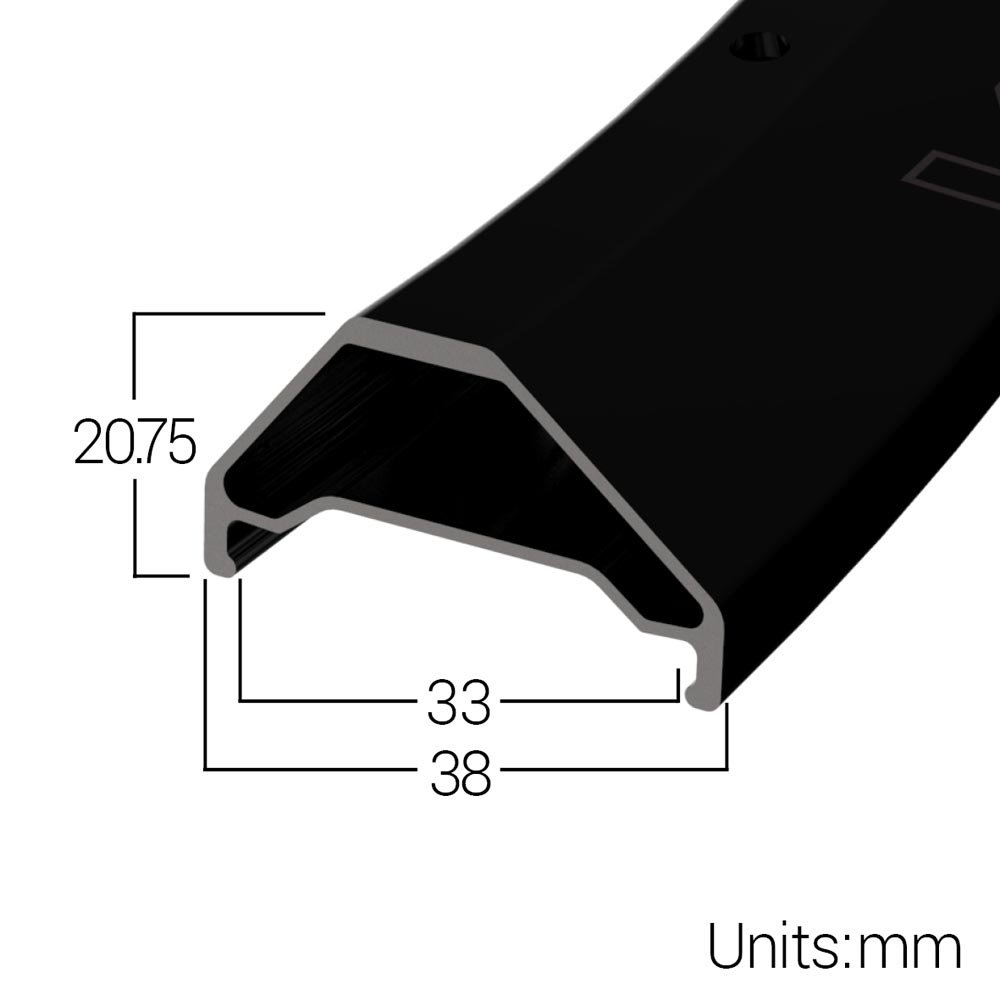

Specifications

  • Rim Depth 20.75mm
  • Internal Width 33mm
  • External Width 38mm
  • Joint type Sleeved
  • Recommended Tyre size 2.35-2.8
  • Drillings 28 or 32H
  • Eyelets Single black SS
  • ERD 558mm
  • Rim Offset 3mm
  • Additional features Tubeless ready
  • Colour Stealth Black

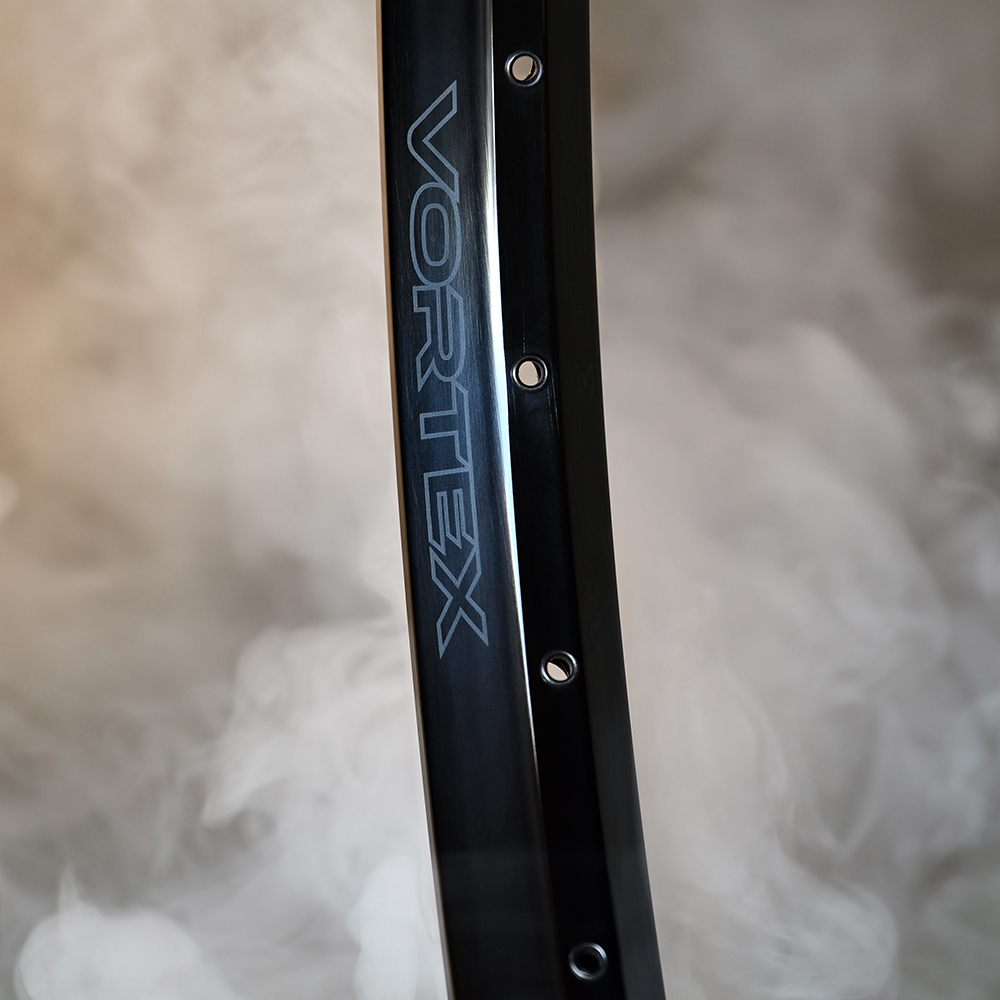

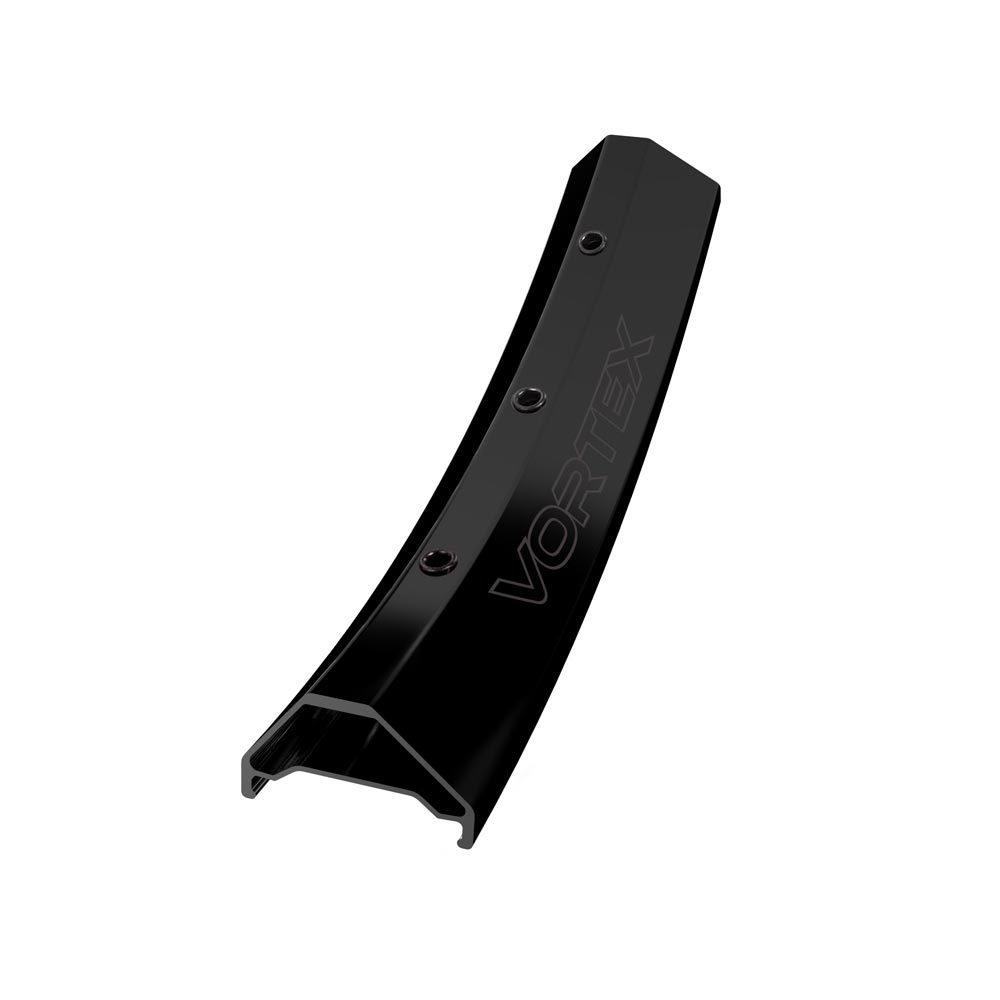

Halo Vortex Rim
Halo Vortex Rim
Click image to enlarge

To find out where to buy  Click Here

Description Colour Size Wt(g) Part No. Stock Lvl RRP Pack Unit
Vortex 27.5", 38mm wide (33mm internal) Offset disc alloy rim. Disc ONLY with SS eyelets. ERD 558Stealth Black32H565RMHAVX72Z£74.99Each
Vortex 27.5", 38mm wide (33mm internal) Offset disc alloy rim. Disc ONLY with SS eyelets. ERD 558Stealth Black28H585RMHAVX78Z£74.99Each
  • Good stock levels
  • Low stock levels, Qtys may not be available
  • +24h Components are available, add 24/48hrs for assembly
  • Special Order Currently non-stock item, contact us for info
  • Out of stock. Expected availability date will be displayed if known.
  • Discontinued. This product is no longer available.
  • M Mixed Quantity discount available
Description Colour Size Wt(g) Part No. Stock Lvl RRP Pack Unit
Vortex 27.5", 38mm wide (33mm internal) Offset disc alloy rim. Disc ONLY with SS eyelets. ERD 558Stealth Black32H565RMHAVX72Z£74.99Each
Vortex 27.5", 38mm wide (33mm internal) Offset disc alloy rim. Disc ONLY with SS eyelets. ERD 558Stealth Black28H585RMHAVX78Z£74.99Each
