Front Fit Kits

Our Fit Kits are tried and tested! Old Man Mountain was born in 1996 from the need to mount racks on bikes without traditional mounting points and make every bike capable of doing more. Our Fit Kits do just that while having some key benefits over eyelet mounting too.

Fit Kits protect your bike. Not all bike eyelets are meant for racks, most are only made for mudguards or have very low weight limits. Axle mounting protects your frame by moving the load from a small bolt that’s loaded in shear to a stud that extends from the axle and is captured by the rack dropouts.
Need to carry more gear? Axle mounting increases our Divide rack’s load capacity to 70lbs/33kg.
Want to move your rack between multiple bikes? Fit Kits make it easy to swap between bikes or front and rear mounting with just a few bolts.

Bike not listed? Pop over to the Old Man Mountain website for full instructions

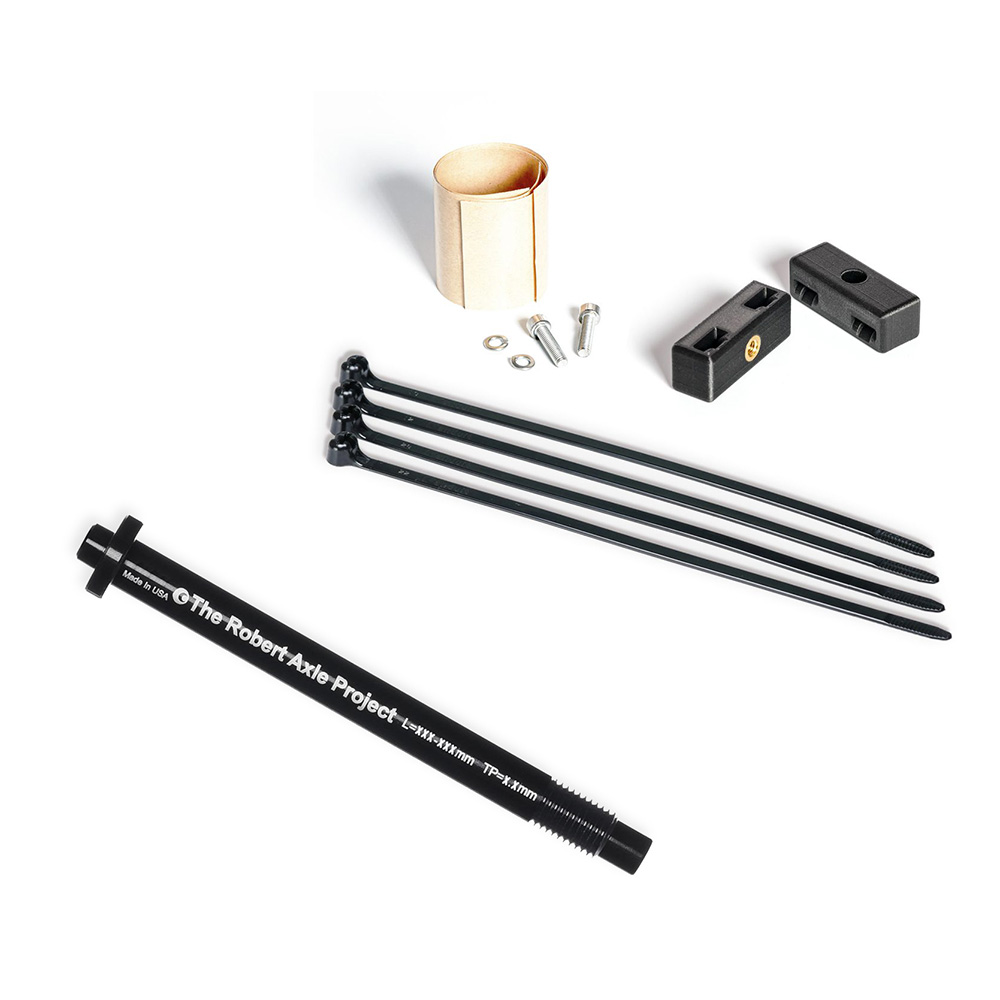

Old Man Mountain Front Fit Kits
*Click image to enlarge*

To find out where to buy Click Here

Description	Colour	Size	Wt(g)	Part No.	Unit RRP	Pack Qty
SET701 - Front Fit Kit, 15mm Thru Axle Fit Kits 148 mm M15 x 1.5	Black	M15 x 1.5	182	RAOMFK701	£80.00	Each
SET702 - Front Fit Kit, 15mm Thru Axle Fit Kits 145 mm M14 x 1.5	Black	M14 x 1.5	182	RAOMFK702	£80.00	Each
SET703 - Front Fit Kit, 15mm Thru Axle Fit Kits 158 mm M15 x 1.5	Black	M15 x 1.5	191	RAOMFK703	£80.00	Each
SET704 - Front Fit Kit, 15mm Thru Axle Fit Kits 155 mm M14 x 1.5	Black	M14 x 1.5	191	RAOMFK704	£80.00	Each
SET704.F - Front Fit Kit, 15mm Thru Axle Fit Kits 155 mm M14 x 1.5	Black	M14 x 1.5	191	RAOMFK704F	£80.00	Each
SET705.R - Front Fit Kit, 12mm Thru Axle Fit Kits 120 or 125 mm M12 x 1.5	Black	M12 x 1.5	146	RAOMFK705R	£80.00	Each
SET706.R - Front Fit Kit, 12mm Thru Axle Fit Kits 113, 119 or 125 mm M12 x 1.0	Black	M12 x 1.0	146	RAOMFK706R	£80.00	Each
SET707 - Front Fit Kit, 15mm Thru Axle Fit Kits 125 mm M15 x 1.5	Black	M15 x 1.5	146	RAOMFK707	£80.00	Each
SET709 - Front Fit Kit, 15mm Thru Axle Fit Kits 133 to 138 mm M14 x 1.5	Black	M14 x 1.5	146	RAOMFK709	£80.00	Each
SET712.R - Front Fit Kit, 12mm Thru Axle Fit Kits 122 mm M12 x 1.75	Black	M12 x 1.75	146	RAOMFK712R	£80.00	Each
SET713 - Front Fit Kit, 15mm Thru Axle Fit Kits 142 mm M15 x 1.5	Black	M15 x 1.5	146	RAOMFK713	£80.00	Each
SET715 - Front Fit Kit, 15mm Thru Axle Fit Kits 198 mm M15 x 1.5	Black	M15 x 1.5	241	RAOMFK715	£80.00	Each
SET720 - Front Fit Kit, 15mm Thru Axle Fit Kits Suntour Q-Loc N/A	Black	Suntour Q-Loc	218	RAOMFK720	£85.00	Each
SET723.R - Front Fit Kit, 12mm Thru Axle Fit Kits 129 or 135 mm M12 x 1.0	Black	M12 x 1.0	146	RAOMFK723R	£80.00	Each
SET724.F - Front Fit Kit, 12mm Thru Axle Fit Kits Fox 32TC Gravel M12 x 1.5	Black	M12 x 1.5	146	RAOMFK724F	£80.00	Each
SET724.R - Front Fit Kit, 12mm Thru Axle Fit Kits 128 or 134 mm M12 x 1.5	Black	M12 x 1.5	146	RAOMFK724R	£80.00	Each
SET724.X - Front Fit Kit, 12mm Thru Axle Fit Kits Rock Shox Ruby M12 x 1.5	Black	M12 x 1.5	146	RAOMFK724X	£85.00	Each
SET725 - Front Fit Kit, 15mm Thru Axle Fit Kits Manitou - Fat N/A	Black	Manitou - Fat	241	RAOMFK725	£85.00	Each
SET726 - Front Fit Kit, 15mm Thru Axle Fit Kits Manitou - Boost N/A	Black	Manitou - Boost	146	RAOMFK726	£85.00	Each
SET727 - Front Fit Kit, 15mm Thru Axle Fit Kits 130 to 135 mm M15 x 1.5	Black	M15 x 1.5	146	RAOMFK727	£80.00	Each
SETQRDIY - Front or Rear Fit Kit, Cut to fit - 5mm QR Skewer Fit Kit	Black	QR DIY	205	RAOMFKQRD	£75.00	Each
SETQRF - Front Fit Kit, 5mm QR Skewer Fit Kits Road or Mtn Front 5mm QR Kit 9x100 hub	Black	QR 9x100 hub	205	RAOMFKQRF	£75.00	Each

Good stock levels
Low stock levels, Qtys may not be available
+24h Components are available, add 24/48hrs for assembly
Special Order Currently non-stock item, contact us for info
Out of stock. Expected availability date will be displayed if known.
Discontinued. This product is no longer available.
M Mixed Quantity discount available
