Hollow Axles

Replacement hollow axles in all popular sizes





Compatibility advice:

Lengths noted for axles are the overall length end to end.

QR axles have a 5mm internal clearance for a skewer fixing.

Solid axles include fixing nuts.



M9 x1 thread:  Used for many Front modern looseball hubs – such as Shimano and some Halo MTB hubs.

M10x1 thread: Used for many Rear modern looseball hubs – such as Shimano and some Halo MTB hubs.

3/8” (9.5mm) x 26Tpi thread: Rear size used for many “older” looseball hubs.



For best compatibility when replacing an existing hub’s axle, we would recommend where possible to re-use the existing hub cones, spacers and locknuts.

 Note: These axles are not normally compatible with “sealed bearing” type hubs.

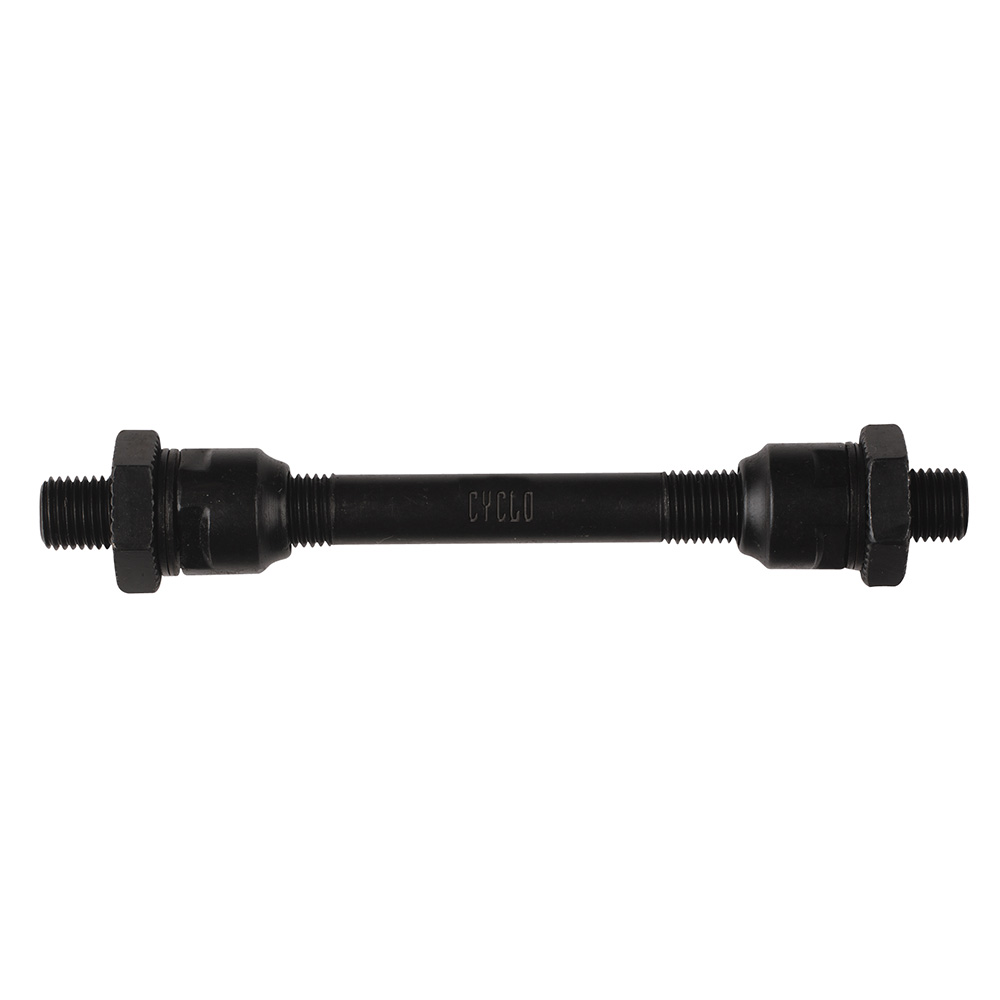

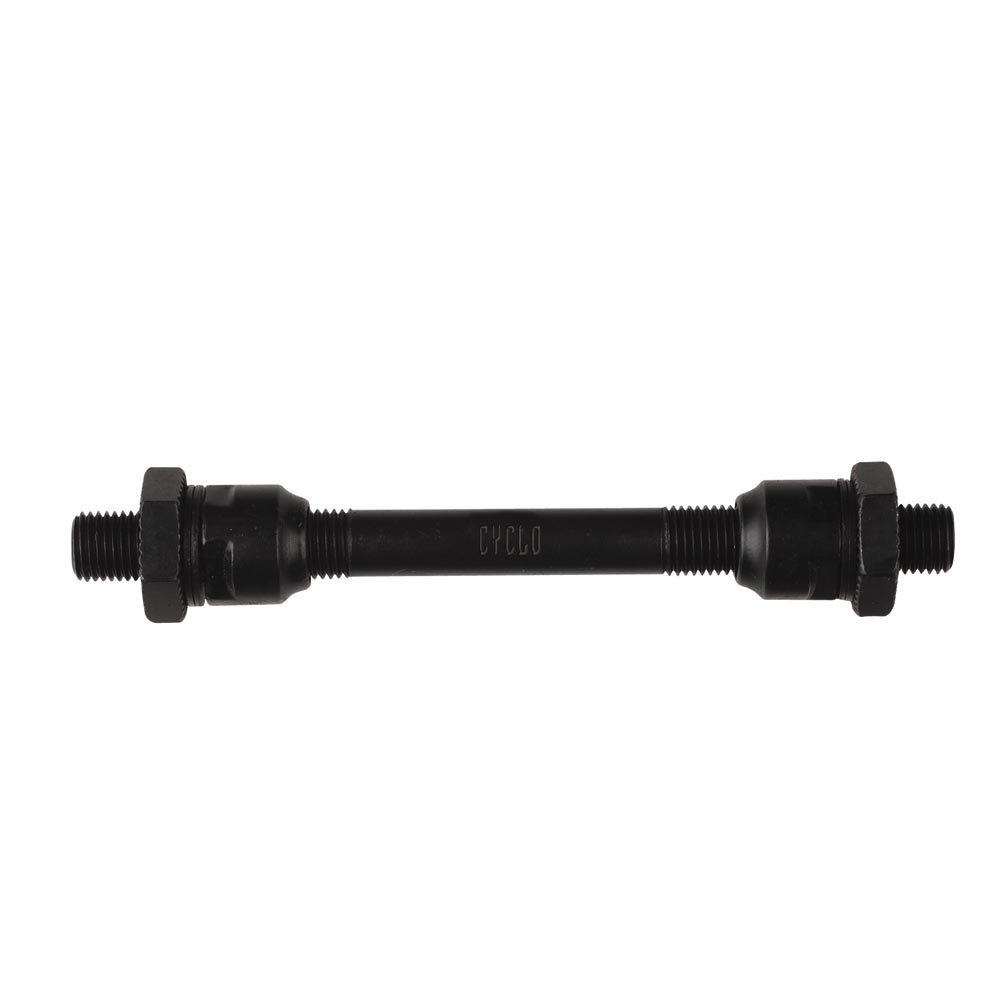

Weldtite Hollow Axle
Weldtite Hollow Axle
Click image to enlarge

To find out where to buy  Click Here

Description Colour Size Wt(g) Part No. Stock Lvl RRP Pack Unit
Axle Only, Rear - 10x1x146 Hollow QR 135OLD - Shimano Compatible - Carded 10x1x146 Rr HUWTA1MQ£5.99Each
Axle Only, Rear - 10x1x140 Hollow QR 130OLD - Shimano Compatible - Carded 10x1x140 Rr HUWTA1RQ£5.99Each
Axle Only, Front - 9x1x108 Hollow QR - Shimano Compatible - Carded 9x1x108 Ft HUWTA9Q£5.99Each
  • Good stock levels
  • +24h Please allow 24/48 hrs for assembly
  • Special Order Currently not in stock, contact us for details
  • Out of stock. Expected availability date will be displayed if known.
  • Discontinued. This product is no longer available.
