Ultra New Front Hubs

Ultra New hubs look much like their predecessors. In fact, the hub shells have not changed at all. They remain 6061 T6 forged and machined aluminum alloy with medium-height flanges. What's Ultra New about these hubs are their guts.

Ultra New hubs use hollow axles of our own design mated to thread in wheel fixing bolts, as opposed to the nutted axles of our previous hubs. Hollow axles make conversion to quick release super easy (remove bolts, insert QR skewer, install wheel into frame or fork, ride). All Ultra New hubs come with fixing bolts, but all are QR compatible without axle conversion or any other extra crap. Neato. The axles are made of CroMoly steel, while the fixing bolts are 10.9 stainless steel (i.e. high grade) for corrosion resistance, high strength, and good looks, and the bolts tighten and loosen with a 6mm hex wrench.

Bolt caps and 'cone' nuts are also stainless steel, and are heavily knurled for good bite, reducing the chance for your wheel to slip in the frame under high load. The cones and dust caps interlock to maintain axle stiffness. Ultra New hubs spin on non-adjustable 6901 model bearings. Throw your wheel on the bike, tighten the bolts and ride.

One other thing you might like to know: All the Ultra New hardware will retrofit to New hubs. That is, we sell kits to completely transform your old New hubs into Ultra New hubs, complete with new axle, bolts, bearings, and the rest of the Ultra New hardware. Find the right kit for your New hub, install, and go.

Specifications

  • Material Aluminium
  • Drillings 32 or 36H
  • OLD 100mm
  • Colour Black or Silver

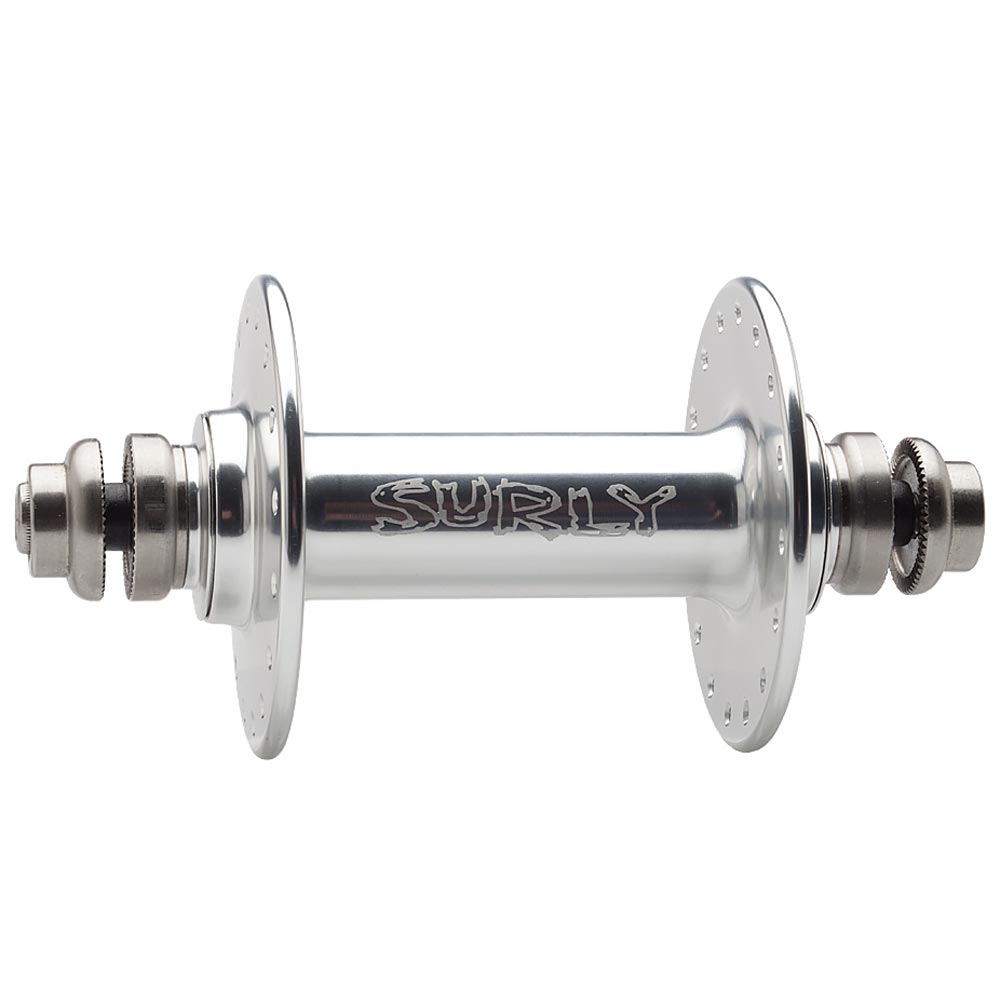

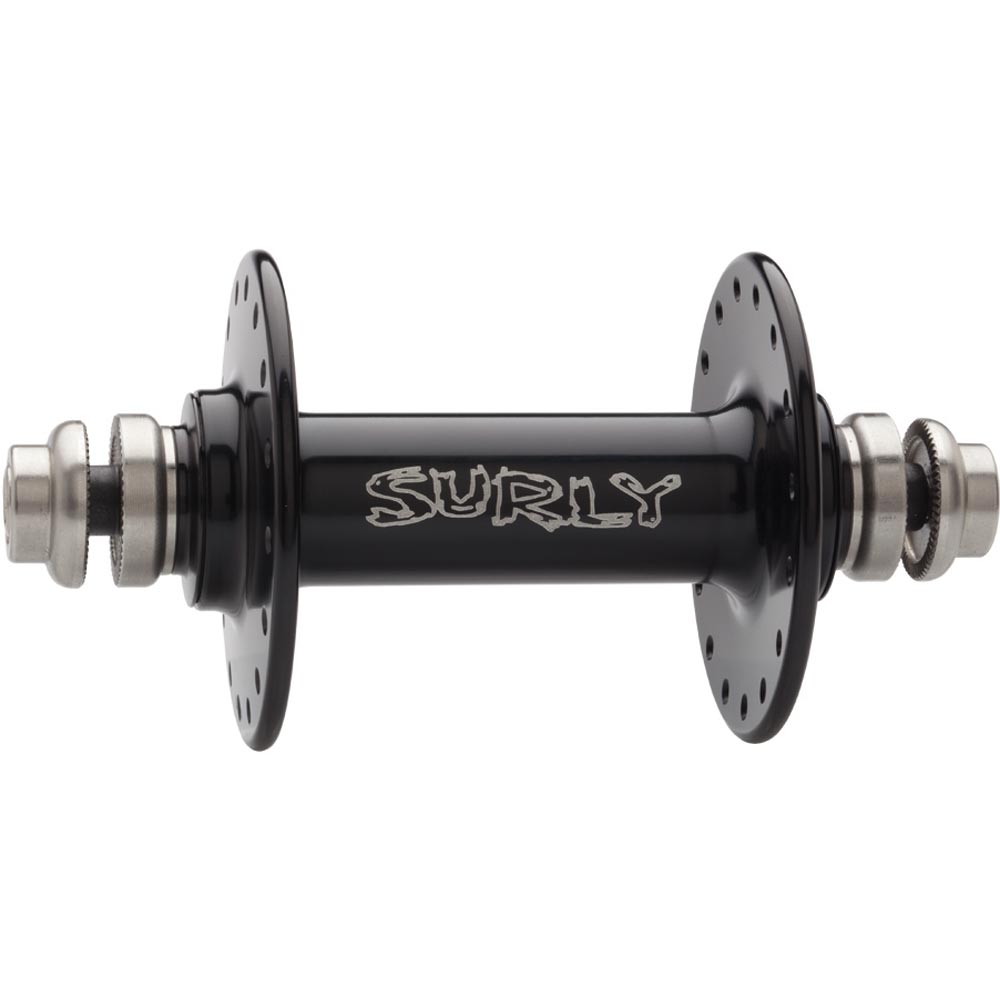

Surly Ultra New Front Hubs
Surly Ultra New Front Hubs
Click image to enlarge

To find out where to buy  Click Here

Description Colour Size Wt(g) Part No. Stock Lvl RRP Pack Unit
Ultra New, Front - Alloy, Sealed bearings.100mm SpacingBlack32H244HUSUFS2K
ETA: 6th Jul 2019
£74.99Each
Ultra New, Front - Alloy, Sealed bearings.100mm SpacingSilver32H244HUSUFS2S Low Stock£74.99Each
Ultra New, Front - Alloy, Sealed bearings.100mm SpacingBlack36H244HUSUFS6K£74.99Each
Ultra New, Front - Alloy, Sealed bearings.100mm SpacingSilver36H244HUSUFS6S Low Stock£74.99Each
Ultra New, Front - Alloy, Sealed bearings.100mm SpacingBlack48H244HUSUFS8K£74.99Each
  • Good stock levels
  • +24h Please allow 24/48 hrs for assembly
  • Special Order Currently not in stock, contact us for details
  • Out of stock. Expected availability date will be displayed if known.
  • Discontinued. This product is no longer available.
