DJ Wideboy Front Hub

If dirt jumping is your thing, then so are our DJ series of hubs.

After years of the highest profile testing from our world famous dirt jump team, our current range of DJ hubs are our best yet.

Huge strength to weight ratios sets our DJ series apart from the crowd.

Built from the ground up for dirt jump use, the DJ Wideboy Front hub has no disc brake mount, allowing for the flanges to be spaced as wide as possible for maximum spoke triangulation.

DJ Wideboy Front hubs build into the toughest front wheels with maximum lateral strength.

Supplied with 15mm T-axle end caps.

QR end caps and 20x110mm T-axle caps available separately.



*To change to nutted axles you will need the following:

a Halo Spin Dr QR Front Axle Kit HUHASDAQ, for the alloy inner threaded axle
a Halo Spin Dr 15mm Axle kit HUHASDA5, for the 2 alloy cone spacers
and your choice of stub axle 3/8" HUHASDS3 or 14mm HUHASDS4

Specifications

  • Material Lightweight forged and CNC alloy
  • Drillings 32H
  • Bearings 6805 cartridge bearings
  • Spacing 110mm (20mm T-axle) or 100mm (QR or 15mm T-axle)
  • Centre to Flange C-L and C-R 34mm
  • Flange Diameter 52mm
  • Model Ref WB
  • Colour Black or Red anodised or White powder coat

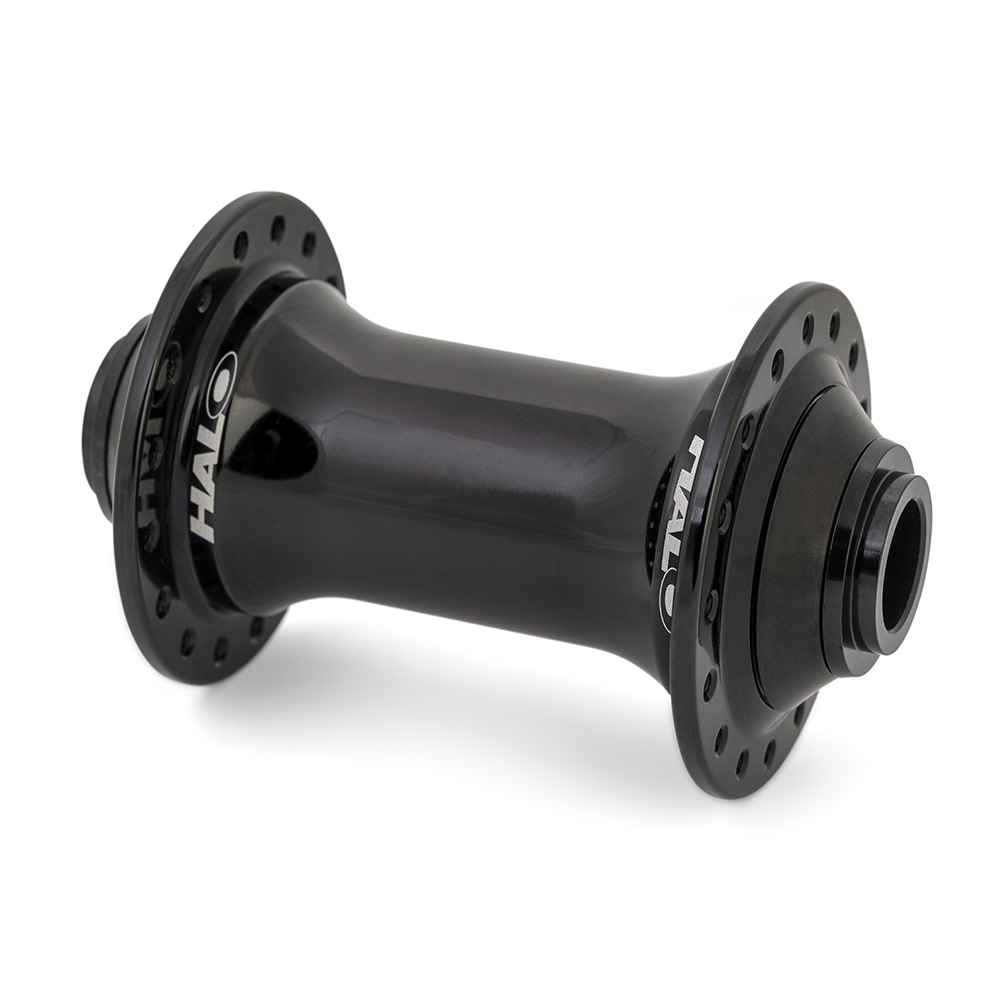

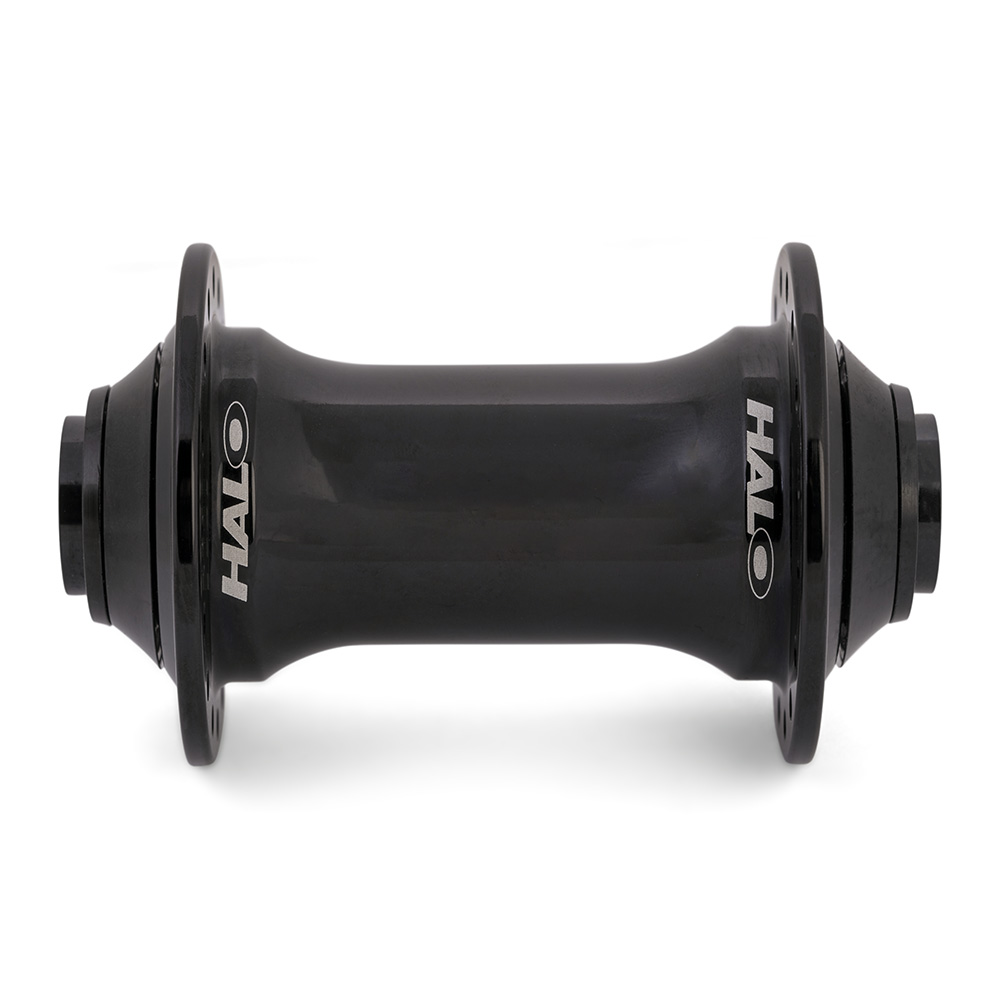

Halo DJ Wide Boy Front Hub
Halo DJ Wide Boy Front Hub
Click image to enlarge

To find out where to buy  Click Here

Description Colour Size Wt(g) Part No. Stock Lvl RRP Pack Unit
DJ Wideboy Front, Front - sealed bearing, 15x100mm, (QR or 20mm Thru extra) - non disc.Black32H200HUHAWF2K£59.99Each
DJ Wideboy Front, Front - sealed bearing, 15x100mm, (QR or 20mm Thru extra) - non disc.Red32H200HUHAWF2R£59.99Each
DJ Wideboy Front, Front - sealed bearing, 15x100mm, (QR or 20mm Thru extra) - non disc.White32H200HUHAWF2W£59.99Each
  • Good stock levels
  • +24h Please allow 24/48 hrs for assembly
  • Special Order Currently not in stock, contact us for details
  • Out of stock. Expected availability date will be displayed if known.
  • Discontinued. This product is no longer available.
Description Colour Size Wt(g) Part No. Stock Lvl RRP Pack Unit
DJ Wideboy Front, Front - sealed bearing, 15x100mm, (QR or 20mm Thru extra) - non disc.Black32H200HUHAWF2K£59.99Each
DJ Wideboy Front, Front - sealed bearing, 15x100mm, (QR or 20mm Thru extra) - non disc.Red32H200HUHAWF2R£59.99Each
DJ Wideboy Front, Front - sealed bearing, 15x100mm, (QR or 20mm Thru extra) - non disc.White32H200HUHAWF2W£59.99Each
