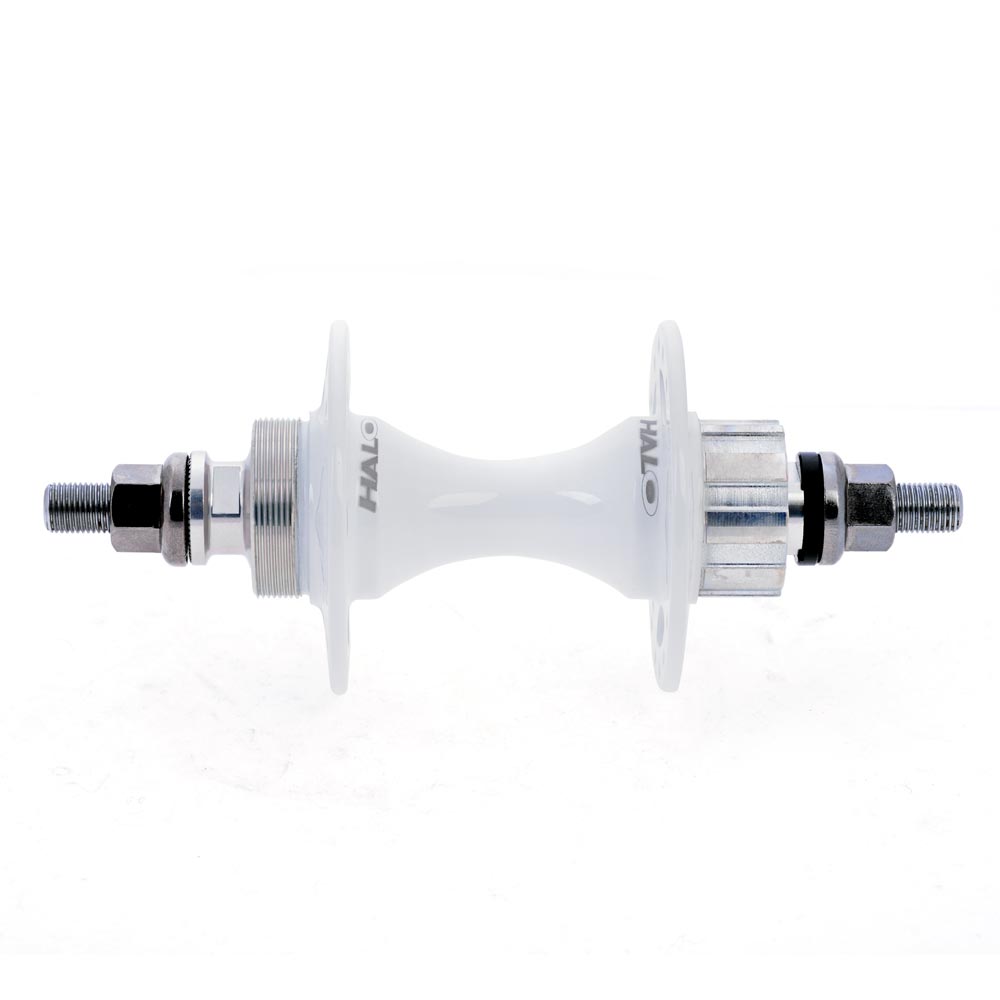

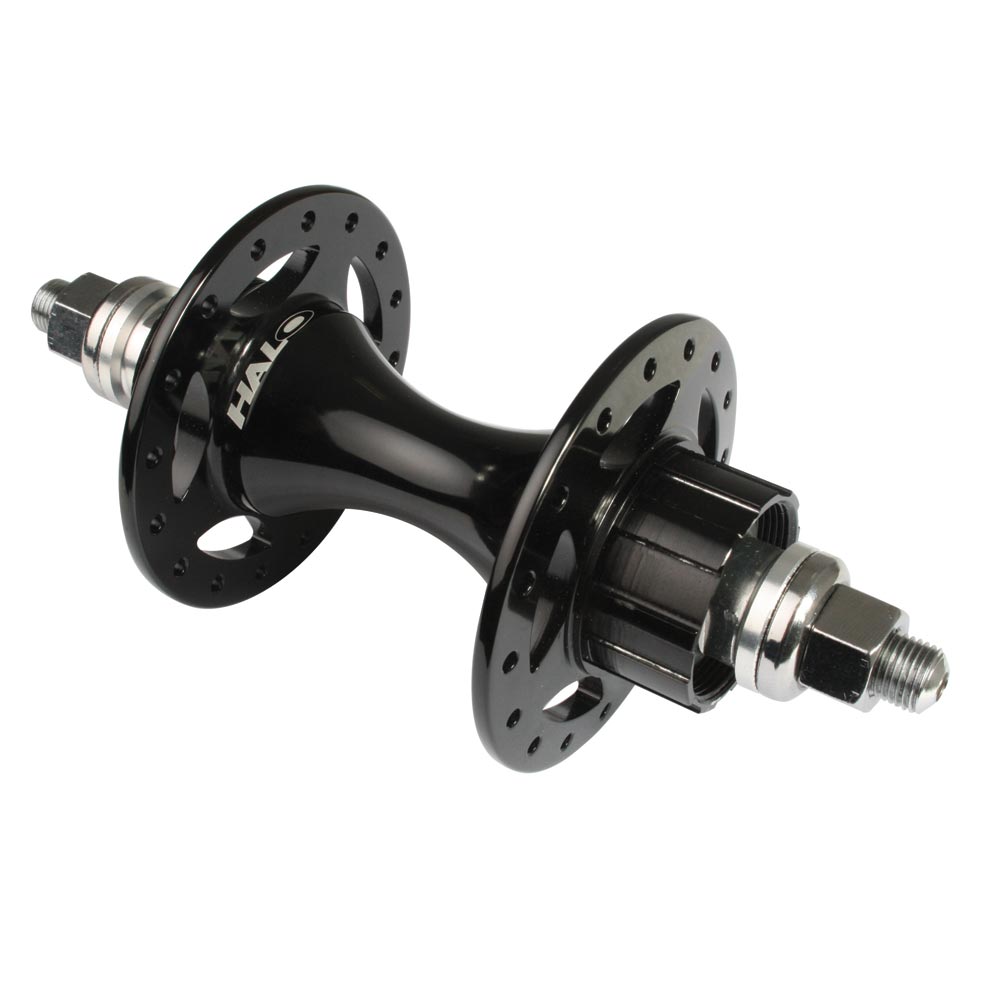

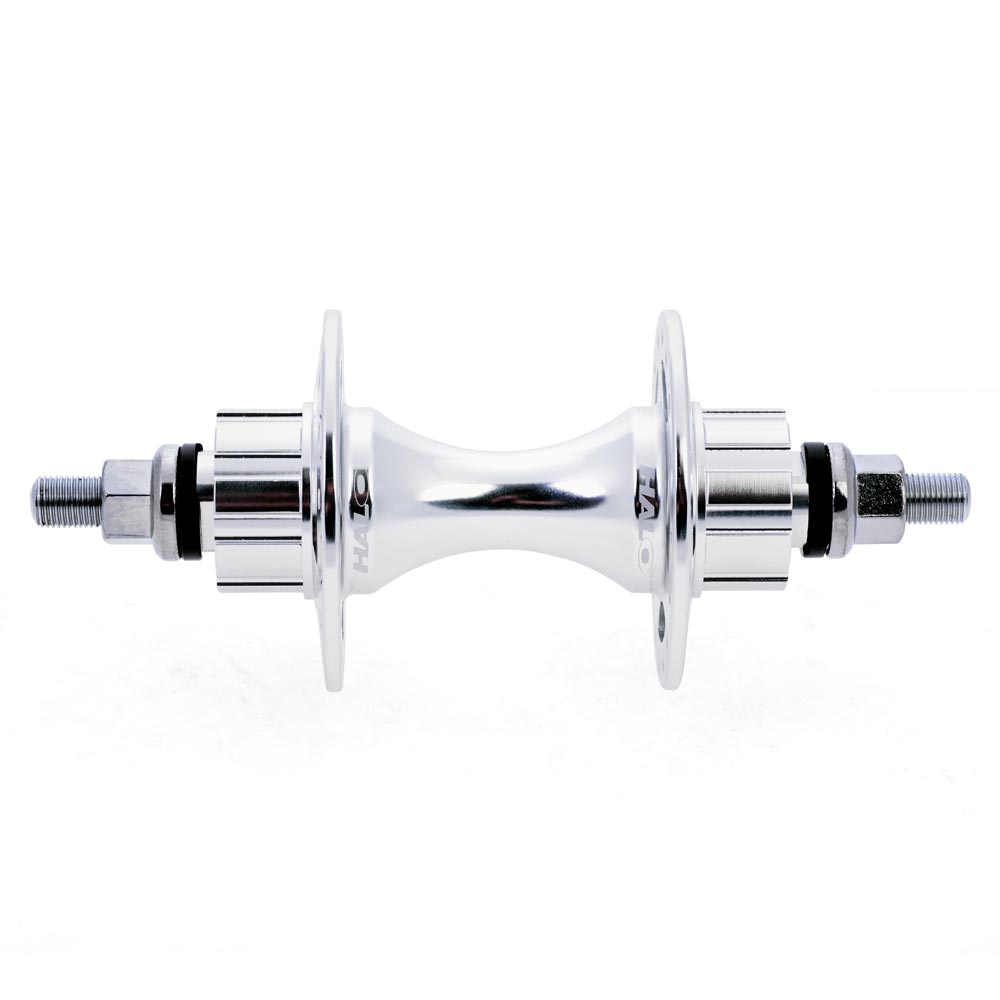

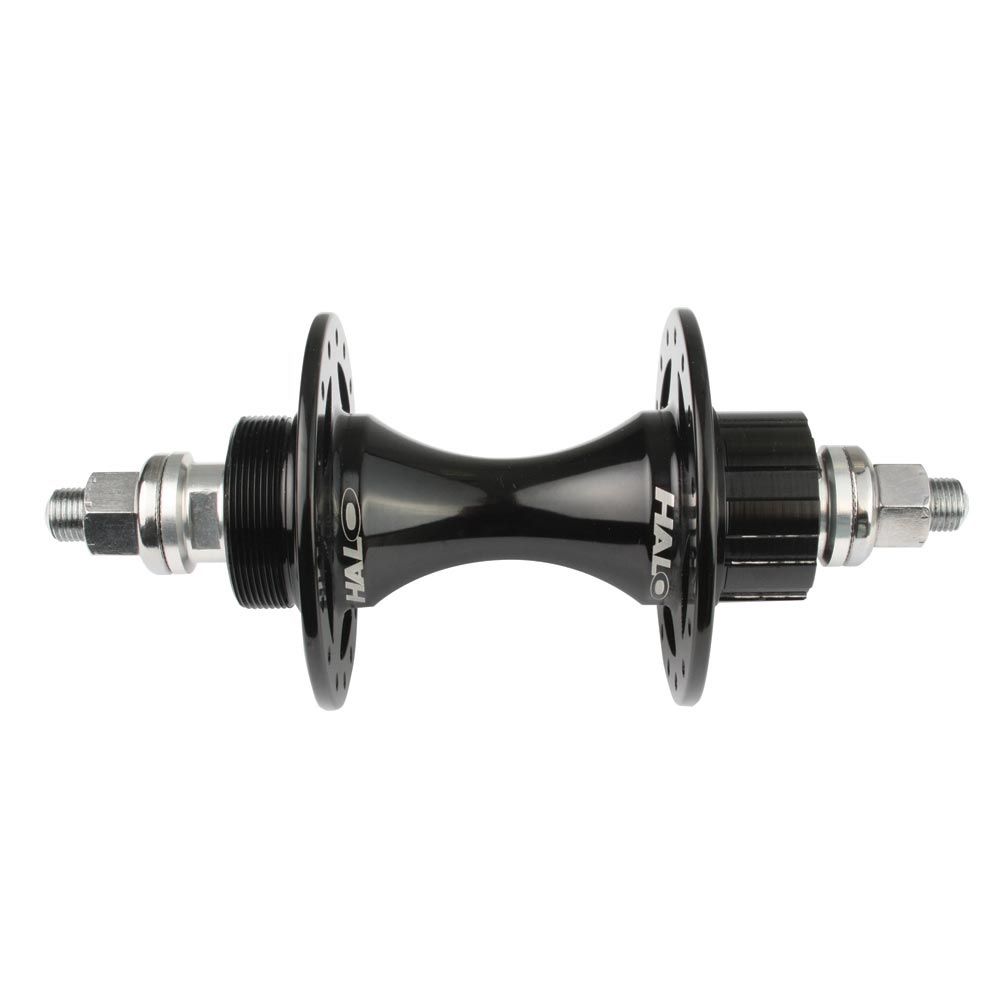

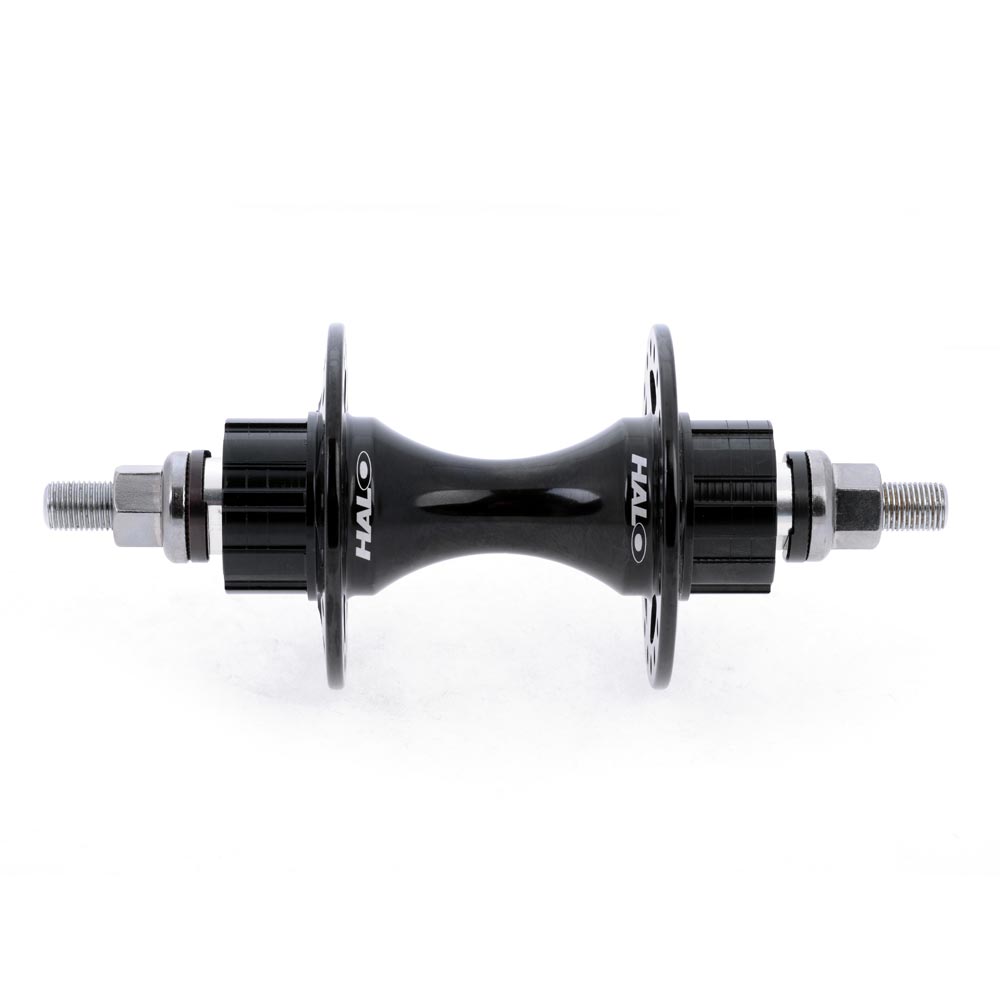

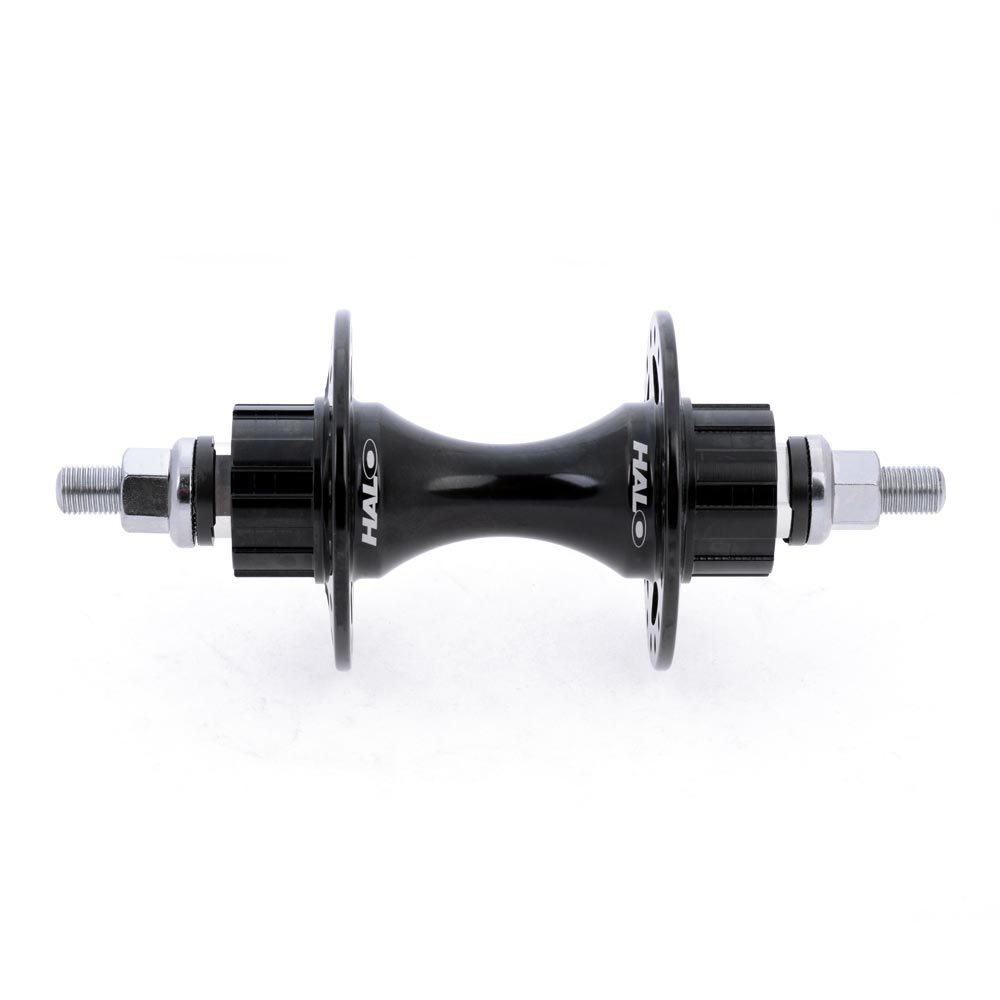

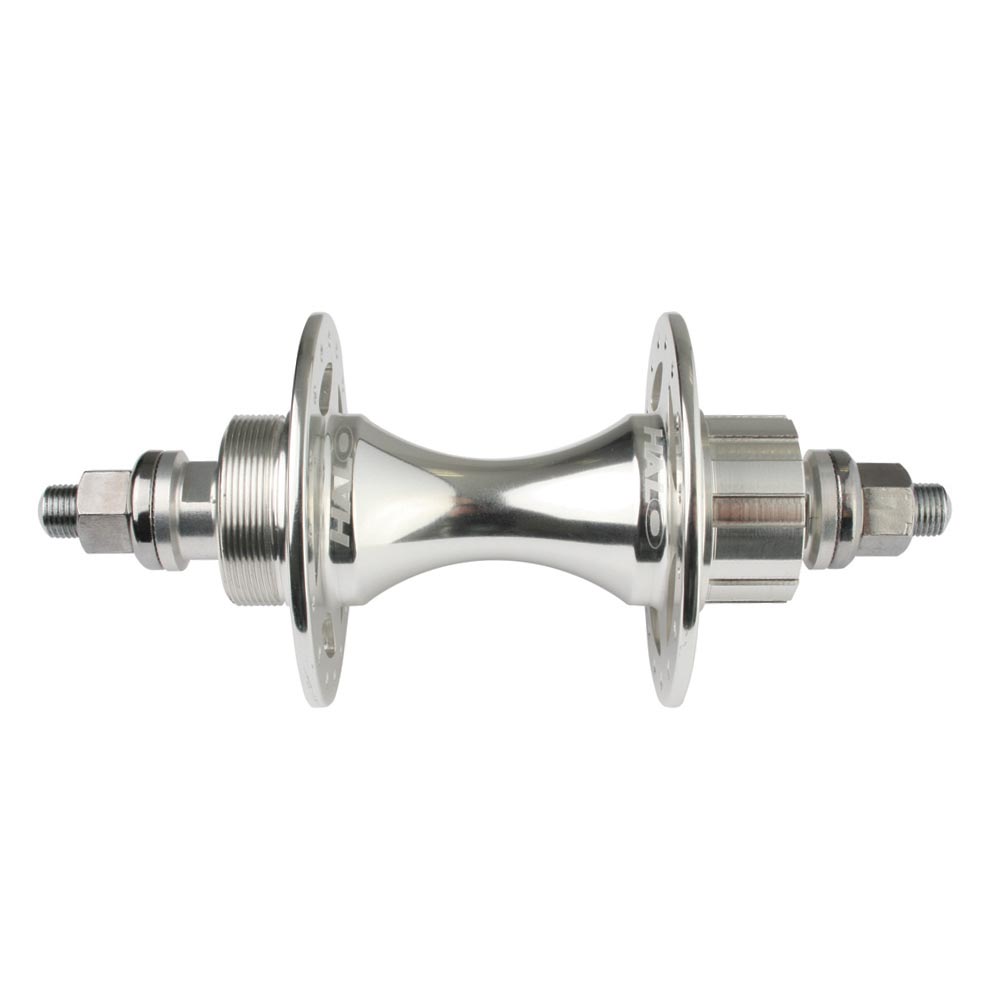

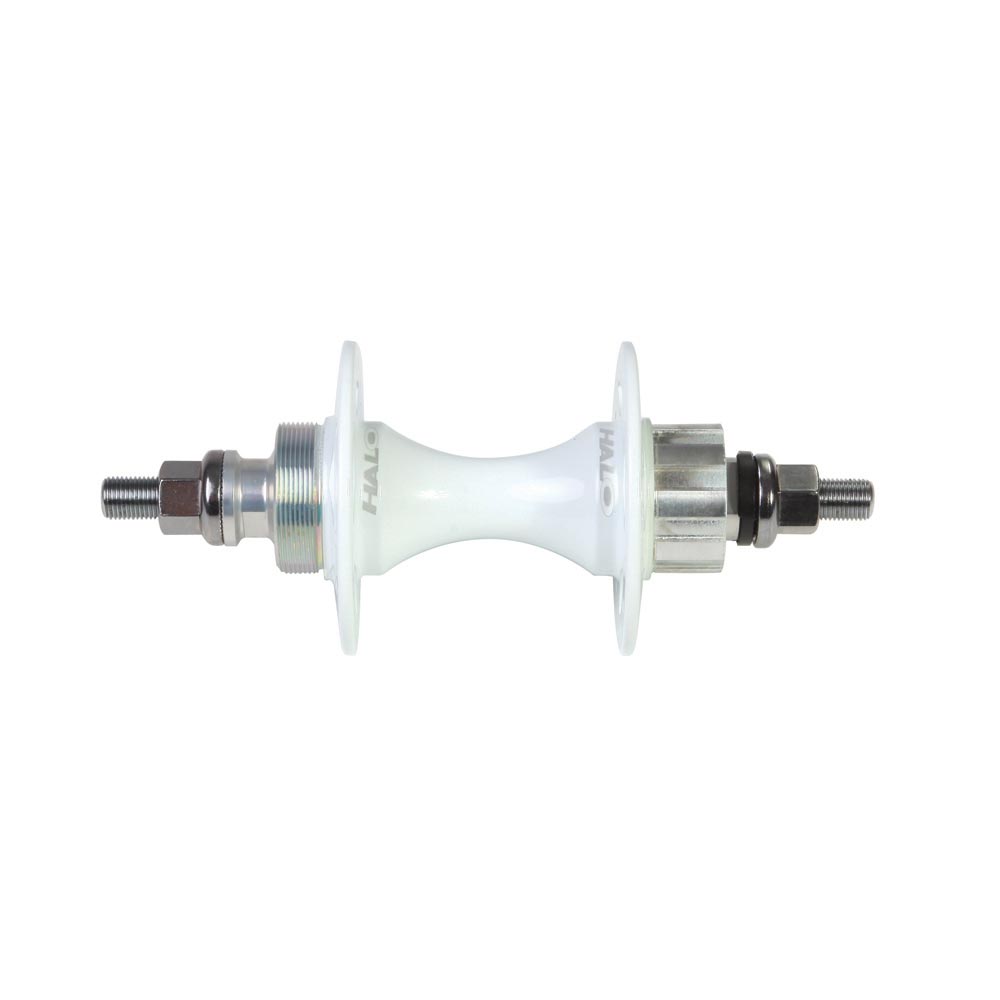

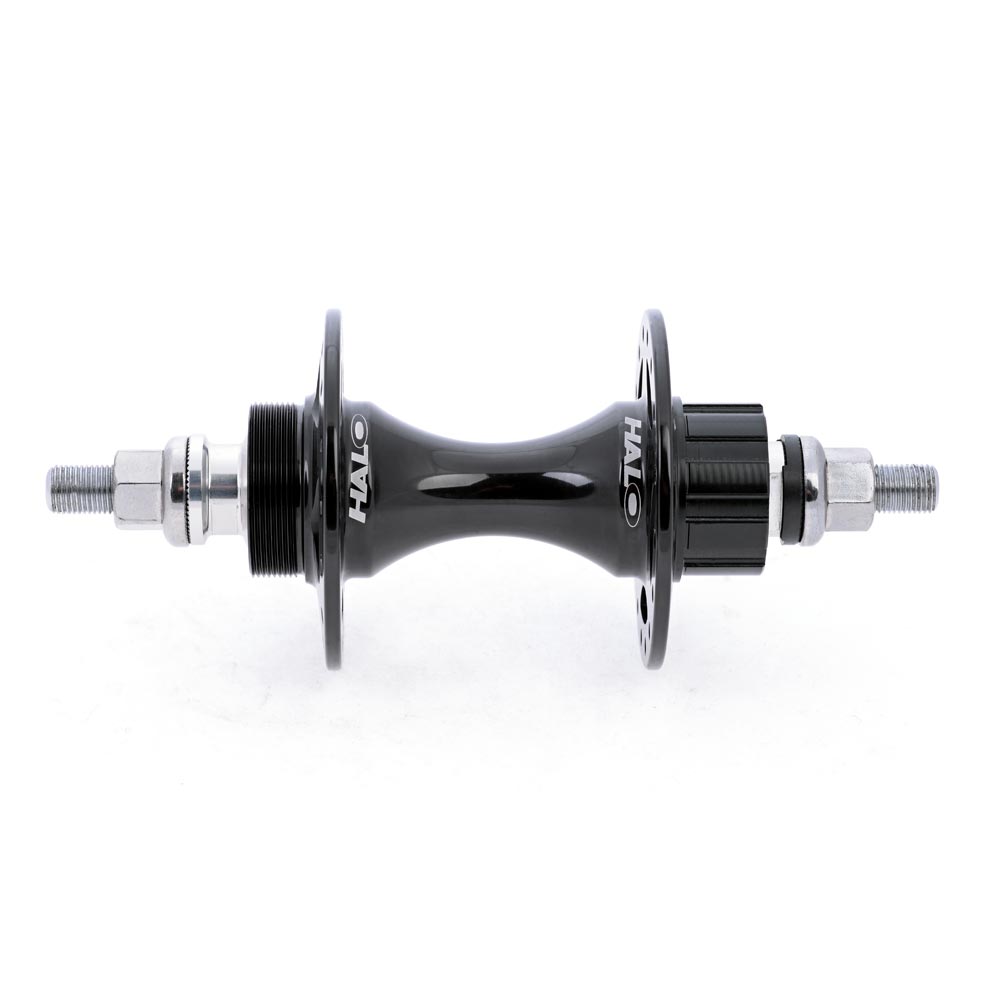

Rear Fix-G Track Hubs

Renowned around the world by track racers, couriers and freestyle riders alike, our track series hubs run on Japanese sealed bearings for longevity and speed.

Drilled Cr-mo steel axles keep the weight down and strength up.

Utilising our renowned TK rear hub chassis, our FIX-G Rear hub improves on traditional standards.

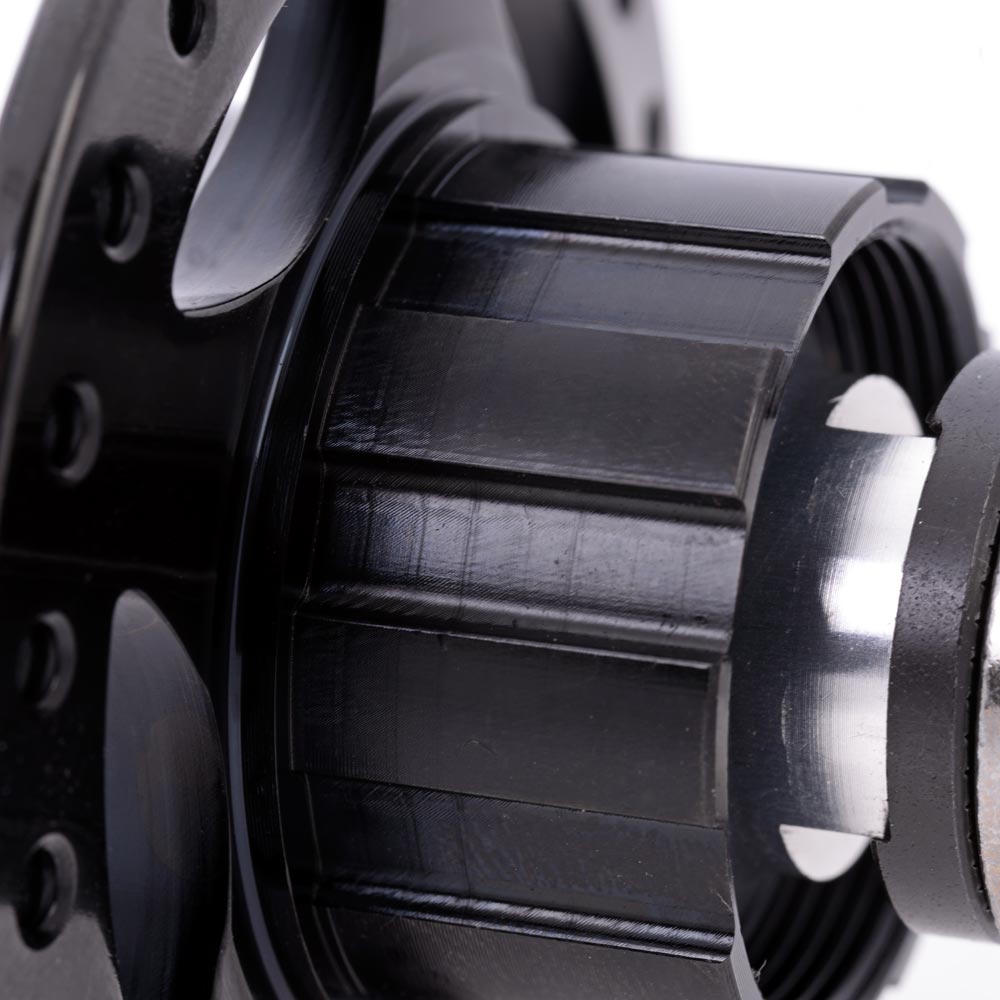

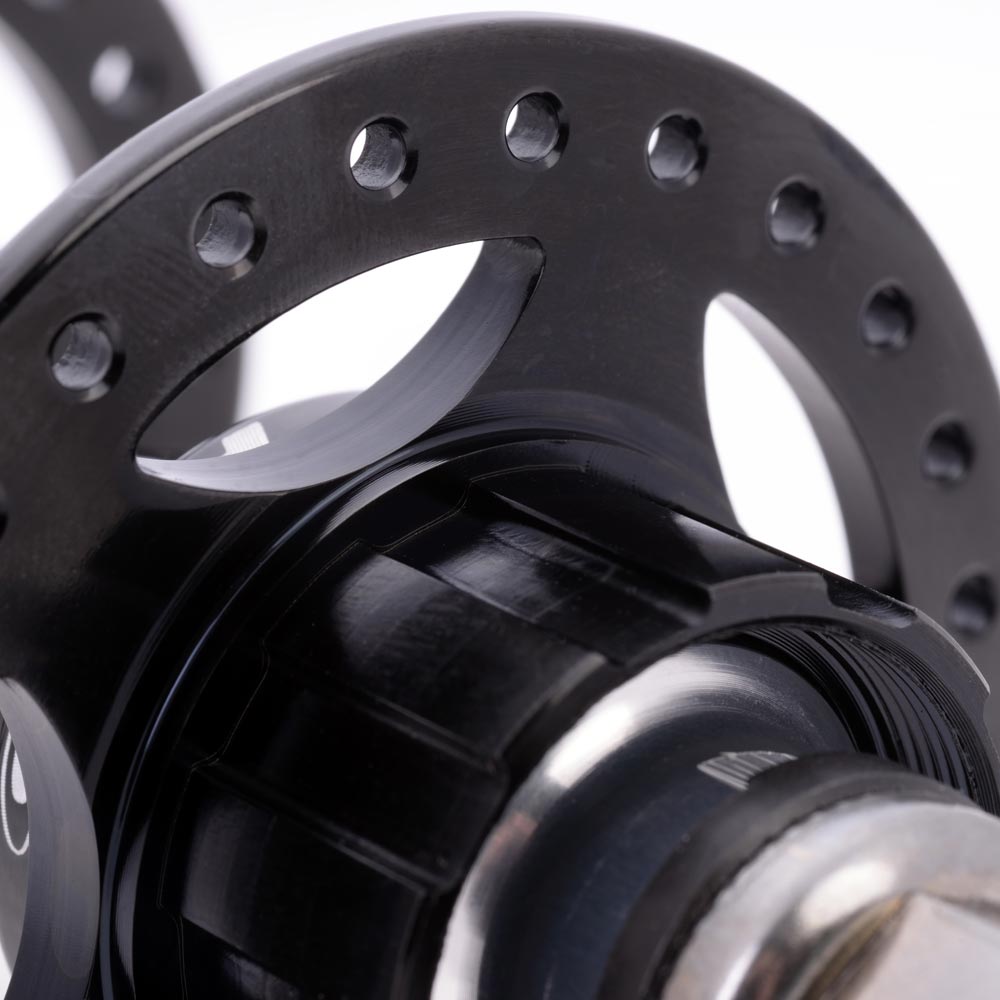

The FIX-G rear hub uses an HG splined hub body, with sprockets that slide on and an independent lockring that never has to handle rotational forces from the drive.

Halo Fix-G advantages:

• Easy and secure fixing and servicing.
• Adjustable chainline - 41 to 52mm.
• Accepts 12 - 20T sprockets.
• No need for chainwhip tools.



"The Fix-g hub is great! It runs smoothly as the previous Halo hub but the fact that you can move the sprocket for a perfect chainline is great and you can feel the difference straight away. Also, it's really easy to do, everyone can do it without a mechanic's help."
Ivan Fiorilla, 5th Floor riding club - London. www.the5thfloor.co.uk

Note: The HG spline must ONLY be used with 7mm wide "fat foot" sprockets such as Halo Fat Foot sprockets or Gusset Double Six sprocket to avoid the cog biting into the alloy splines on the hub. Regular width HG sprockets should NEVER be used.

Weights noted for track hubs include tracknuts at 32g

Specifications

• Material Alloy forged and CNC machined
• Drillings 32H, 36H or 48H depending on model
• Axle Hollow M10 Cr-Mo axle
• Spoke Hole Circle Diameter (PCD) 62mm
• spoke hole size (diameter) 2.5mm
• Centre to Flange Left and Right: 31mm
• Bearings 2 x 6000 series Japanese sealed bearings.
• OLD 120mm
• Colour Black, Silver or White
