TK Rear Hub

Renowned around the world by track racers, couriers and freestyle riders alike, our TK series hubs run on Japanese sealed bearings for longevity and speed.

At the core of our TK hubs are drilled Cr-mo steel axles to keep weight down and strength up.

The TK rear hub remains one of the finest track hubs on the market.

The double sided flip/flop TK Rear hub is available with fixed and free wheel options.

Use with our fixed sprockets and lockrings to achieve a chain line of 41mm.

Weights noted for track hubs include tracknuts at 32g

IMPORTANT NOTE:
These hubs must only be used with ISO standard 1.29" x 24tpi L/H fixed sprocket lockrings. Do not use French (1.32" x 24tpi) or Italian (33 x 1mm) standard lockrings. The larger diameter French and Italian lockrings may appear to work but eventually will strip the threads from the ISO hub.

Specifications

  • Material Alloy forged and CNC machined
  • Drillings 24H, 32H, 36H or 48H
  • Axle Hollow steel, threaded
  • Spoke Hole Circle Diameter (PCD) 62mm
  • spoke hole size (diameter) 2.5mm
  • Centre to Flange Left and Right: 31mm
  • Bearings 2 x 6000 Japanese sealed bearings
  • OLD 120mm
  • Colour Black, Silver or White

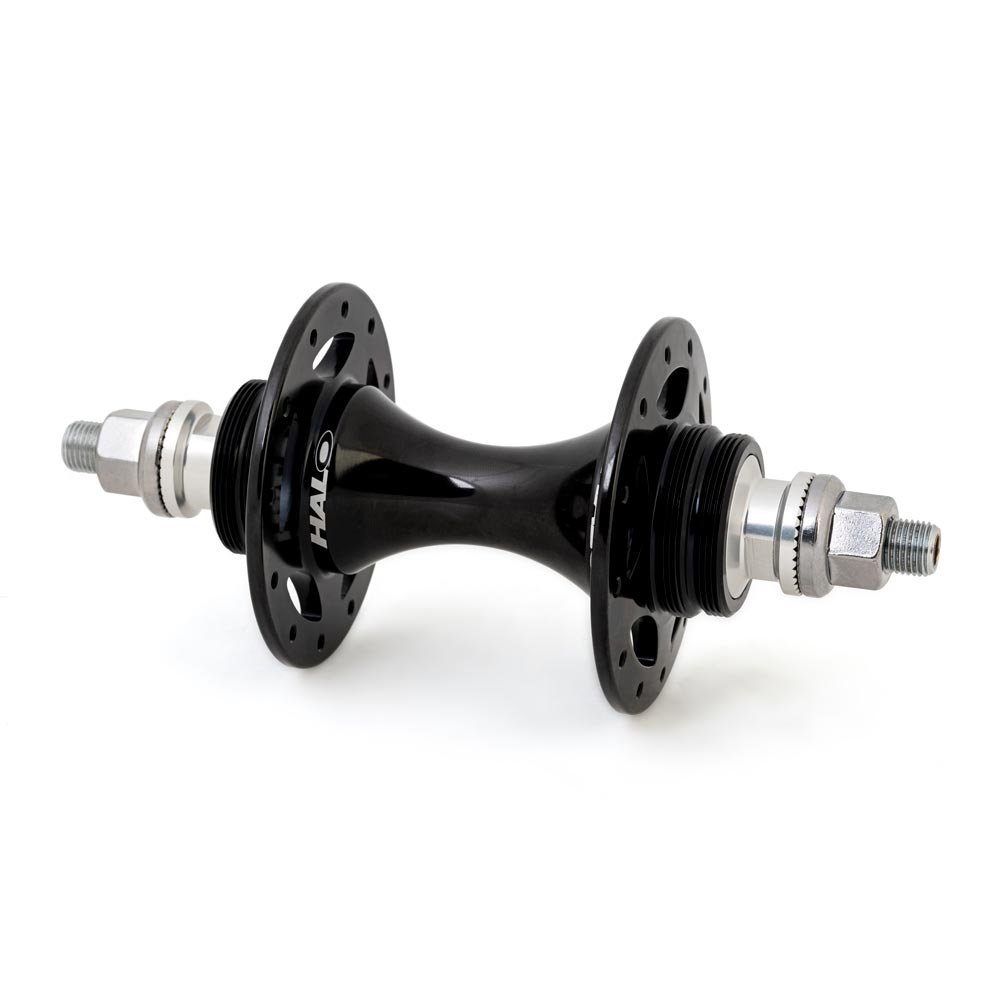

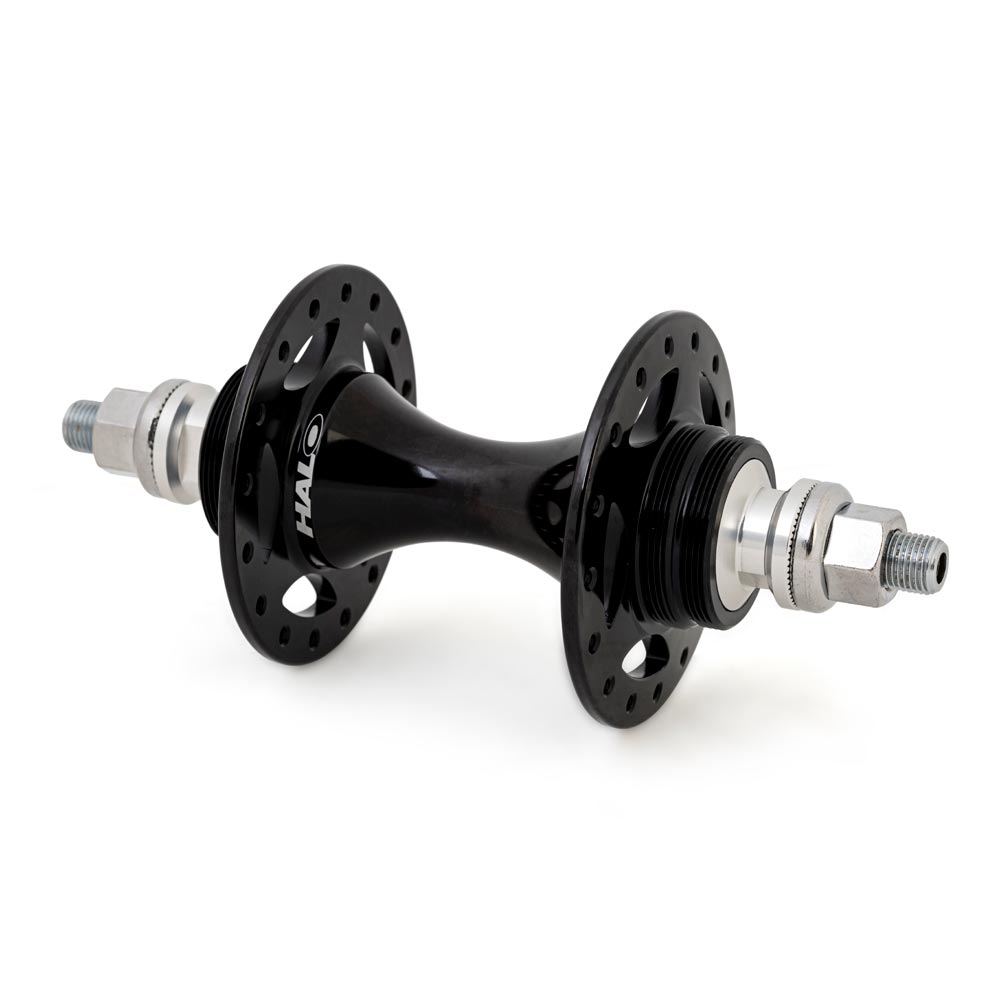

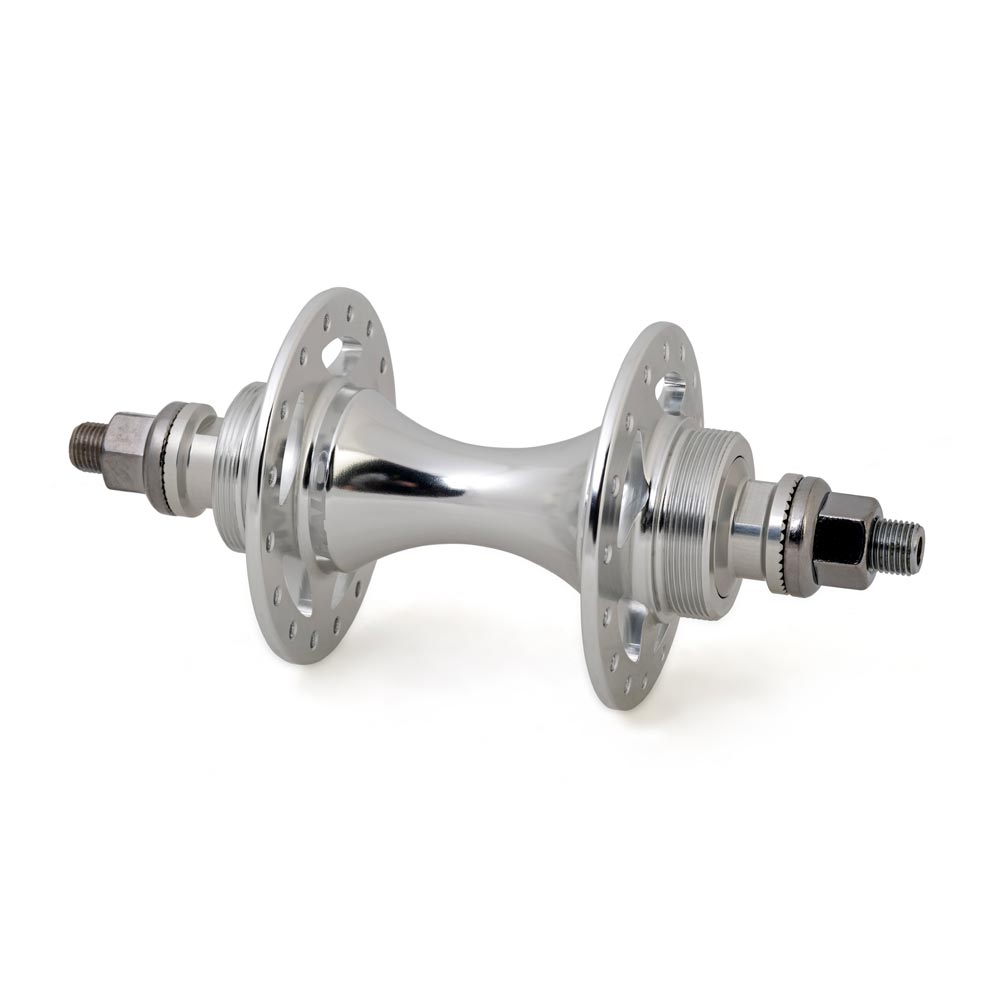

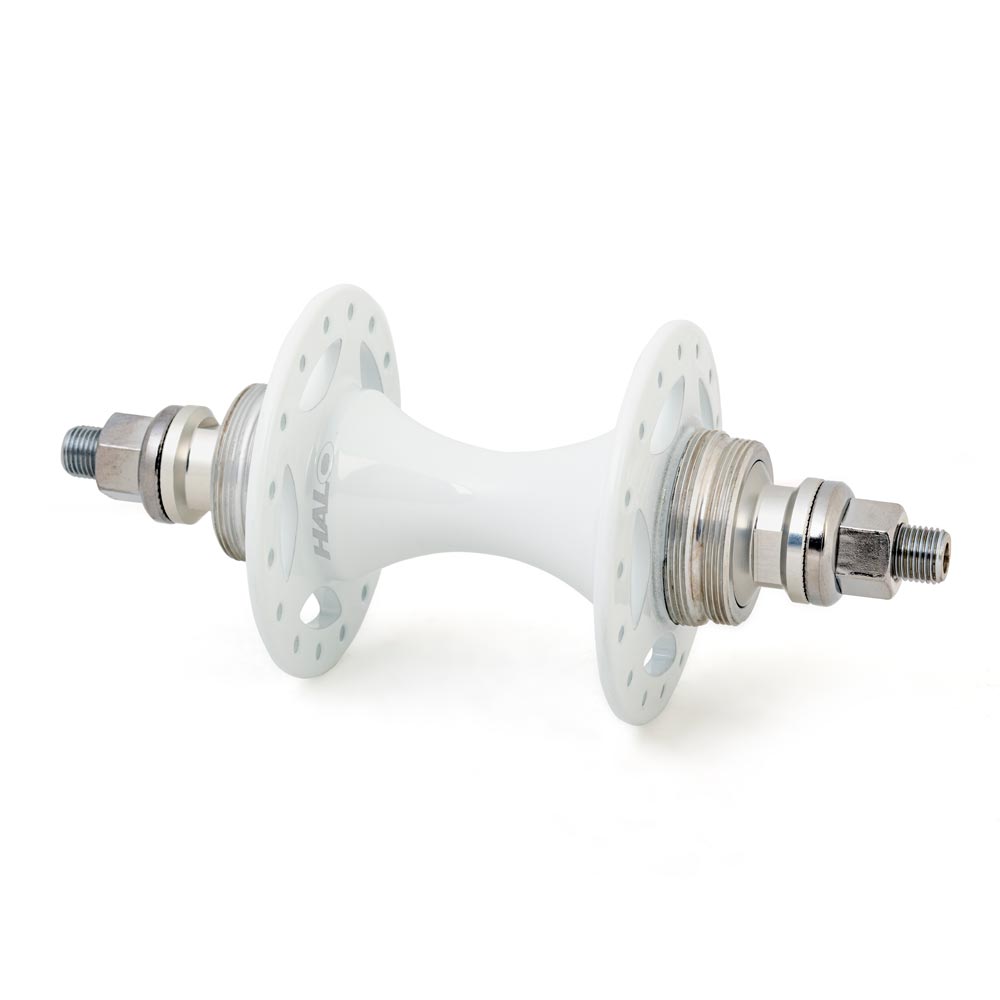

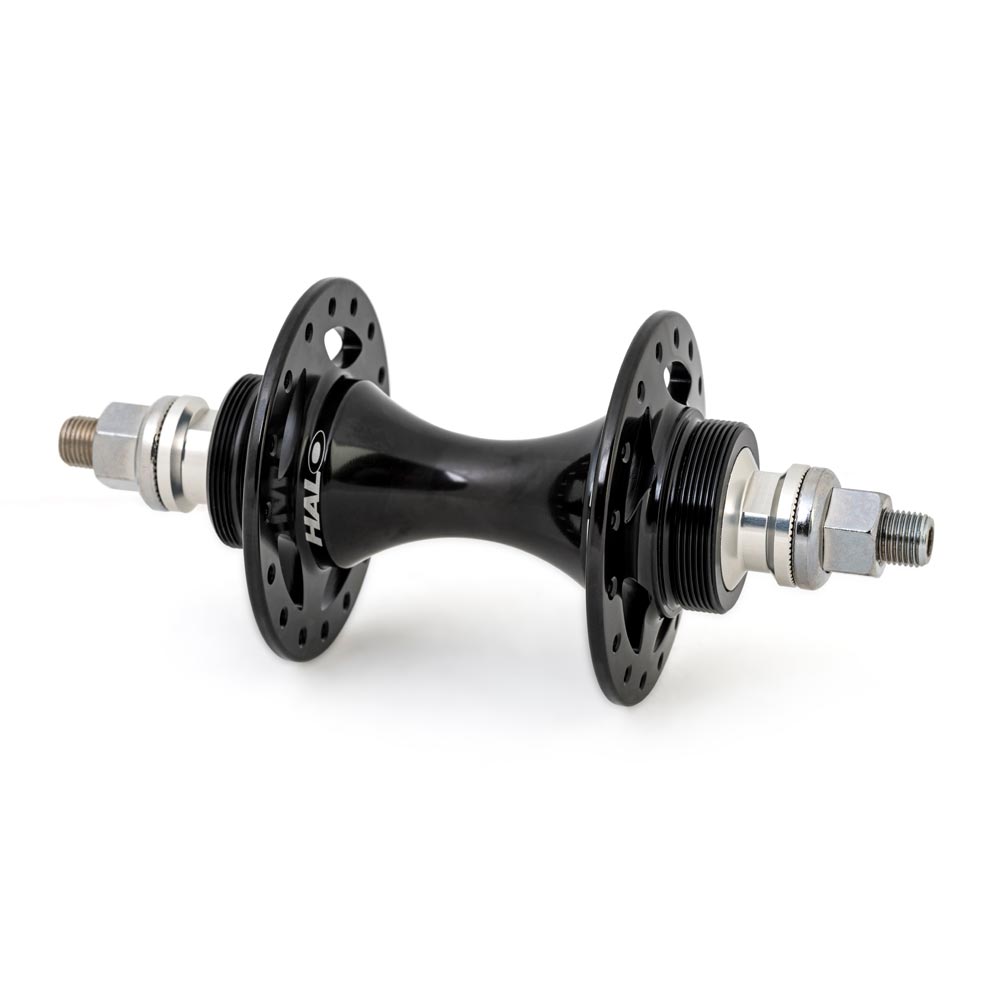

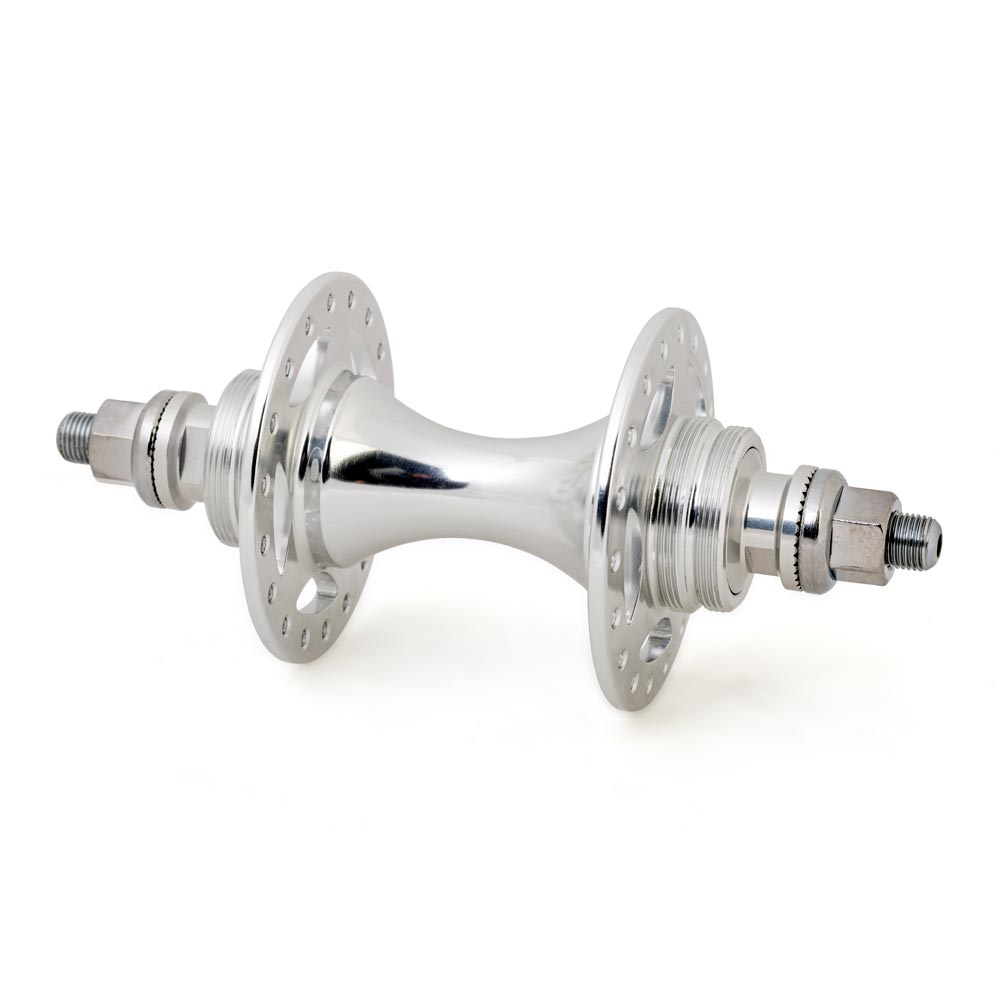

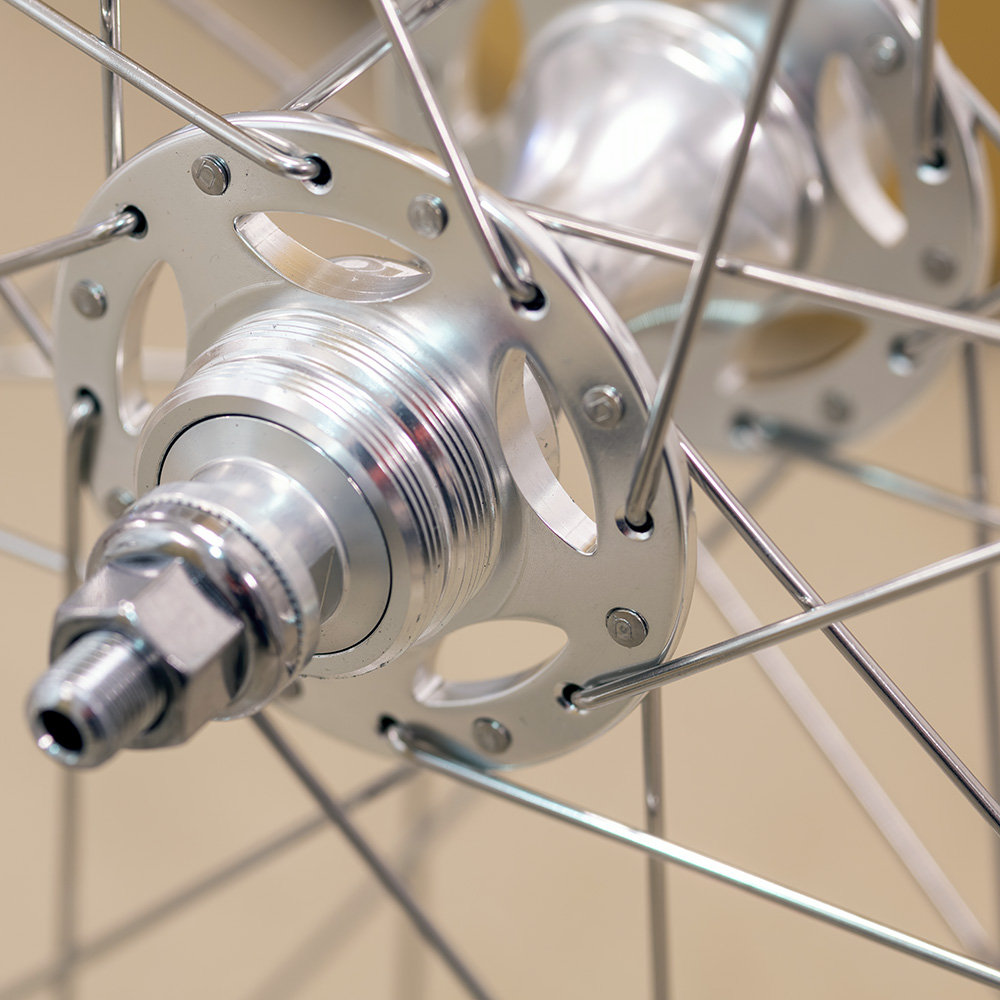

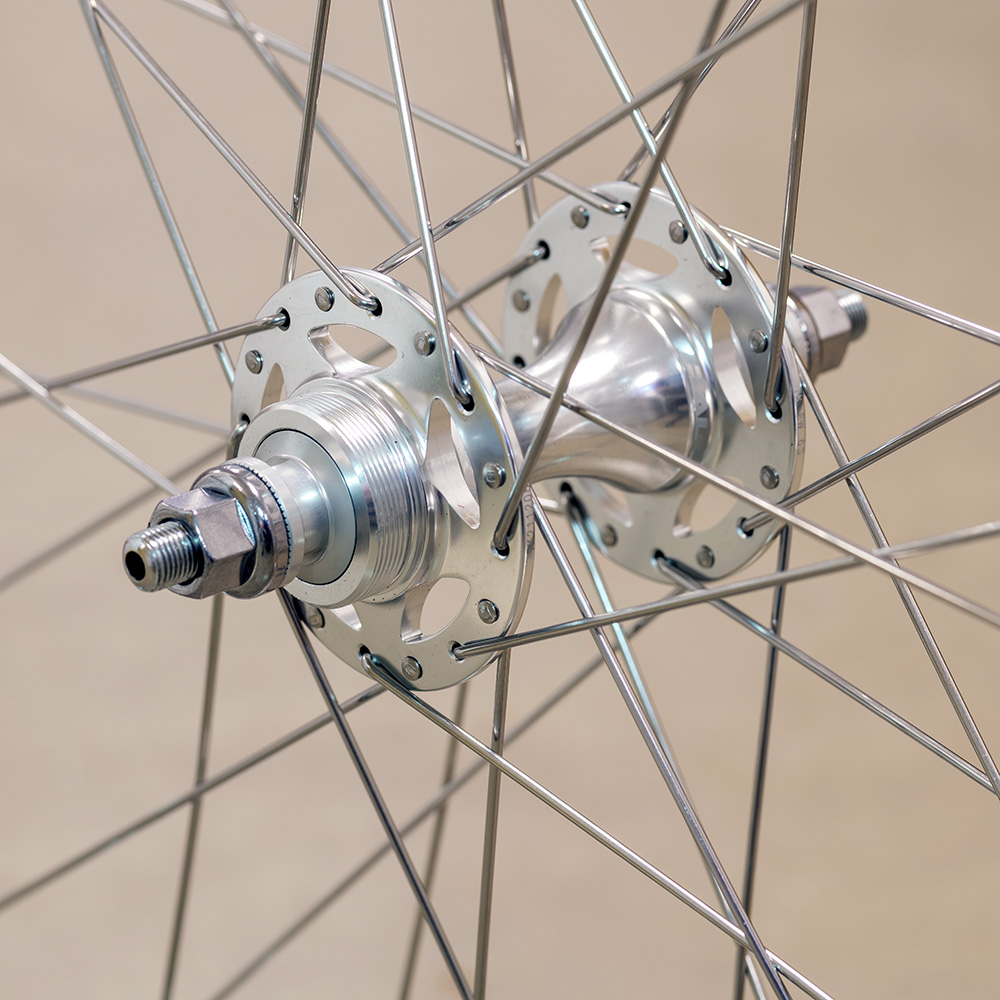

Halo Rear Track Hub

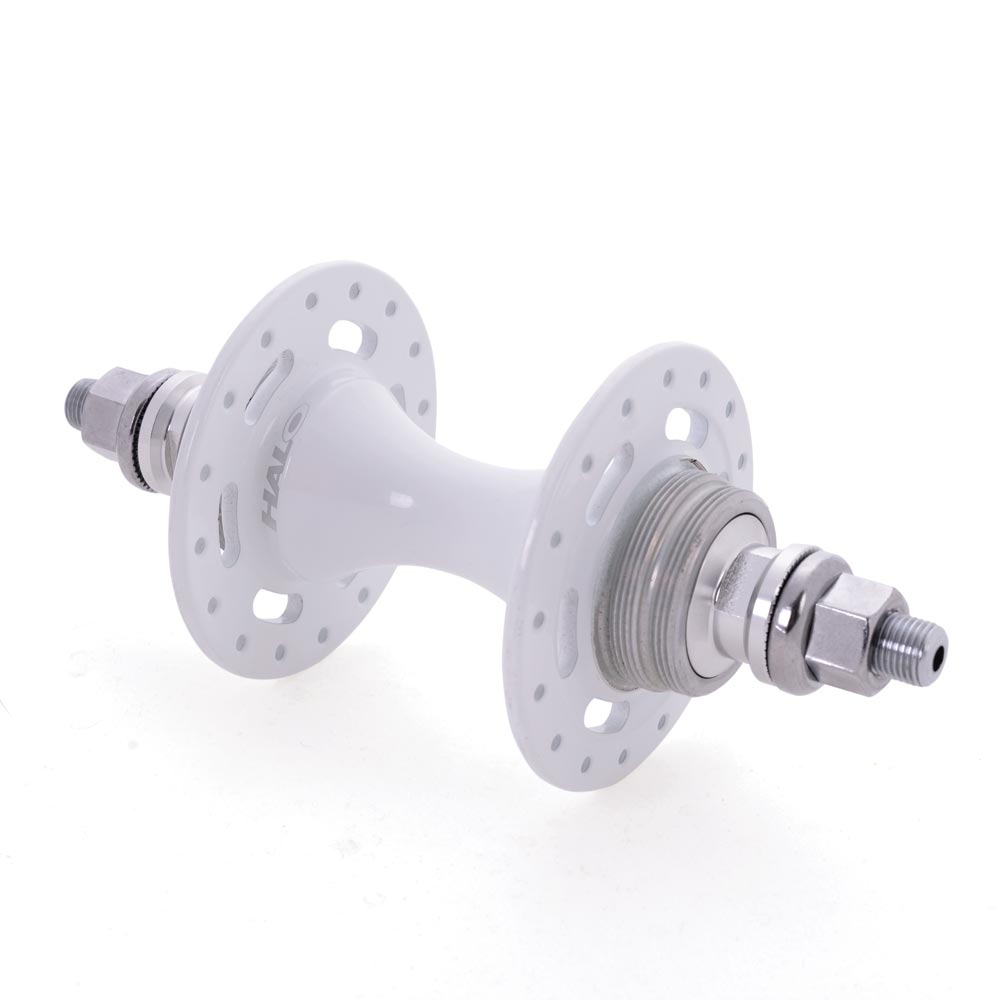

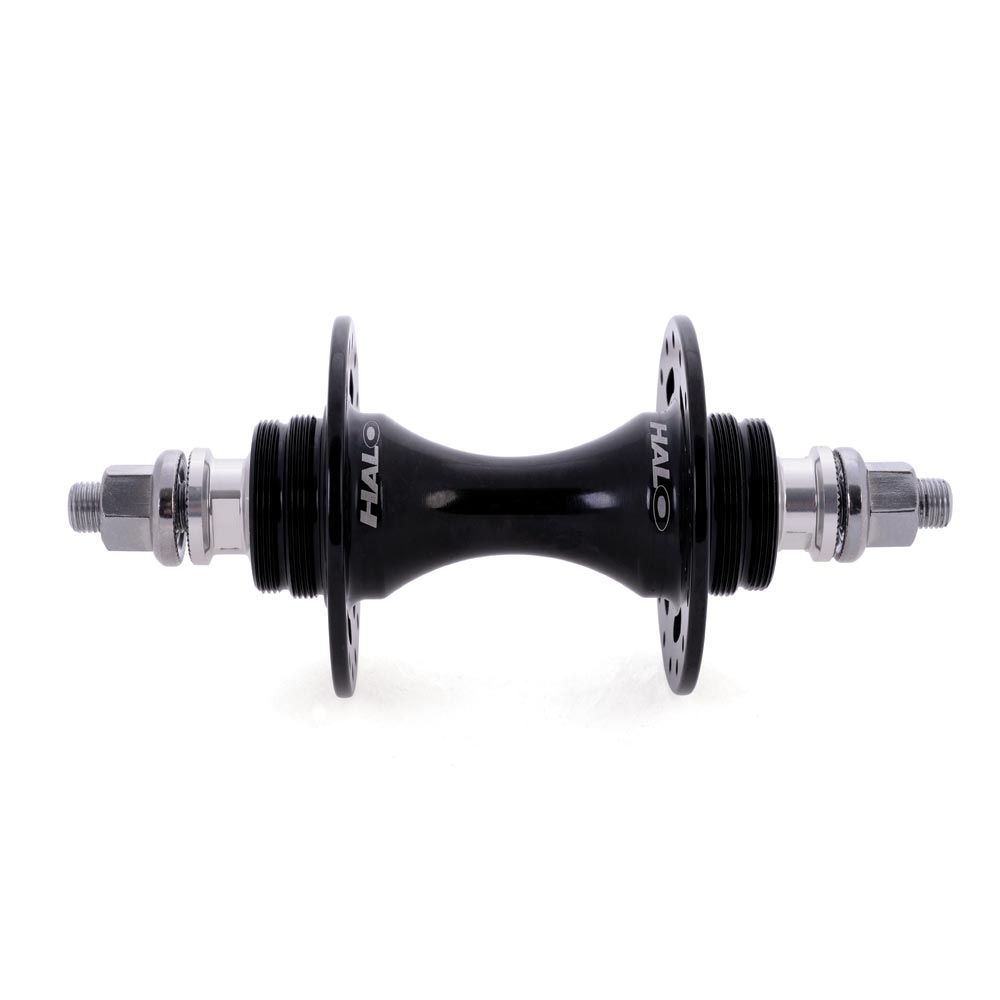

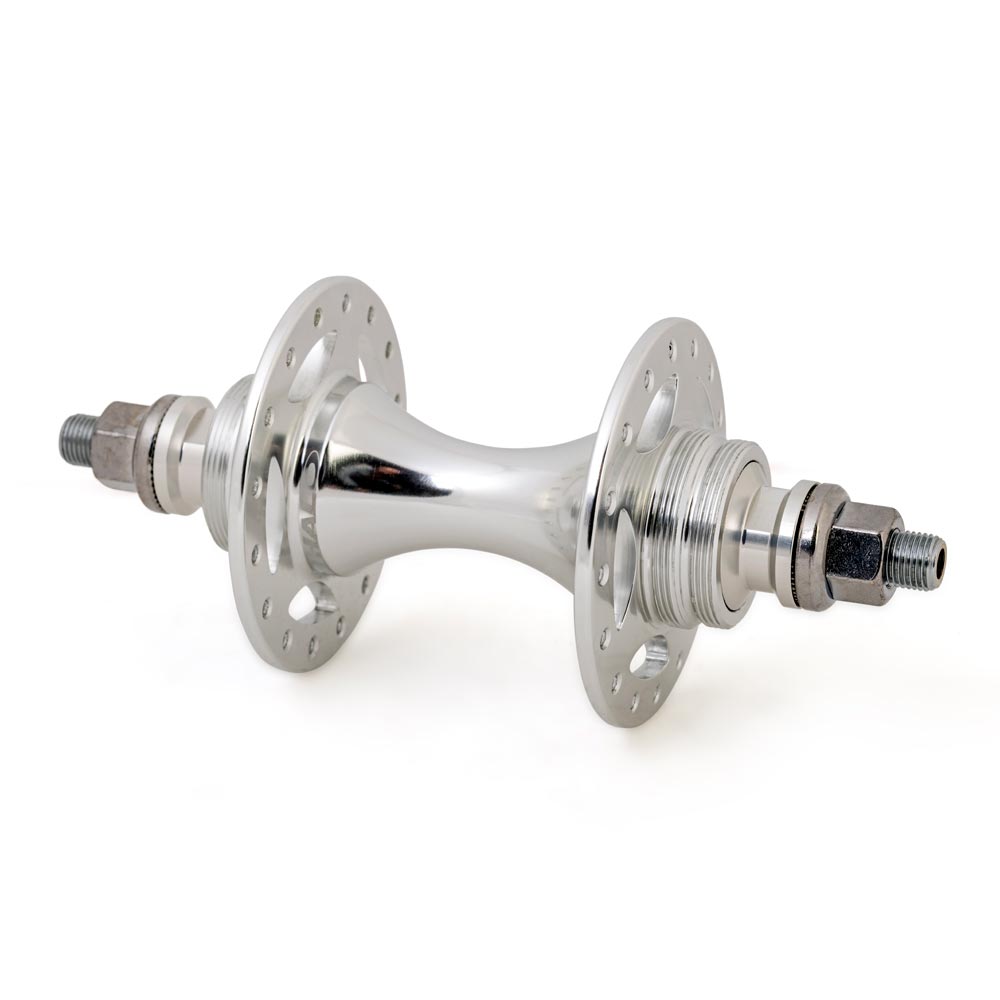

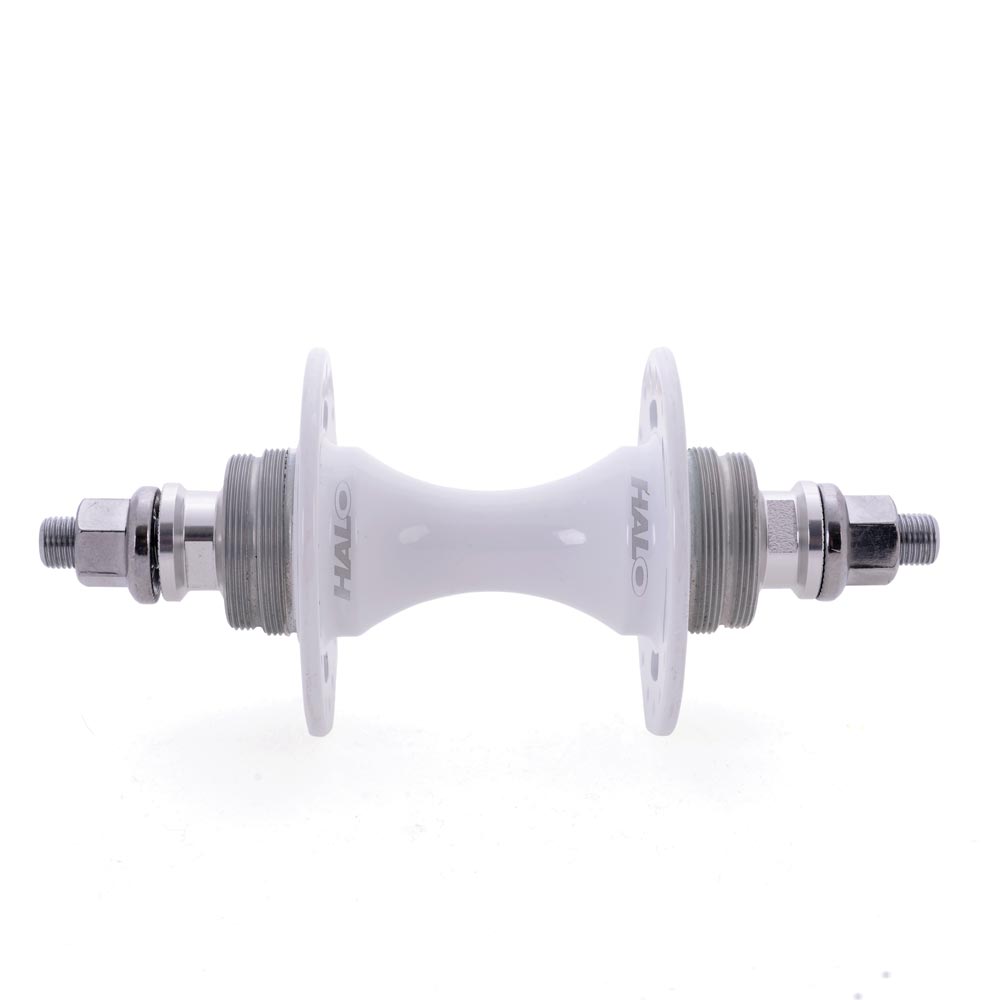

Halo TK Rear Hub
Click image to enlarge

To find out where to buy  Click Here

Description Colour Size Wt(g) Part No. Stock Lvl RRP Pack Unit
Track Hub, Rear - Forged/CNC alloy. Sealed bearing, Double Fixed Thread,Black32H270HUHATD2K£54.99Each
Track Hub, Rear - Forged/CNC alloy. Sealed bearing, Double Fixed Thread,Silver32H270HUHATD2S£54.99Each
Track Hub, Rear - Forged/CNC alloy. Sealed bearing, Double Fixed Thread,White32H280HUHATD2W£54.99Each
Track Hub, Rear - Forged/CNC alloy. Sealed bearing, Double Fixed Thread,Black24H270HUHATD4K£54.99Each
Track Hub, Rear - Forged/CNC alloy. Sealed bearing, Double Fixed Thread,Black36H270HUHATD6K£54.99Each
Track Hub, Rear - Forged/CNC alloy. Sealed bearing, Double Fixed Thread,Silver36H270HUHATD6S£54.99Each
Track Hub, Rear - Forged/CNC alloy. Sealed bearing, Double Fixed Thread,White36H280HUHATD6W£54.99Each
Track Hub, Rear - Forged/CNC alloy. Sealed bearing, Double Fixed Thread,Black48H270HUHATD8K£54.99Each
Track Hub, Rear - Forged/CNC alloy. Sealed bearing, Fixed/Freewheel,Black32H270HUHATW2K£54.99Each
Track Hub, Rear - Forged/CNC alloy. Sealed bearing, Fixed/Freewheel,Silver32H270HUHATW2S Low Stock£54.99Each
Track Hub, Rear - Forged/CNC alloy. Sealed bearing, Fixed/Freewheel,White32H280HUHATW2W£54.99Each
  • Good stock levels
  • +24h Please allow 24/48 hrs for assembly
  • Special Order Currently not in stock, contact us for details
  • Out of stock. Expected availability date will be displayed if known.
  • Discontinued. This product is no longer available.
