MT Supadrive Hub

Our MT series hubs are our flagship mountain bike hub range. The MT series encompass everything we feel hubs for mountain biking should offer.

Durability, modularity and light weights make the MT Series a simple choice.

Suited best to XC, trail and enduro bikes alike, the MT Supadrive hub offers a 120 point near instant engagement with the ability to withstand substantial torque loads, such as those found with wide range cassettes. With multiple World Championship titles across a range of disciplines the Supadrive system is tried and tested to the very highest level and is our most advanced and reliable drive system to date.

Wide spoke flanges, sealed cartridge bearings and a Cr-Mo tube axle in the MT Supadrive hub ensure longevity.

Designed to be run with mountain bike gearing, the MT Supadrive hub features an XD driver or alternatively a MTB width HG freehub. Please refer to the GXC Supadrive for a 11 speed road cassette compatibility.

An additional Boost adaptor kit is also available, to retrofit this hub into Boost compatible frames.

Replacement axle kits for Supadrive hub:

  • HXHASVTMHG – Suitable for HG type freehub includes 135mm QR and 142x12mm End cones
  • HXHASVTMXD – Suitable for XD type freehub includes 135mm QR and 142x12mm End cones

Specifications

  • Material 6061 Alloy forged hub shell
  • Drillings 32H or 36H
  • Bearings 2 x 6902 (hub) 3 x 6802 (SRAM Freehub) or 1 x 6902 and 6802 (HG Freehub)
  • Axle Cro Mo with 135mm QR/12x142mm thru ends included
  • Disc Mount IS 6-Bolt
  • Ratchet 120 teeth triple-wedge pawl mechanism
  • Freehub Body Shimano HG or Sram XD
  • Spoke Hole Circle Diameter (PCD) 58mm
  • Centre to Flange Left: 34mm, Right: 20mm
  • OLD 135/142mm
  • Model Ref S-DRV-FG
  • Colour Black, White, Red, Blue or Silver.

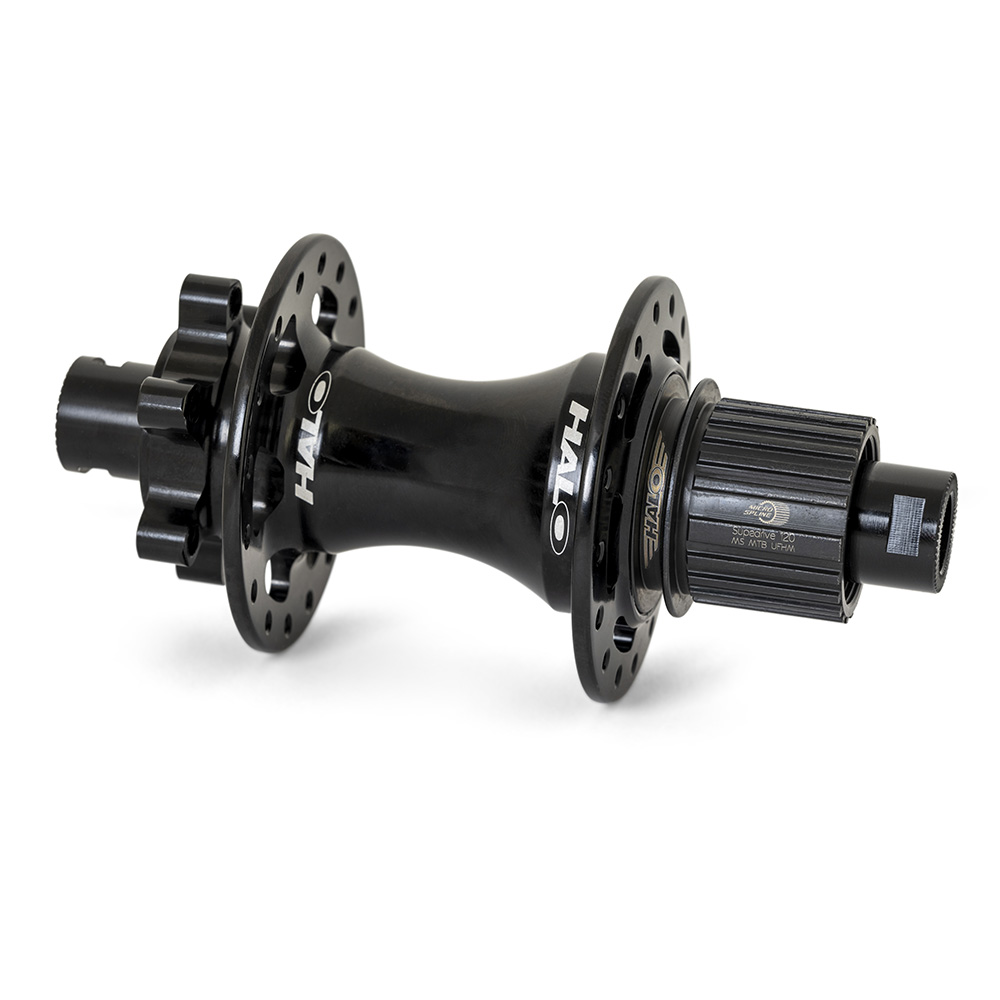

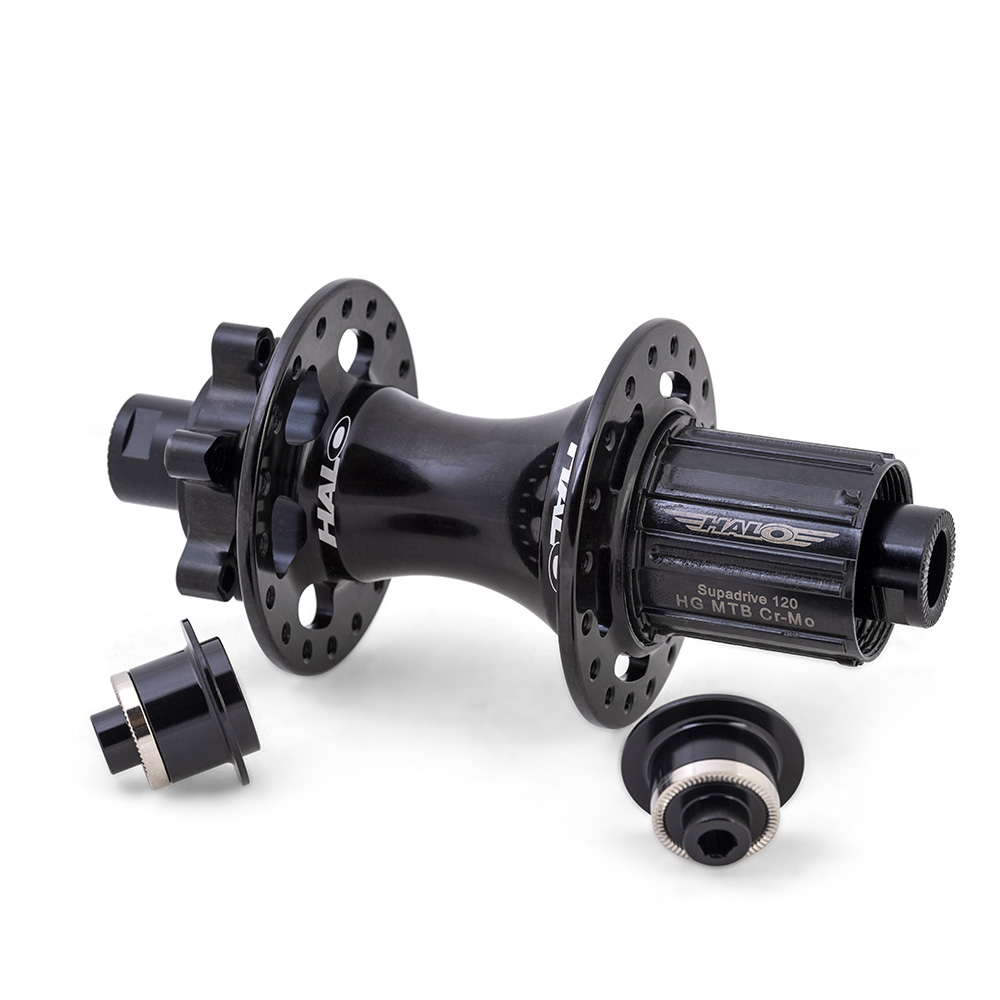

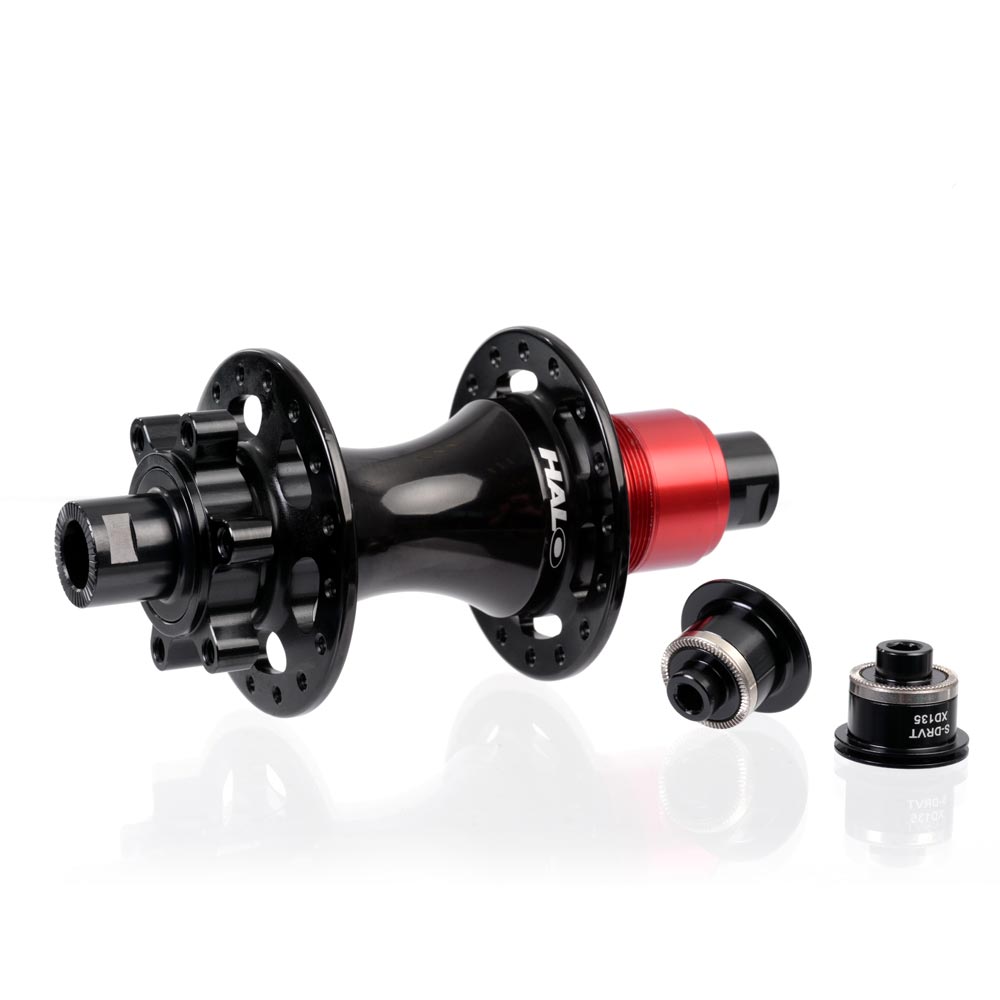

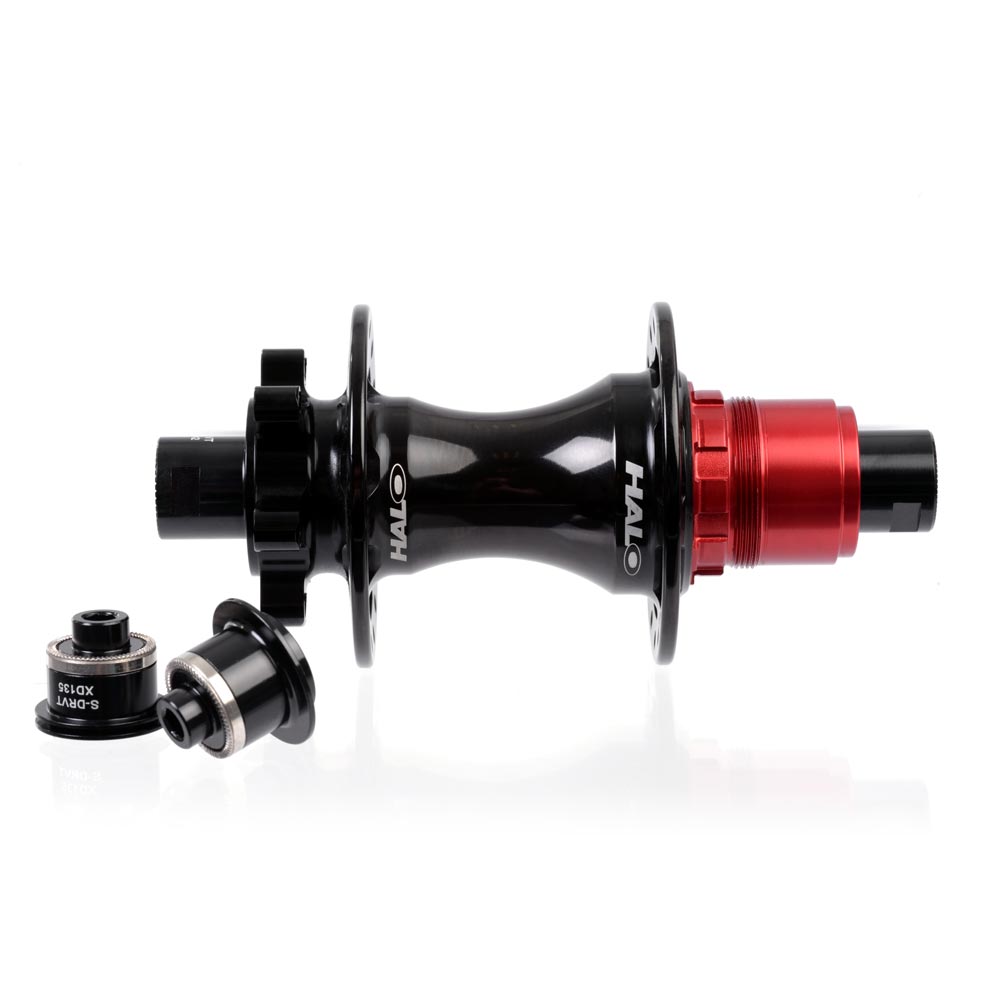

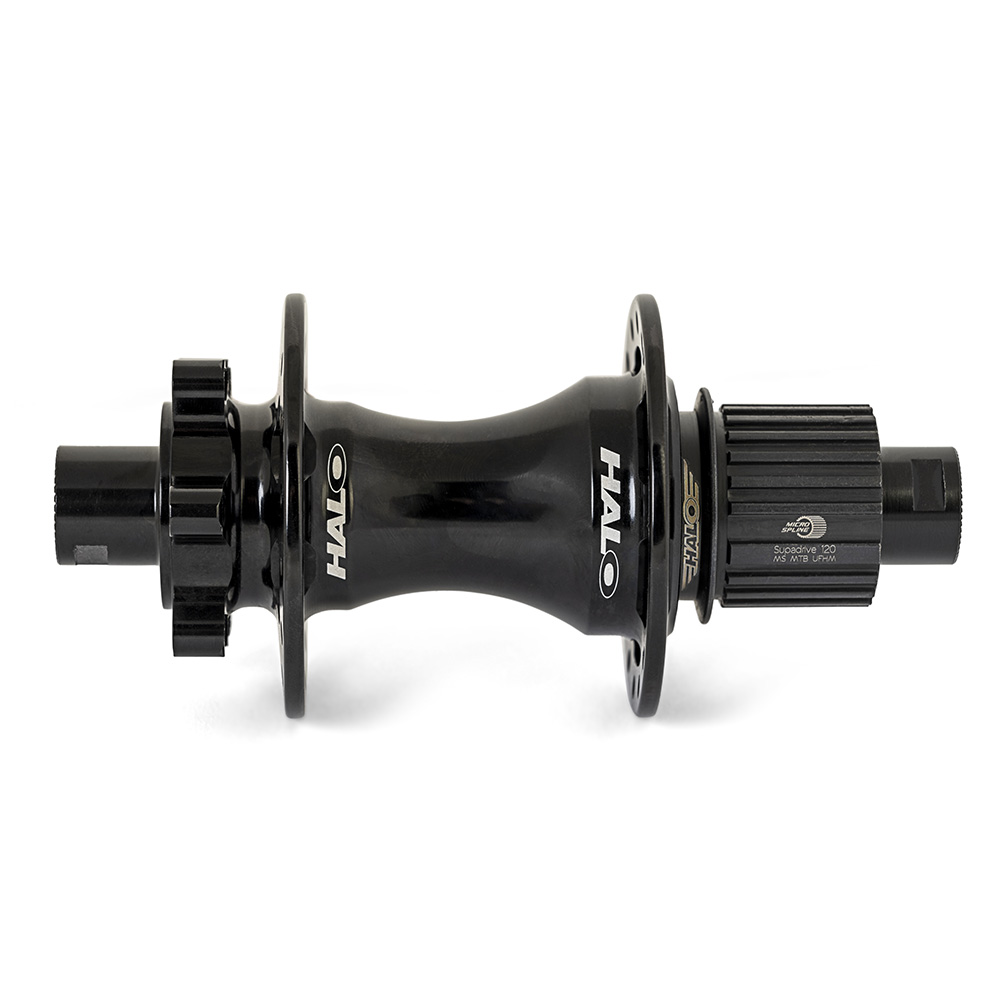

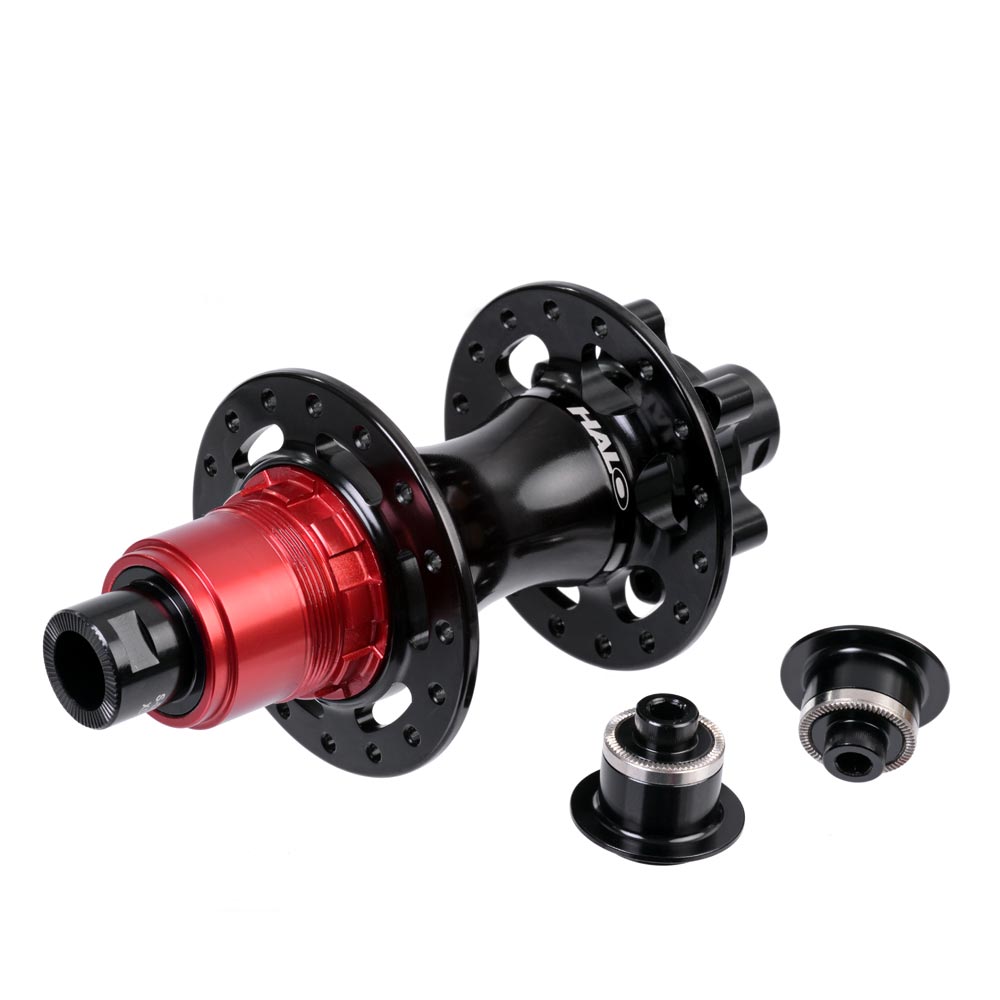

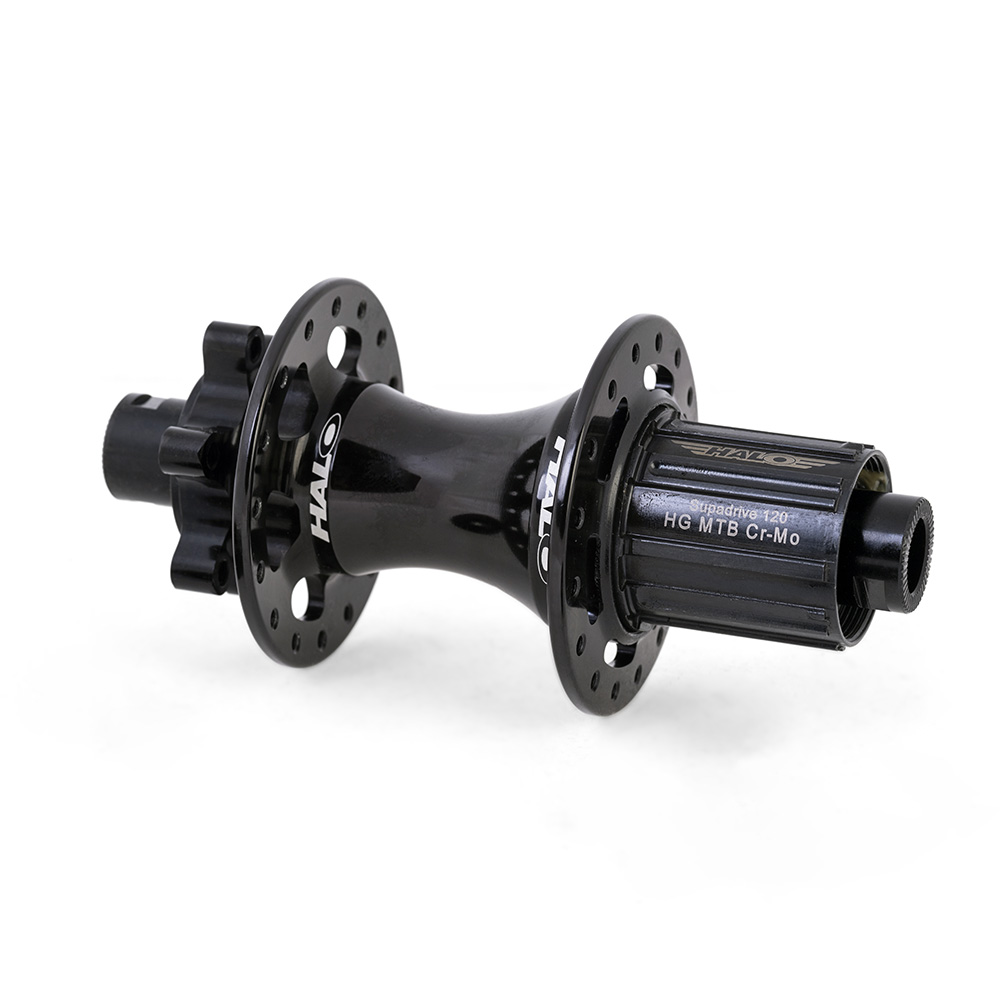

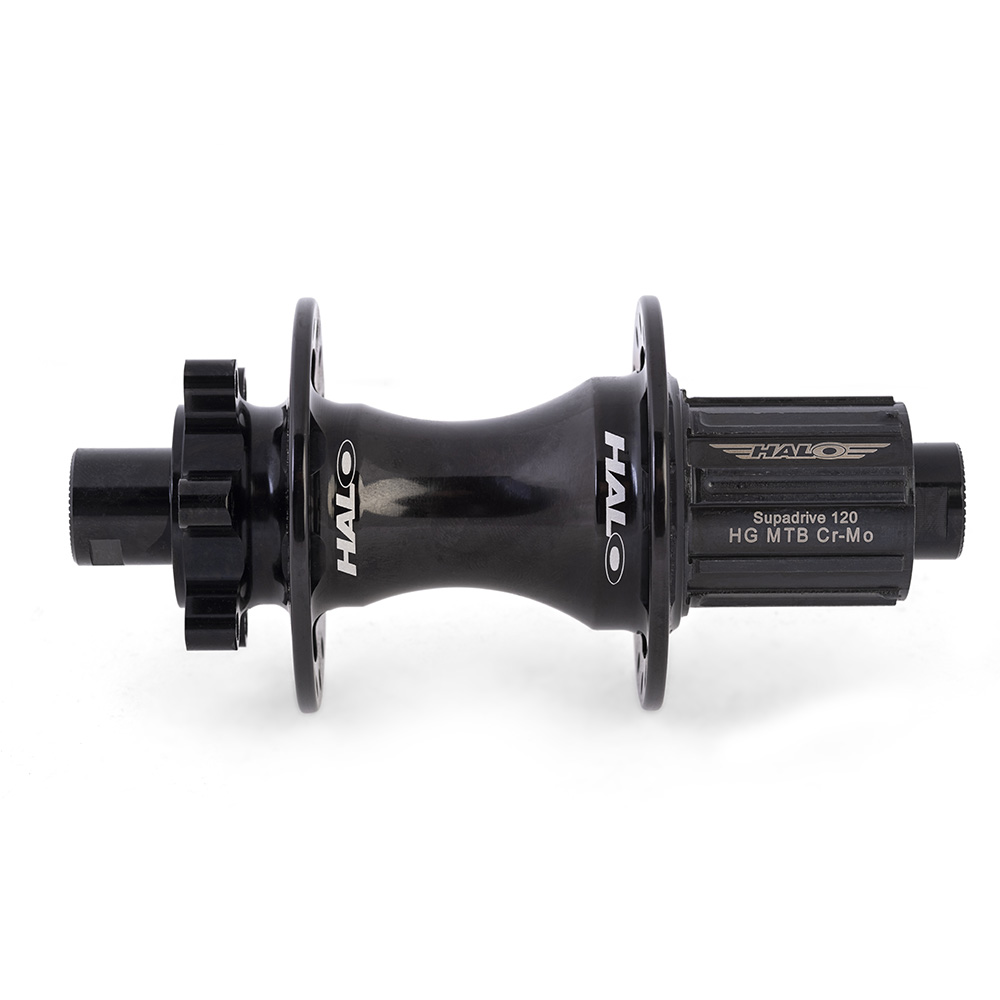

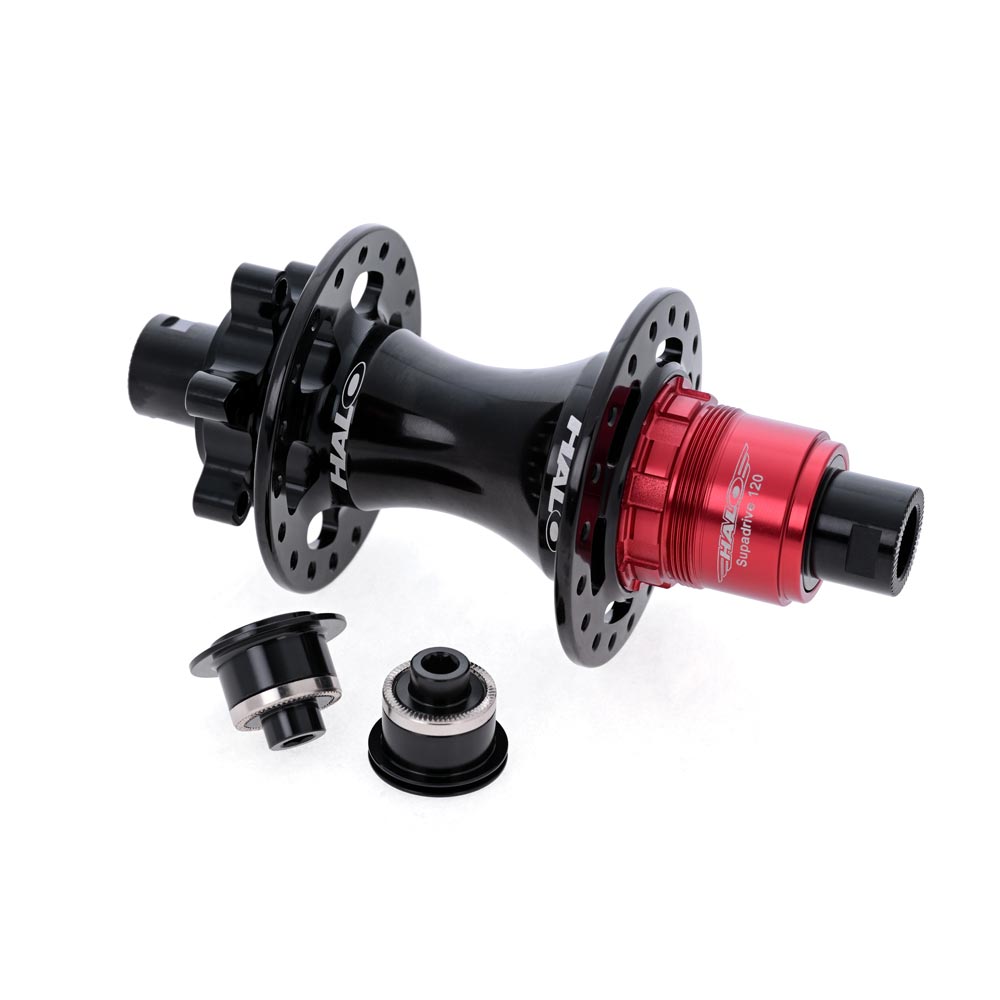

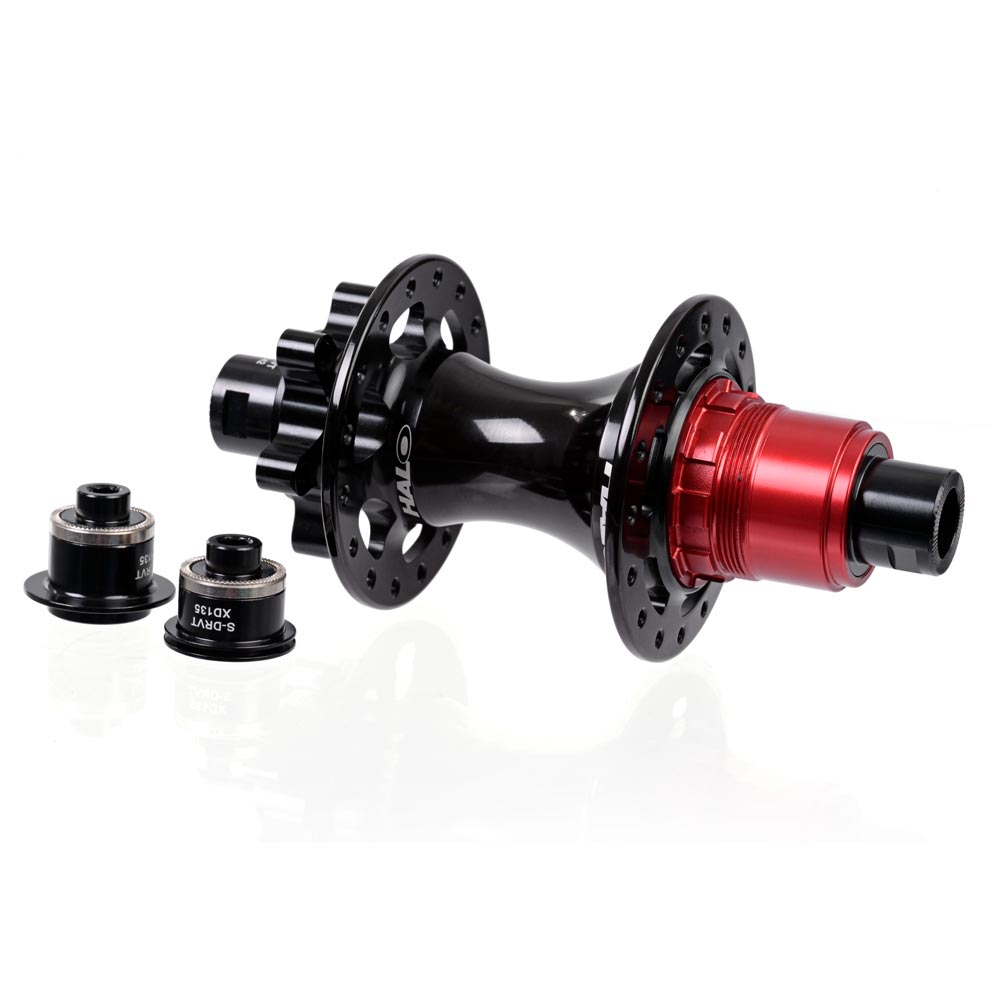

Halo MT Supadrive Hub
Halo MT Supadrive Hub
Click image to enlarge

To find out where to buy  Click Here

Description Colour Size Wt(g) Part No. Stock Lvl RRP Pack Unit
MT Supadrive HG, Rr Alloy SB hub, 142x12 Thru/135 QR Cr-Mo axle IS 6 bolt, HG MTB alloy F/hub.
Limited Availability
Blue32H335HUHASVH2B£149.99Each
MT Supadrive HG, Rr Alloy SB hub, 142x12 Thru/135 QR Cr-Mo axle IS 6 bolt, HG MTB alloy F/hub.Black32H335HUHASVH2K£149.99Each
MT Supadrive HG, Rr Alloy SB hub, 142x12 Thru/135 QR Cr-Mo axle IS 6 bolt, HG MTB alloy F/hub.Red32H335HUHASVH2R£149.99Each
MT Supadrive HG, Rr Alloy SB hub, 142x12 Thru/135 QR Cr-Mo axle IS 6 bolt, HG MTB alloy F/hub.Silver32H335HUHASVH2S£149.99Each
MT Supadrive HG, Rr Alloy SB hub, 142x12 Thru/135 QR Cr-Mo axle IS 6 bolt, HG MTB alloy F/hub.White32H335HUHASVH2W Low Stock£149.99Each
MT Supadrive HG, Rr Alloy SB hub, 142x12 Thru/135 QR Cr-Mo axle IS 6 bolt, HG MTB alloy F/hub.Black36H335HUHASVH6K£149.99Each
MT Supadrive XD, Rr Alloy SB hub, 142x12 Thru/135 QR Cr-Mo axle IS 6 bolt, XD MTB F/hub.Blue32H335HUHASVX2B£159.99Each
MT Supadrive XD, Rr Alloy SB hub, 142x12 Thru/135 QR Cr-Mo axle IS 6 bolt, XD MTB F/hub.Black32H335HUHASVX2K£159.99Each
MT Supadrive XD, Rr Alloy SB hub, 142x12 Thru/135 QR Cr-Mo axle IS 6 bolt, XD MTB F/hub.Red32H335HUHASVX2R£159.99Each
MT Supadrive XD, Rr Alloy SB hub, 142x12 Thru/135 QR Cr-Mo axle IS 6 bolt, XD MTB F/hub.Silver32H335HUHASVX2S£159.99Each
MT Supadrive XD, Rr Alloy SB hub, 142x12 Thru/135 QR Cr-Mo axle IS 6 bolt, XD MTB F/hub.White32H335HUHASVX2W Low Stock£159.99Each
MT Supadrive XD, Rr Alloy SB hub, 142x12 Thru/135 QR Cr-Mo axle IS 6 bolt, XD MTB F/hub.Black36H335HUHASVX6K£159.99Each
  • Good stock levels
  • +24h Please allow 24/48 hrs for assembly
  • Special Order Currently not in stock, contact us for details
  • Out of stock. Expected availability date will be displayed if known.
  • Discontinued. This product is no longer available.
