RD 6Drive Hub

The RD series hubs are as dependable as they are light.

Designed for road disc applications and featuring straight pull spoke flanges and sealed cartridge bearings the RD series last, mile after mile.

Rolling around our 6Drive system, our RD 6Drive hub features six independently sprung twin tipped pawls, offering a dependable and quiet engagement.

The RD 6Drive hub is fully adaptable due to its modular design, allowing for maximum bike compatibility.

This universal fitting hub comes supplied as standard to fit 130mm or 135mm QR frames – using conventional 130mm road standard cranksets with a chainline of around 45mm.

This means you can run conventional 130mm 'road' chainline cranks and drive train on a 135mm/142mm frame that has short road length chainstays, or of course, on a 130mm frame.





An optional adaptor (HUHARDRBA5) is available to allow SRAM and other cranks using the wider MTB spaced 135mm chainline of 47.5mm

Specifications

  • Drillings 24H straight pull
  • Disc Mount 6 bolt
  • Freehub Body Shimano or Campag 11 speed versions
  • Bearings 6902 (hub and freehub) and 15268 (freehub) cartridge bearings
  • Dimensions C-L: 30mm, C-R: 16mm, Left Flange: 41mm, Right Flange: 56mm
  • Model Ref SP-RDS
  • Colour Black with red axle caps

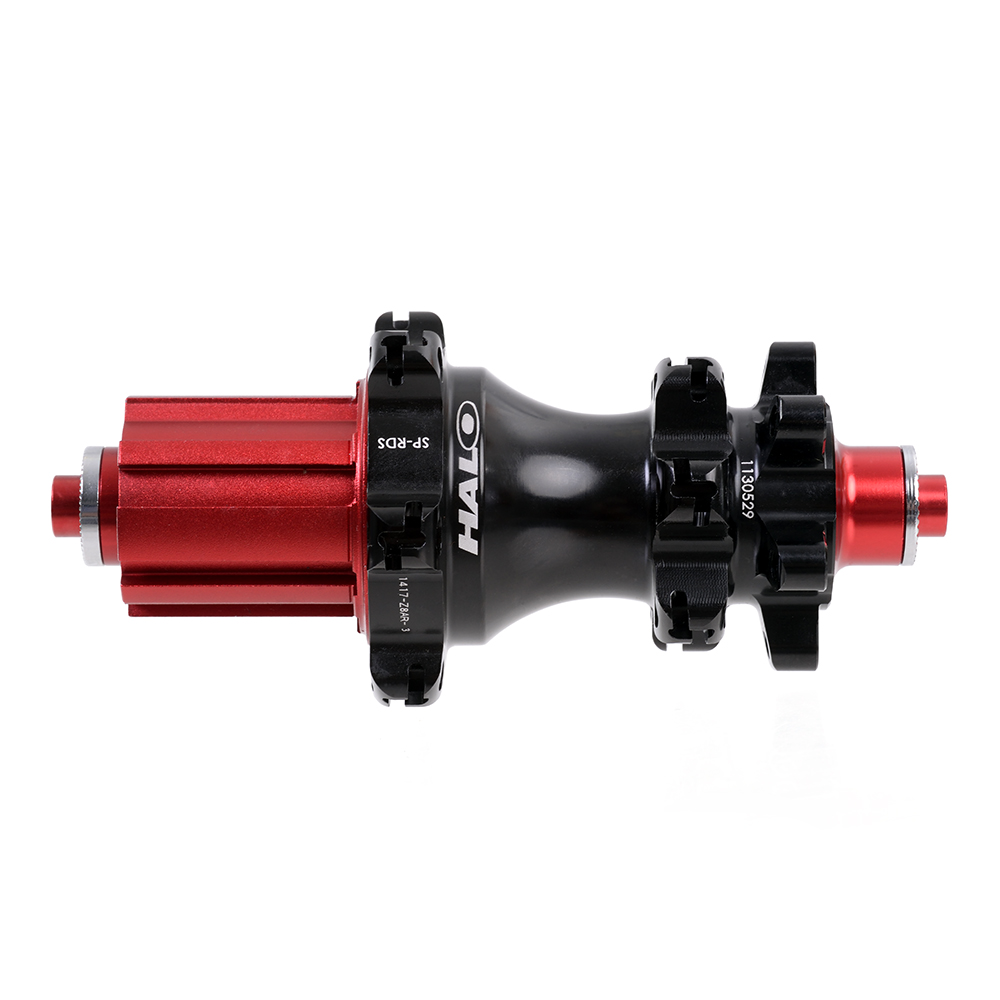

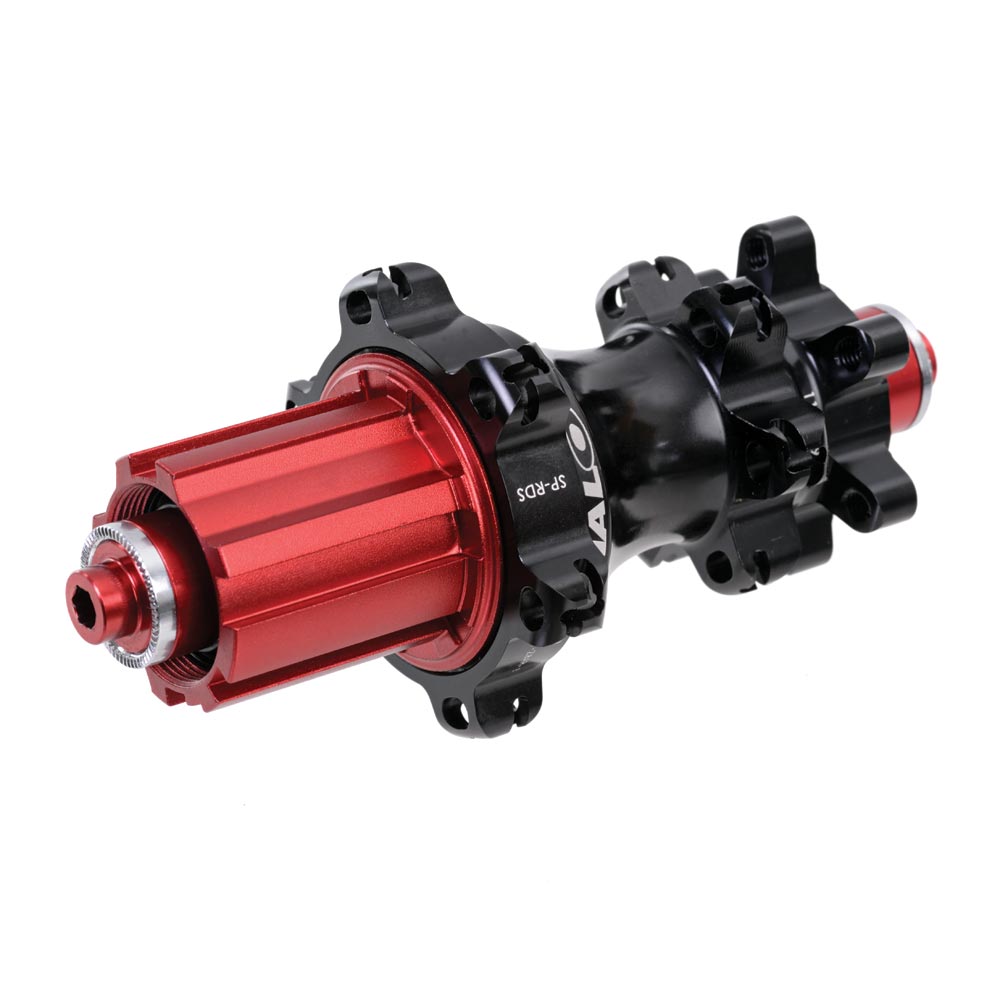

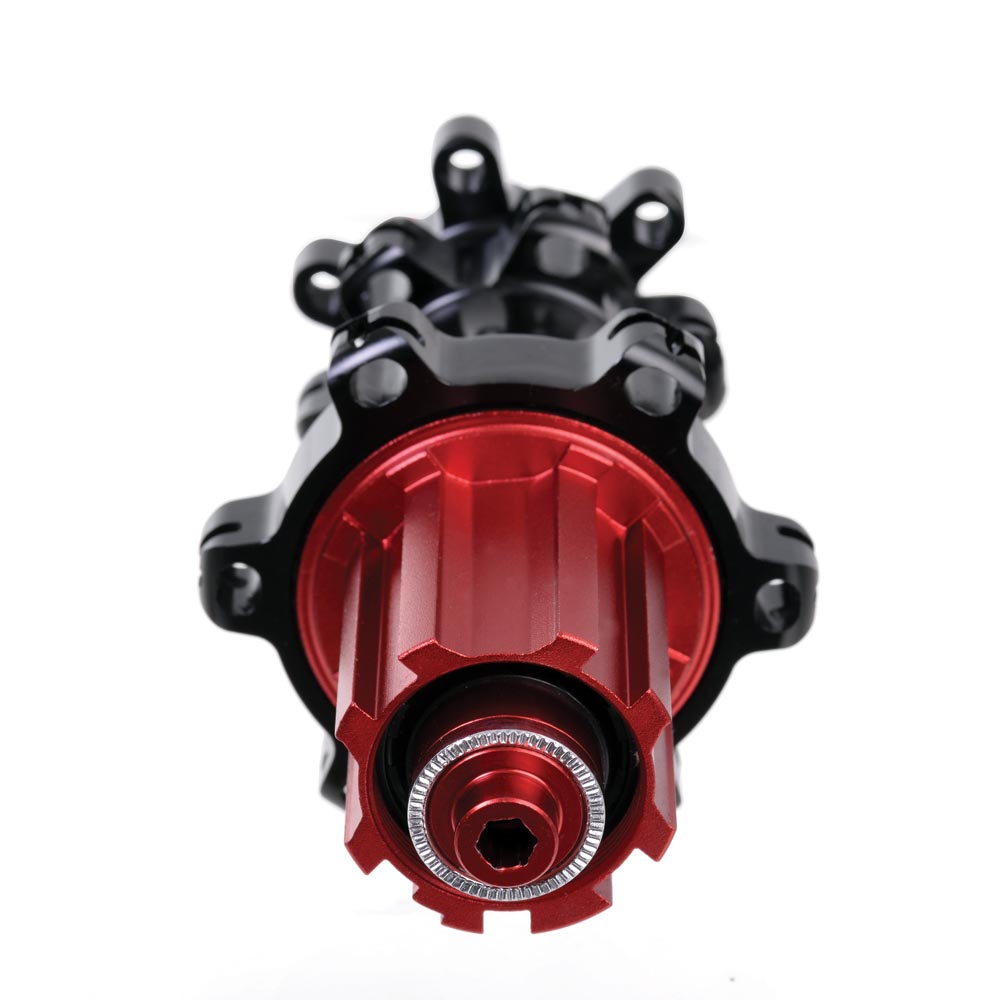

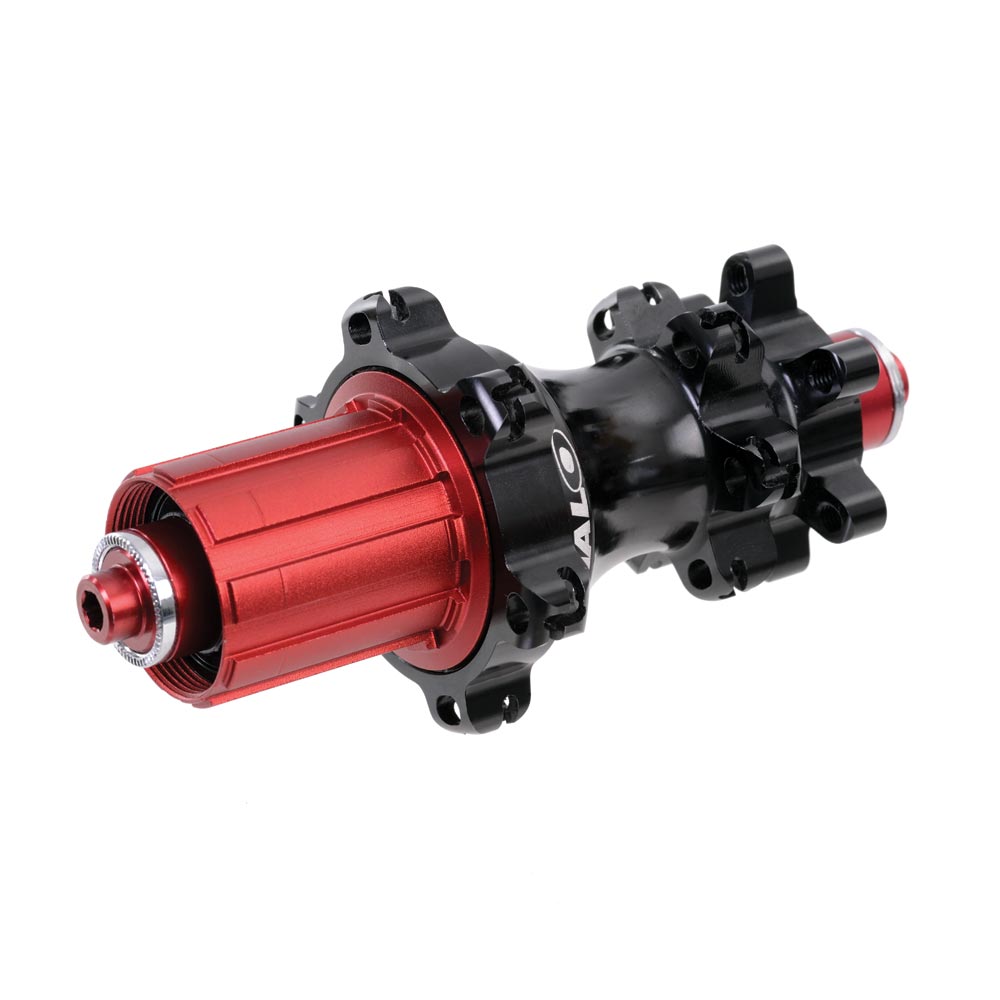

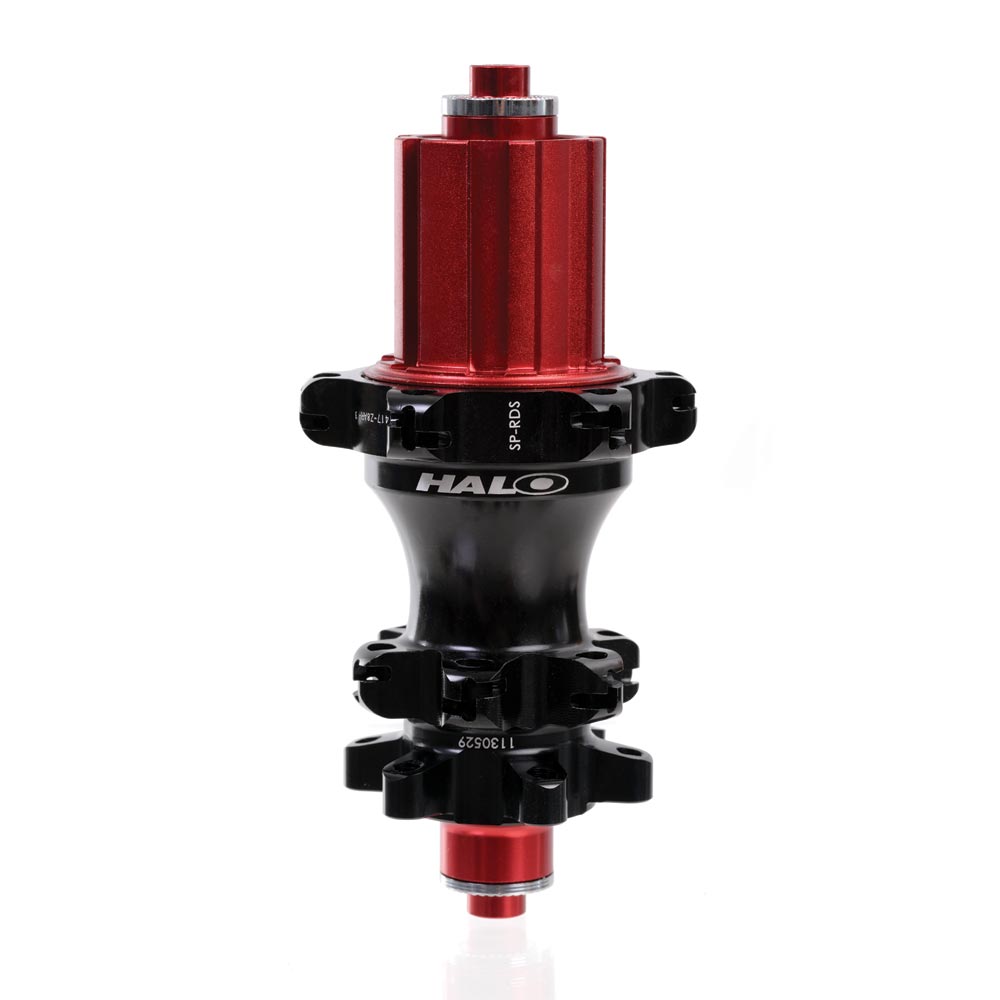

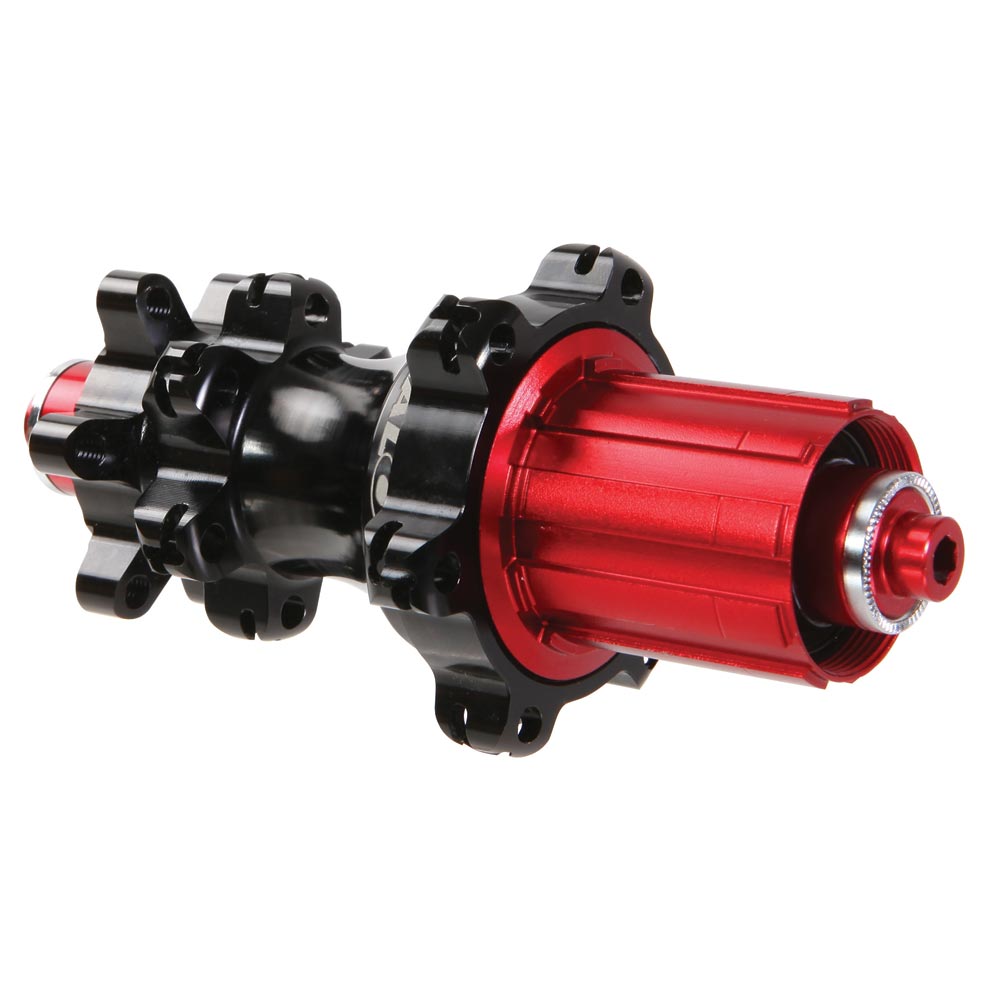

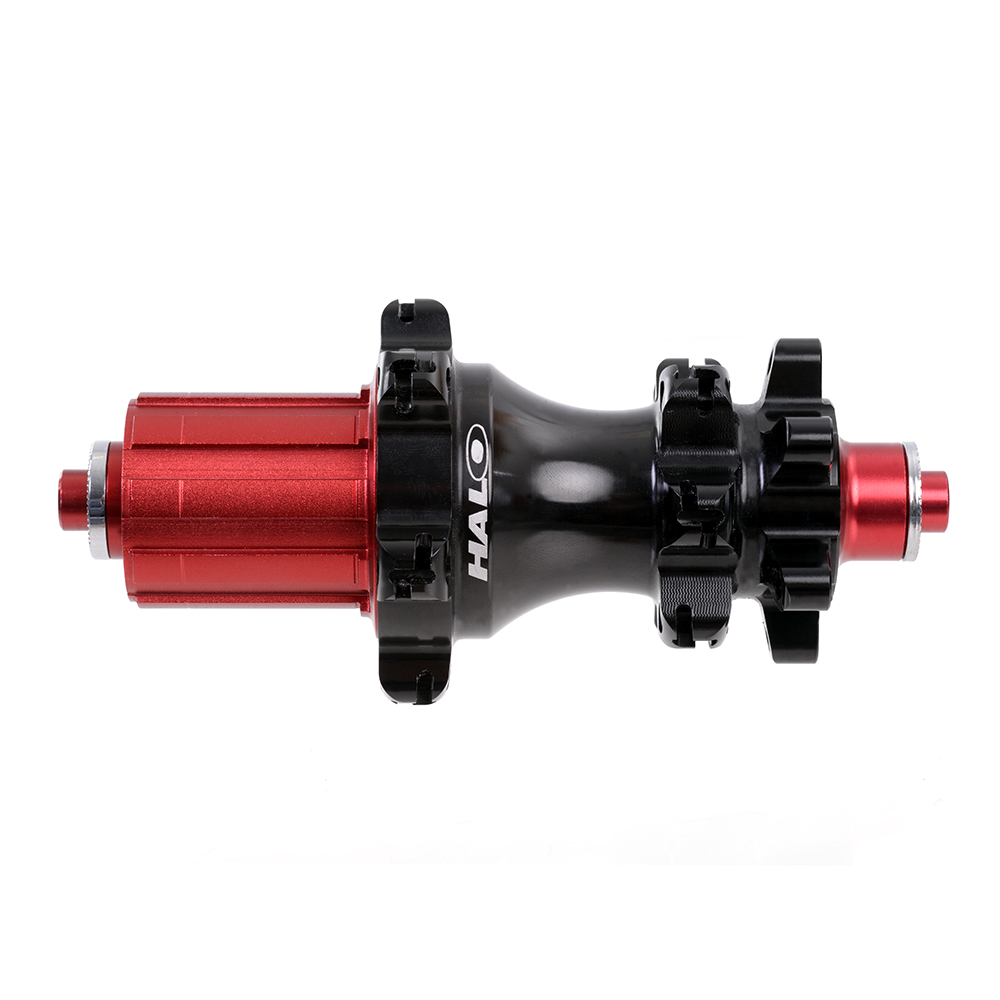

Halo RD 6Drive Rear Hub
Halo RD 6Drive Rear Hub
Click image to enlarge
Information

To find out where to buy  Click Here

Description Colour Size Wt(g) Part No. Stock Lvl RRP Pack Unit
RD 6Drive, Rear - Straight Pull Spoke, SB. IS - Campag 11sp, 130/135mmBlack24H295HUHARDR4KC£139.99Each
RD 6Drive, Rear - Straight Pull Spoke, SB IS - Shimano 11sp, 130/135mmBlack24H295HUHARDR4KS£139.99Each
  • Good stock levels
  • +24h Please allow 24/48 hrs for assembly
  • Special Order Currently not in stock, contact us for details
  • Out of stock. Expected availability date will be displayed if known.
  • Discontinued. This product is no longer available.
Description Colour Size Wt(g) Part No. Stock Lvl RRP Pack Unit
RD 6Drive, Rear - Straight Pull Spoke, SB. IS - Campag 11sp, 130/135mmBlack24H295HUHARDR4KC£139.99Each
RD 6Drive, Rear - Straight Pull Spoke, SB IS - Shimano 11sp, 130/135mmBlack24H295HUHARDR4KS£139.99Each
