RD2 Supadrive Hub

Our RD2 series of hubs have been designed ground up for the highest performance road disc brake applications.

RD2 hubs are fast and durable for the long-term.

The RD2 Supadrive hub offers a 120 point near instant engagement with the ability to withstand substantial torque loads. With multiple World Championship titles across a range of disciplines the Supadrive system is tried and tested to the very highest level. Supadrive is our most advanced and reliable drive system to date.

Wide spoke flanges, sealed cartridge bearings and a lightweight alloy axle in the RD2 Supadrive hub ensure longevity. Light, fast and designed for use with up to 11 speed road cassettes, the RD2 Supadrive hub is at the pinnacle of lightweight performance.

These hubs come supplied with the axle fittings to allow them to fit universally with 142x12 Thru systems.

Specifications

  • Drillings 16/8e
  • Axle 142 x 12mm Alloy thru (135 x QR5/10mm available aftermarket)
  • Disc Mount Centerlock (optional 6 bolt adaptor available aftermarket)
  • Freehub Shimano Road 11 HG or SRAM XDR or Campag type options
  • Freehub Body Alloy with anti-bite steel insets
  • Drive System Supadrive- 120 engagement points (3 degree), 3 wedge pawls
  • Spoke Hole Circle Diameter (PCD) Left 45mm Right 52mm
  • Centre to Flange C-L 33mm C-R 19mm
  • Bearings Hub - 2 x 6902. Freehub - 1 x 6802 and 1 x 15267
  • Model Ref RD2-S-DRV-FG
  • Colour Anodised Black

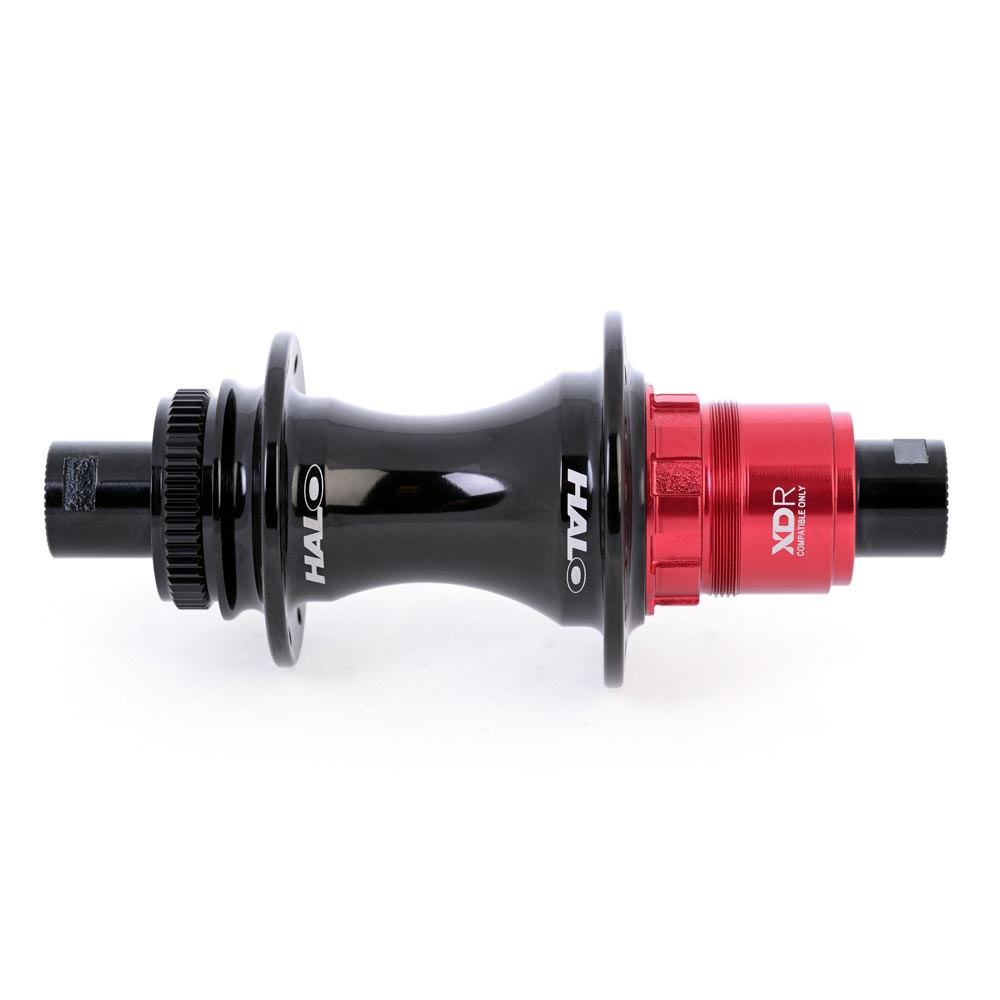

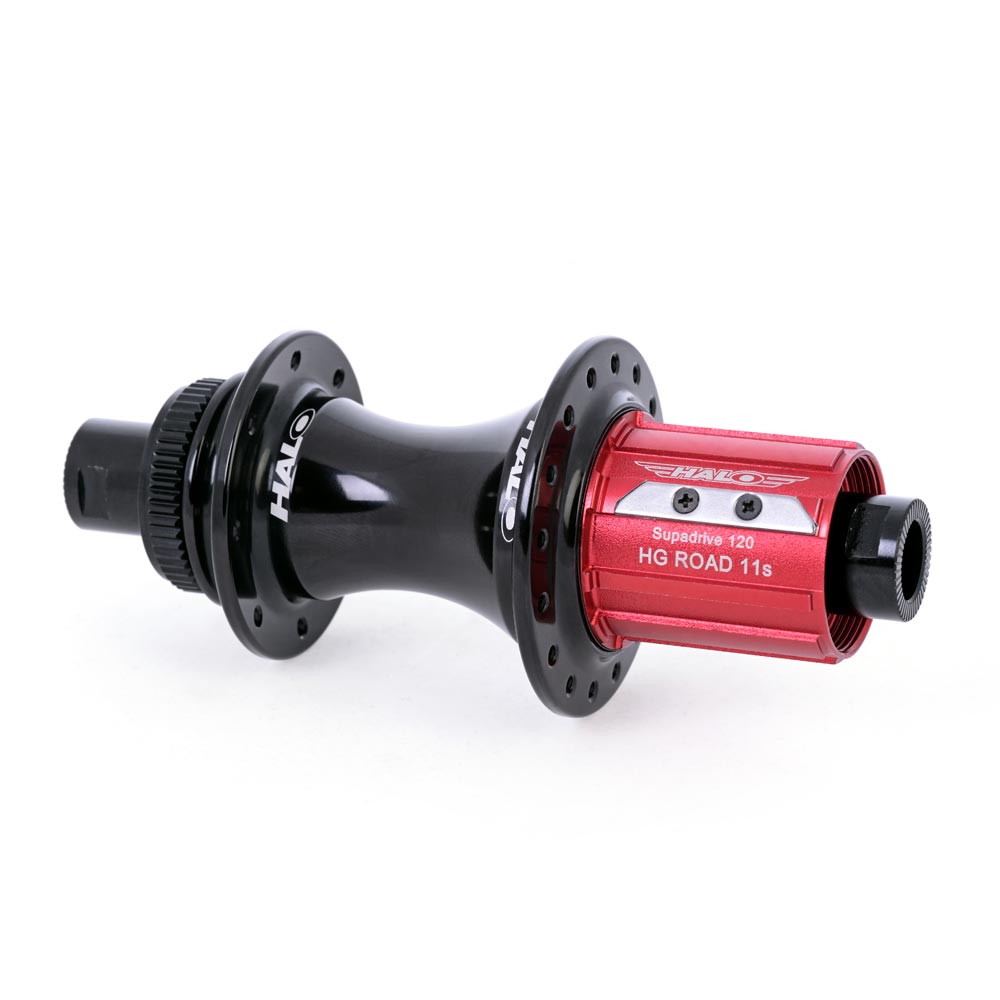

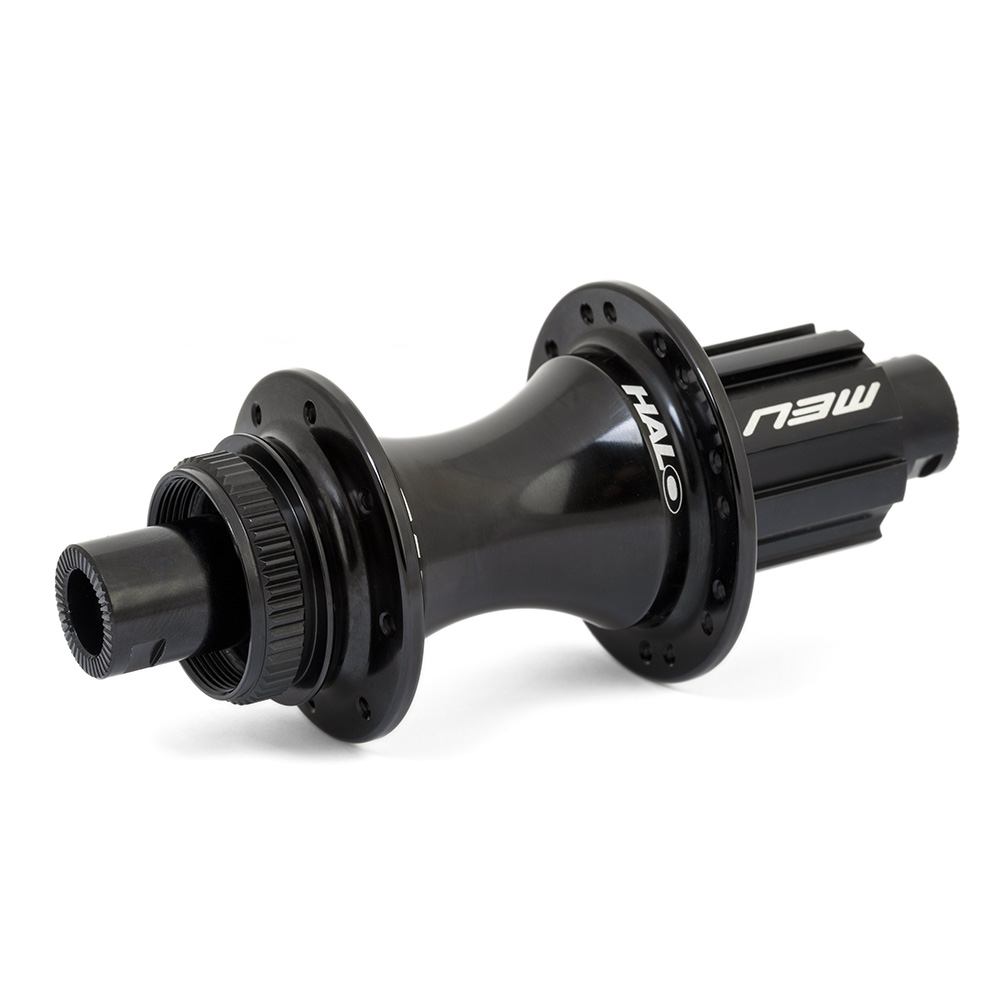

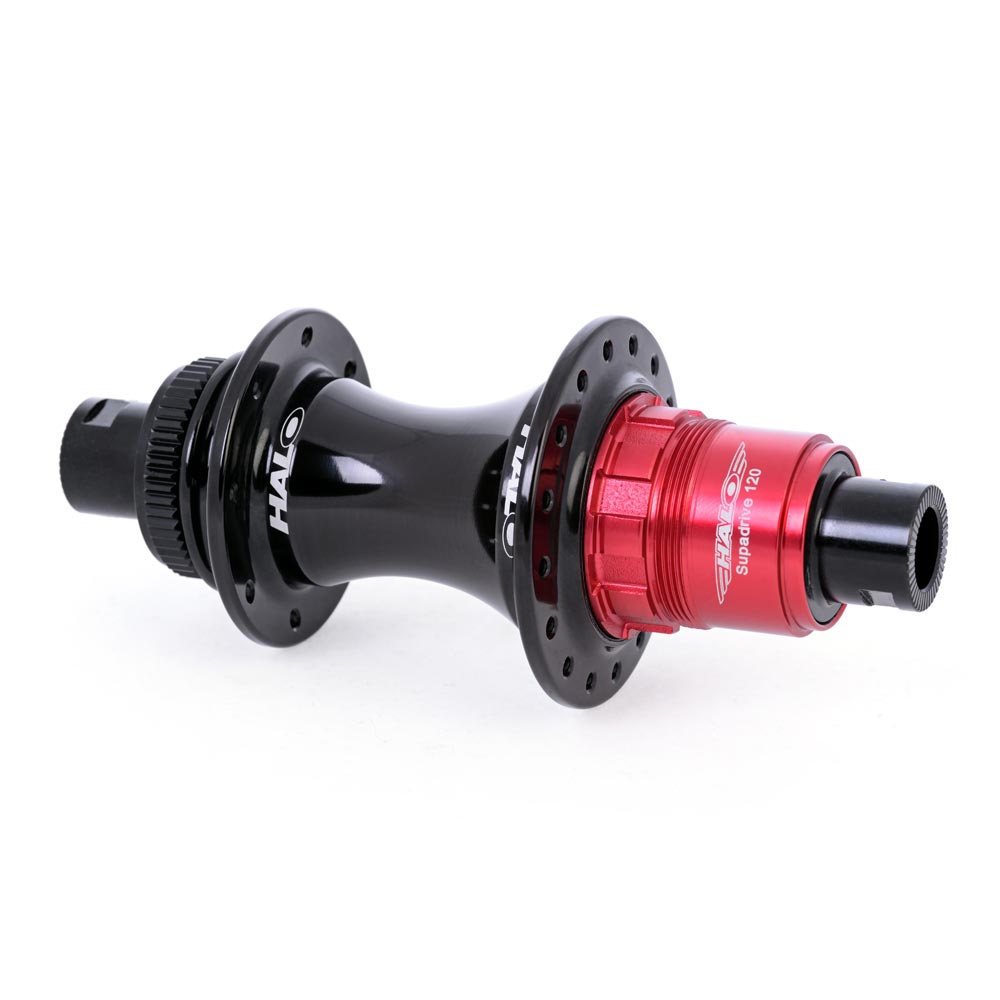

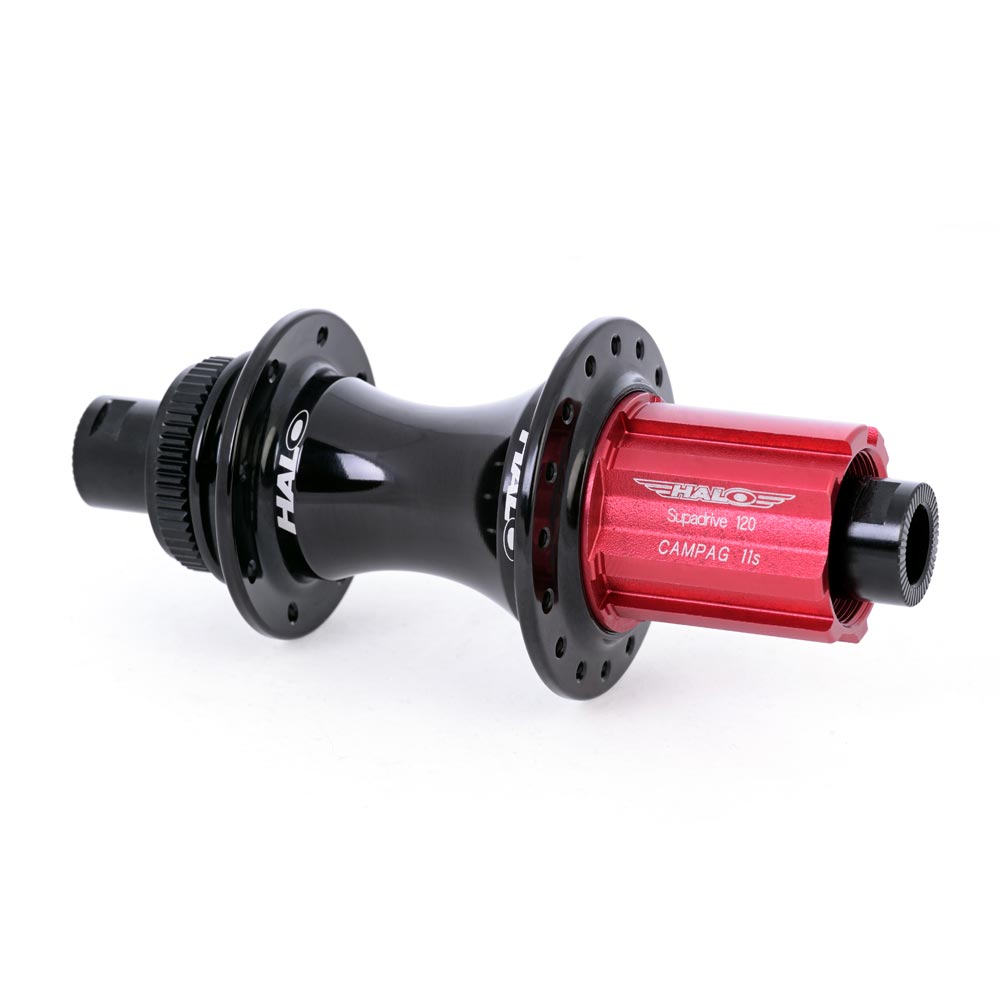

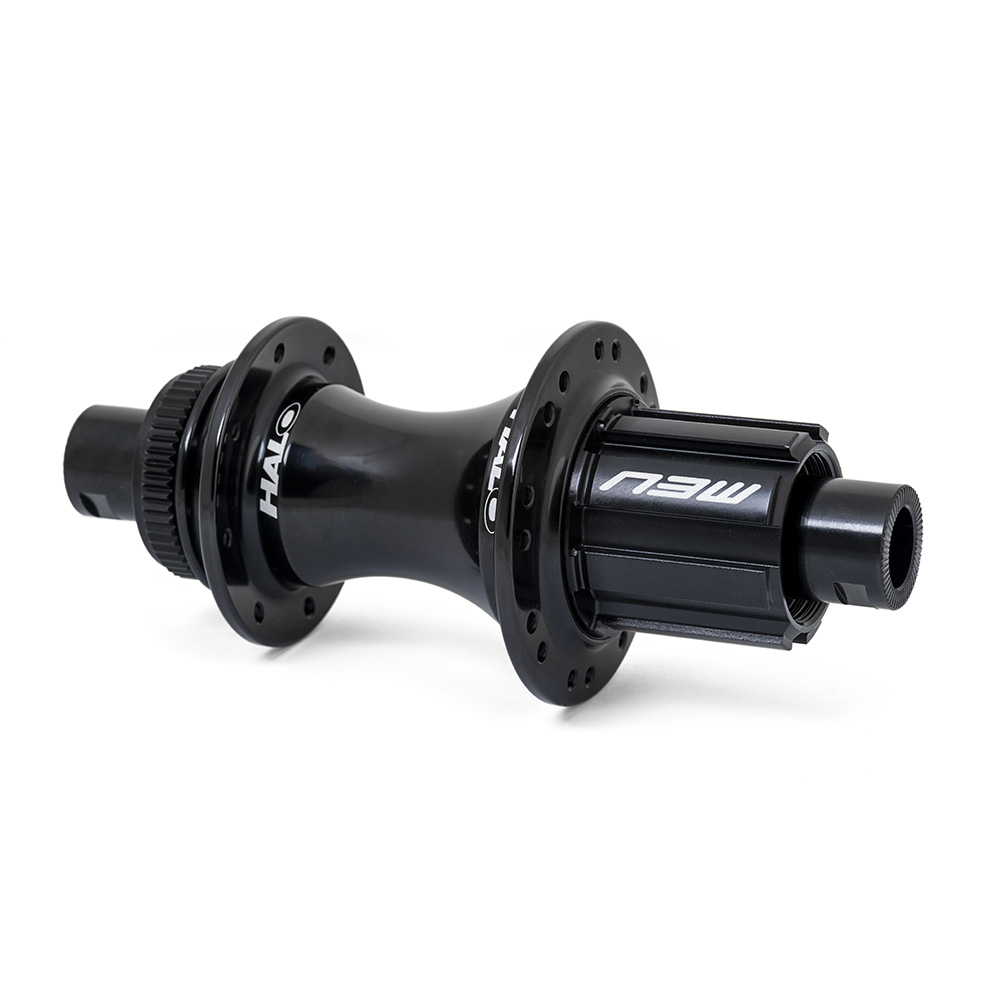

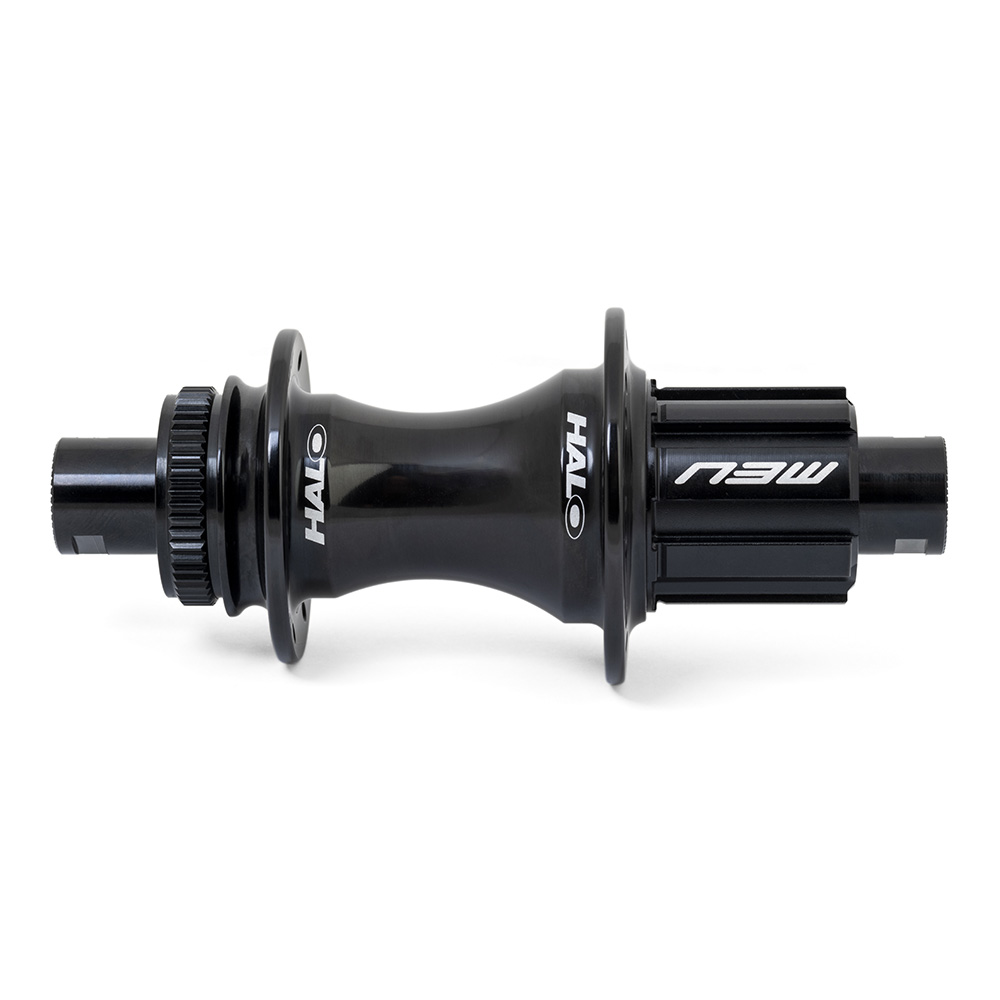

Halo RD2 Supadrive Hub
Halo RD2 Supadrive Hub
Click image to enlarge

To find out where to buy  Click Here

Description Colour Size Wt(g) Part No. Stock Lvl RRP Pack Unit
RD2 Disc SupaDrive, Rear - SupaDrive - Center Lock disc, SB - Campagnolo 11sp, 12x142mmBlack16/8H275HUHAR2R4KC£169.99Each
RD2 Disc SupaDrive, Rear - SupaDrive - Center Lock disc, SB - Shimano 11sp, 12x142mmBlack16/8H285HUHAR2R4KS Low Stock£169.99Each
RD2 Disc SupaDrive, Rear - SupaDrive - Center Lock disc, SB - SRAM XD-R 11sp, 12x142mmBlack16/8H272HUHAR2R4KX£179.99Each
  • Good stock levels
  • +24h Please allow 24/48 hrs for assembly
  • Special Order Currently not in stock, contact us for details
  • Out of stock. Expected availability date will be displayed if known.
  • Discontinued. This product is no longer available.
Description Colour Size Wt(g) Part No. Stock Lvl RRP Pack Unit
RD2 Disc SupaDrive, Rear - SupaDrive - Center Lock disc, SB - Campagnolo 11sp, 12x142mmBlack16/8H275HUHAR2R4KC£169.99Each
RD2 Disc SupaDrive, Rear - SupaDrive - Center Lock disc, SB - Shimano 11sp, 12x142mmBlack16/8H285HUHAR2R4KS Low Stock£169.99Each
RD2 Disc SupaDrive, Rear - SupaDrive - Center Lock disc, SB - SRAM XD-R 11sp, 12x142mmBlack16/8H272HUHAR2R4KX£179.99Each
