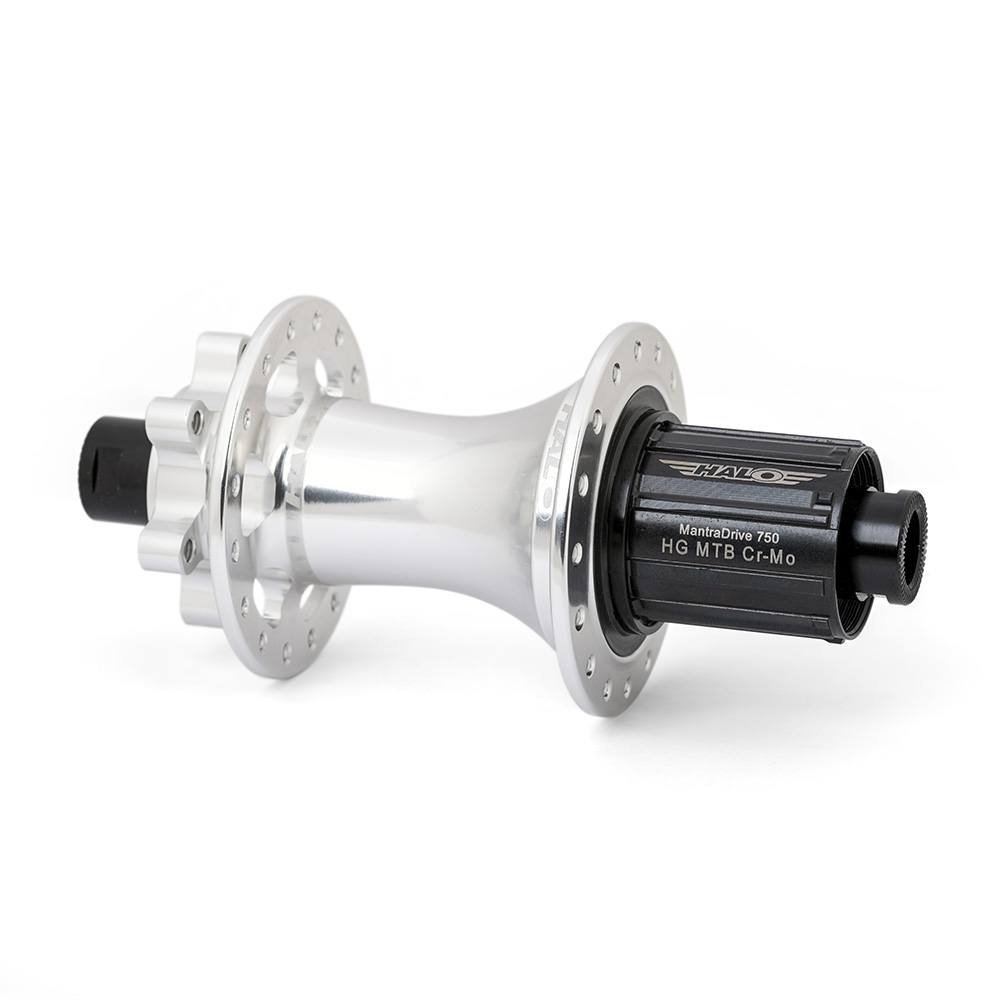

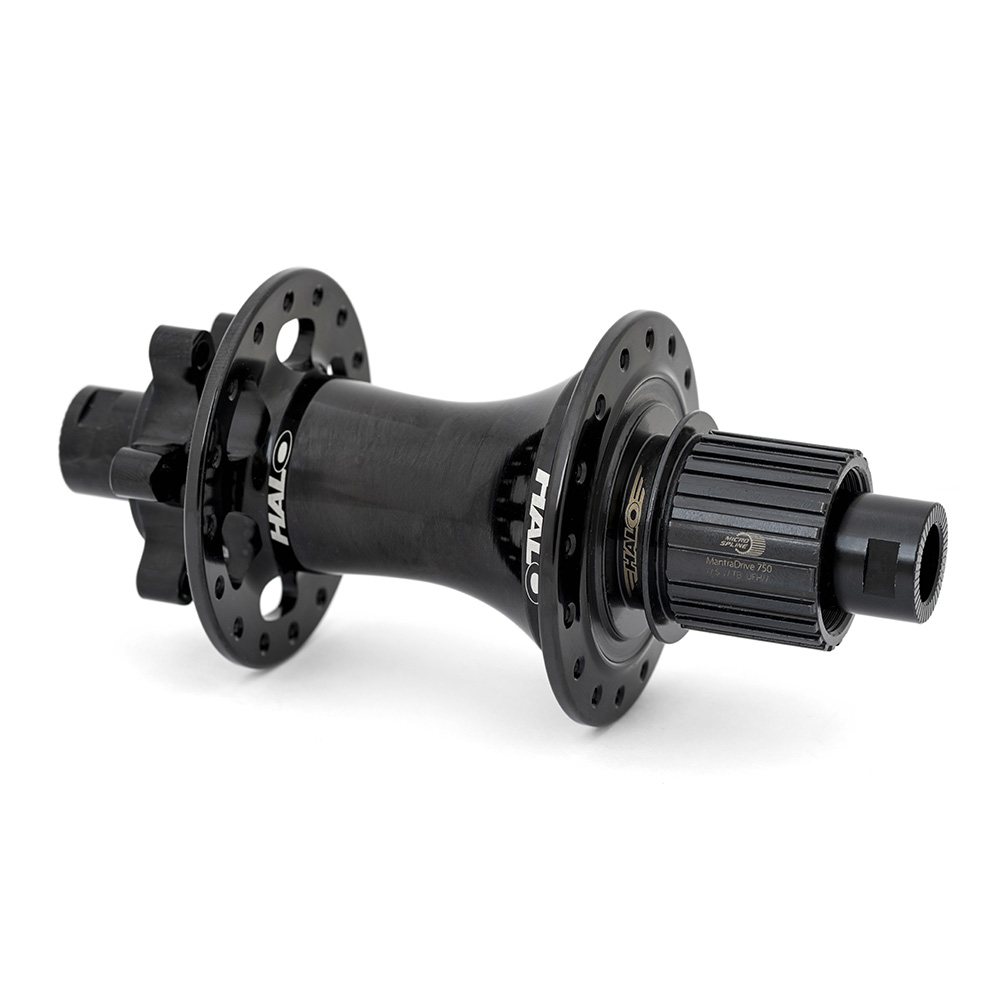

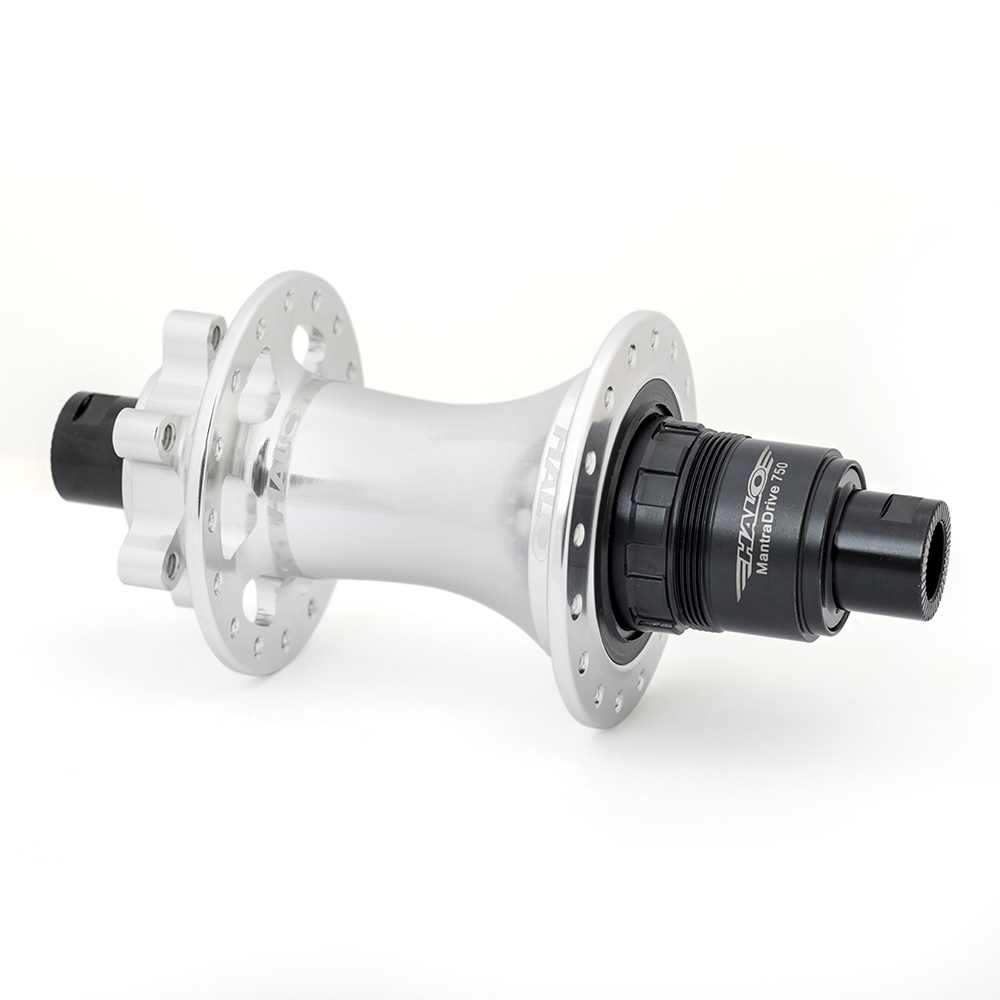

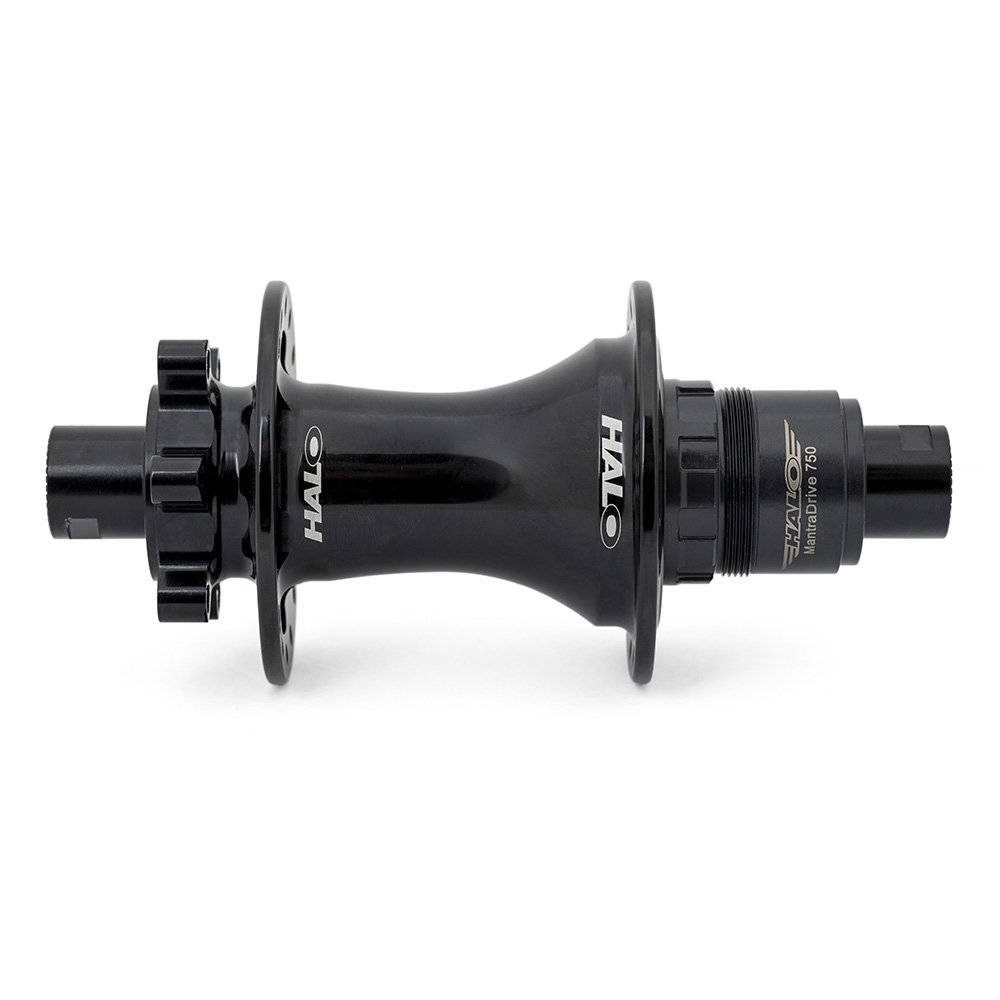

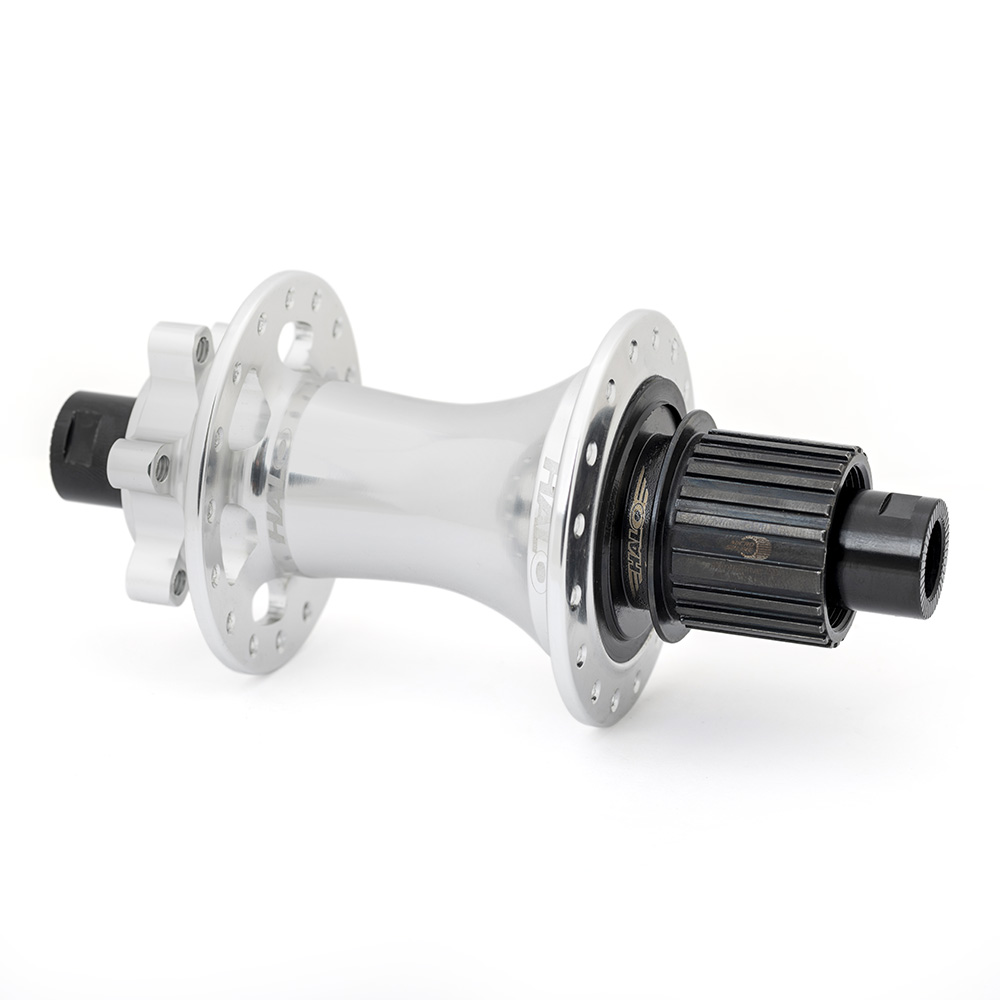

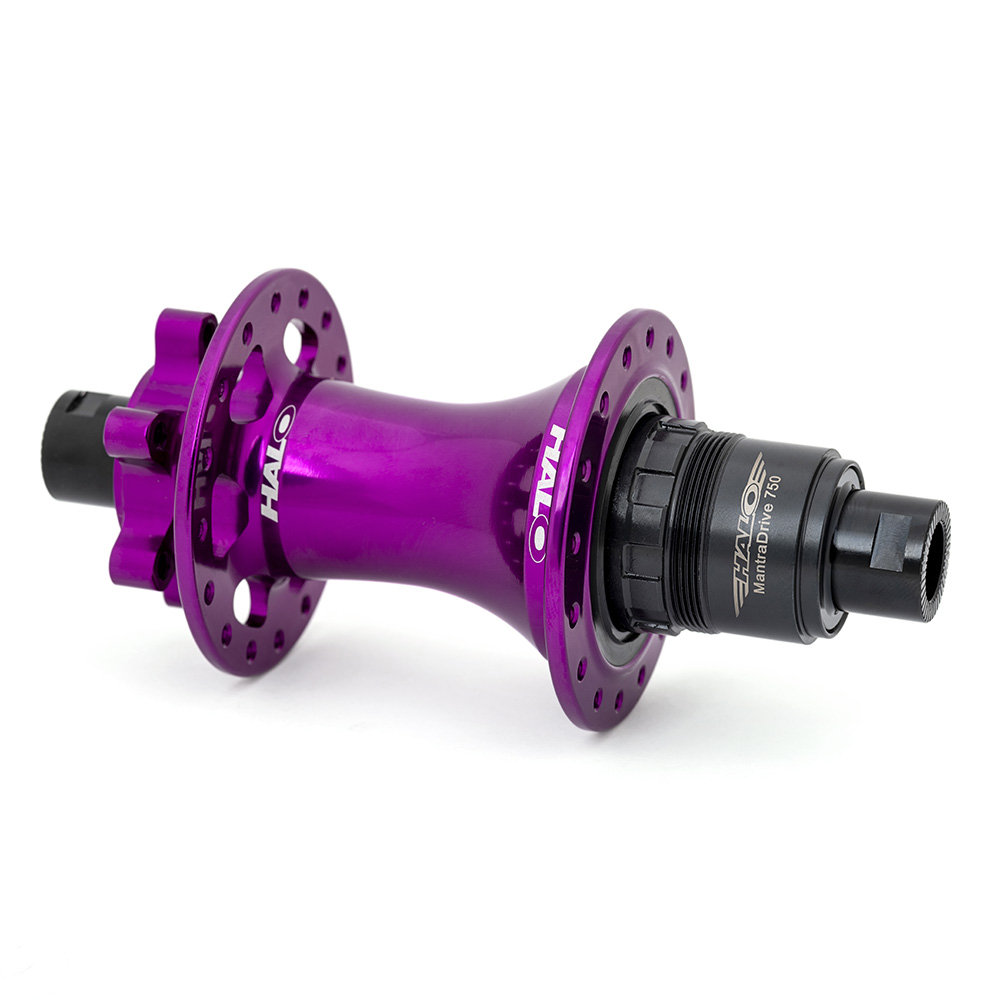

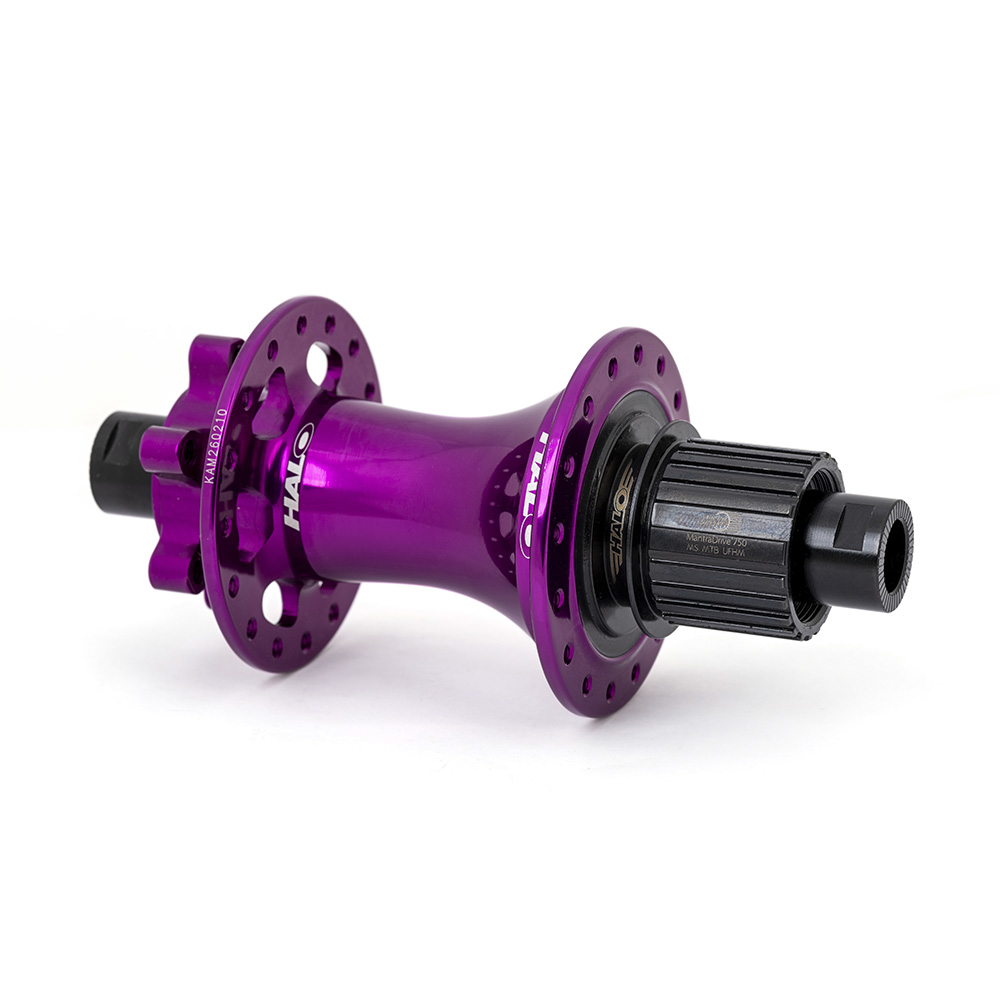

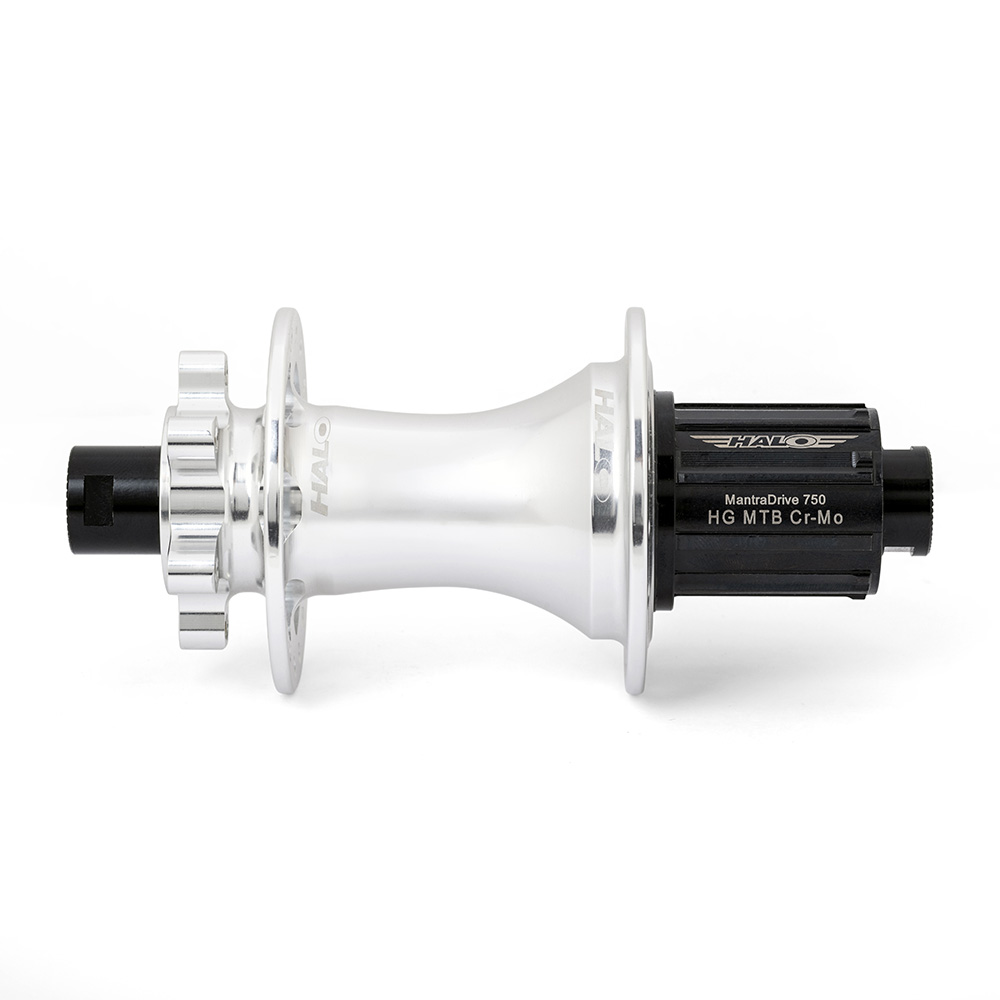

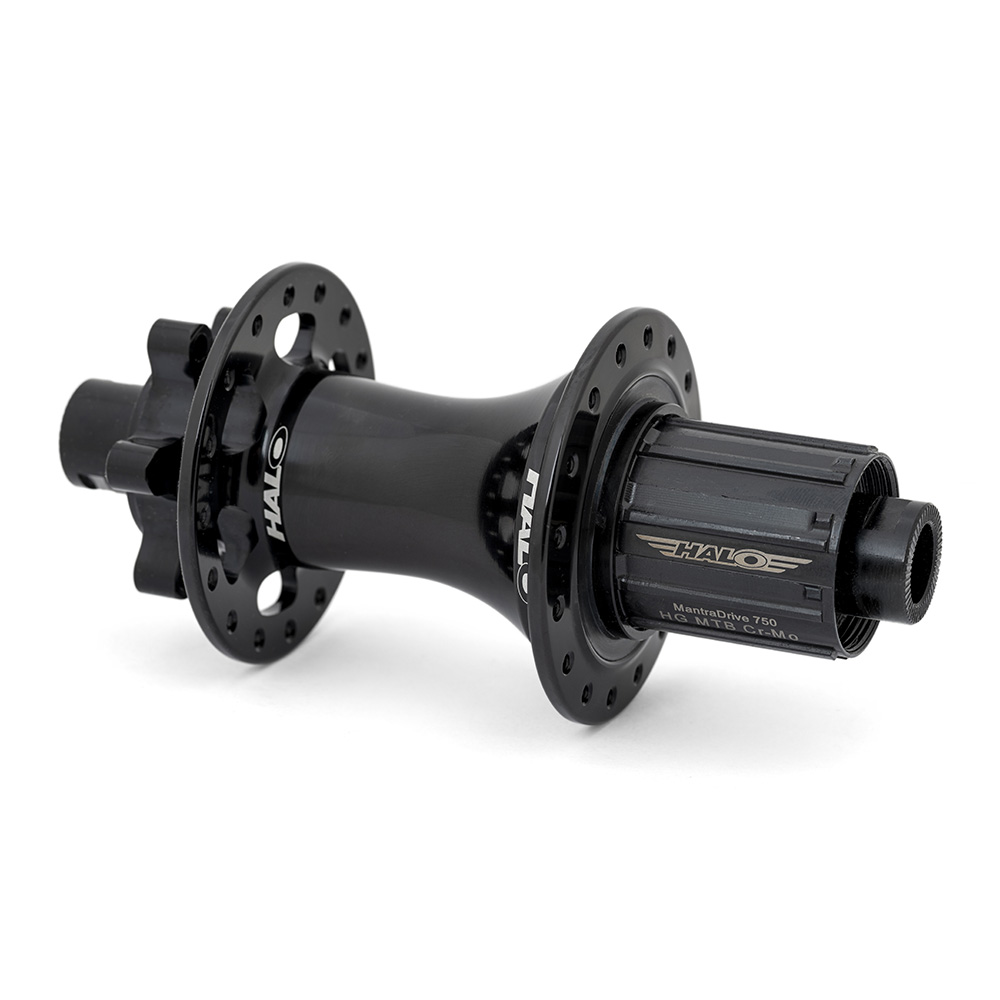

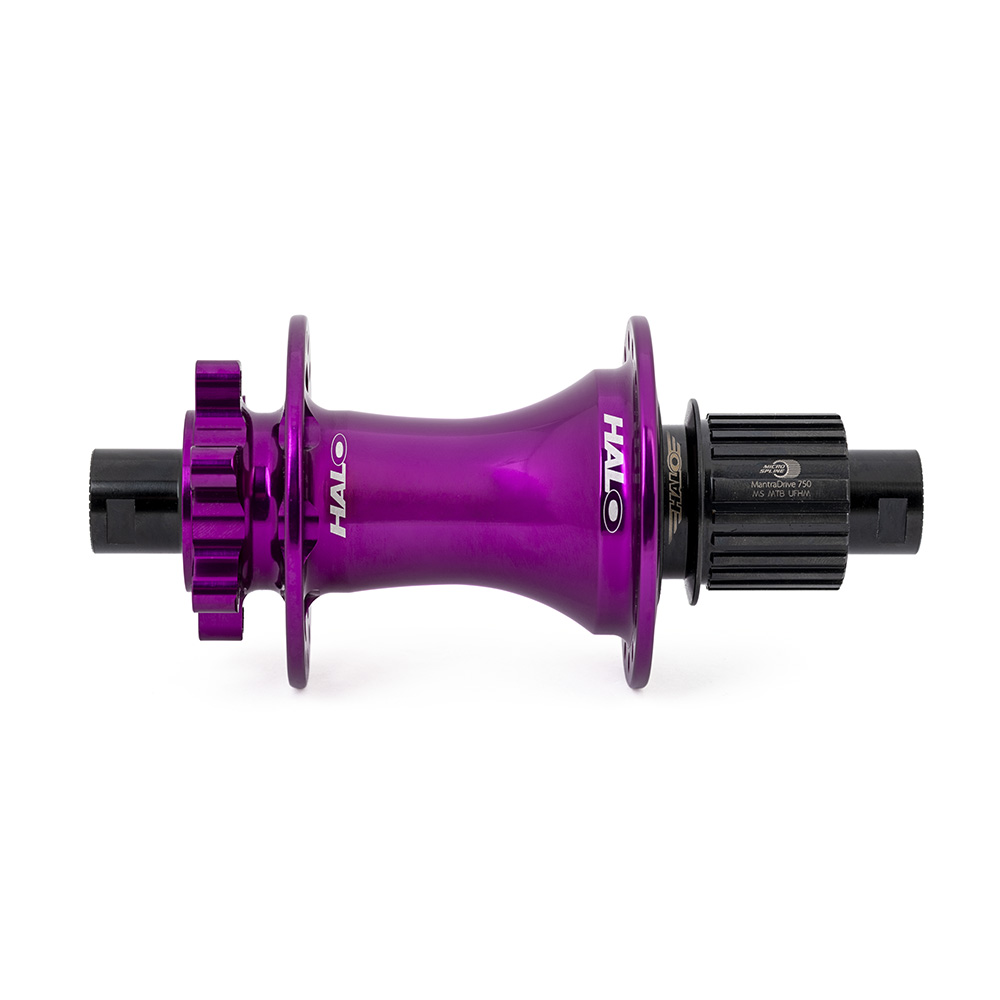

MT Mantradrive 750 Boost Rear Hub

The new benchmark for mountain bike rear hubs. Built on everything our flagship MT Series stands for — durability, modularity and reliability — the Mantradrive 750 hub raises the bar with 150 points of near-instant engagement.

At home on any trail or track, the Mantradrive system carries the same World Championship-proven DNA as its predecessor, refined into our most advanced drive system yet.

Sealed cartridge bearings and a Cr-Mo tube axle keep it running smooth, ride after ride. Boost spacing and wide spoke flanges adds stiffness and wheel strength exactly where you need it.

Available with HG, Microspline or XD freehub options.

Specifications

• Material 6061 Alloy forged hub shell
• Drillings 28H / 32H
• Axle Material Cro-Mo
• Axle 12x148mm Thru
• Spacing Boost
• Disc Mount IS 6-Bolt
• Ratchet 150 tooth drive ring - 5 Leaf sprung pawls
• Freehub HG, Microspline or XD
• Freehub Material Cro-Mo
• Drive System Mantradrive 750
• Spoke Hole Circle Diameter (PCD) 58mm
• Centre to Flange Left: 34mm, Right: 20mm
• Bearings Hub body: 6902 x2. Freehub: HG 6902 x2, MS 6802 x3, XD 15267 x3
• OLD (Spacing) 148mm (141mm with optional QR endcaps)
