MXR Supadrive Disc Hub

Building on the success of the MXR Supadrive hub, the MXR Supadrive Disc hub adds the option of a disc brake for improved braking.

The MXR Supadrive Disc utilises Supadrive, our most advanced and reliable drive system to date. The MXR Supadrive hub offers a 120 point near instant engagement with the ability to withstand substantantial torque loads.

With multiple World Championship titles across a range of disciplines, the Supadrive system is tried and tested at the very highest level.



Note: must be run with a 'Fat Foot' sprocket

Specifications

  • Drillings 32H
  • Bearings Main hub: 2 x 6902. Driver: 1 x 6902, 1 x 6802
  • Axle 110mm x 3/8" bolt in
  • Disc Mount IS 6 Bolt
  • Drive System Supadrive 120 engagement points (3 degree), 3 wedge pawls
  • Spoke Hole Circle Diameter (PCD) 58mm
  • Centre to Flange C-L: 20mm C-R: 26mm
  • OLD 110mm
  • Model Ref MXR-S-DRV
  • Colour Black

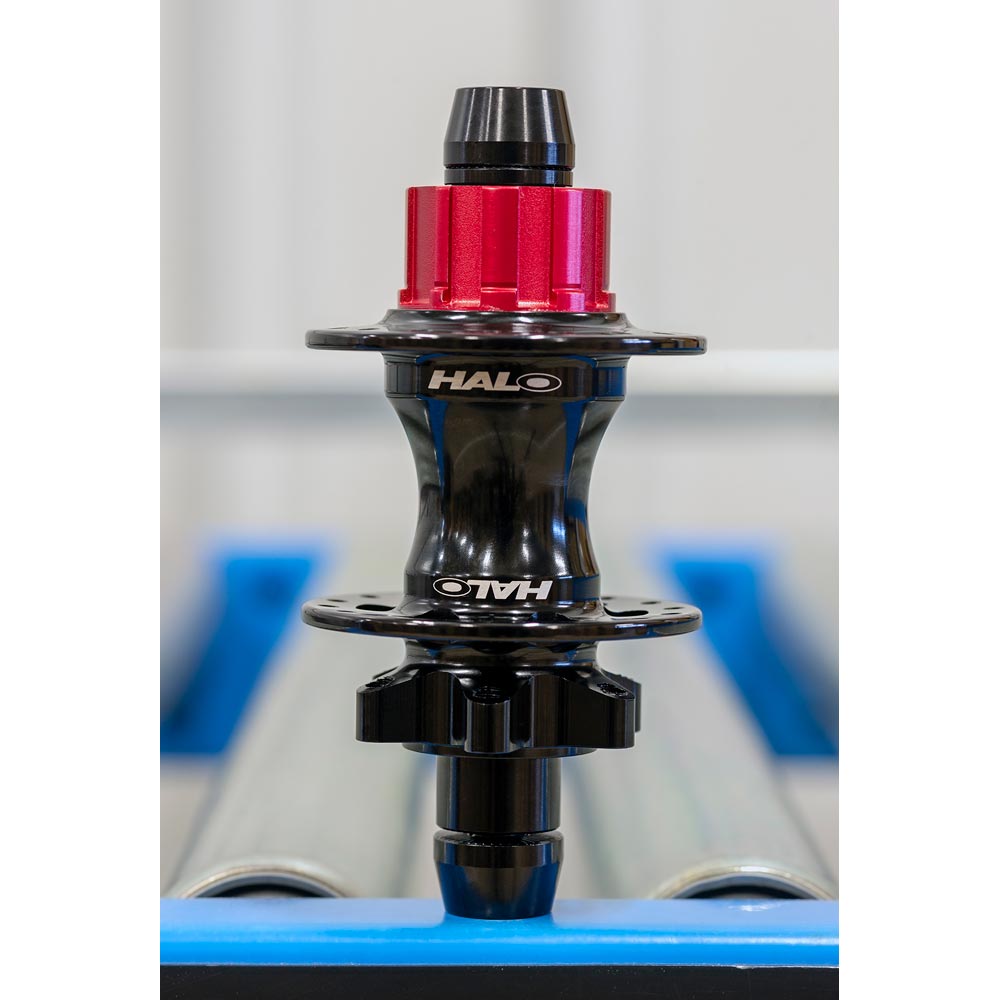

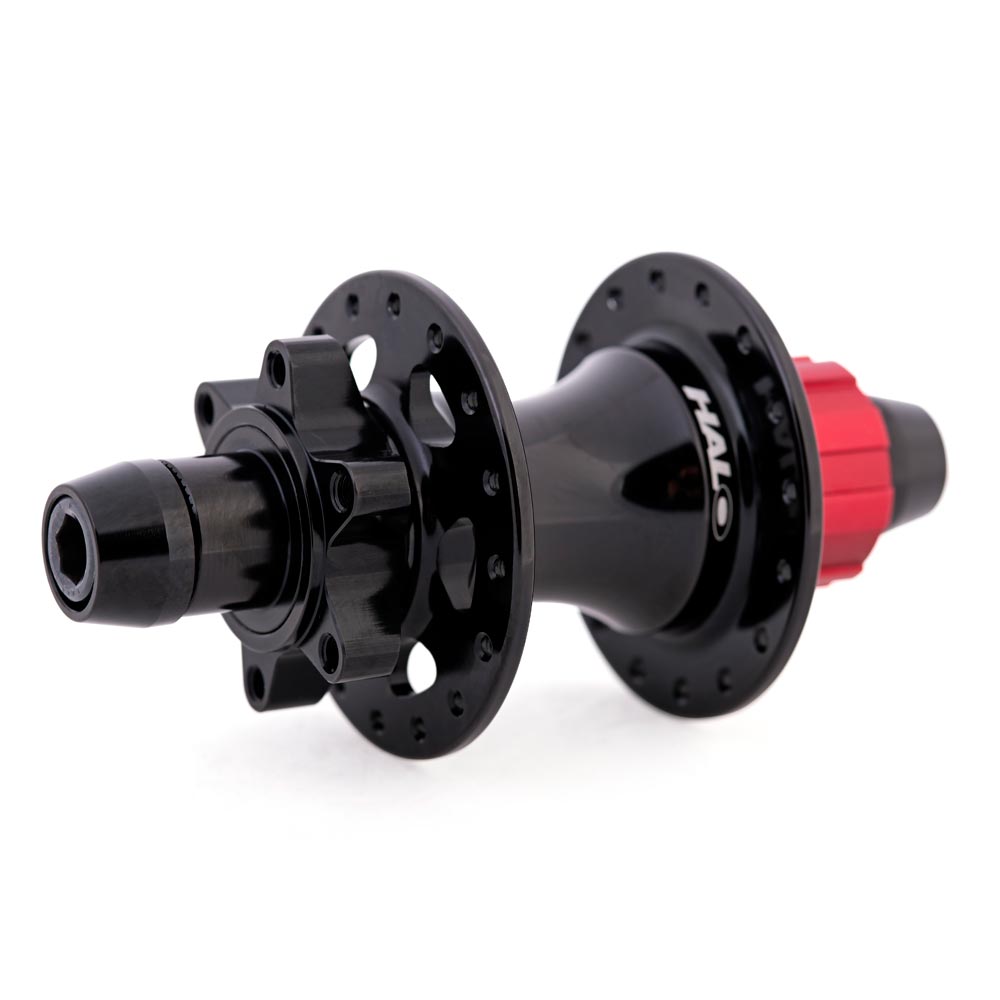

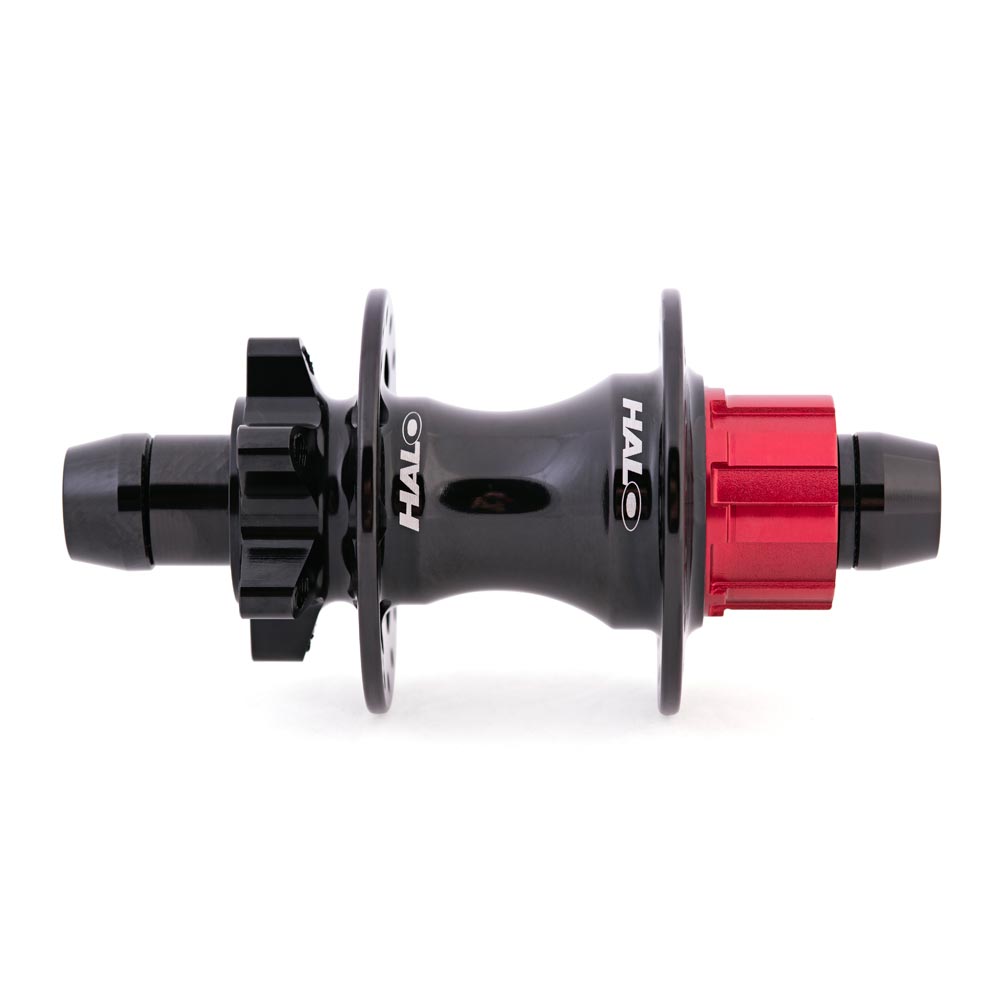

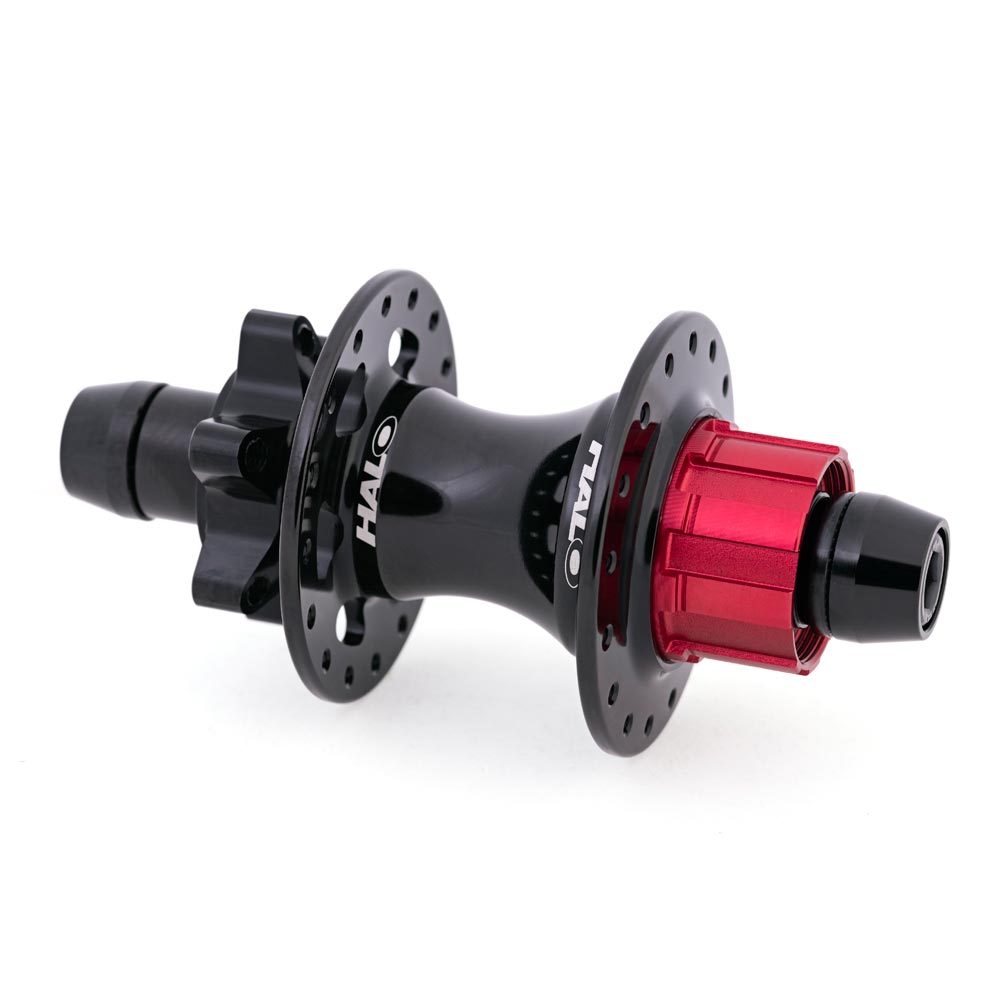

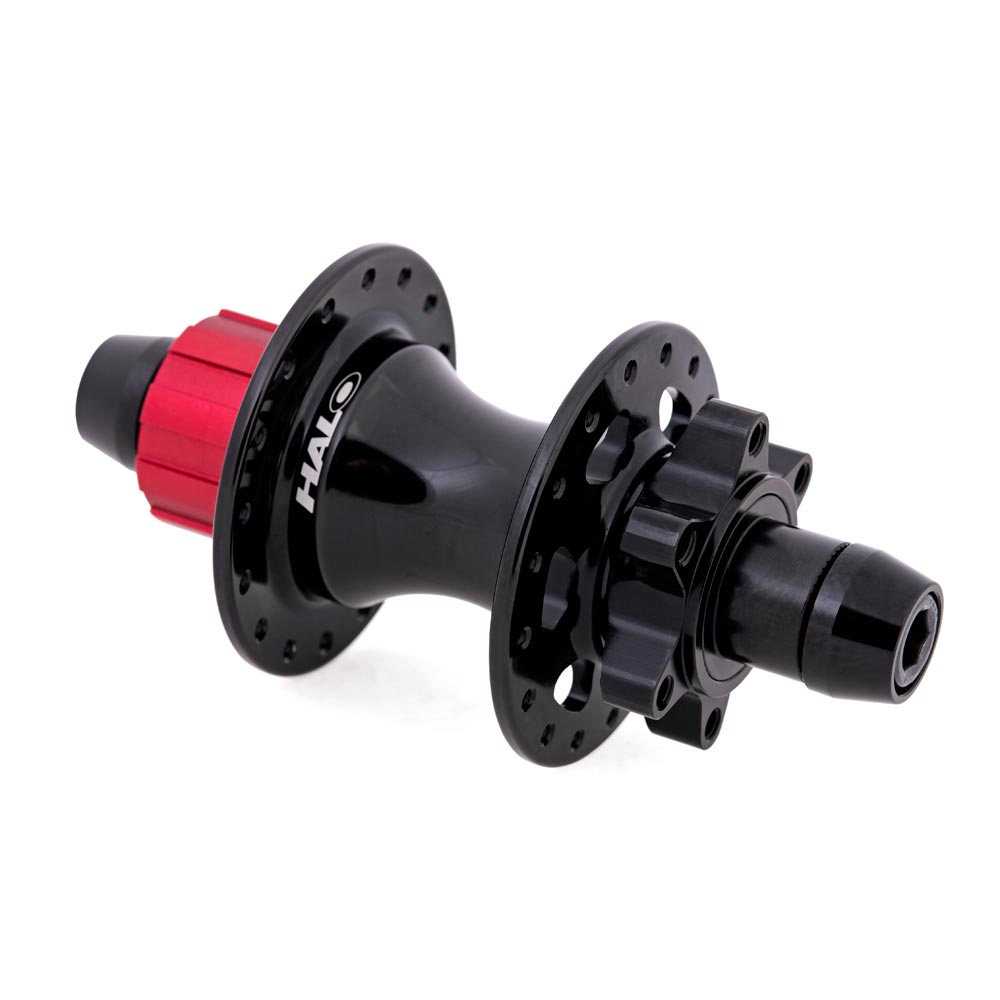

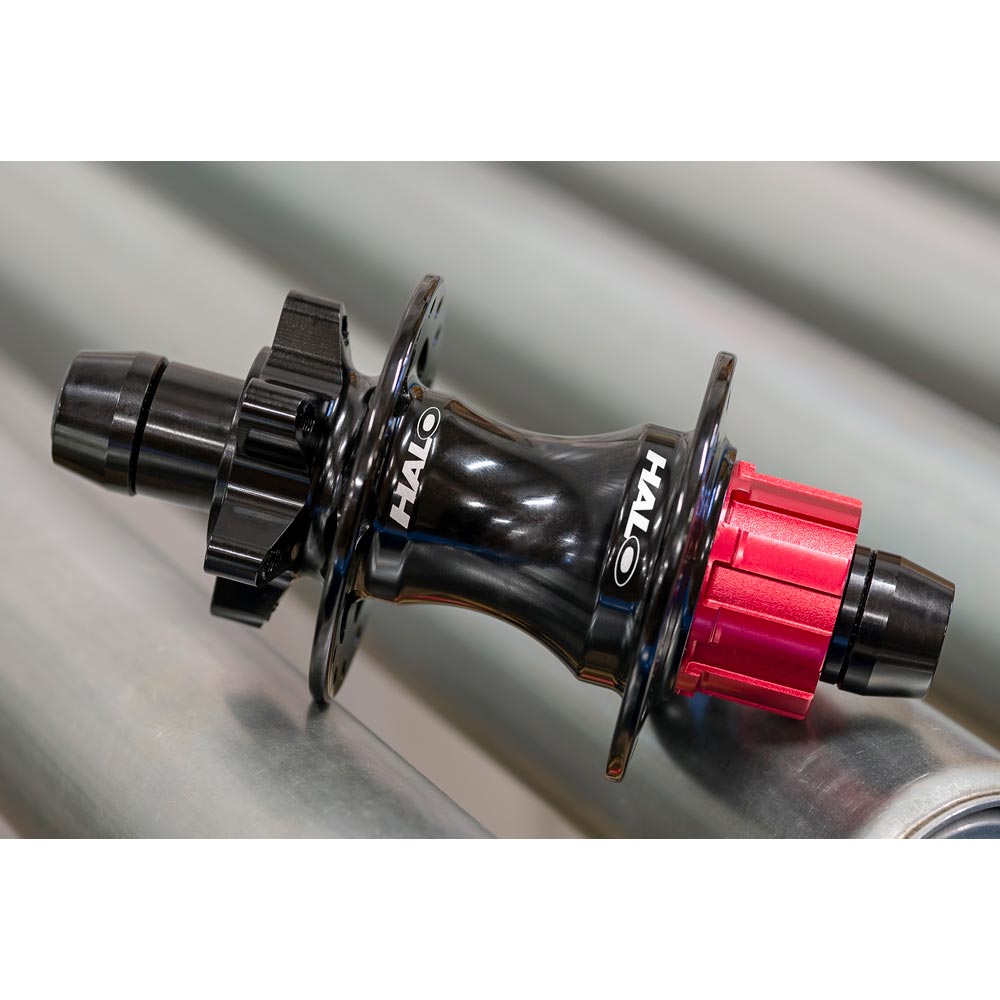

Halo MXR Supadrive Disc Hub
Halo MXR Supadrive Disc Hub
Click image to enlarge

To find out where to buy  Click Here

Description Colour Size Wt(g) Part No. Stock Lvl RRP Pack Unit
MXR Disc Supadrive, Rear BMX IS Disc, SB, 120T alloy 1sp HG cass, 110mm 3/8" Bolt-in axle.Black32H270HUHABCD2K£159.99Each
MXR Disc Supadrive, Rear BMX IS Disc, SB, 120T alloy 1sp HG cass, 110mm 3/8" Bolt-in axle.Black36H270HUHABCD6K
ETA: 31st Jul 2019
£159.99Each
  • Good stock levels
  • +24h Please allow 24/48 hrs for assembly
  • Special Order Currently not in stock, contact us for details
  • Out of stock. Expected availability date will be displayed if known.
  • Discontinued. This product is no longer available.
Description Colour Size Wt(g) Part No. Stock Lvl RRP Pack Unit
MXR Disc Supadrive, Rear BMX IS Disc, SB, 120T alloy 1sp HG cass, 110mm 3/8" Bolt-in axle.Black32H270HUHABCD2K£159.99Each
MXR Disc Supadrive, Rear BMX IS Disc, SB, 120T alloy 1sp HG cass, 110mm 3/8" Bolt-in axle.Black36H270HUHABCD6K
ETA: 31st Jul 2019
£159.99Each
