MT Supadrive DH Hub

Our MT series hubs are our flagship mountain bike hub range. The MT series encompass everything we feel hubs for mountain biking should offer.

Durability, modularity and light weights make the MT Series a simple choice.

Built for the rigors of Downhill our MT Supadrive DH hub is the racing edge.

Supadrive is our most advanced and reliable drive system to date. The MT Supadrive DH offers a 120 point near instant engagement with the ability to withstand substantial torque loads.

Wide spoke flanges help the MT Supadrive DH build into un-compromisingly stiff wheel, whilst sealed bearings help ensure longevity.

With multiple World Championship titles across a range of disciplines the Supadrive system is tried and tested to the very highest level.



Adaptors come included for the hub to run at 150 and 157mm (Super Boost) spacing.

Specifications

  • Material 6061 Alloy forged hub shell
  • Drillings 32H
  • Bearings 2 x 6902 (hub) 1 x 6802 + 1 x 6902 (HG freehub) 3 x 6802 (XD Freehub)
  • Axle 12 x 150mm thru-axle with 157 x 12mm thru ends included
  • Disc Mount IS 6-Bolt
  • Ratchet 120 teeth triple-wedge pawl mechanism
  • Freehub Body Shimano HG or Sram XD
  • Spoke Hole Circle Diameter (PCD) 58mm
  • Centre to Flange Left: 40mm, Right: 30mm
  • OLD 150mm
  • Model Ref S-DRV150
  • Colour Black, White or Red

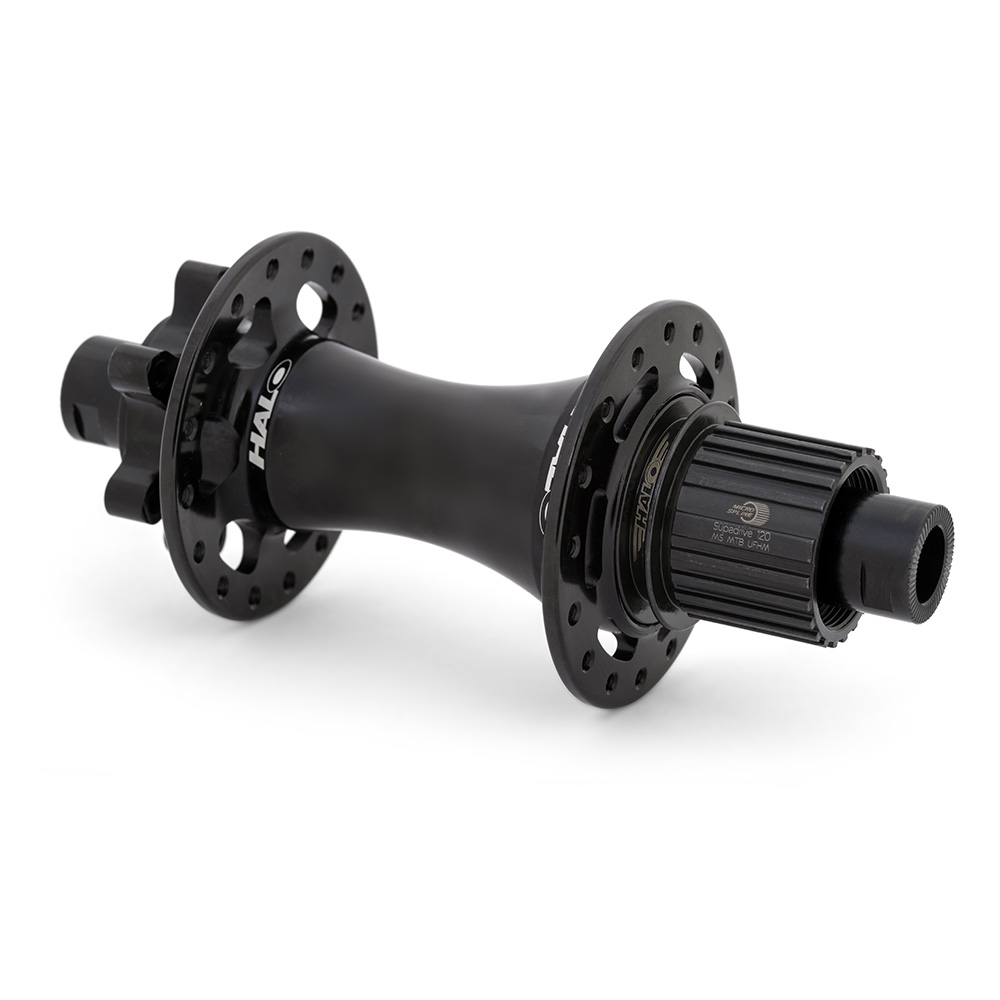

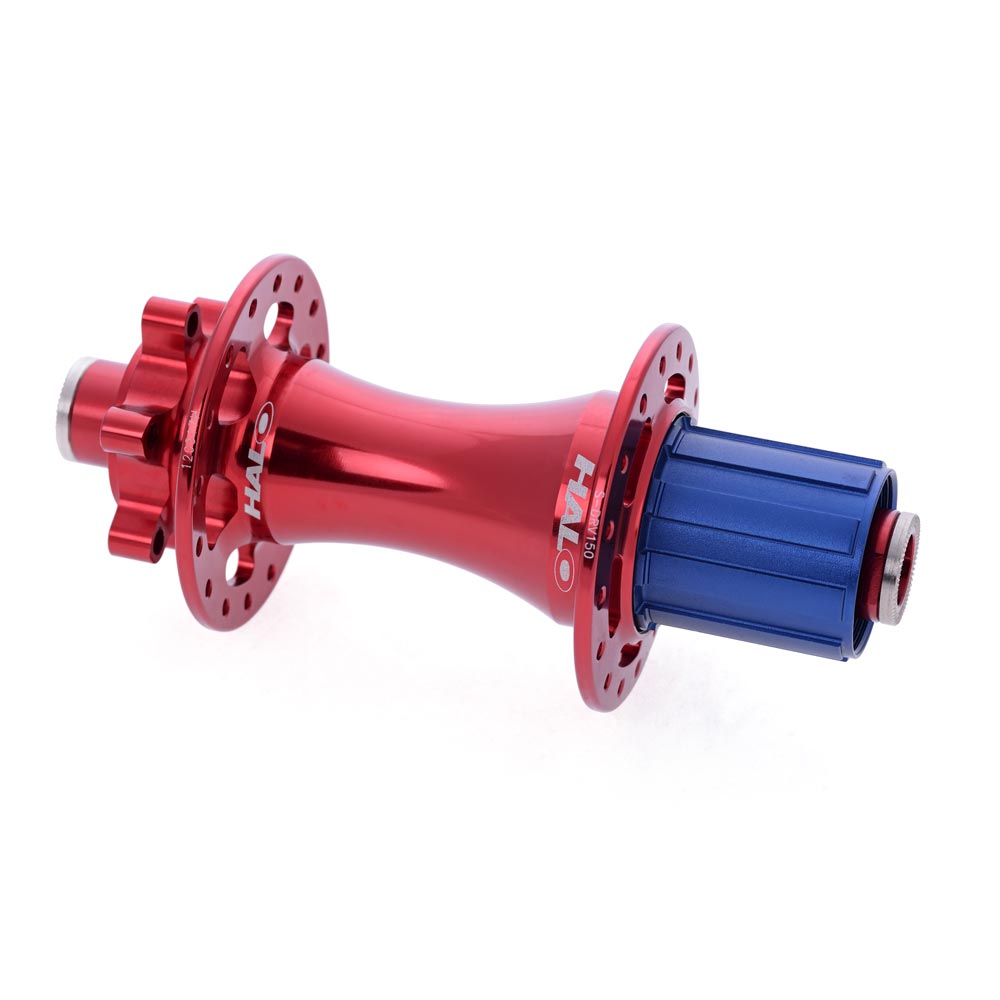

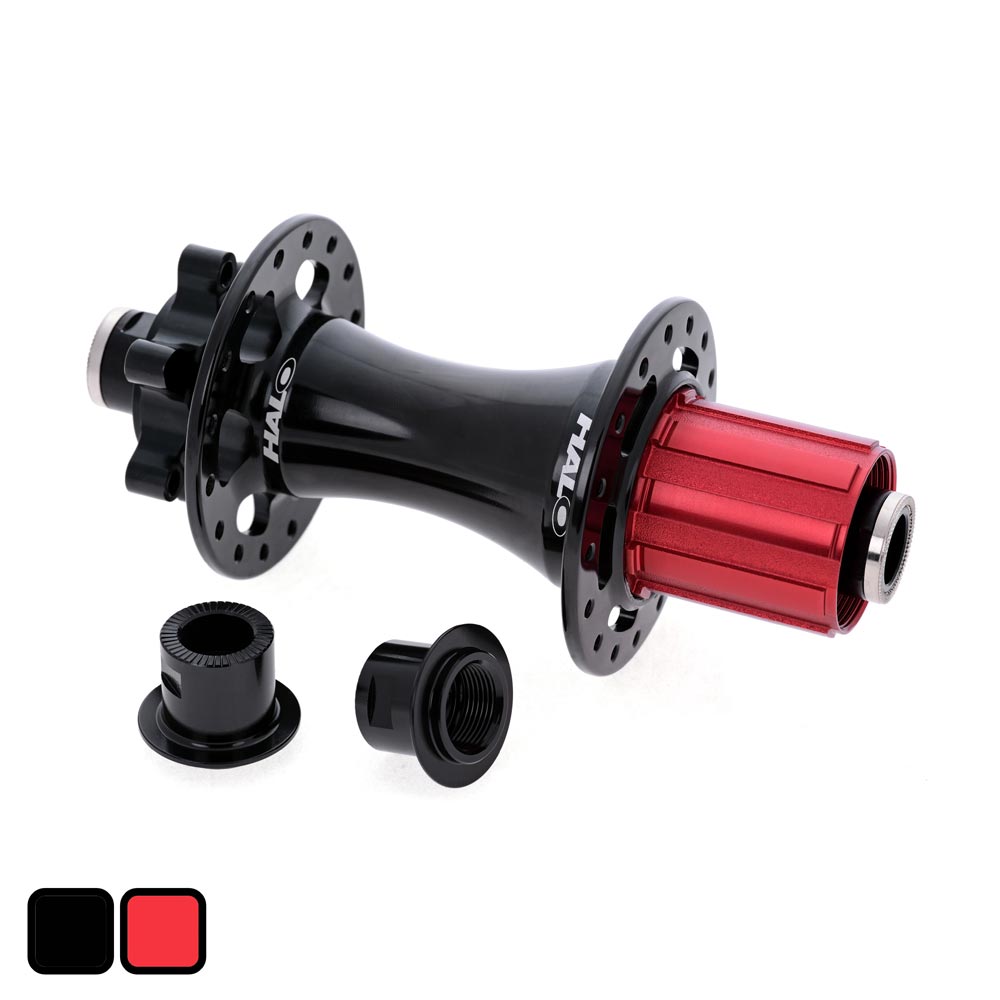

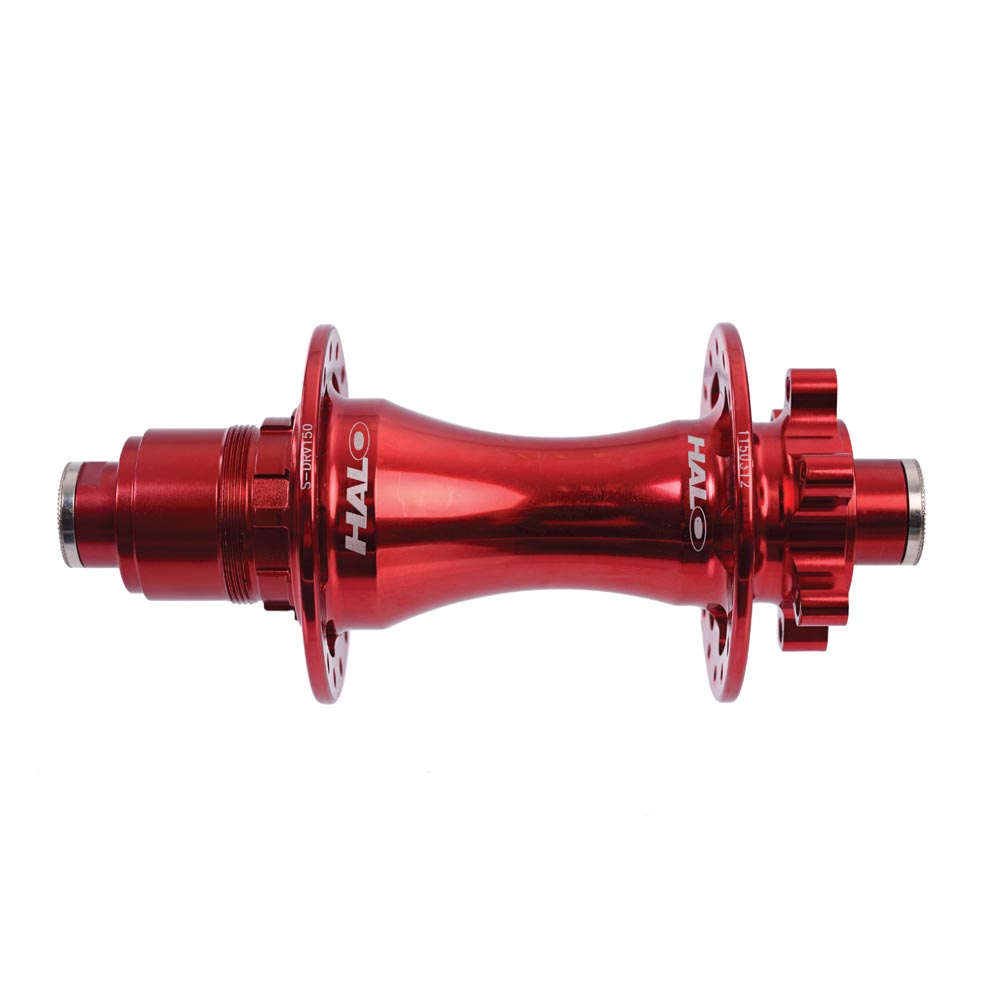

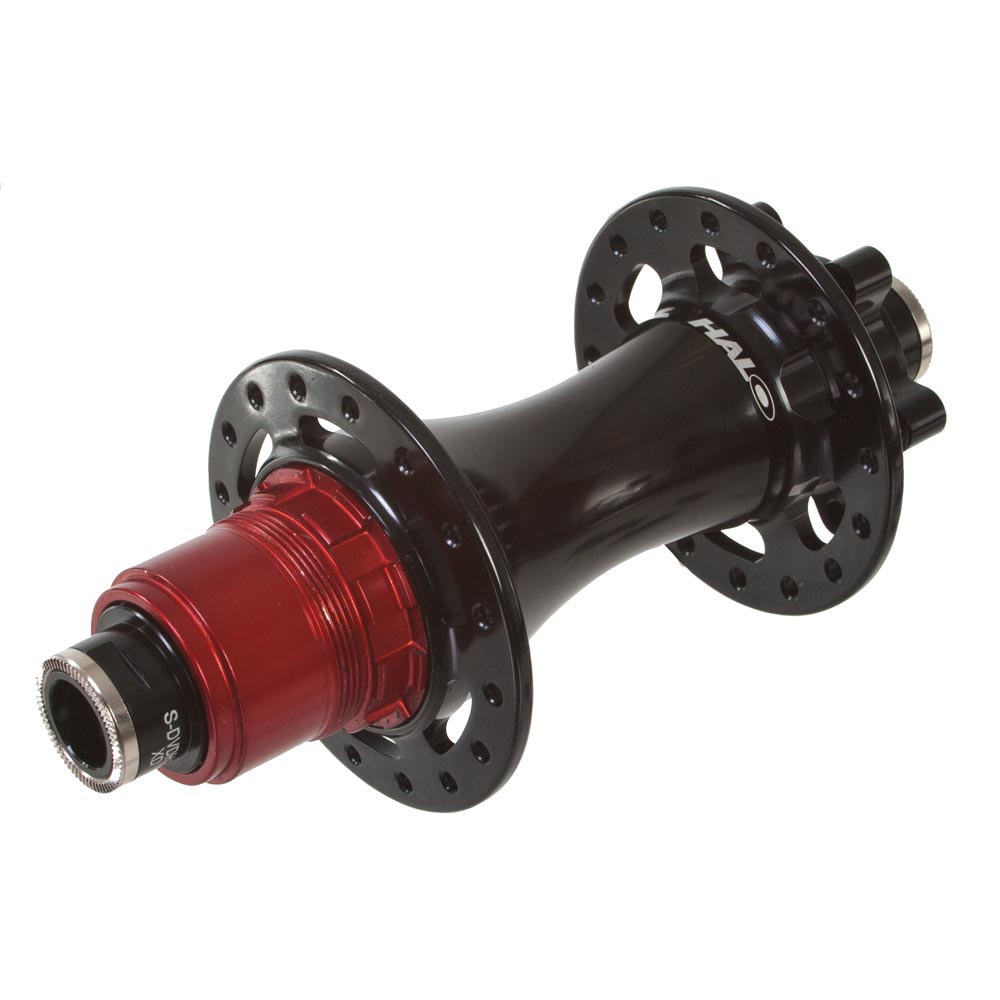

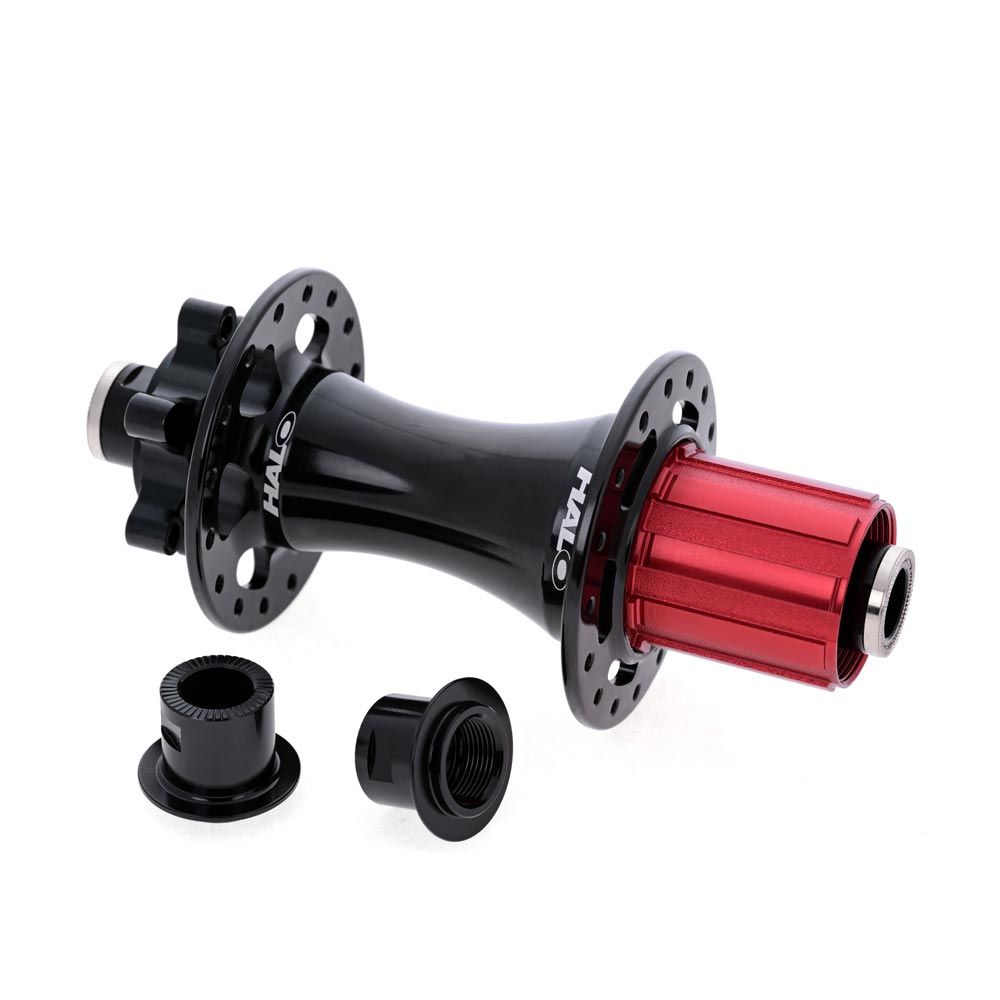

Halo MT Supadrive DH Hub
Halo MT Supadrive DH Hub
Click image to enlarge
Information

To find out where to buy  Click Here

Description Colour Size Wt(g) Part No. Stock Lvl RRP Pack Unit
MT Supadrive DH, Rr Alloy SB hub, 150/157x12mm Thru Cr-Mo axle, IS 6 bolt. HG MTB Alloy F/hubBlack32H307HUHA652K£149.99Each
MT Supadrive DH XD, Rr Alloy SB hub, 150/157x12mm Thru Cr-Mo axle, IS 6 bolt. XD MTB F/hubBlack32H307HUHA652KX Low Stock£159.99Each
MT Supadrive DH, Rr Alloy SB hub, 150/157x12mm Thru Cr-Mo axle, IS 6 bolt. HG MTB Alloy F/hubRed32H307HUHA652R Low Stock£149.99Each
MT Supadrive DH XD, Rr Alloy SB hub, 150/157x12mm Thru Cr-Mo axle, IS 6 bolt. XD MTB F/hubRed32H307HUHA652RX Low Stock£159.99Each
  • Good stock levels
  • +24h Please allow 24/48 hrs for assembly
  • Special Order Currently not in stock, contact us for details
  • Out of stock. Expected availability date will be displayed if known.
  • Discontinued. This product is no longer available.
Description Colour Size Wt(g) Part No. Stock Lvl RRP Pack Unit
MT Supadrive DH, Rr Alloy SB hub, 150/157x12mm Thru Cr-Mo axle, IS 6 bolt. HG MTB Alloy F/hubBlack32H307HUHA652K£149.99Each
MT Supadrive DH XD, Rr Alloy SB hub, 150/157x12mm Thru Cr-Mo axle, IS 6 bolt. XD MTB F/hubBlack32H307HUHA652KX Low Stock£159.99Each
MT Supadrive DH, Rr Alloy SB hub, 150/157x12mm Thru Cr-Mo axle, IS 6 bolt. HG MTB Alloy F/hubRed32H307HUHA652R Low Stock£149.99Each
MT Supadrive DH XD, Rr Alloy SB hub, 150/157x12mm Thru Cr-Mo axle, IS 6 bolt. XD MTB F/hubRed32H307HUHA652RX Low Stock£159.99Each
