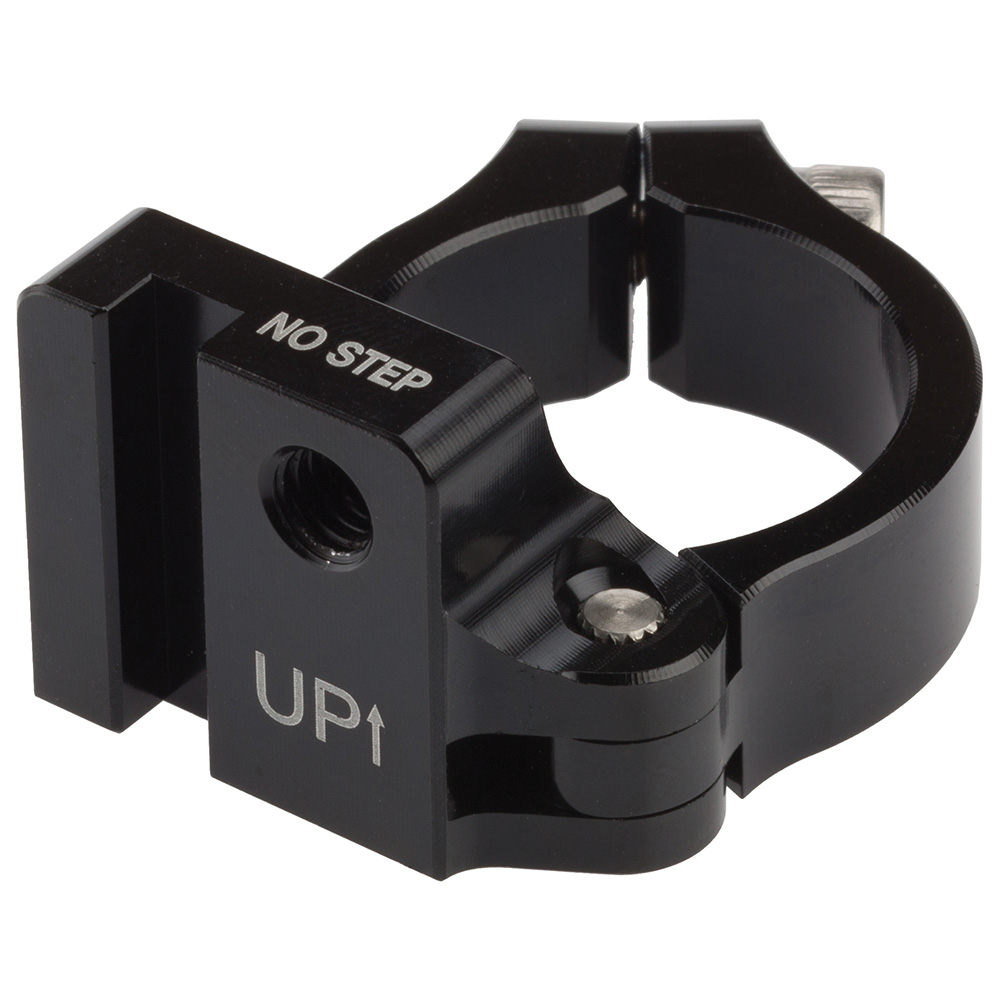

Direct Mount Adapter

The Direct Mount Adapter was initially developed for standard mountain bike frames with 68/73mm wide bottom bracket shells, but the need was much greater for the "snow bike" market, where the 100mm wide bottom brackets make front derailleur applications a little difficult. So we did both: our Direct Mount Adapters clamp around the seat tube to allow for the use of Shimano high direct-mount front derailleurs on frames with either 68/73 or 100mm wide bottom brackets.

Technical Details

  • AL-6061 construction
  • 34.9mm clamp with shims for 31.8 or 28.6mm seat tubes
Problem Solvers Direct Mount Adapter
Problem Solvers Direct Mount Adapter
Click image to enlarge

To find out where to buy  Click Here

Description Colour Size Wt(g) Part No. Stock Lvl RRP Pack Unit

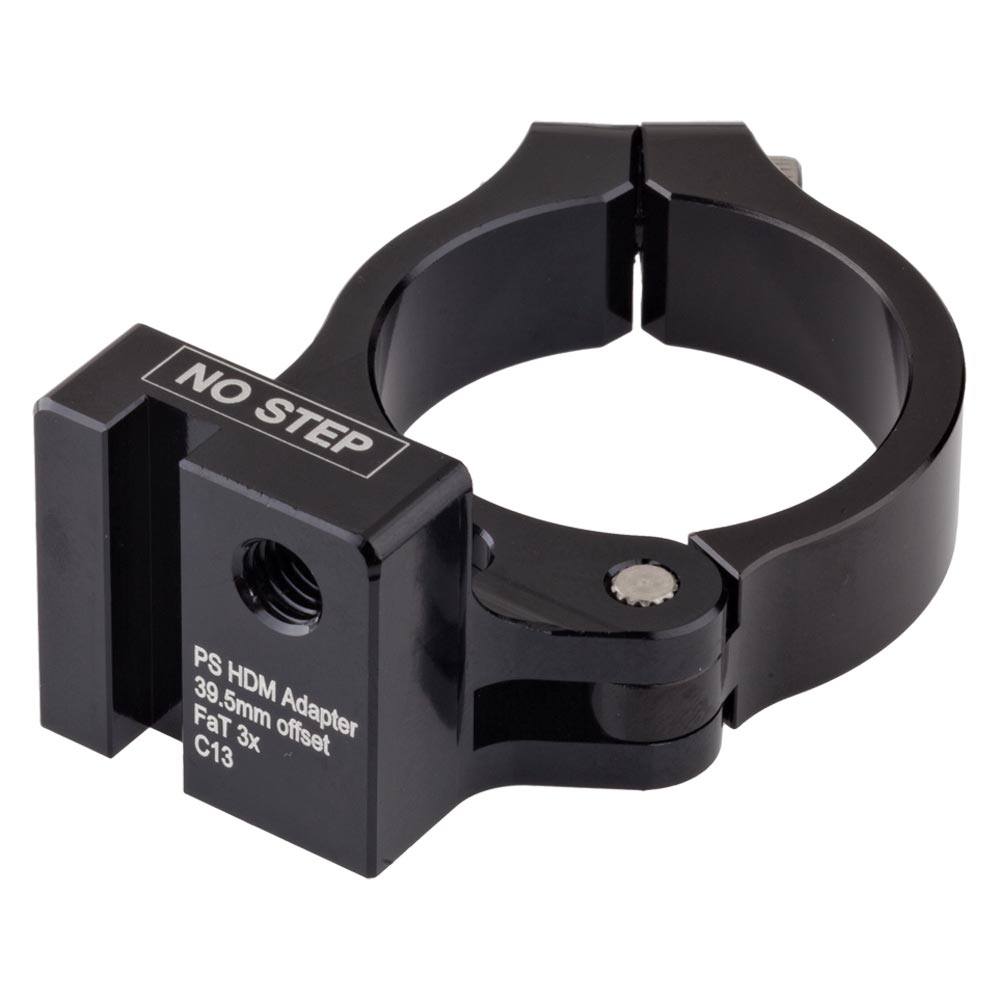

Ft Mech Adaptor, Direct Mount adaptor - 39.5mm offset - suit 100mm BB FramesBlack34.9-28.6mm GFPS1322£42.99Each

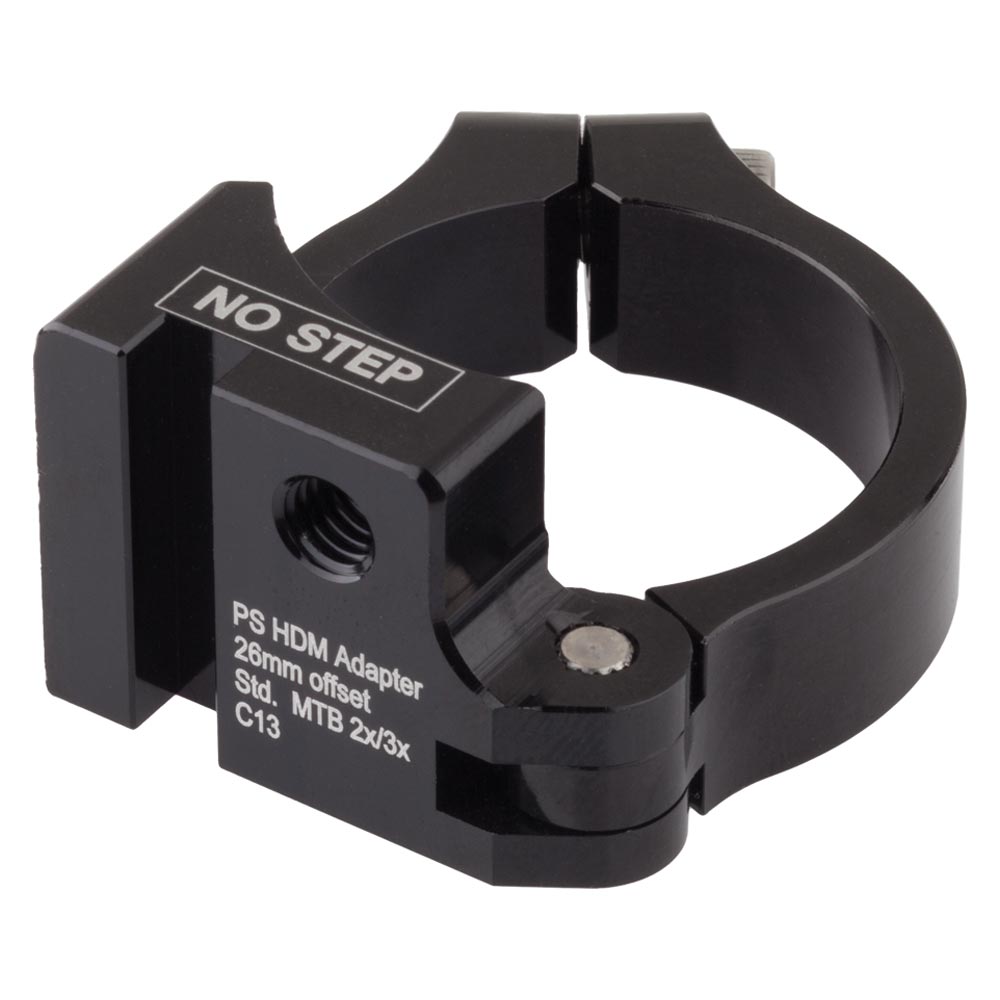

Ft Mech Adaptor, Direct Mount adaptor - 26mm offset - suit 68/73mm BB FramesBlack34.9-31.8mm GFPS1323£39.99Each

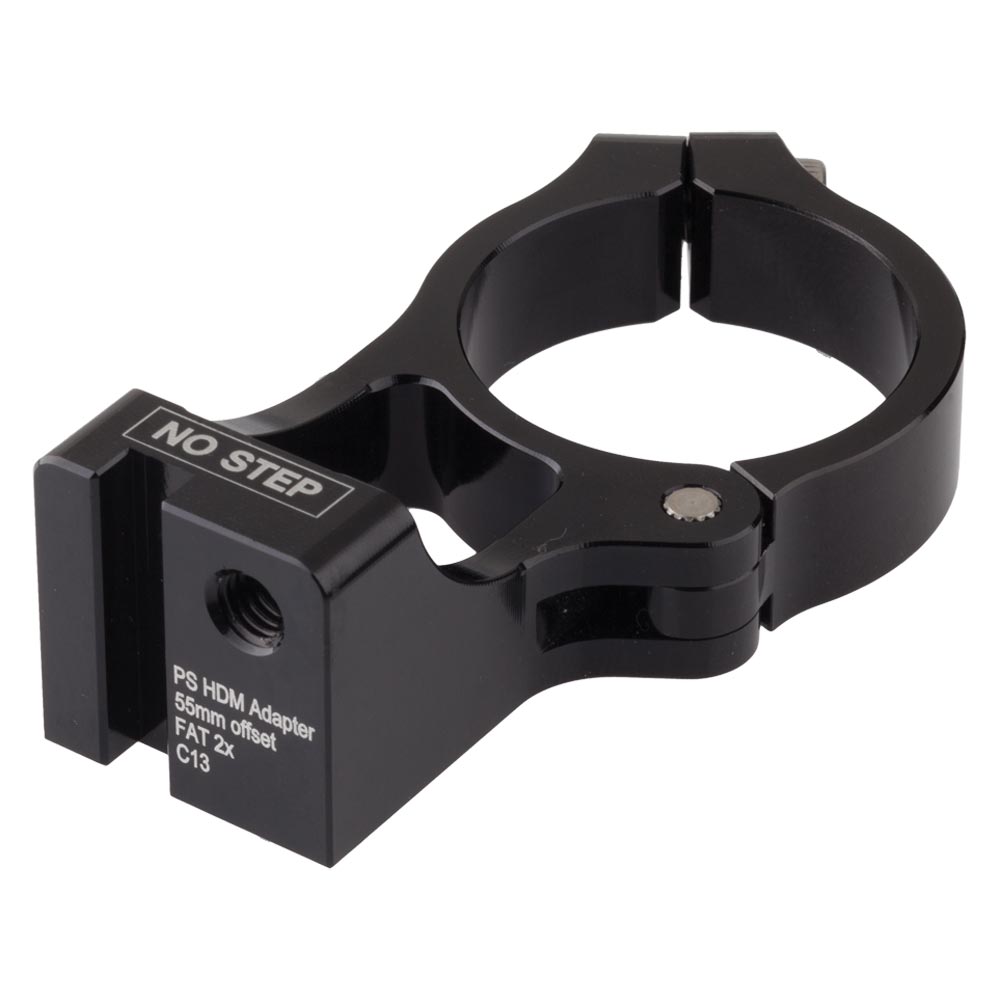

Ft Mech Adaptor, Direct Mount adaptor - 55mm offset - suit Surly Ice Cream Truck (100mm BB)Black34.9-28.6mm GFPS1325£42.99Each

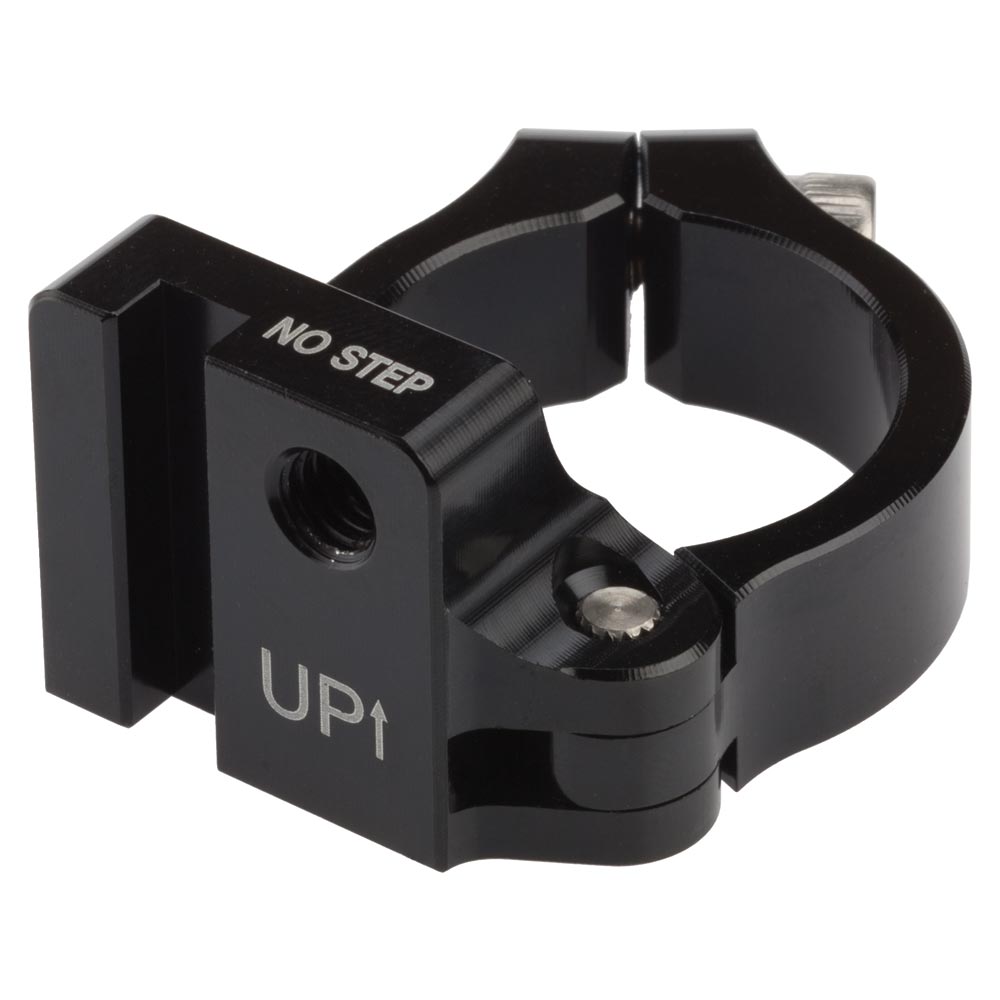

Ft Mech Adaptor, Direct Mount adaptor - 26mm offset - suit 68/73mm BB FramesBlack28.6mm GFPS1326£39.99Each

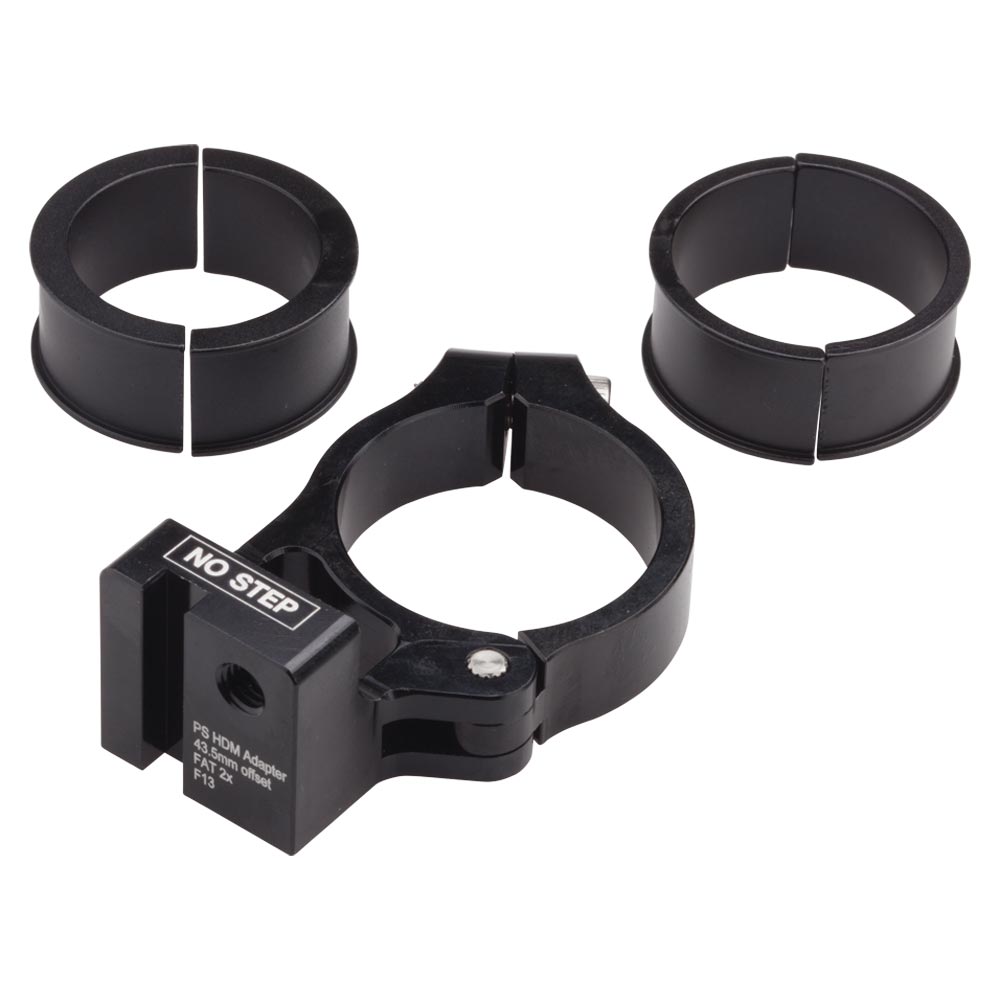

Ft Mech Adaptor, High Direct Mount adaptor - 43.5mm offset - suit 100mm 2x set upsBlack34.9-28.6mm GFPS1327£42.99Each

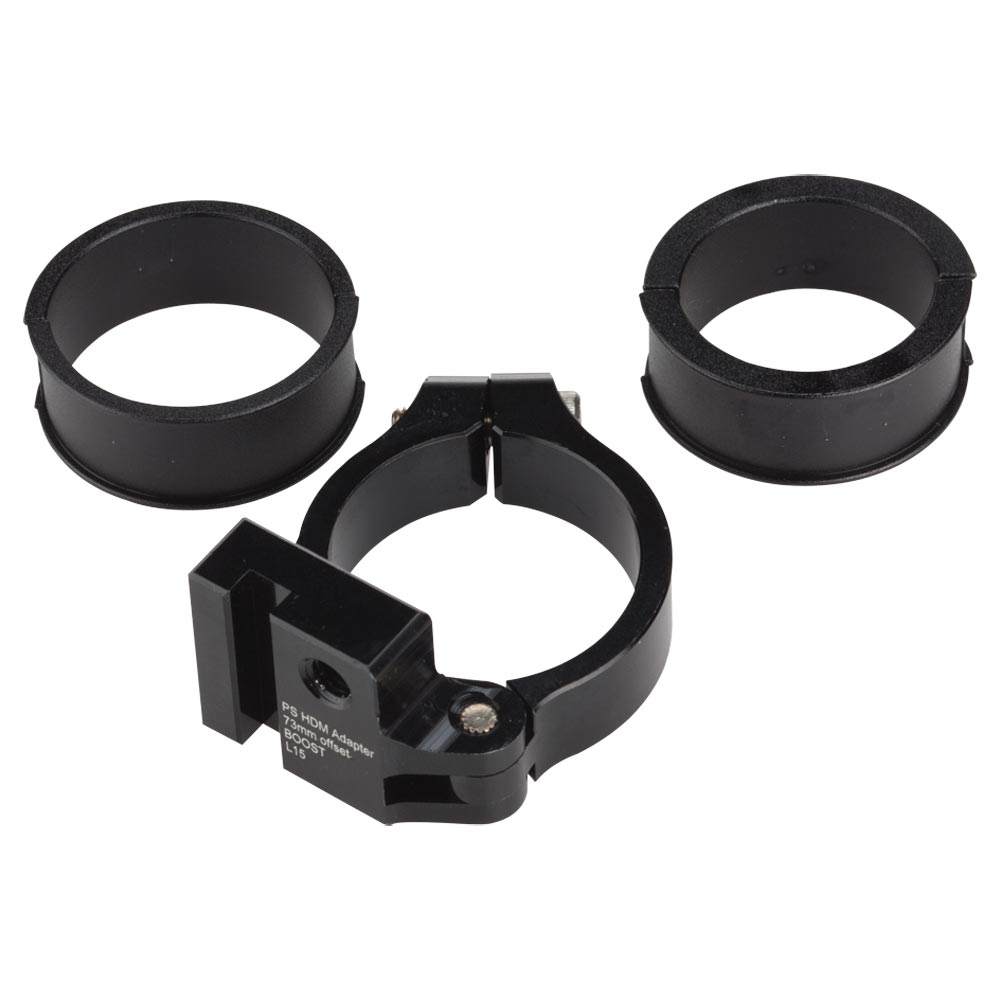

Ft Mech Adaptor, Direct Mount adaptor - 29mm BOOST offset - suit 73mm BBBlack34.9-28.6mm GFPS1328£42.99Each
  • Good stock levels
  • +24h Please allow 24/48 hrs for assembly
  • Special Order Currently not in stock, contact us for details
  • Out of stock. Expected availability date will be displayed if known.
  • Discontinued. This product is no longer available.
Description Colour Size Wt(g) Part No. Stock Lvl RRP Pack Unit
Ft Mech Adaptor, Direct Mount adaptor - 39.5mm offset - suit 100mm BB FramesBlack34.9-28.6mm GFPS1322£42.99Each
Ft Mech Adaptor, Direct Mount adaptor - 26mm offset - suit 68/73mm BB FramesBlack34.9-31.8mm GFPS1323£39.99Each
Ft Mech Adaptor, Direct Mount adaptor - 55mm offset - suit Surly Ice Cream Truck (100mm BB)Black34.9-28.6mm GFPS1325£42.99Each
Ft Mech Adaptor, Direct Mount adaptor - 26mm offset - suit 68/73mm BB FramesBlack28.6mm GFPS1326£39.99Each
Ft Mech Adaptor, High Direct Mount adaptor - 43.5mm offset - suit 100mm 2x set upsBlack34.9-28.6mm GFPS1327£42.99Each
Ft Mech Adaptor, Direct Mount adaptor - 29mm BOOST offset - suit 73mm BBBlack34.9-28.6mm GFPS1328£42.99Each
  • Good stock levels
  • +24h Please allow 24/48 hrs for assembly
  • Special Order Currently not in stock, contact us for details
  • Out of stock. Expected availability date will be displayed if known.
  • Discontinued. This product is no longer available.
