Trinity Track Frameset

A classically beautiful, retro track style frame for the cycling enthusiast who wants something special.

Narrow diameter Reynolds 531 steel tubing and brazed lugs, with a quill stem, this frame is a modern work of retro art.

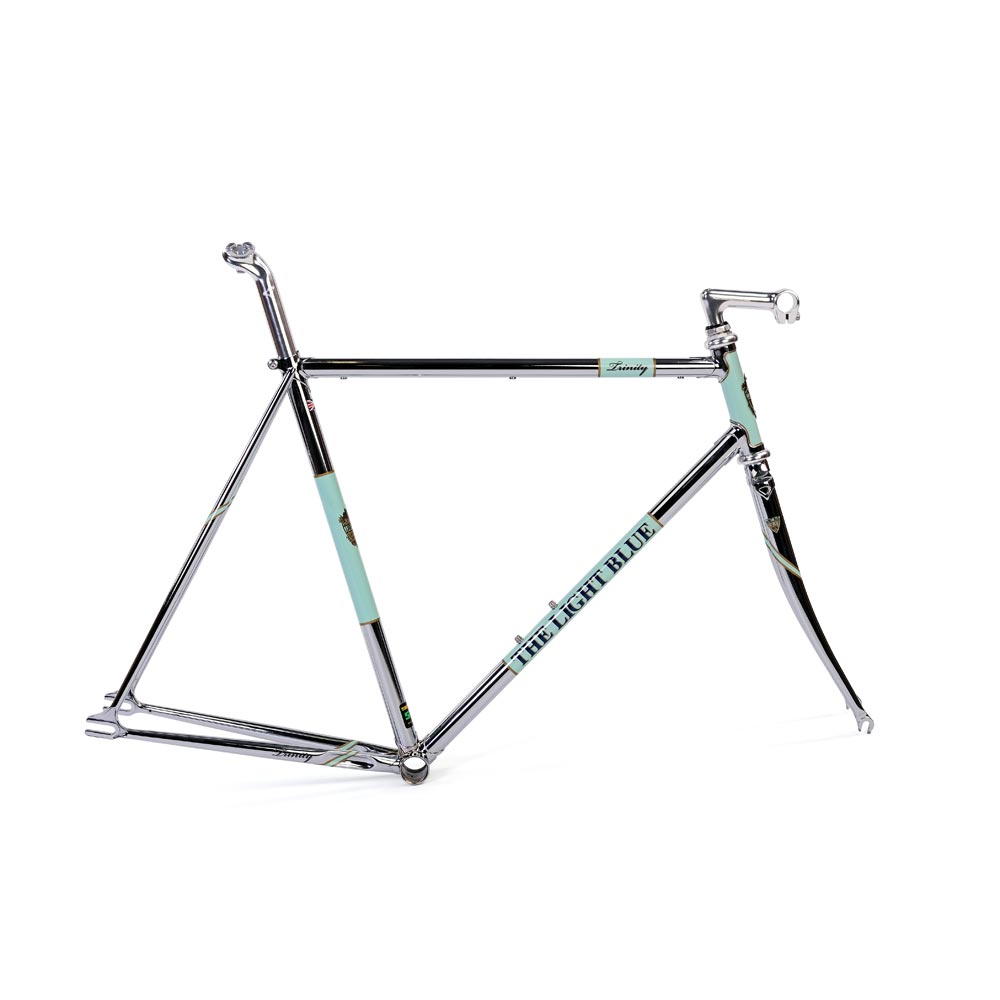

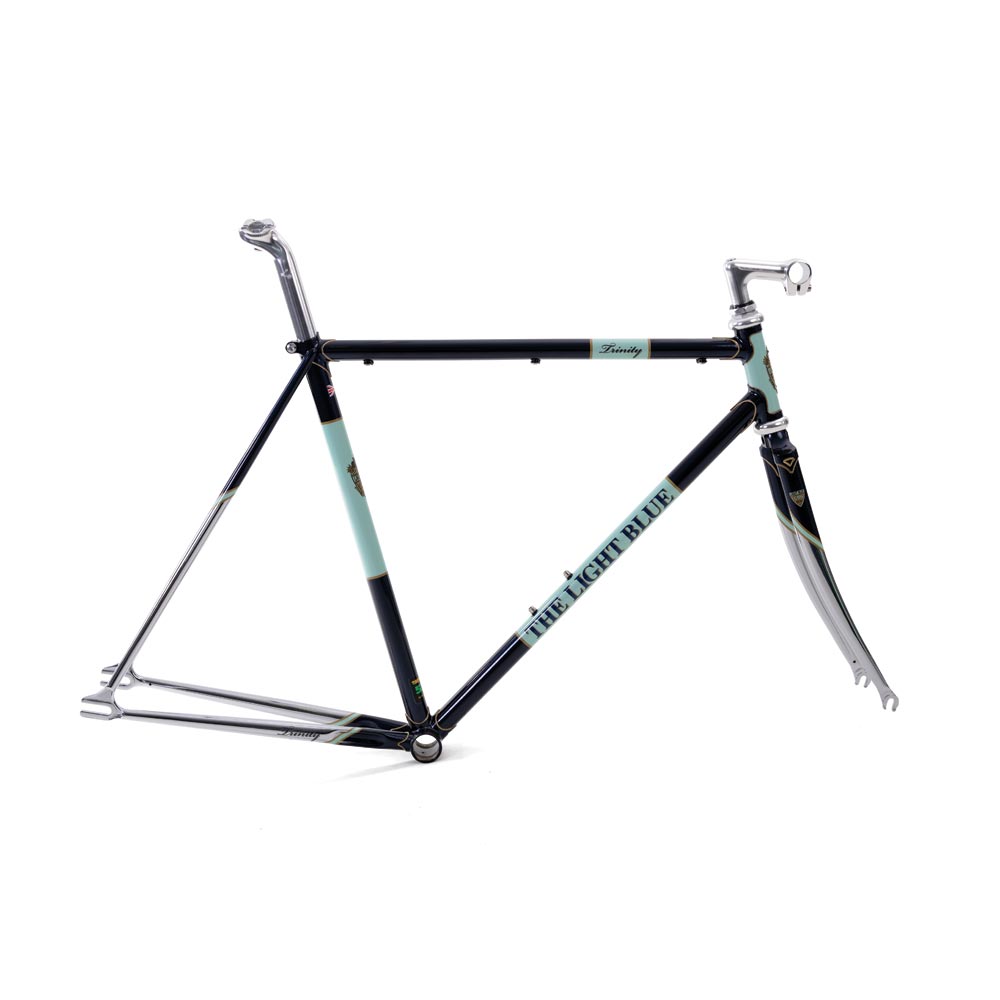

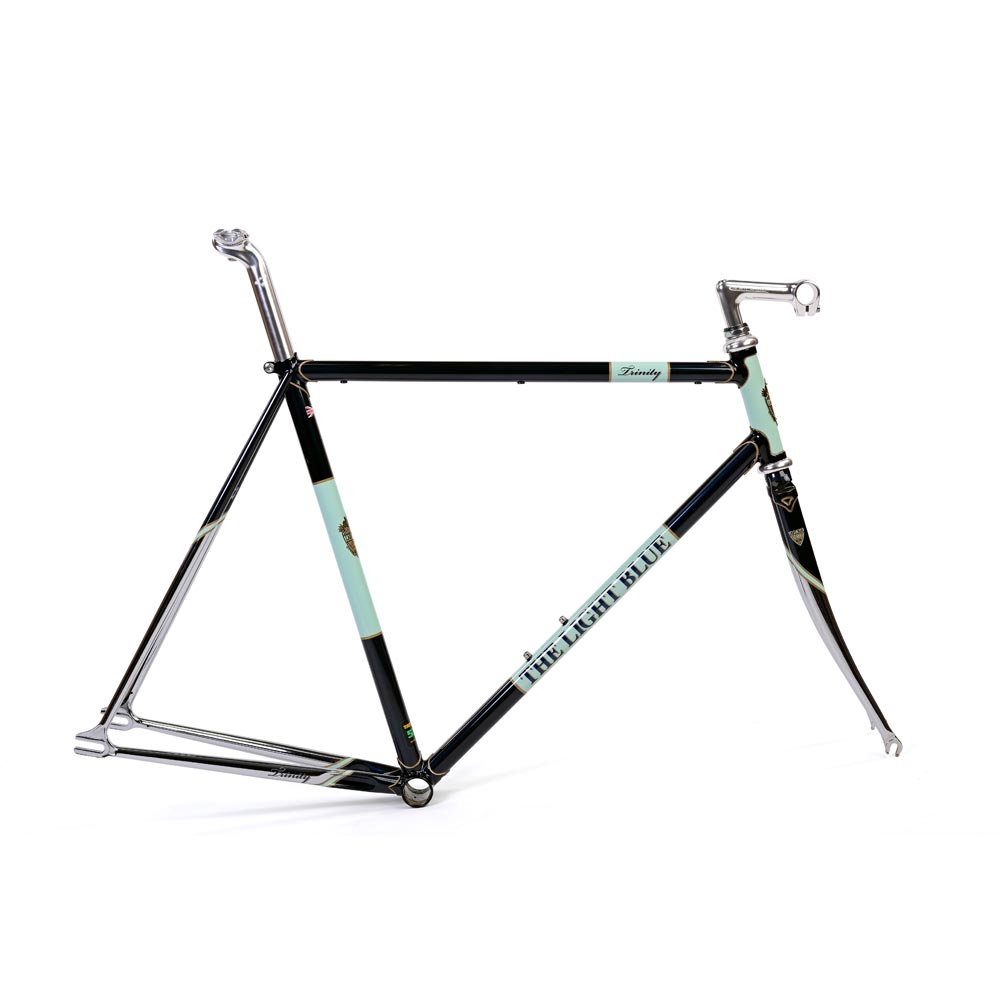

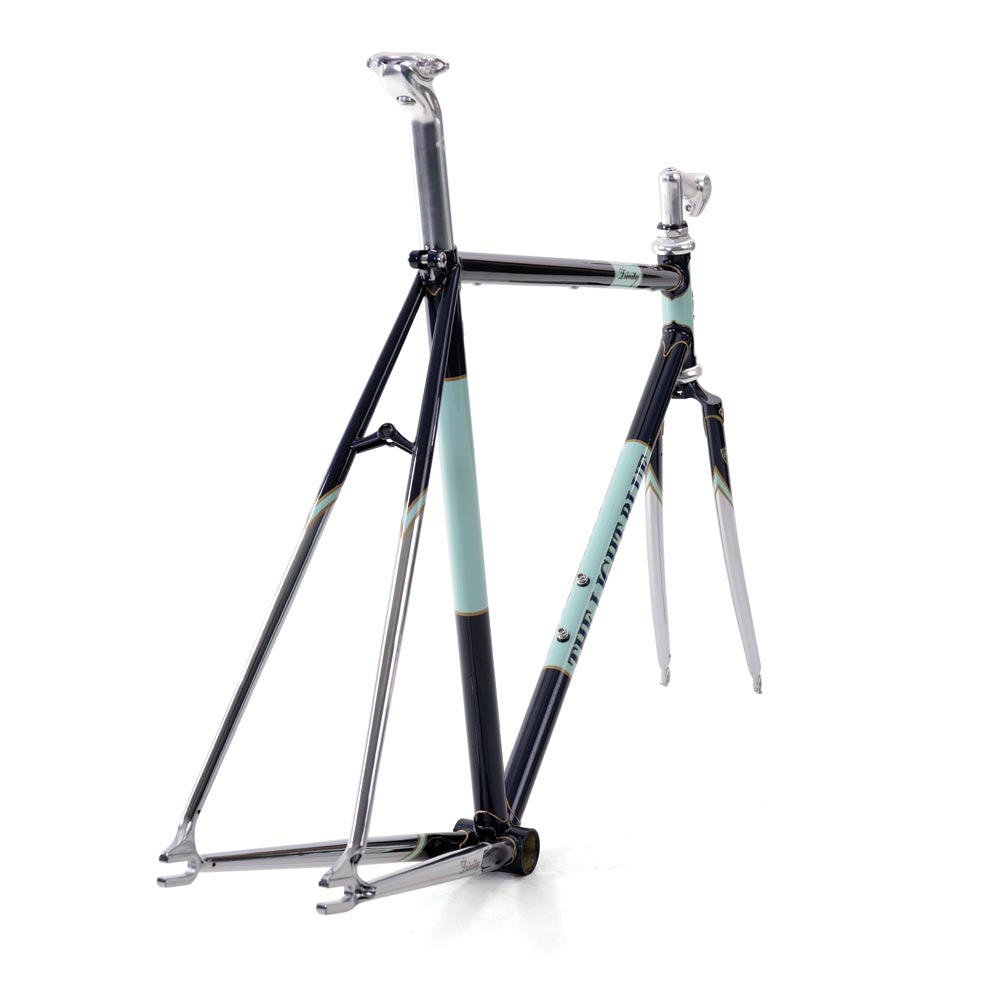

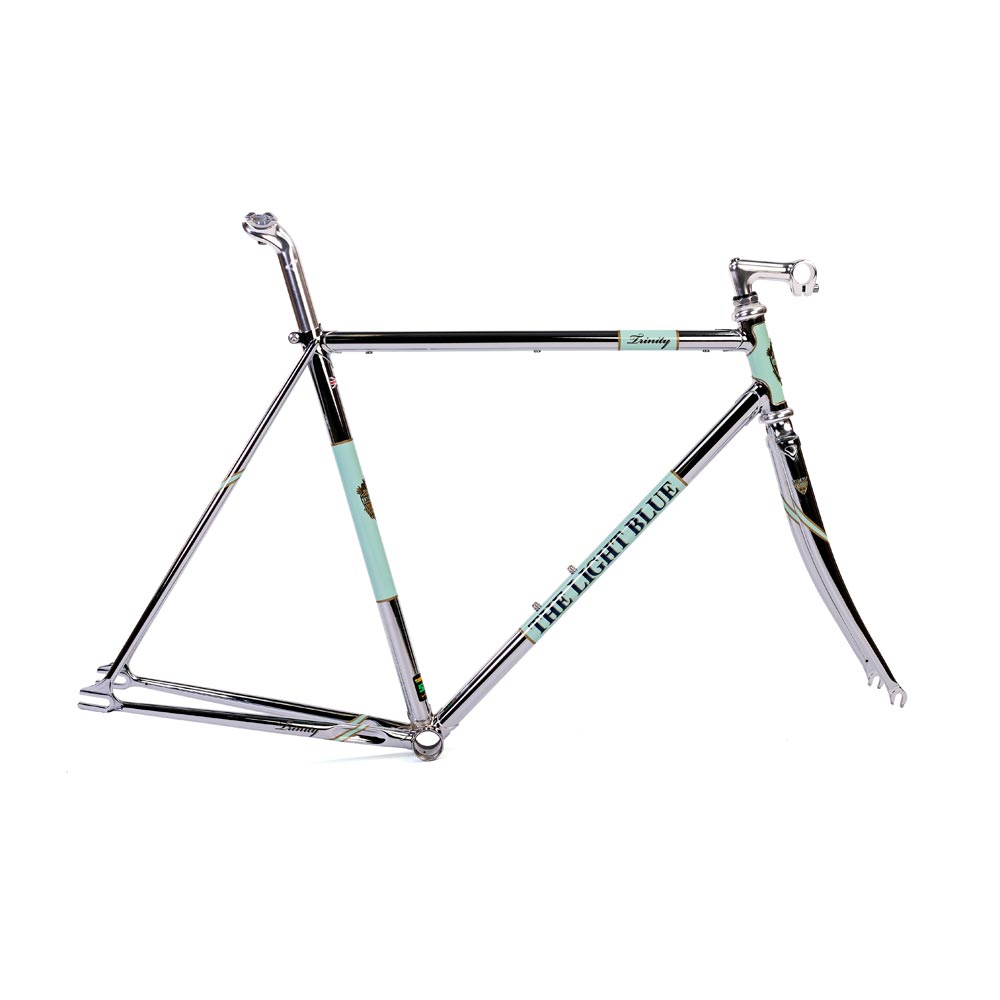

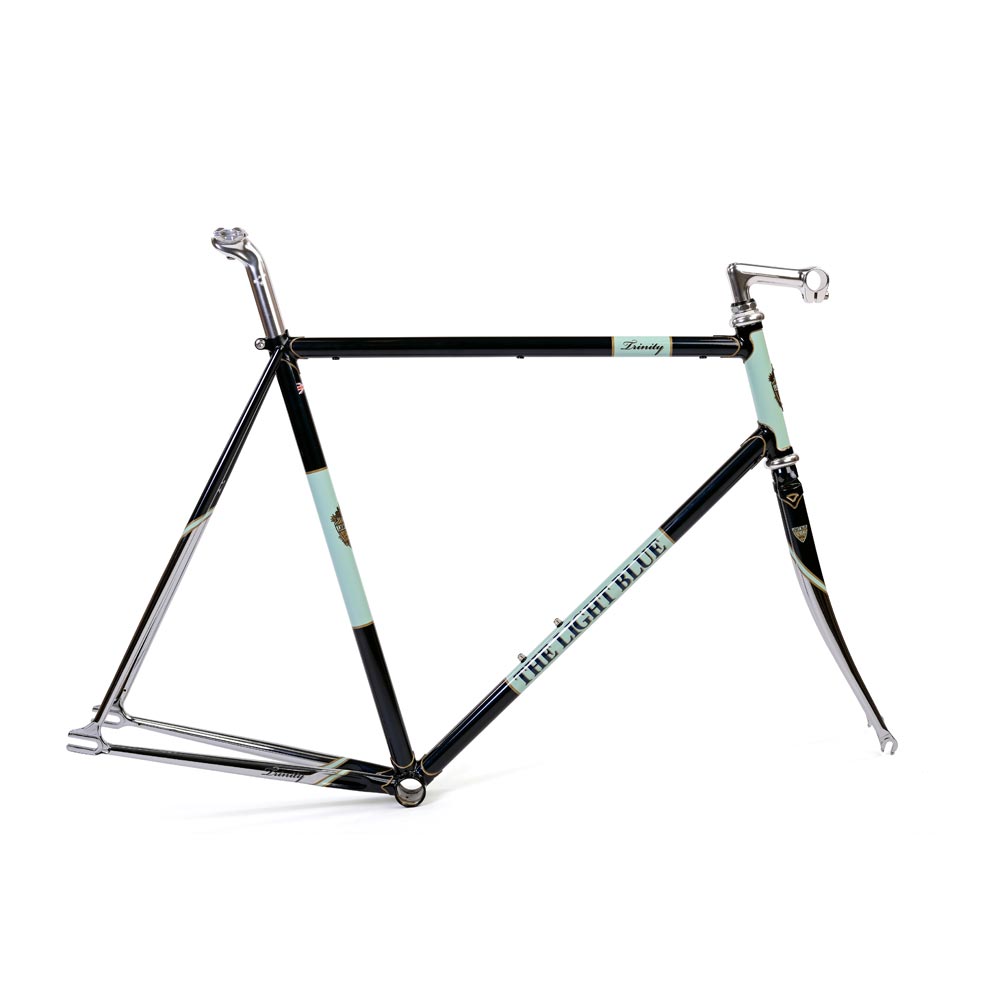

Available in a beautiful deep metallic blue with half chrome forks and rear stays or full chrome finish, the Trinity is a real head turner.

Features

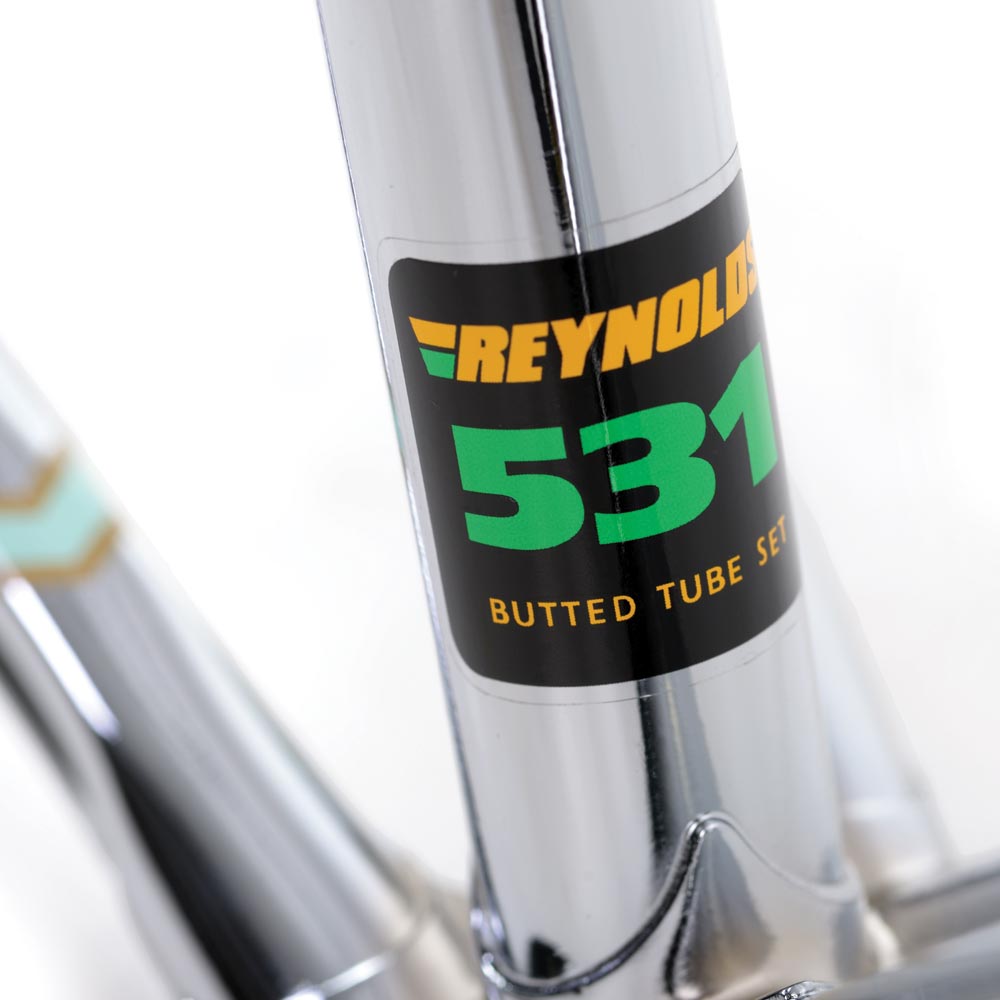

  • Lightweight, Reynolds 531 double butted steel main tubes.
  • Compliant, triple butted CB6 Cr-mo steel curved steel forks. Cast sloping crown

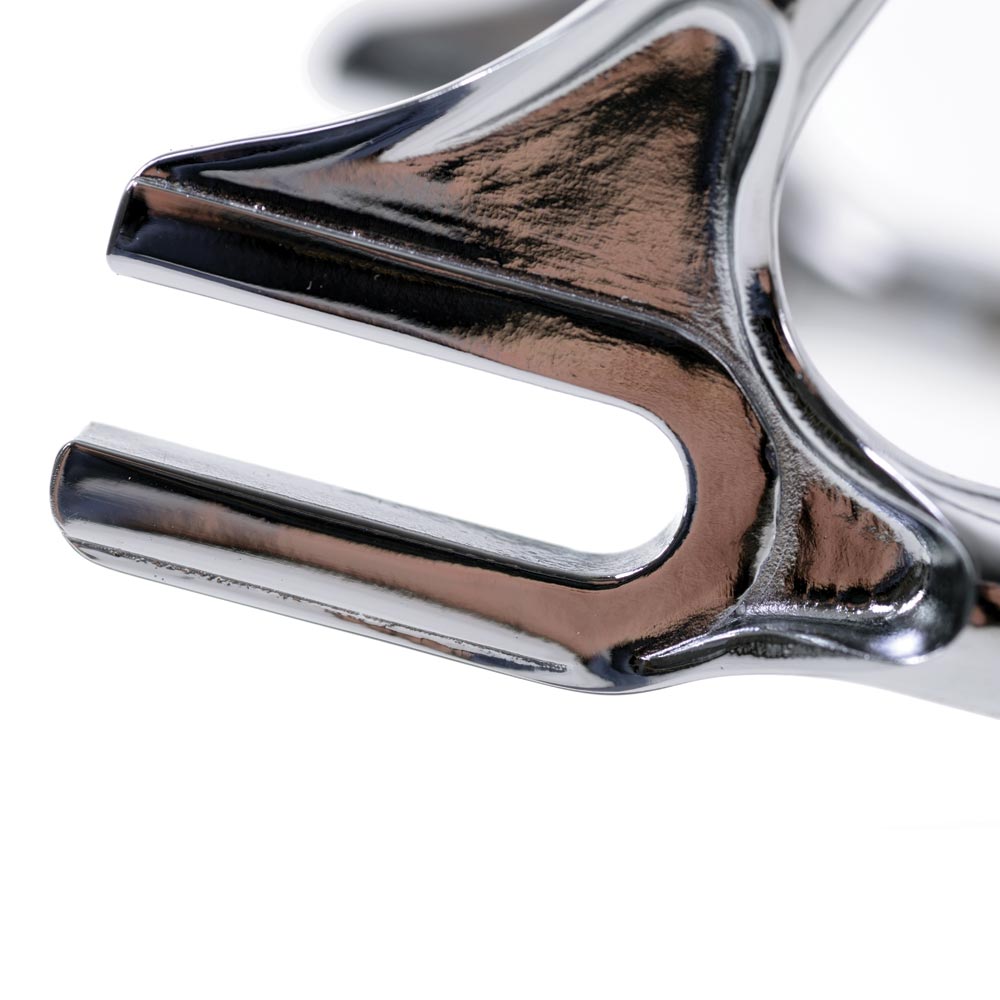

  • Horizontal track dropouts.

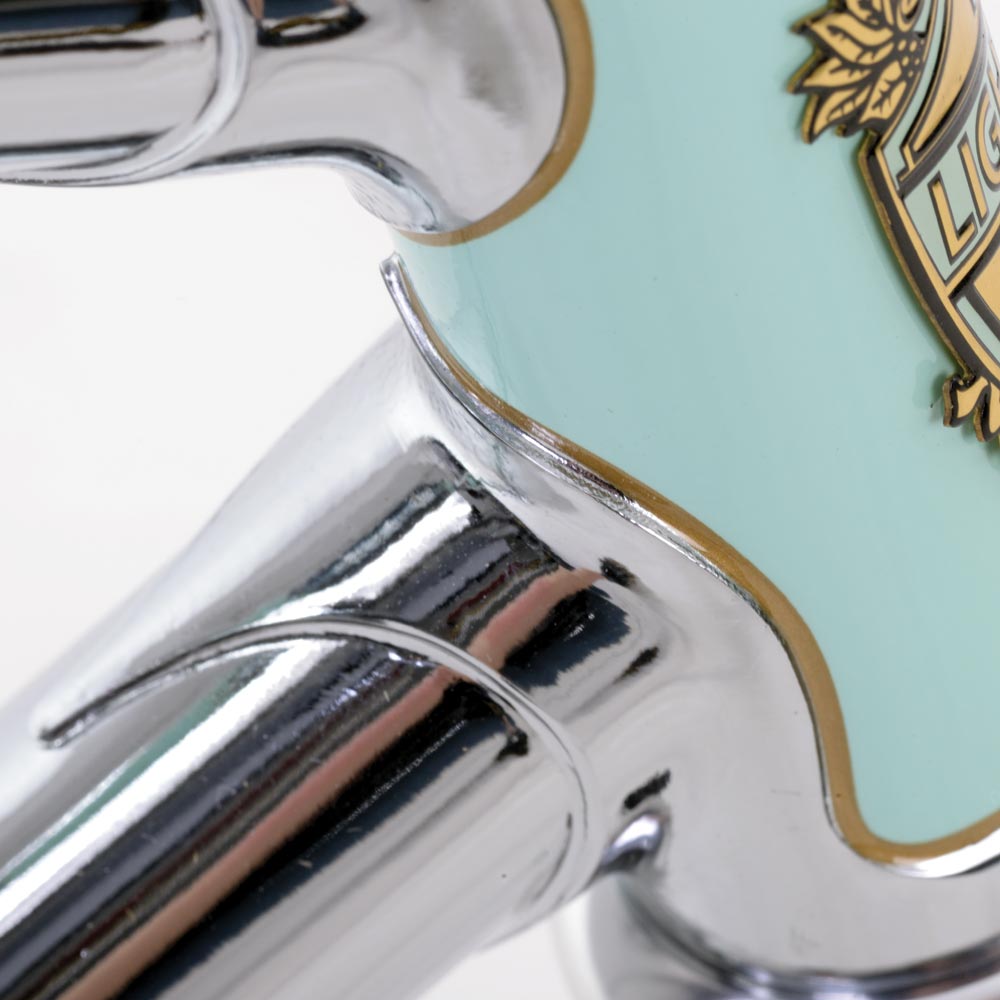

  • Classic style brazed lugs with hand painted gold lining.
  • Discreet bosses on underside of top tube for cable routing if required.
  • Reliable, tried and trusted, creak free BSA threaded bottom bracket.
  • Boxed frameset includes: Genetic threaded Cranium headset, Hyoid forged alloy quill stem (26.00mm bar clamp. 53cm & 56cm: 80mm, 59cm: 100mm), Heritage seat post (300 x 27.2mm 3D forged and polished).

Specifications

  • Fork Triple butted CB6 Cr-mo steel. Cast sloping crown
  • Headset Compatibility 1" ITA threaded
  • Seatpost 27.2 mm
  • Seat Clamp Classic Hex Key Seat Bolt
  • Front Derailleur n/a
  • BB Shell English thread 68mm
  • Rear spacing 120mm
  • Tyre Clearance 700x28C

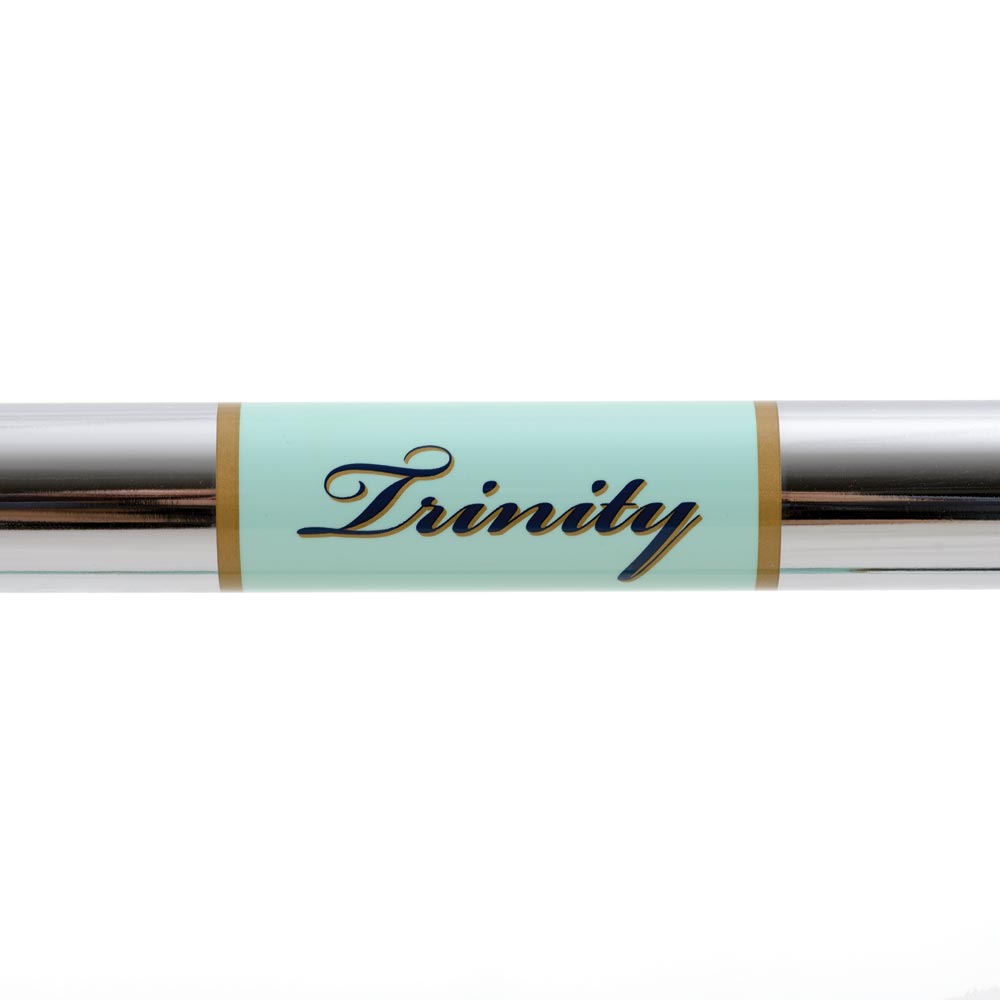

  • Colour Deep Blue & All Chrome
  • Frame Weight 2520g (5.63lb) 56cm frame
  • Fork Weight 730g (1.61lb)

All weights are approximate and are offered in good faith.

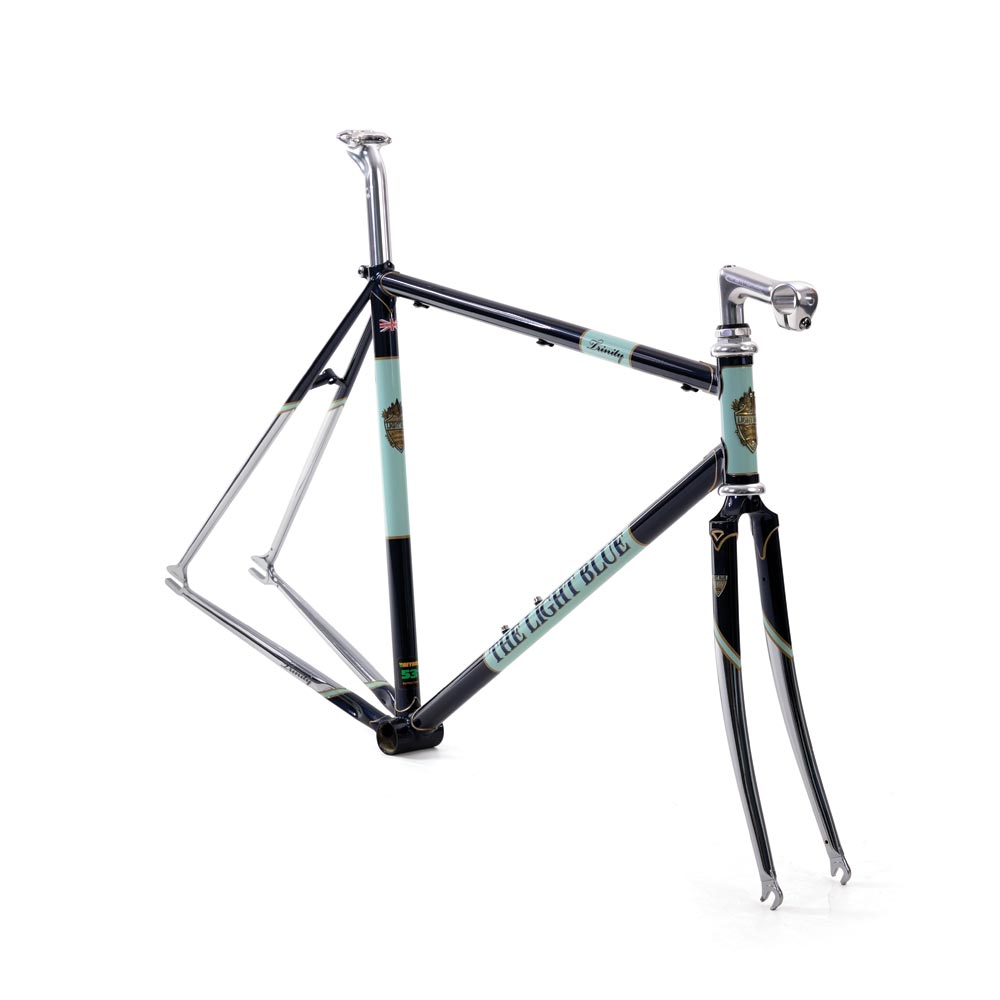

Light Blue Sport Trinity Track Frameset
Trinity Track Frameset
Click image to enlarge
Information

To find out where to buy  Click Here

Description Colour Size Wt(g) Part No. Stock Lvl RRP Pack Unit

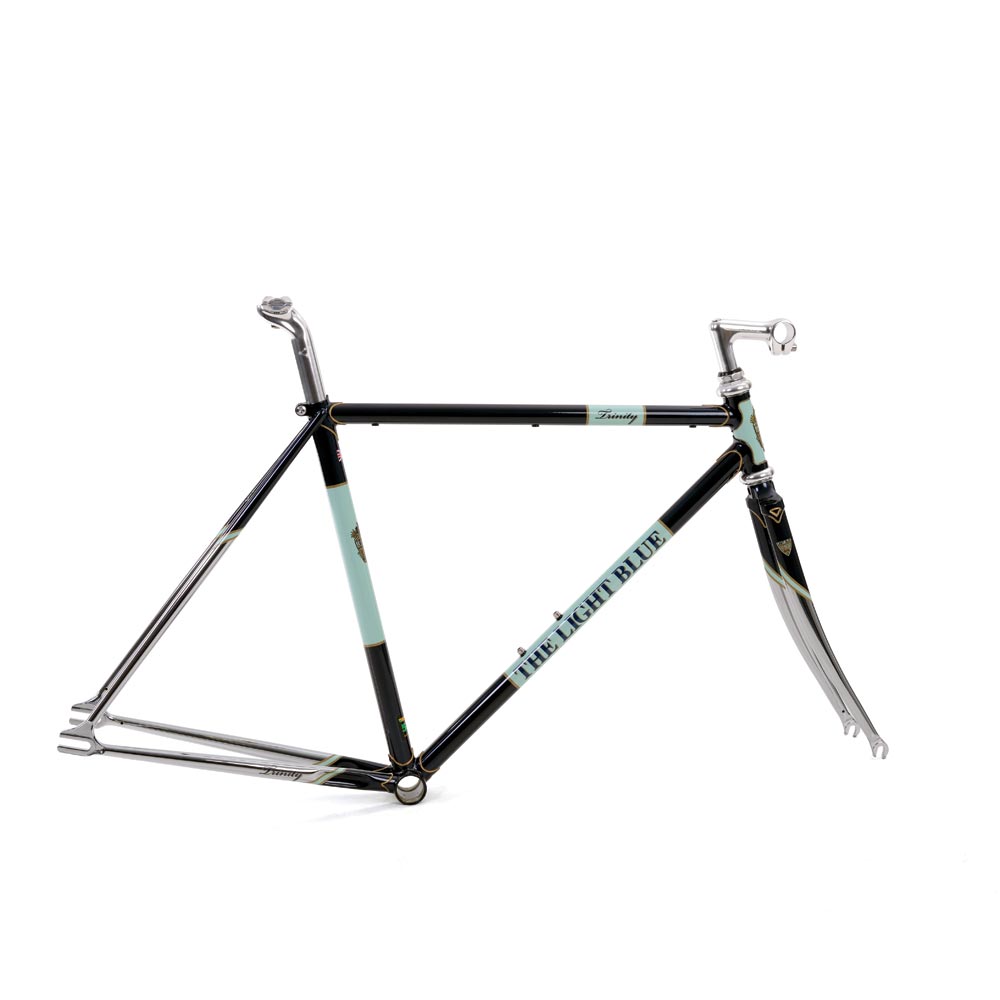

Trinity 531 LE Track, Track R531 lugged. Inc. 1" cr-mo fork, S/post,H/set & Quill stem.Dark Blue49cm FMLBT49B£699.99Each

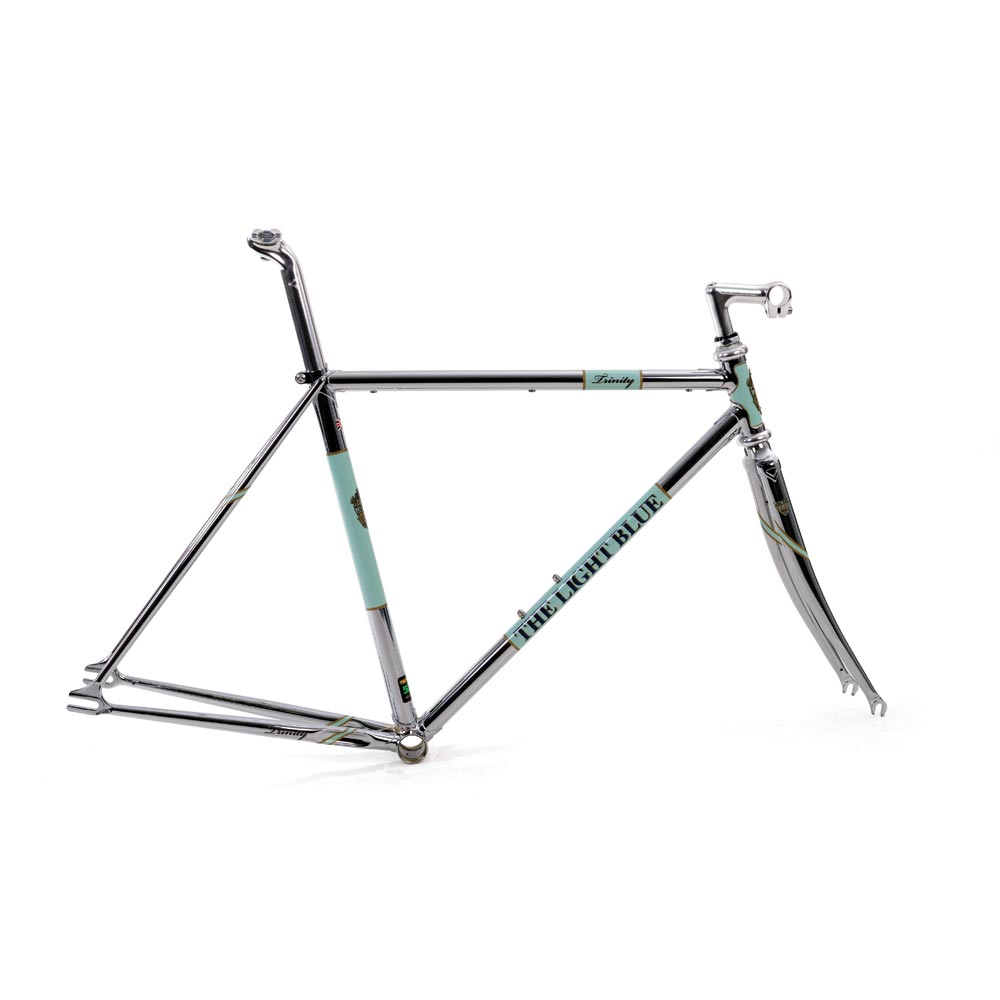

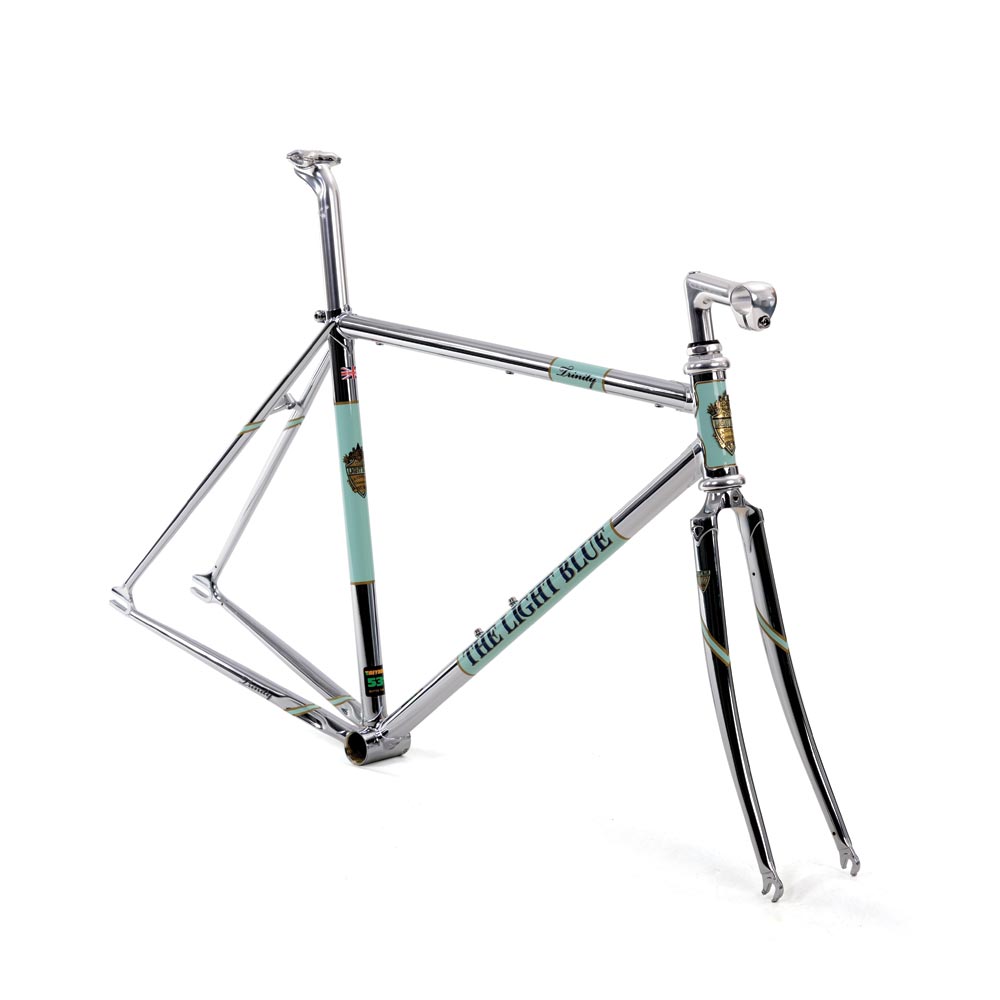

Trinity 531 LE Track, Track R531 lugged. Inc. 1" cr-mo fork, S/post,H/set & Quill stem.Chrome49cm FMLBT49H£899.99Each
Trinity 531 LE Track, Track R531 lugged. Inc. 1" cr-mo fork, S/post,H/set & Quill stem.Dark Blue53cm FMLBT53B£699.99Each
Trinity 531 LE Track, Track R531 lugged. Inc. 1" cr-mo fork, S/post,H/set & Quill stem.Chrome53cm FMLBT53H£899.99Each
Trinity 531 LE Track, Track R531 lugged. Inc. 1" cr-mo fork, S/post,H/set & Quill stem.Dark Blue56cm1835FMLBT56B Low Stock£699.99Each
Trinity 531 LE Track, Track R531 lugged. Inc. 1" cr-mo fork, S/post,H/set & Quill stem.Chrome56cm1835FMLBT56H£899.99Each
Trinity 531 LE Track, Track R531 lugged. Inc. 1" cr-mo fork, S/post,H/set & Quill stem.Dark Blue59cm FMLBT59B Low Stock£699.99Each

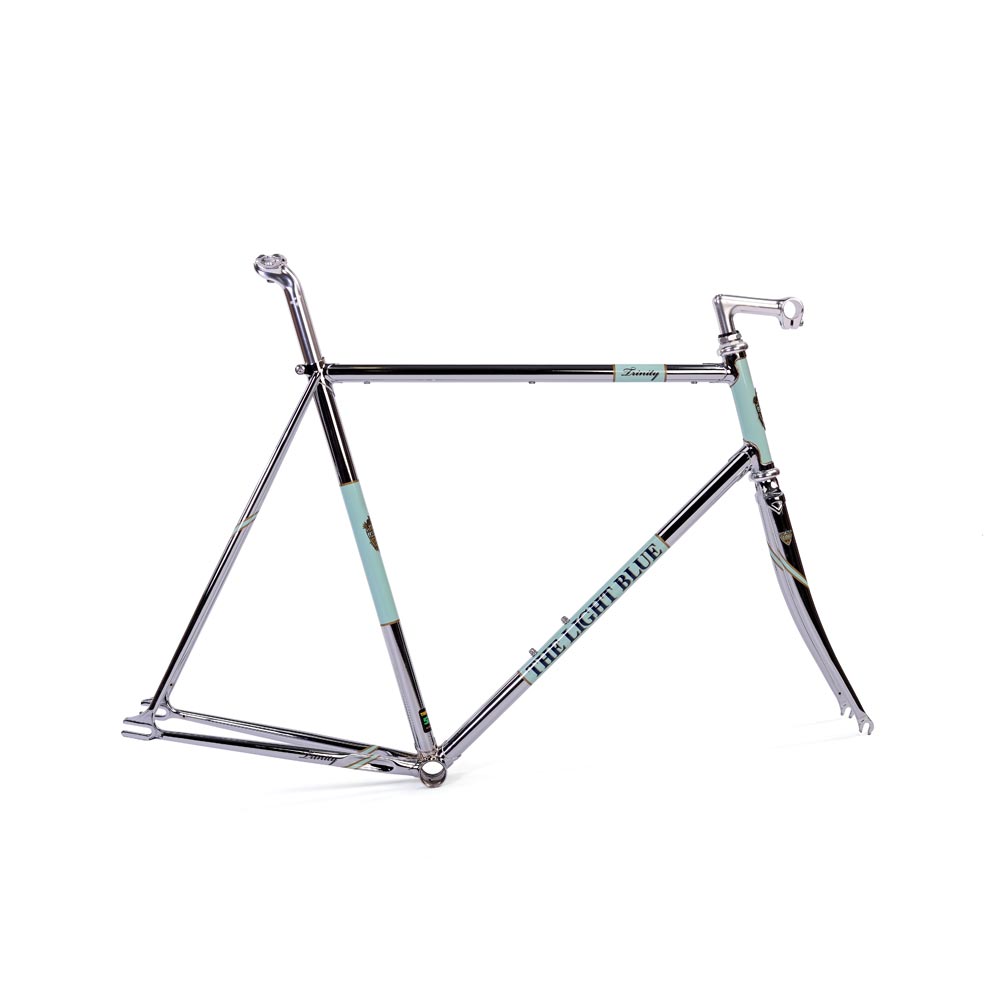

Trinity 531 LE Track, Track R531 lugged. Inc. 1" cr-mo fork, S/post,H/set & Quill stem.Chrome59cm FMLBT59H£899.99Each

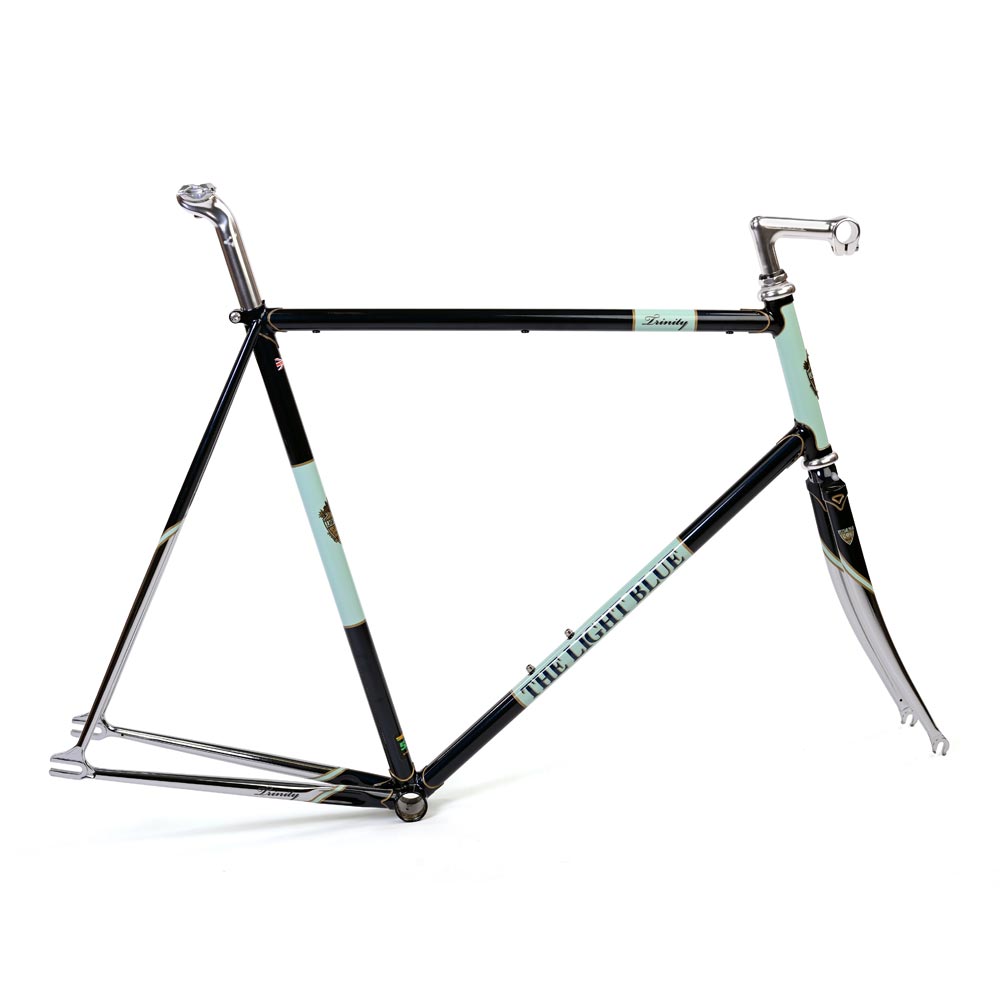

Trinity 531 LE Track, Track R531 lugged. Inc. 1" cr-mo fork, S/post,H/set & Quill stem.Dark Blue62cm FMLBT62B Low Stock£699.99Each

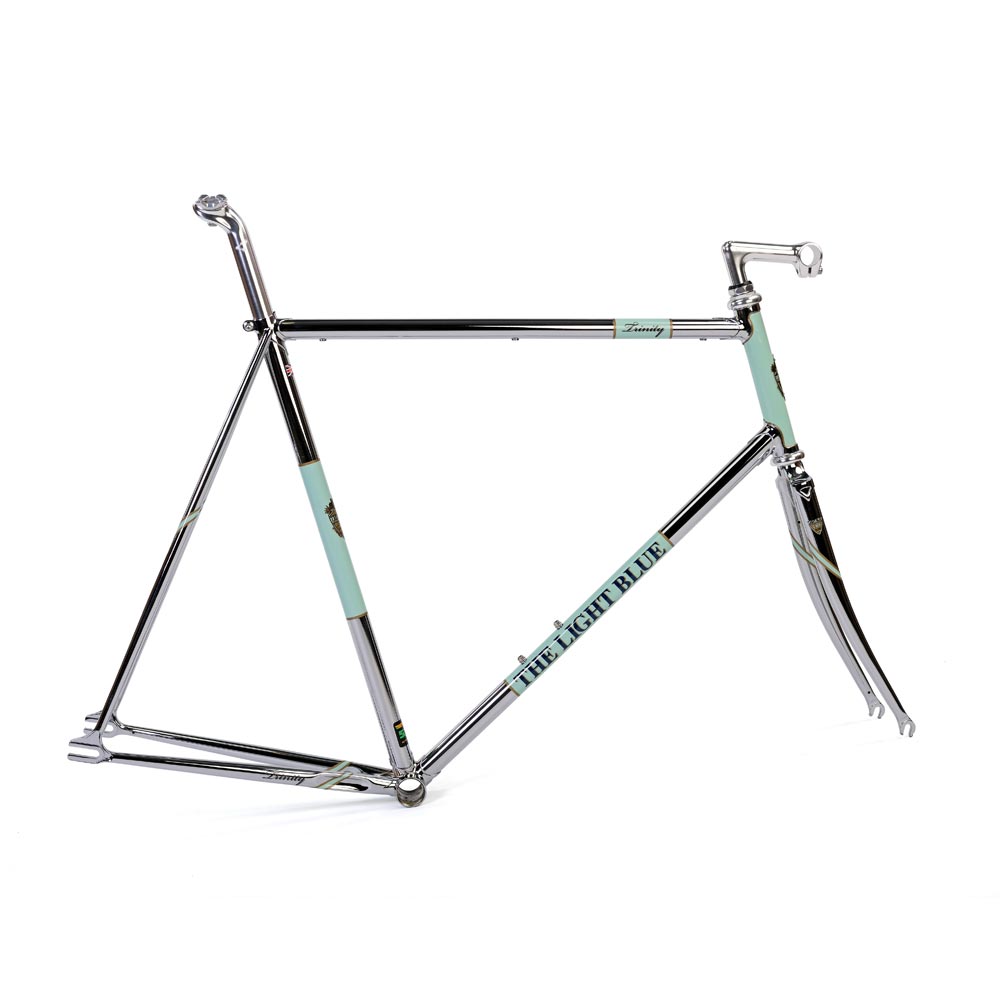

Trinity 531 LE Track, Track R531 lugged. Inc. 1" cr-mo fork, S/post,H/set & Quill stem.Chrome62cm FMLBT62H£899.99Each
  • Good stock levels
  • +24h Please allow 24/48 hrs for assembly
  • Special Order Currently not in stock, contact us for details
  • Out of stock. Expected availability date will be displayed if known.
  • Discontinued. This product is no longer available.
