Alloy ADS Dropouts

Alloy ADS Dropouts

  • For current ADS Identiti frames.
  • CNC Alloy 6.5mm thick.
  • Black anodised.
  • Sold individually.

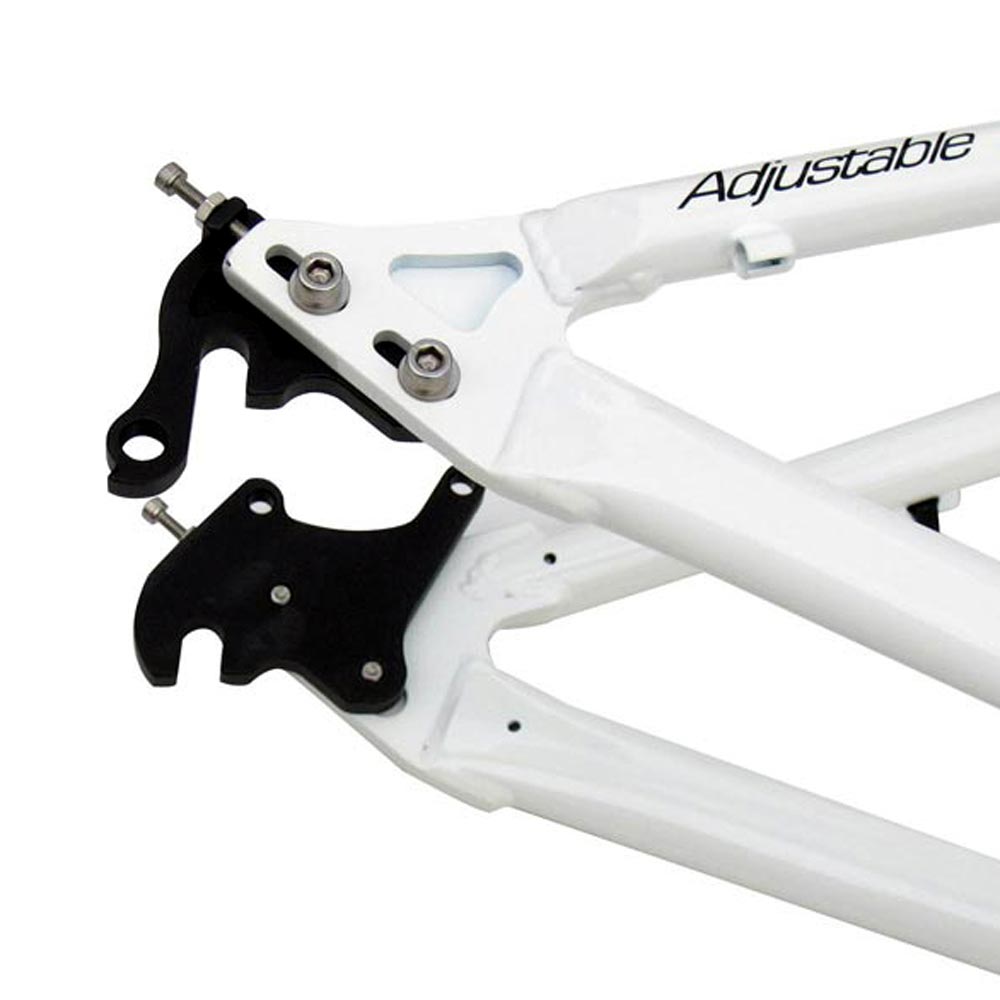

A.D.S. Adjustable Dropout System

An Identiti innovation feature that allows the rider to horizontally move the rear axle position to set chain tension, which is a real bonus if you are running single speed or perhaps a Rohloff Speedhub.

Not only is this simple and secure using the integral threaded 'chain tugs', but as the axle moves, so does the Disc mount and the gear hanger... keeping everything in perfect line... all of the time.

Furthermore, as the dropouts themselves are almost vertical, there is no risk of wheel torque slippage in the dropout under heavy load, which means you can even use QR skewers on a Single Speed set-up.

Nor do you have to consider removing the Disk brake caliper if you are removing the wheel, as the wheel comes out down and forwards, not backwards. Finally, because removing the wheel doesn't require any messing with the chain tension adjustment, when you fit the wheel back in...it goes back in perfect chain tension... just as it was before you removed it.

A.D.S. works 'perfectly' with Derailleur or hub gears , or no gears... NOW..it's up to the rider ! gears or no gears...??
Bonus point for the Identiti ADS is that all of the 'vulnerable' parts of the dropout (gear hanger, disc mounts, axle slots, main fixing bolts threads etc..) are all part of the ADS dropouts - and therefore, easily replaced in event of a 'problem'.

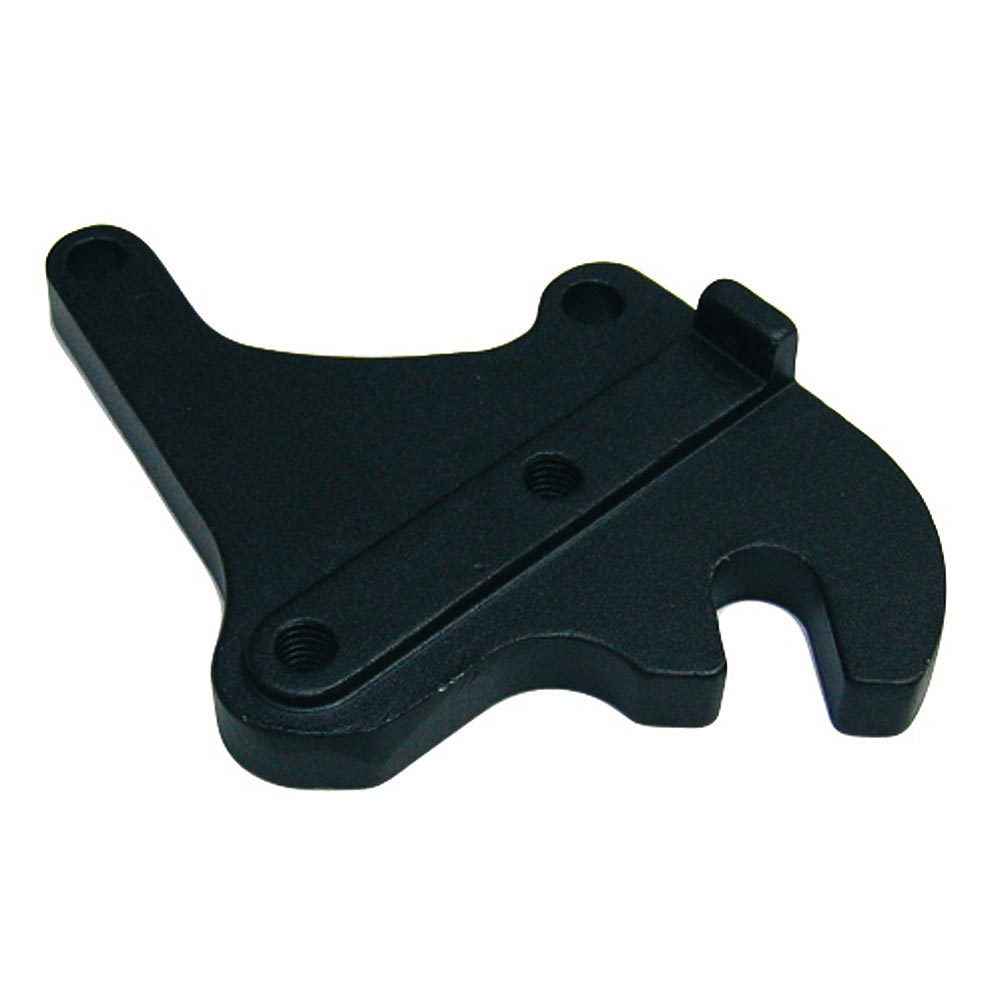

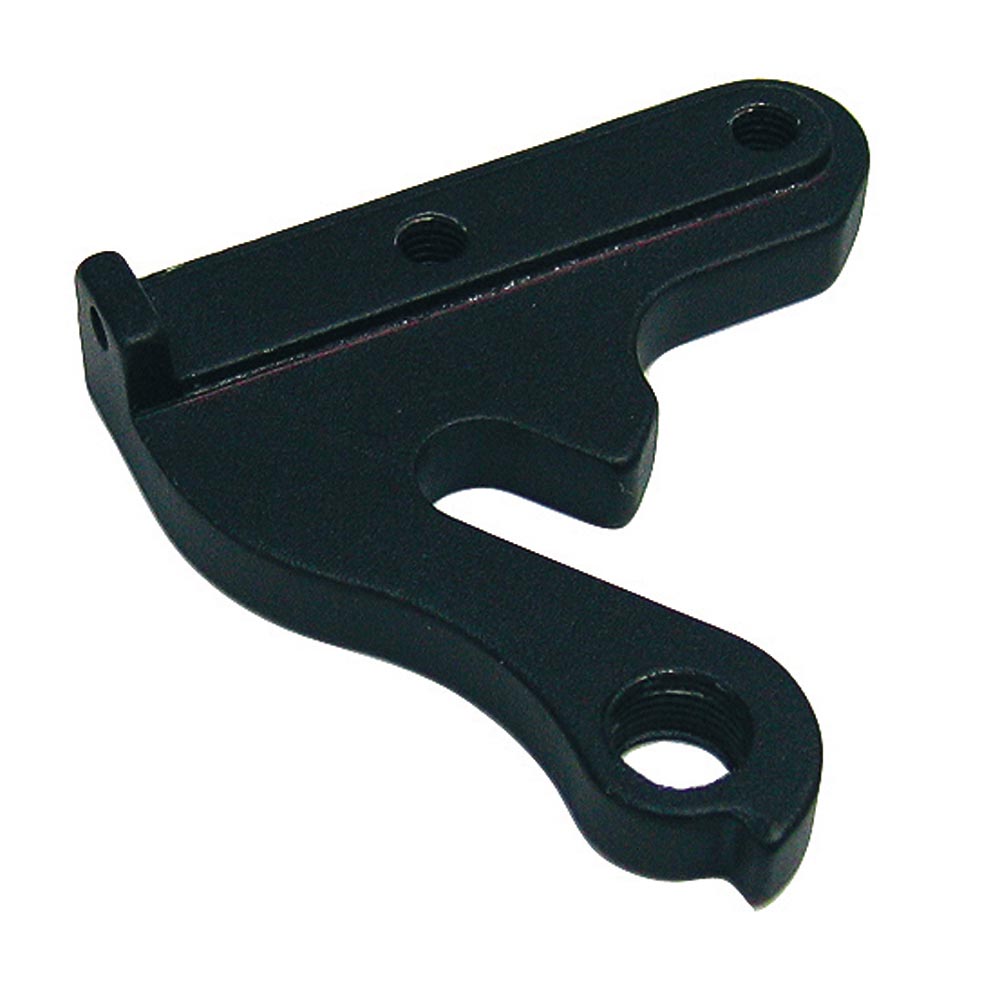

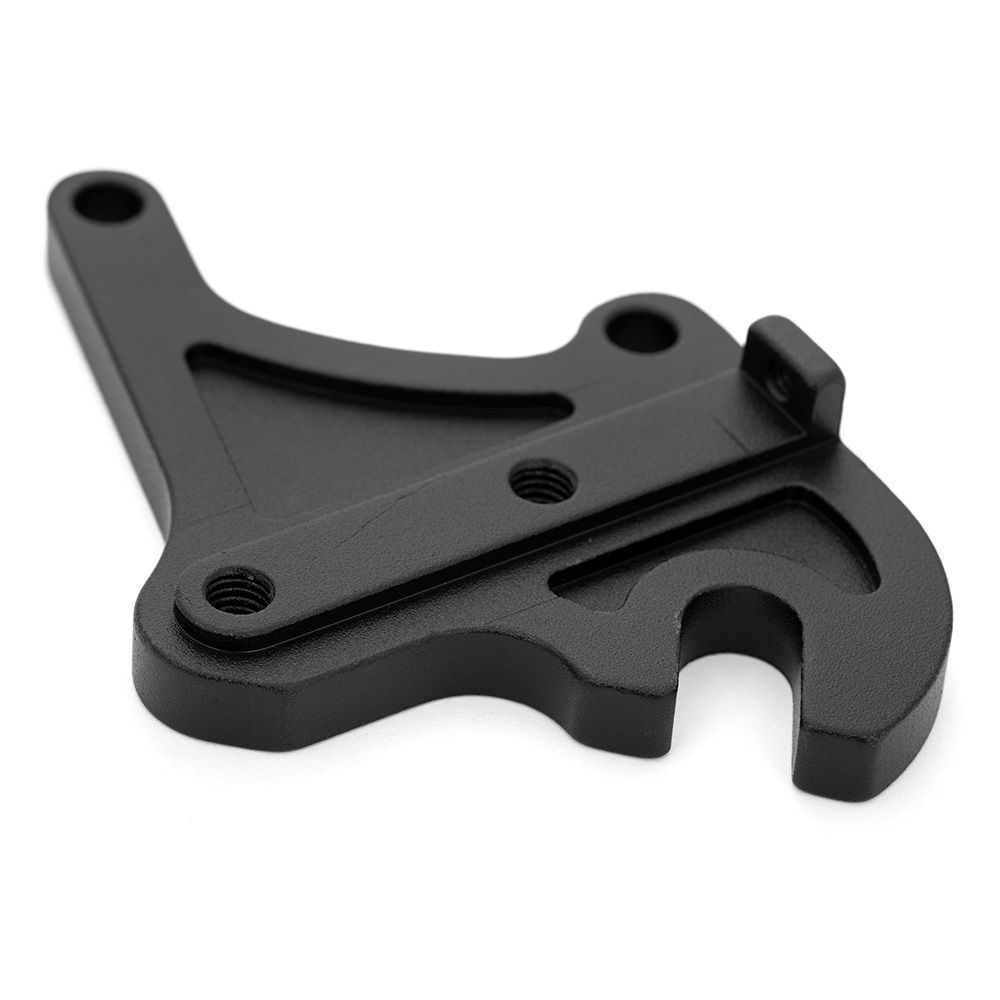

Identiti Alloy ADS Dropouts
Identiti Alloy ADS Dropouts
Click image to enlarge

To find out where to buy  Click Here

Description Colour Size Wt(g) Part No. Stock Lvl RRP Pack Unit
Dr J/Mr Hyde/666 ADS Dropout, CNC Machined Alloy Sliding Rear Dropout.Left Hand (Disc Side)Black10mm FMITDOJL£12.50Each
Dr J/Mr Hyde/666 ADS Dropout, CNC Machined Alloy Sliding Rear Dropout.Right Hand (Mech Side)Black10mm FMITDOJR
ETA: 12th Jan 2020
£25.00Each
  • Good stock levels
  • +24h Please allow 24/48 hrs for assembly
  • Special Order Currently not in stock, contact us for details
  • Out of stock. Expected availability date will be displayed if known.
  • Discontinued. This product is no longer available.
Description Colour Size Wt(g) Part No. Stock Lvl RRP Pack Unit
Dr J/Mr Hyde/666 ADS Dropout, CNC Machined Alloy Sliding Rear Dropout.Left Hand (Disc Side)Black10mm FMITDOJL£12.50Each
Dr J/Mr Hyde/666 ADS Dropout, CNC Machined Alloy Sliding Rear Dropout.Right Hand (Mech Side)Black10mm FMITDOJR
ETA: 12th Jan 2020
£25.00Each
  • Good stock levels
  • +24h Please allow 24/48 hrs for assembly
  • Special Order Currently not in stock, contact us for details
  • Out of stock. Expected availability date will be displayed if known.
  • Discontinued. This product is no longer available.
