Ribbon Air 27.5 Forks

The Ribbon is designed for enduro racing and aggressive trail riding.

  • 27.5 x 150 - 170mm
    • Offset: 39 or 44mm
    • A-C: 562mm @ 170mm travel
    • Tires: up to 27.5 x 2.5
  • 110 x 15mm axle spacing
  • 35 stanchions
  • Minimum Rotor Size - 180mm
  • Axle Formats: MRP QR, or MRP 'Tooled'
  • Lower leg pressure relief valves

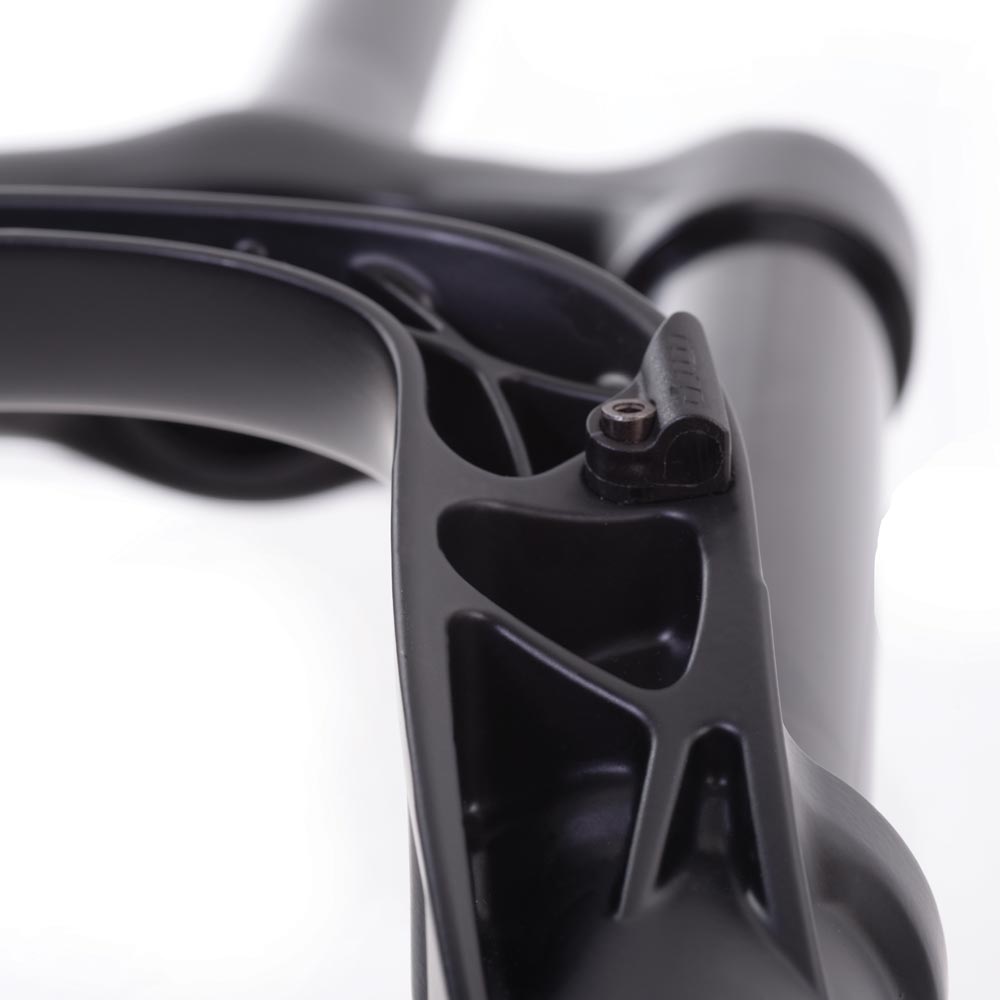

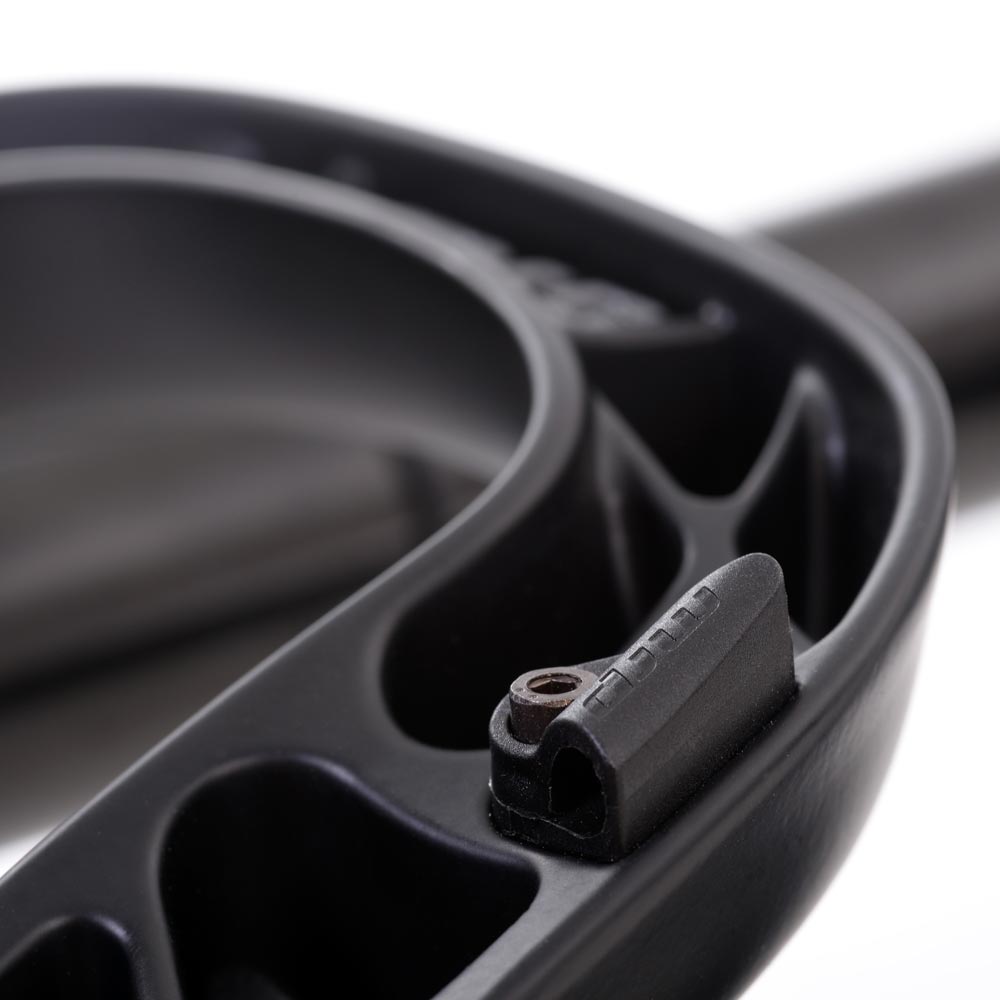

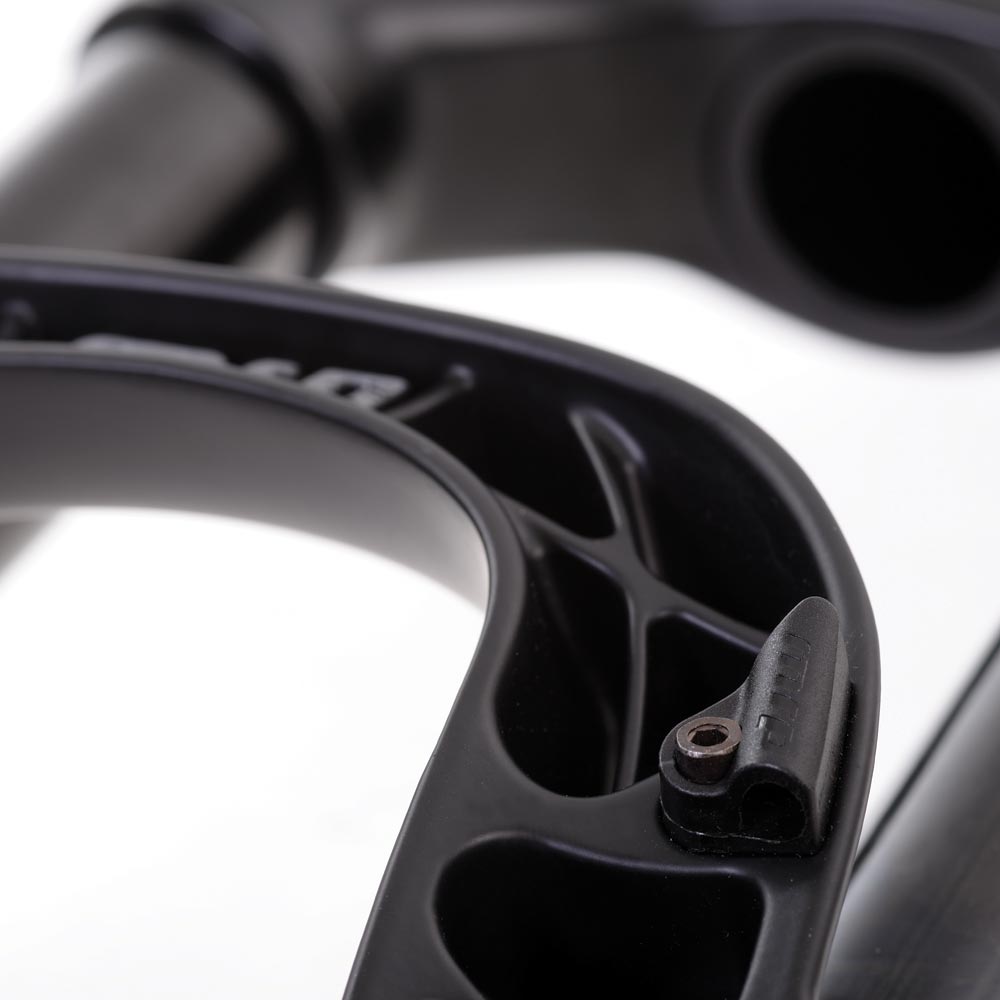

  • Full wrap brake line retainer
  • Travel adjustable in 5mm increments
  • 8 - position high efficiency Compression damper
  • 16 - position Ramp Control system
  • Dual Air spring; fully independent positive & negative chamber pressures
  • Speed sensitive Rebound damping, shimmed architecture

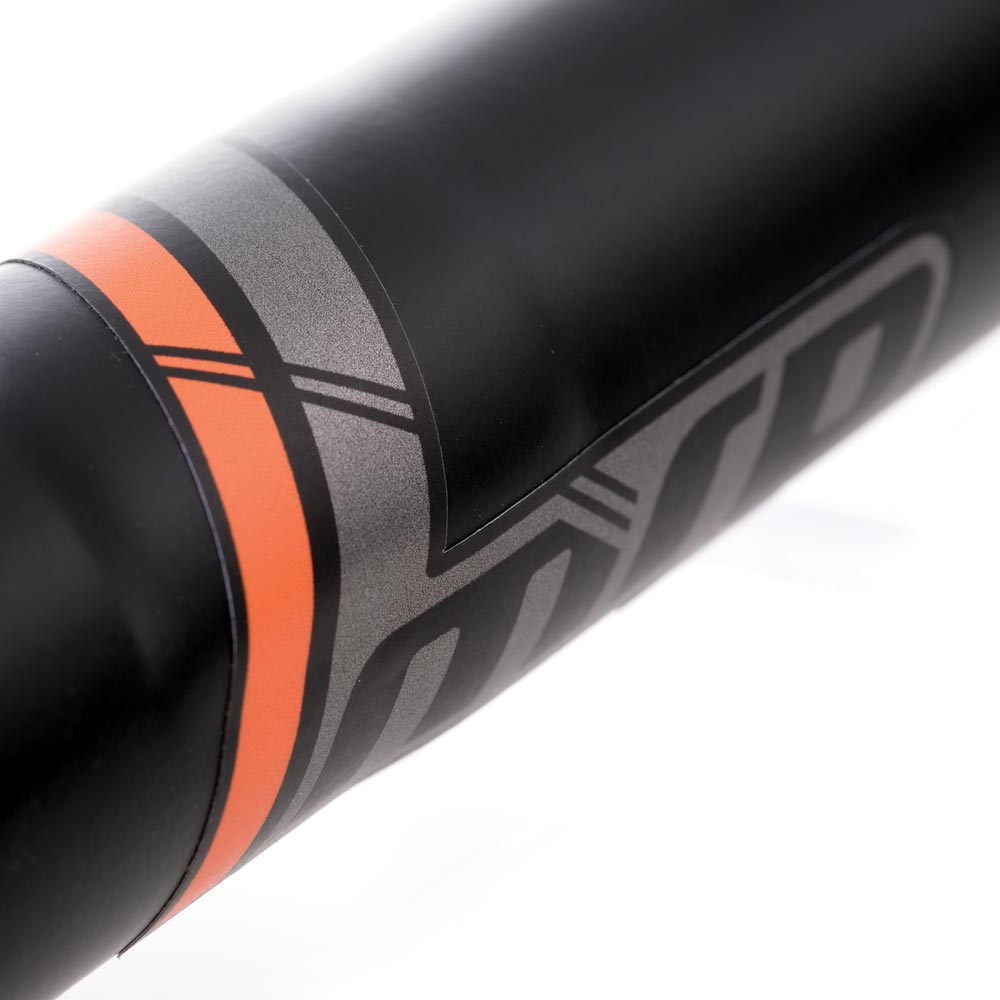

  • Unique aesthetic
  • Low friction wiper seals; reduced running friction by up to 18% (low speed floor test), or 28% (low speed after break-in) as compared to Stage style seals.
  • Improved internal running surface quality to reduce friction & improve seal performance
  • Low friction (low pressure) damper compensator piston; reduces damper weight, improves damper performance, consistency, system reliability, & ease of service.
  • Increased steerer - crown engagement

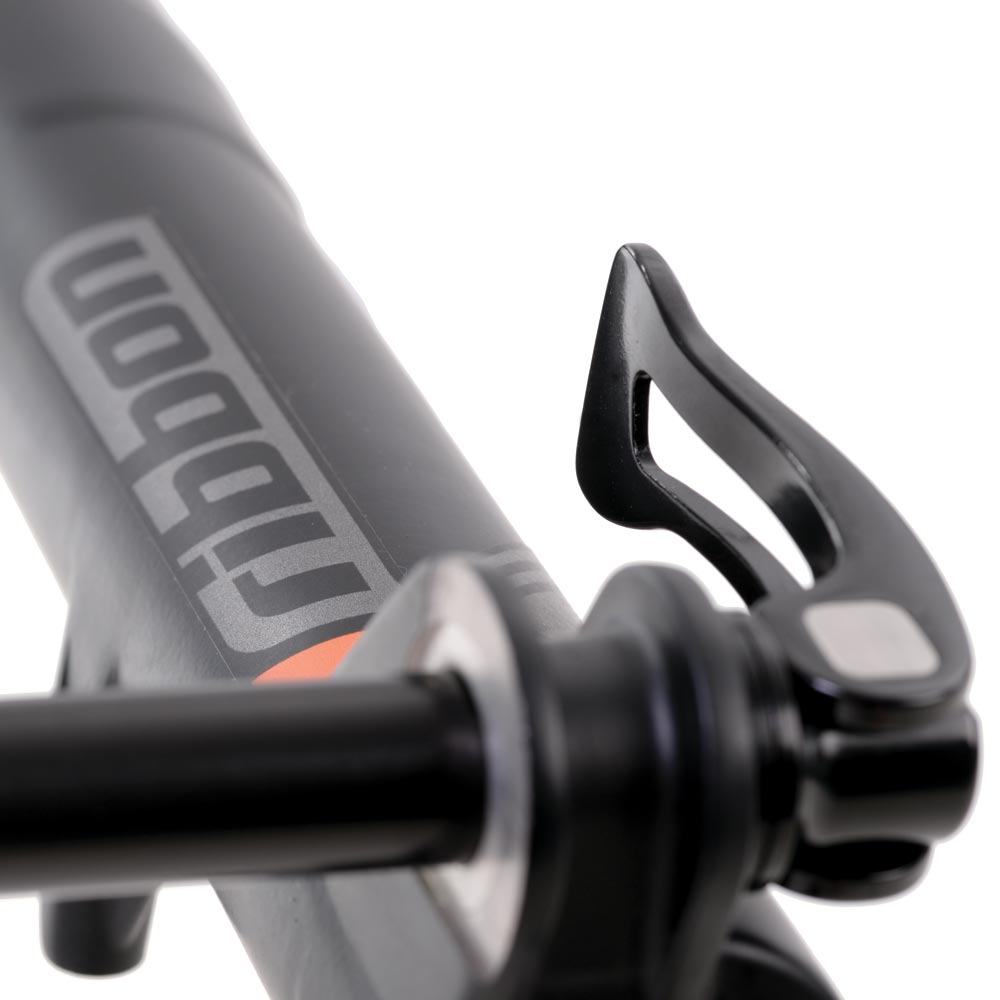

  • Simplified & weight reduced QR Axle system
  • O-ring stabilized QR nut for quiet, smooth operation
  • Tooled Axle system option
  • Casting feature for easy removal of Axle Nut retention circlip

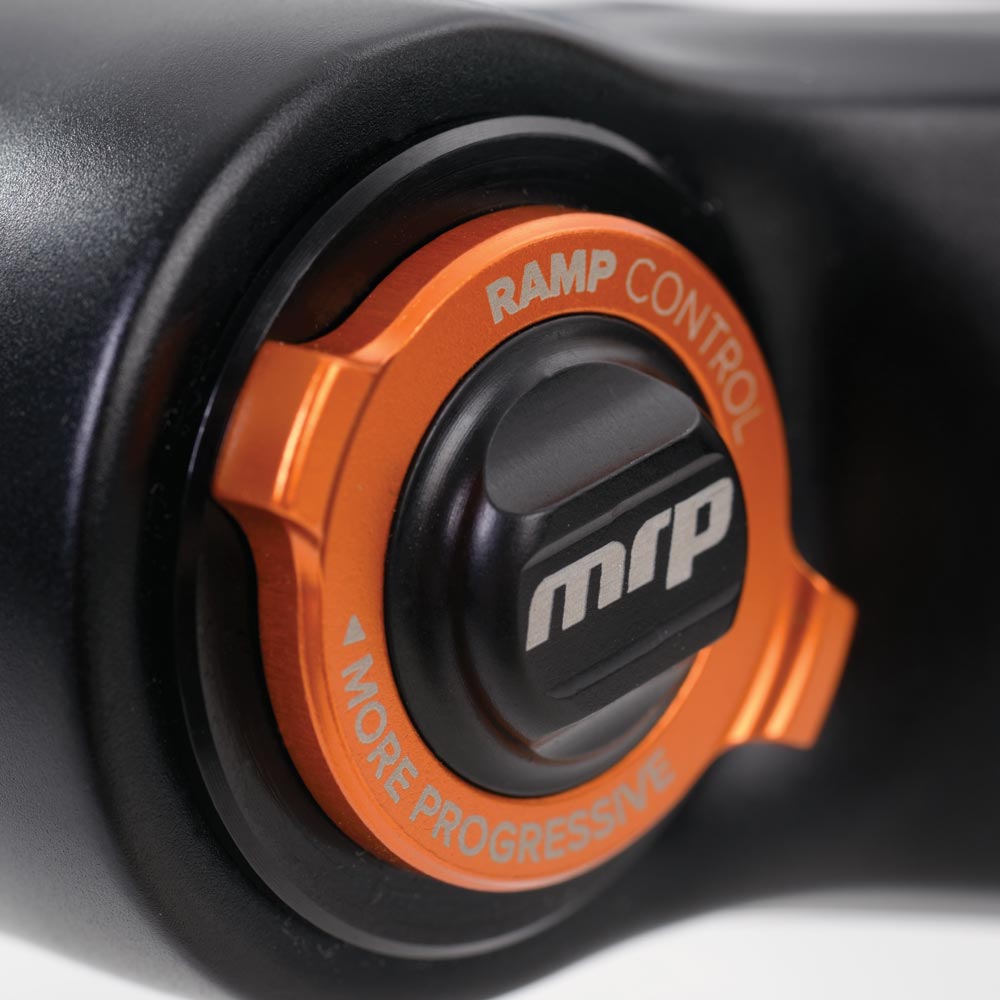

  • New low profile & ergonomic knob designs for Compression & Ramp controls
  • New tool interface for air & damper side caps; low profile, using common cassette lockring tool
  • Improved and ample arch clearance around frame head-tubes

All forks are adjustable from 140-170mm in 5mm increments.



Pink Bike suspension product of the year 2017

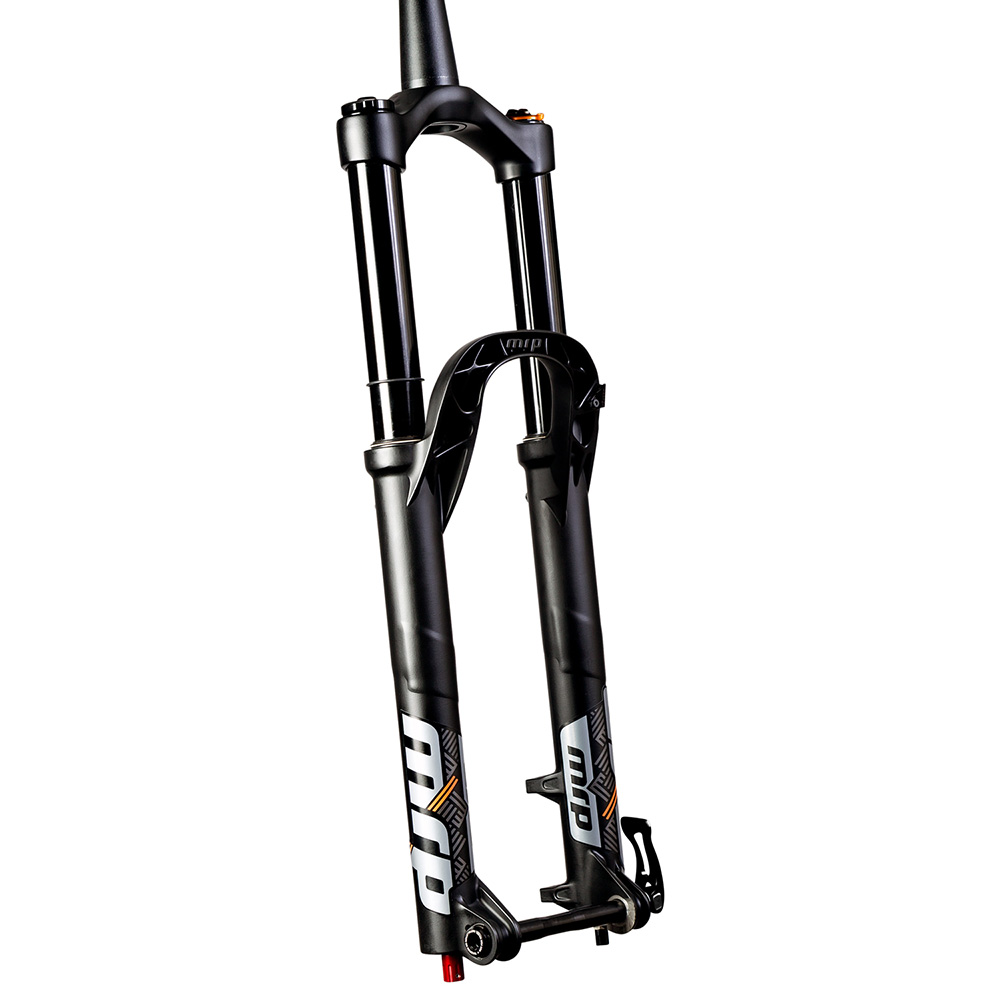

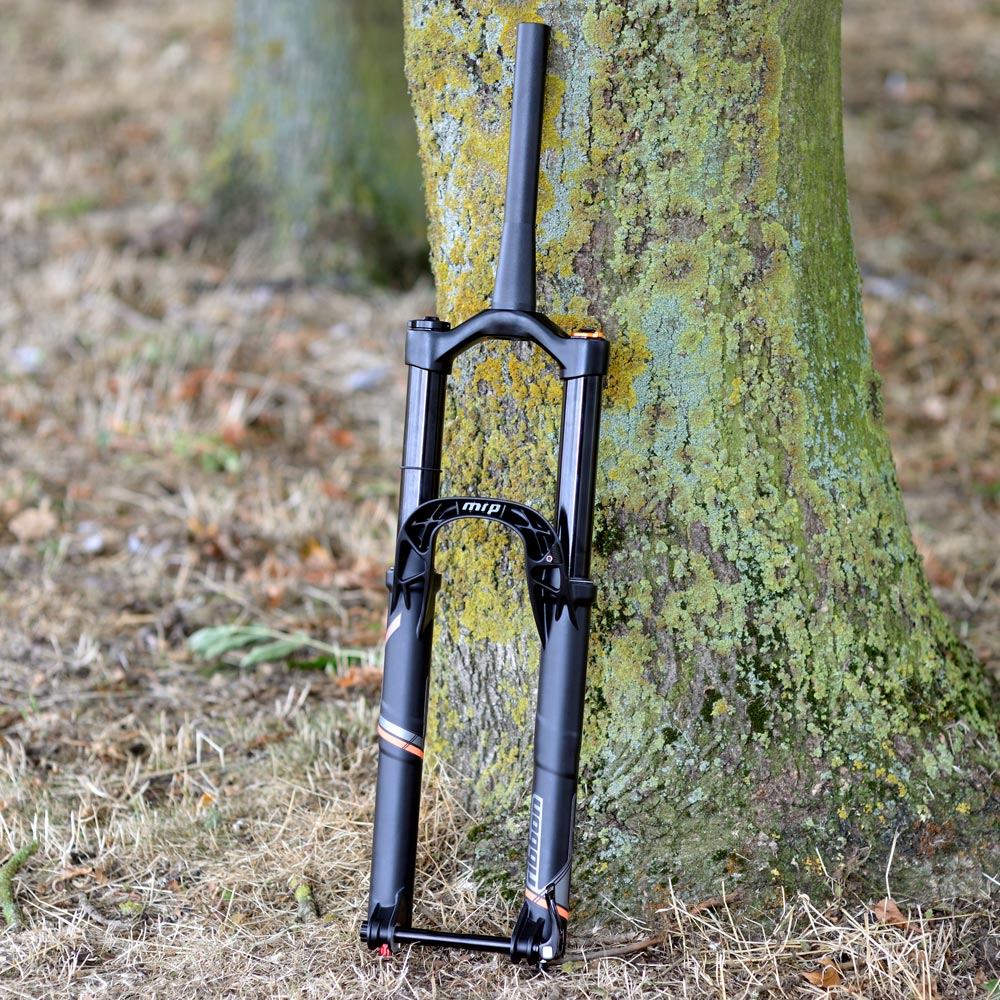

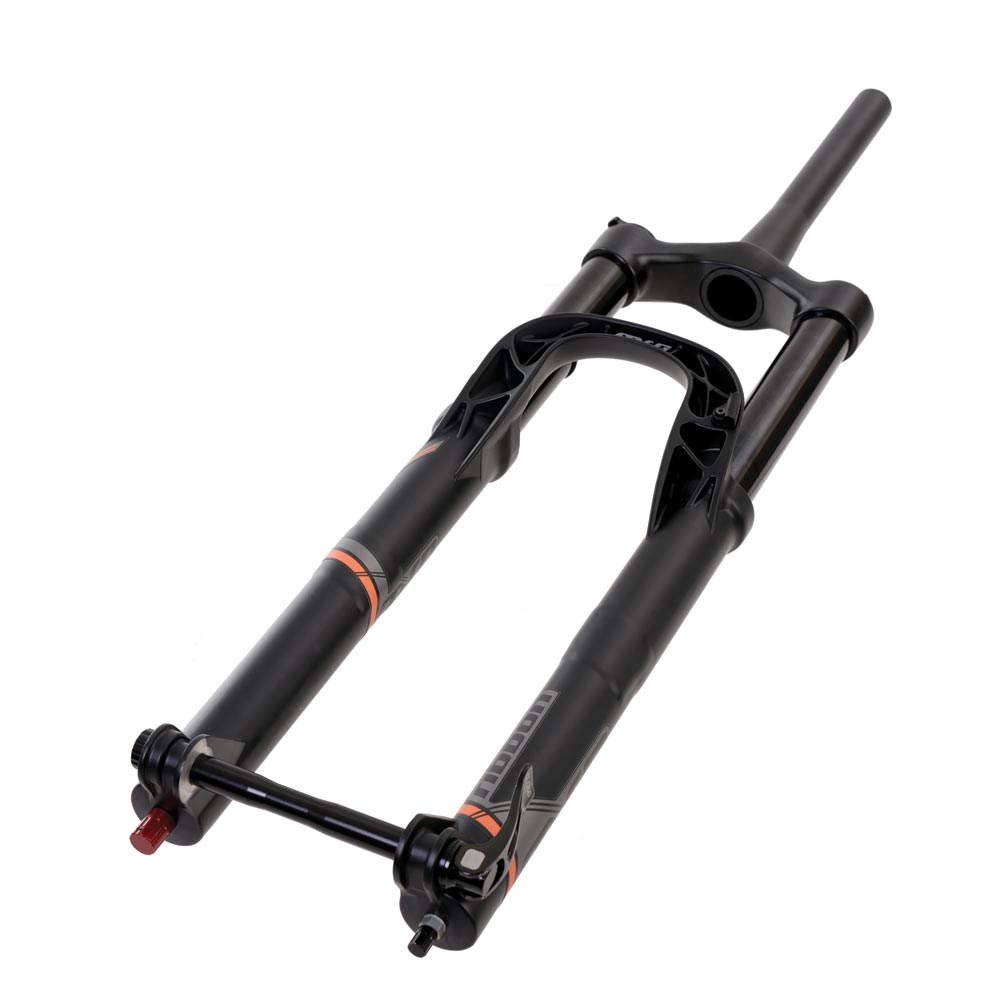

MRP Ribbon Forks
MRP Ribbon Forks
Click image to enlarge
Information

To find out where to buy  Click Here

Description Colour Size Wt(g) Part No. Stock Lvl RRP Pack Unit
Ribbon Air, 27.5w, Reduced Offset (39mm), 150mm, 35mm Stanchions, Ramp Control, Taper, BoostBlack27.5'' 150mm1860FKMRR7113£899.99Pair
Ribbon Air, 27.5w, Reduced Offset (39mm), 160mm, 35mm Stanchions, Ramp Control, Taper, BoostBlack27.5'' 160mm1860FKMRR7114£899.99Pair
Ribbon Air, 27.5w, Reduced Offset (39mm), 170mm, 35mm Stanchions, Ramp Control, Taper, BoostBlack27.5'' 170mm1860FKMRR7115£899.99Pair
Ribbon Air, 27.5w, 44mm Offset, 140mm, 35mm Stanchions, Ramp Control, Taper, BoostBlack27.5'' 140mm1860FKMRR7150£849.99Pair
Ribbon Air, 27.5w, 44mm Offset, 150mm, 35mm Stanchions, Ramp Control, Taper, BoostBlack27.5'' 150mm1860FKMRR7151
ETA: 30th Sep 2019
£849.99Pair
Ribbon Air, 27.5w, 44mm Offset, 160mm, 35mm Stanchions, Ramp Control, Taper, BoostBlack27.5'' 160mm1860FKMRR7152£849.99Pair
Ribbon Air, 27.5w, 44mm Offset, 170mm, 35mm Stanchions, Ramp Control, Taper, BoostBlack27.5'' 170mm1860FKMRR7153
ETA: 30th Sep 2019
£849.99Pair
  • Good stock levels
  • +24h Please allow 24/48 hrs for assembly
  • Special Order Currently not in stock, contact us for details
  • Out of stock. Expected availability date will be displayed if known.
  • Discontinued. This product is no longer available.
