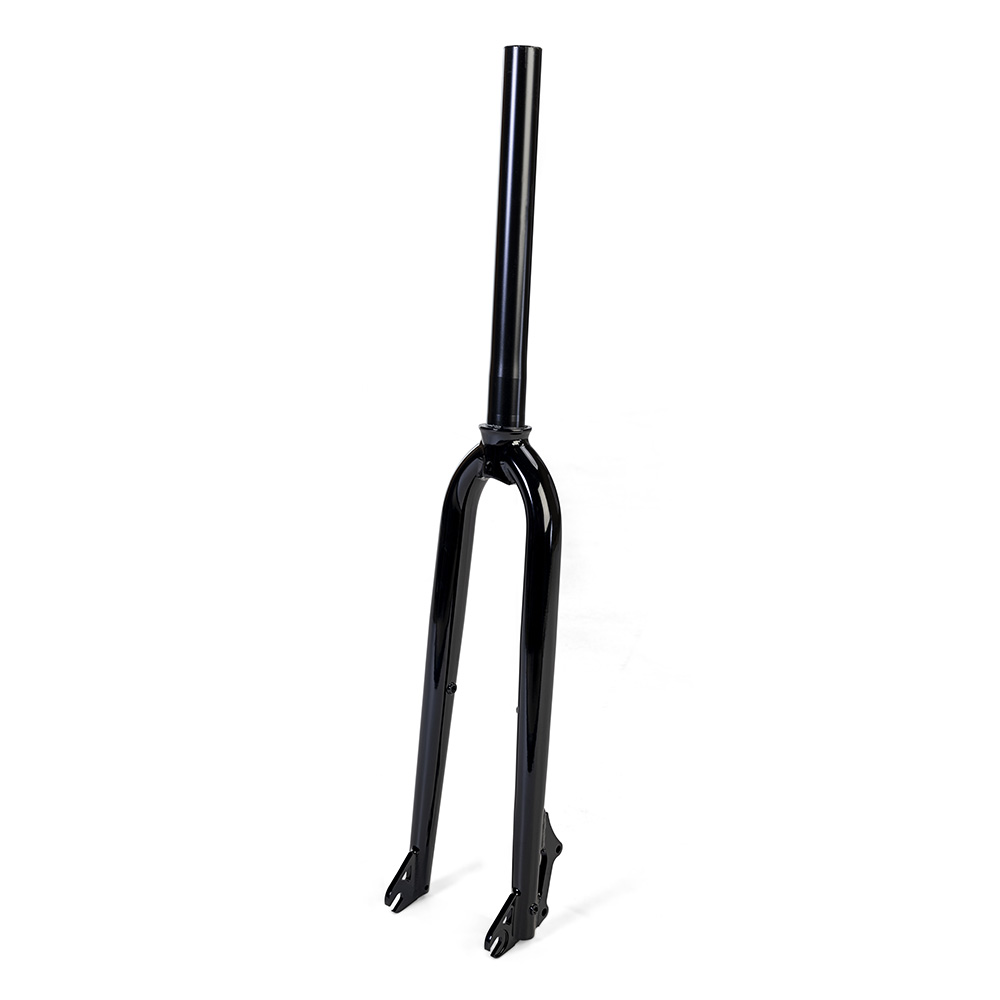

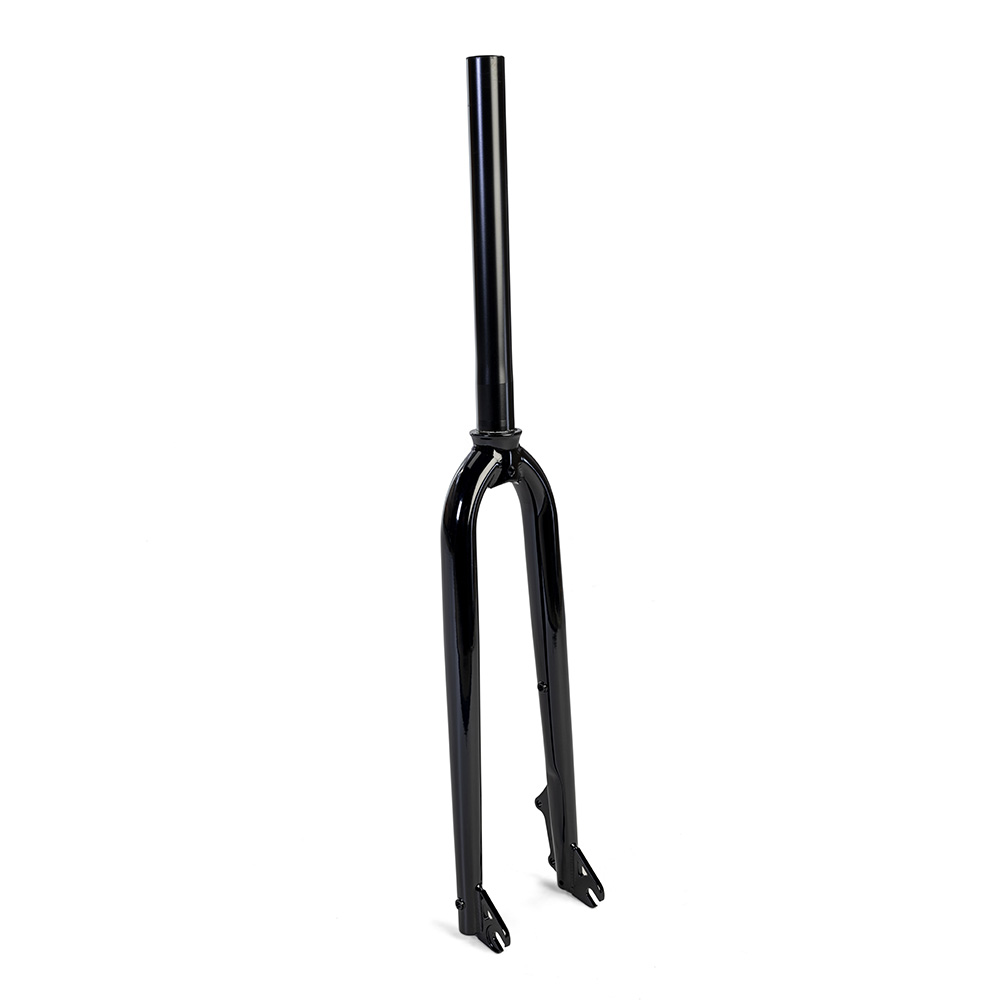

FFX-45 Disc 700C Fixie Fork

A Disc variation on our original hardcore Fixie fork in strong and lightweight heat-treated Cr-Mo steel.

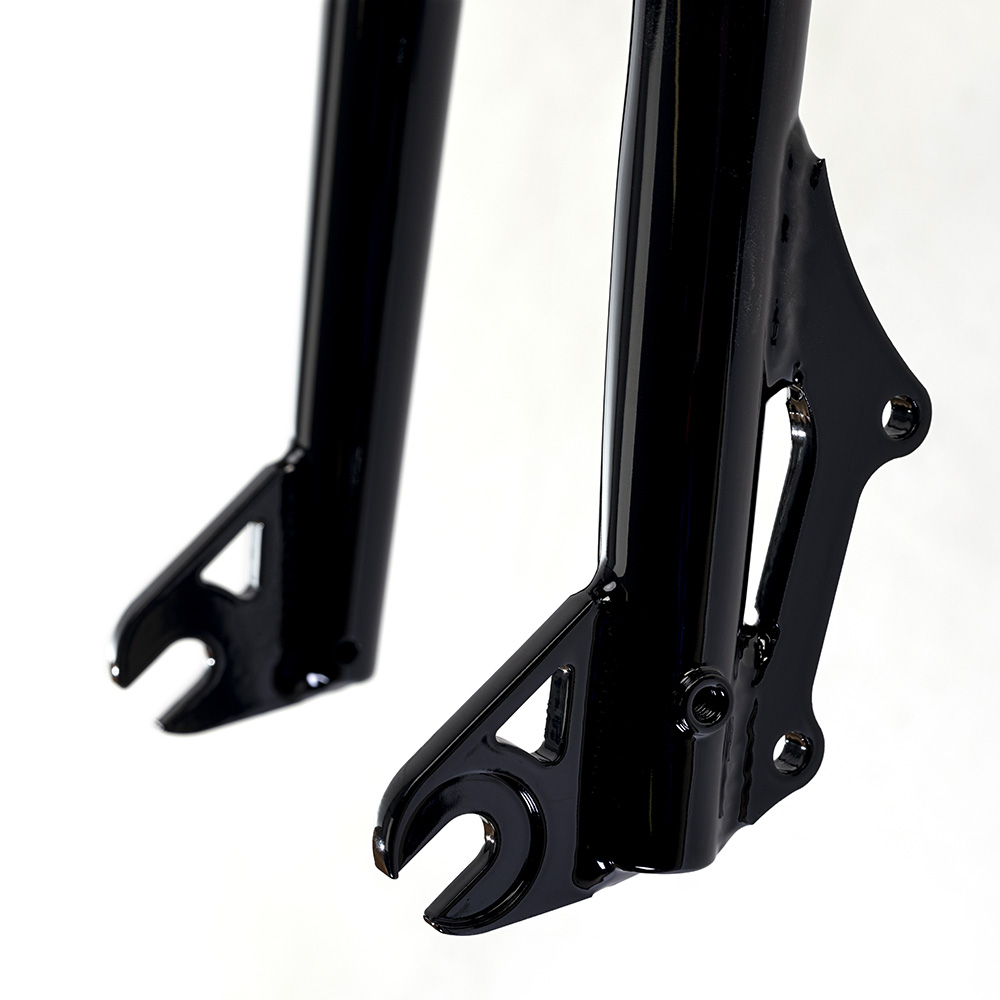

True tracking single butted and tapered straight legs with BMX style CNC machined tig welded dropouts.

Includes 'hidden' mid-blade, and outside lower leg, M6 threaded inserts for fitting mudguards, racks and other accessories (or not).

ED coated (inside & out) for corrosion resistance before gloss paint is applied.

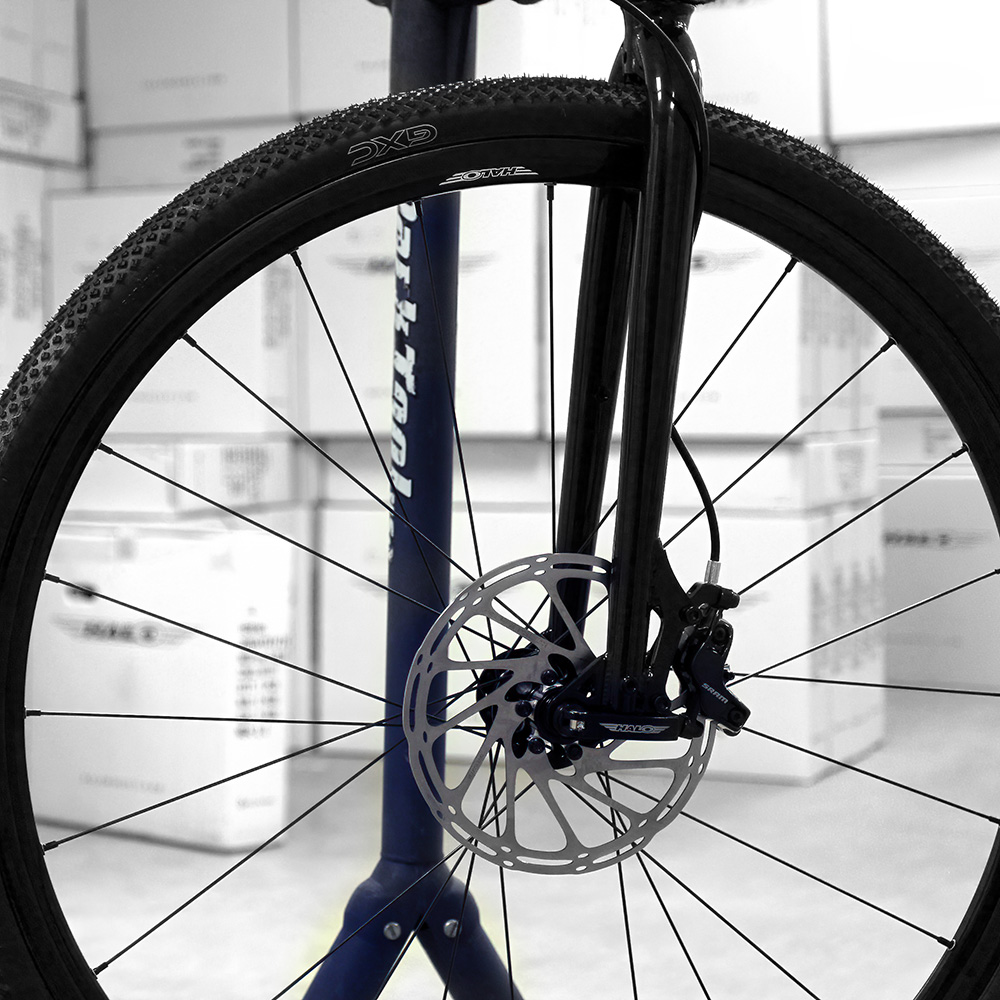

Can be used with either a recessed bolt type rim brake caliper or an IS Disc brake to keep you legal on the street

Rim brake requires a 43-57mm drop recessed bolt type caliper.

Non-disc brake version also available

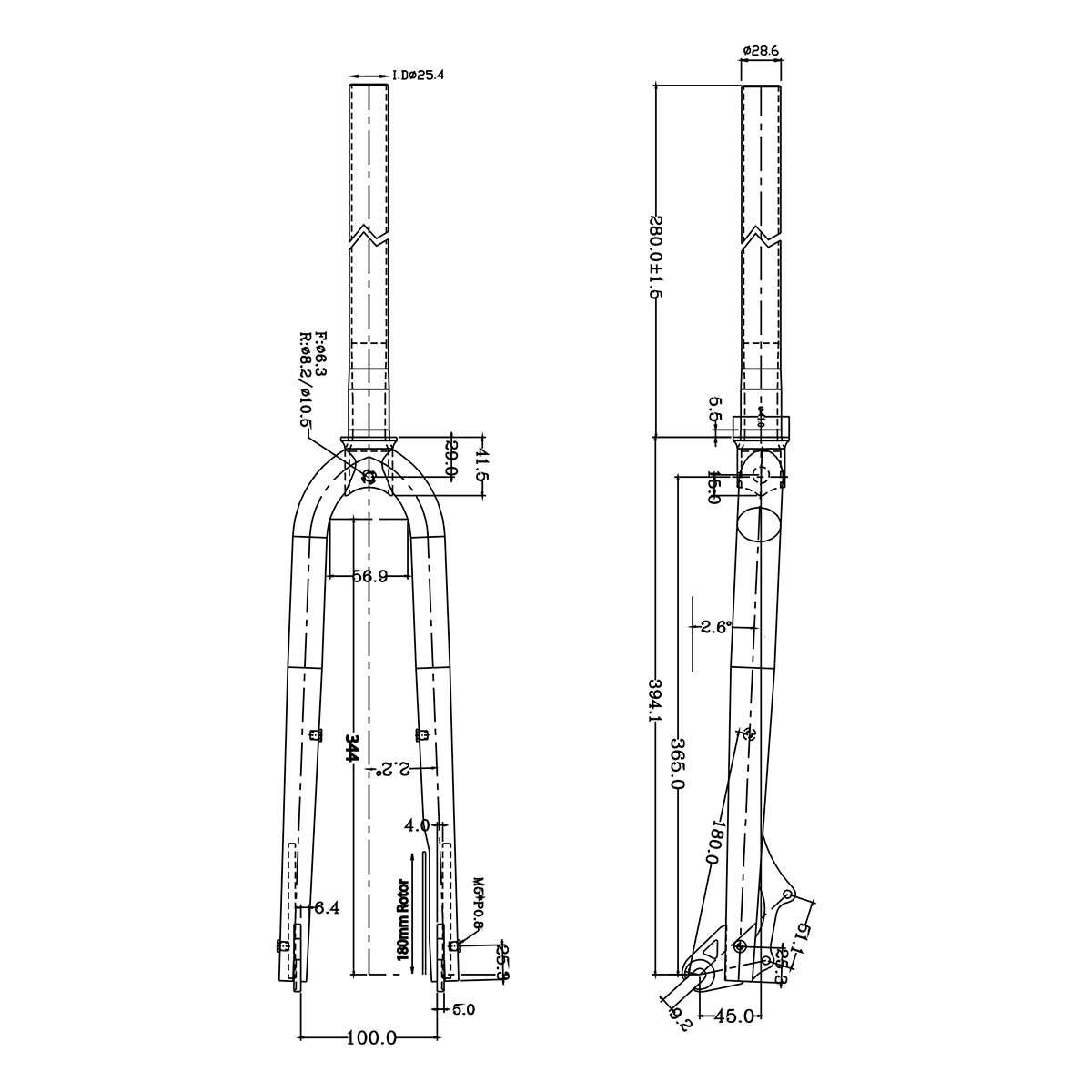

Specifications

  • Axle to Crown Measurement 393mm
  • Steerer Straight 1 1/8th x 280mm
  • Brake Mount IS standard disc or recessed bolt type caliper
  • Rake 45mm
  • Dropouts 100 x 9mm slotted with safety lip (for QR type hub or nutted 9mm track hub)
  • Max Rotor Size 180mm
  • Tyre Clearance 700 x 42 or 650 x 47
  • Colour ED finish under high gloss black paint

Click image to enlarge
Information

To find out where to buy  Click Here

Description Colour Size Wt(g) Part No. Stock Lvl RRP Pack Unit
FFX-D 700c Fork, Fixie Disc - Cr-Mo,9mm D/Outs,45mm Rake, A-C 393mm 280mm steerer.Black11/8"1190FKITFD74K£129.99Pair
  • Good stock levels
  • Low stock levels, Qtys may not be available
  • +24h Components are available, add 24/48hrs for assembly
  • Special Order Currently non-stock item, contact us for info
  • Out of stock. Expected availability date will be displayed if known.
  • Discontinued. This product is no longer available.
  • M Mixed Quantity discount available
Description Colour Size Wt(g) Part No. Stock Lvl RRP Pack Unit
FFX-D 700c Fork, Fixie Disc - Cr-Mo,9mm D/Outs,45mm Rake, A-C 393mm 280mm steerer.Black11/8"1190FKITFD74K£129.99Pair
