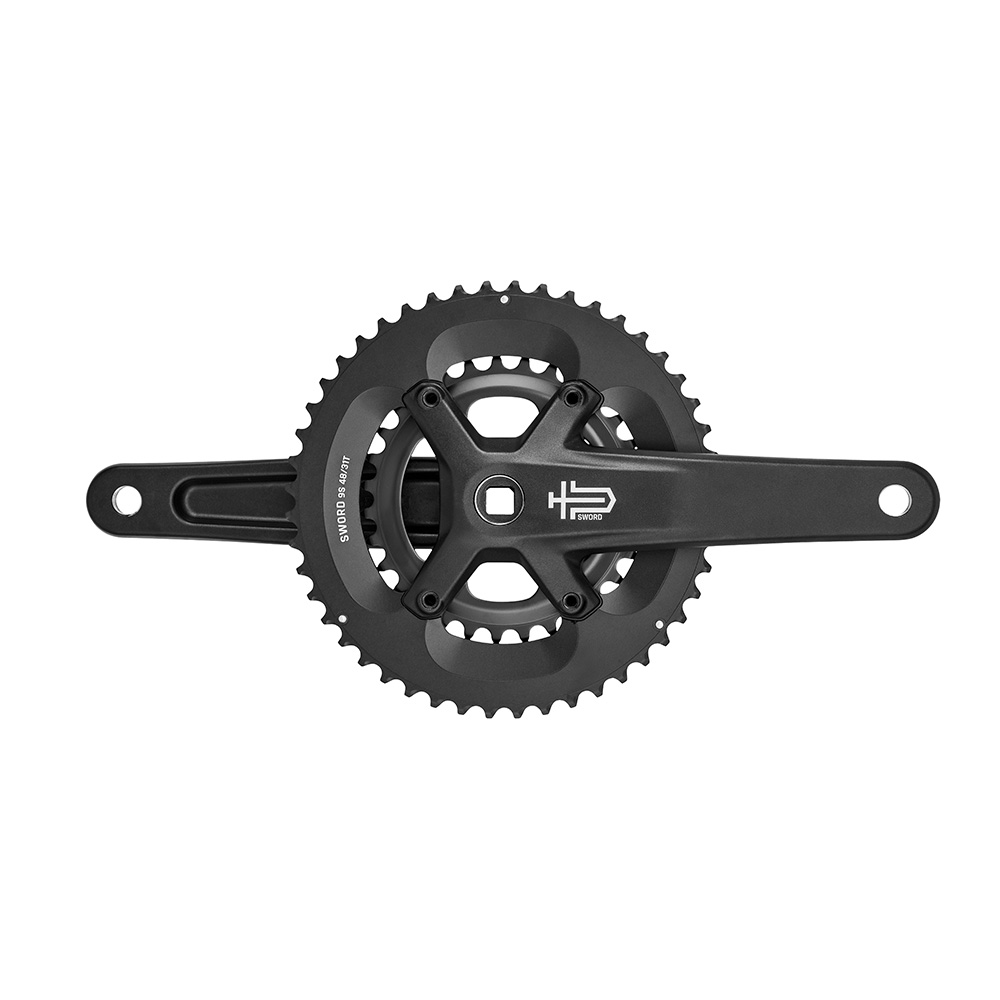

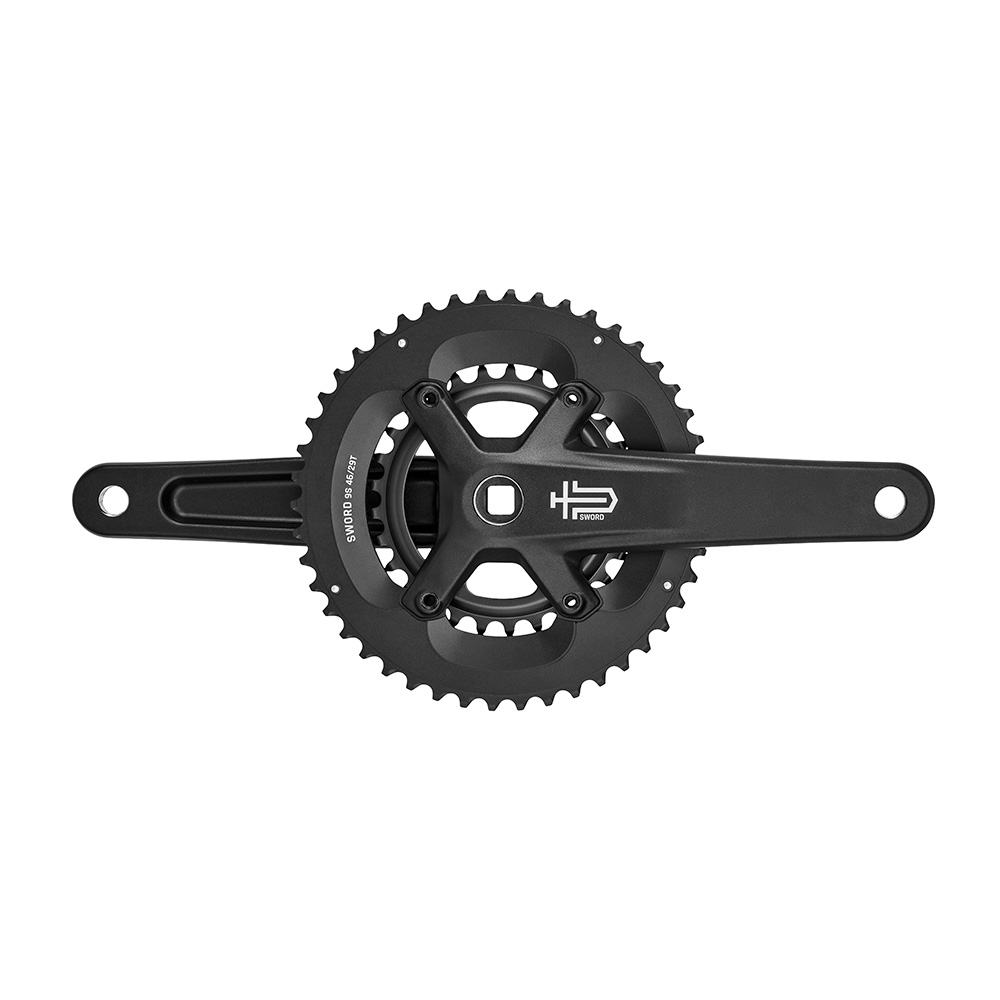

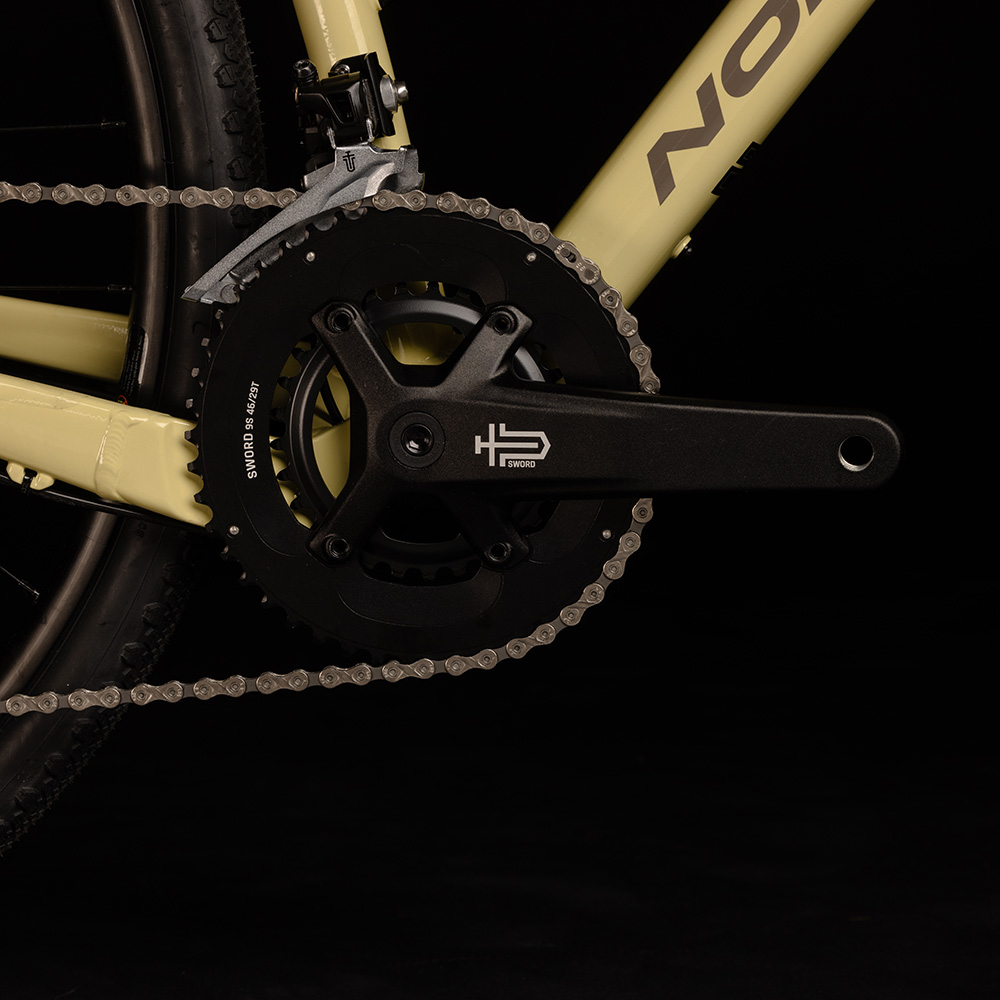

Sword Black 2x Crankset

The Sword Black 2x crankset is designed for climbing. The two chainrings have a 17t gap between them, so you get a lower gear range than competitive cranks while still having high gears to push the pace downhill.

Sword Black cranks are suitable for use with a square taper bottom bracket axle (not included).
This crank uses the same chainring standards as the original Sword, but adds a new lower price point. Easy to convert from a 2x to a 1x crank by installing a single chain-retaining ring in the outer position

Features

• Wide design optimised for 47mm chainline
• Compatible with square taper bottom brackets
• Exceptional value
• Wider gear range designed to work with Sword front derailleur and shifters
• Easy conversion from 2x to 1x

Specifications

• Chain Width: 9 Speed
• Chainring Count: 2x Double
• Chainrings: 46/29T or 48/31T
• Chainring Material: Steel small ring, Aluminum big ring
• Chainline: Wide 47mm
• BCD: 110/80 Asymm.
• BB Type: Square Taper 68x113mm
• Chainline: Wide 47mm
• Arm Lengths: 165, 170, 172.5, 175

microSHIFT/Ison Part Numbers

• FC-G7900-4665 - CKMSG79665- 165mm, 46-29T
• FC-G7900-4670- CKMSG79670- 170mm, 46-29T
• FC-G7900-4672 - CKMSG79672- 172.5mm, 46-29T
• FC-G7900-4675 - CKMSG79675- 175mm, 46-29T
• FC-G7900-4865 - CKMSG79865- 165mm, 48-31T
• FC-G7900-4870 - CKMSG79870- 170mm, 48-31T
• FC-G7900-4872 - CKMSG79872- 172.5mm, 48-31T
• FC-G7900-4875 - CKMSG79875- 175mm, 48-31T
