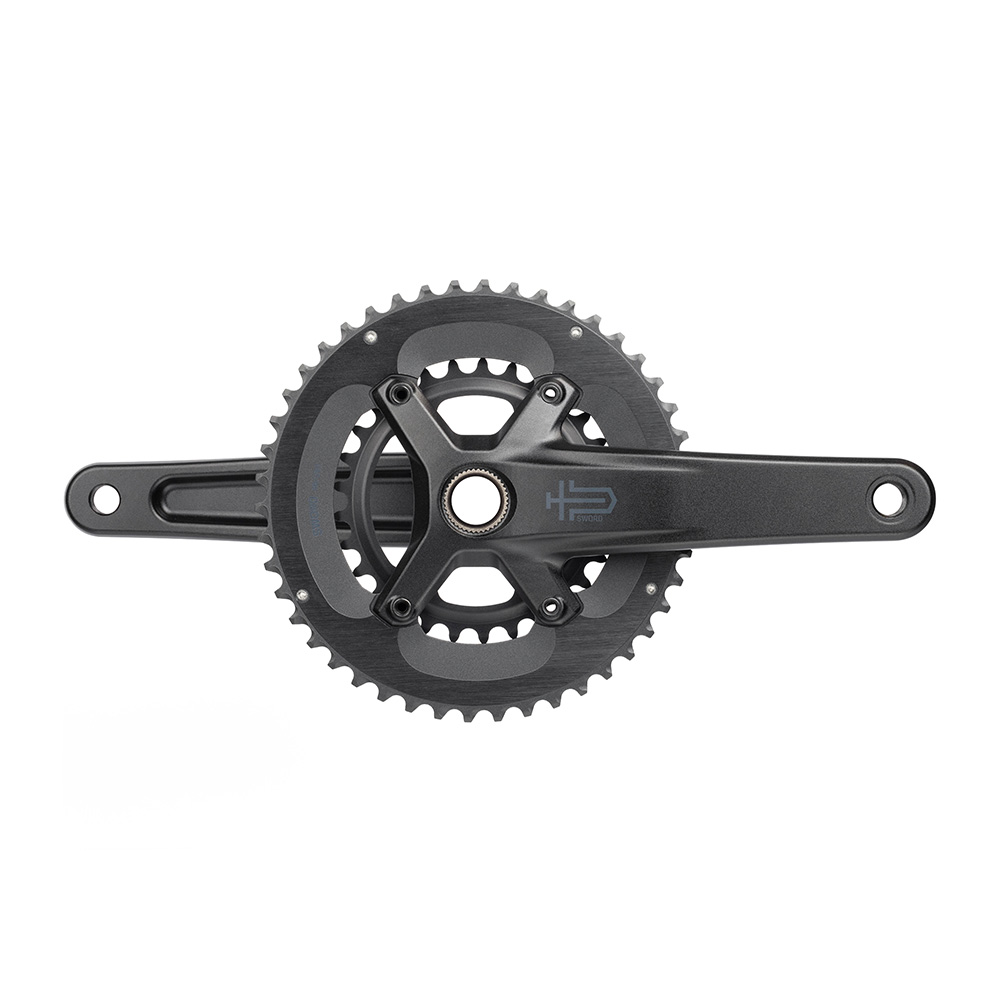

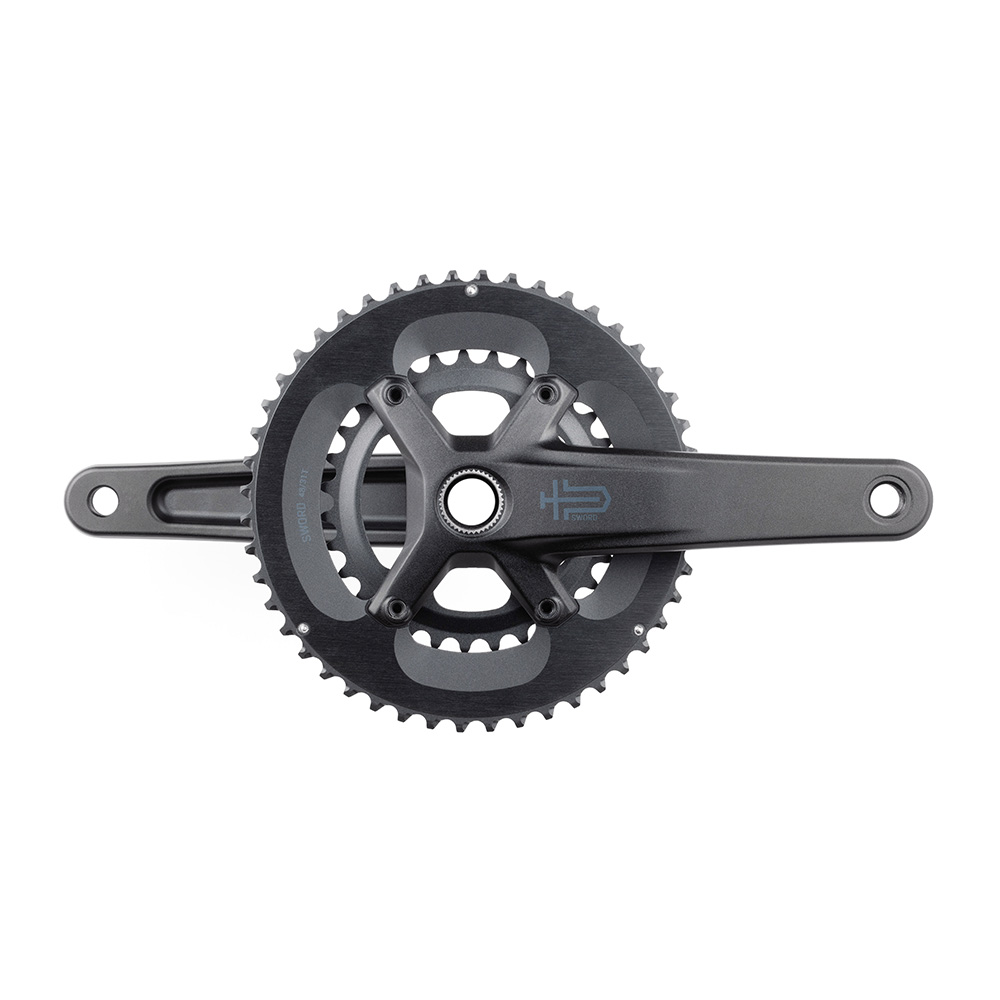

Sword 2x Crankset

The Sword 2x crankset is designed for climbing. The two chainrings have a 17t gap between them, so you get a lower gear range than competitive cranks while still having high gears to push the pace downhill. And it’s designed to be as compatible and easy to own as possible: the 24mm spindle is compatible with a ton of aftermarket bottom brackets, and it’s easy to convert from a 2x to a 1x crank by installing a single chain-retaining ring in the outer position

Features

• Wide design optimised for 47mm chainline
• 24mm spindle compatible with Shimano bottom brackets
• Wider gear range designed to work with Sword front derailleur and shifters
• Easy conversion from 2x to 1x

Specifications

• Group: Sword
• Speed: 10-Speed
• Chainring Type: 2x Double
• Chainring Size: 46-29T or 48-31T
• Chainring Material: Steel inner, Aluminum outer
• Chainline: Wide 47mm
• Chainring BCD: 110/80 Asymmetric
• Arm Length: 165mm, 170mm, 172.5mm, 175mm
• Spindle: Standard 24mm
• BB Shell Width: Press Fit 86.5mm or Threaded 68mm
• Weight: 925g (172.5mm)

microSHIFT/Ison Part Numbers

• FC-G7000-4665 - CKMSG74665 - 165mm, 46/29T
• FC-G7000-4670 - CKMSG74670 - 170mm, 46/29T
• FC-G7000-4672 - CKMSG74672 - 172.5mm, 46/29T
• FC-G7000-4675 - CKMSG74675 - 175mm, 46/29T
• FC-G7000-4865 - CKMSG74865 - 165mm, 48/31T
• FC-G7000-4870 - CKMSG74870 - 170mm, 48/31T
• FC-G7000-4872 - CKMSG74872 - 172.5mm, 48/31T
• FC-G7000-4875 - CKMSG74875 - 175mm. 48/31T
