Centerlock Adaptor

If your hubs feature the Shimano Centerlock splined interface rotor mounting system and you want to be able to use traditional 6 bolt type rotors, this simple to use adaptor kit allows you to do so.

Features

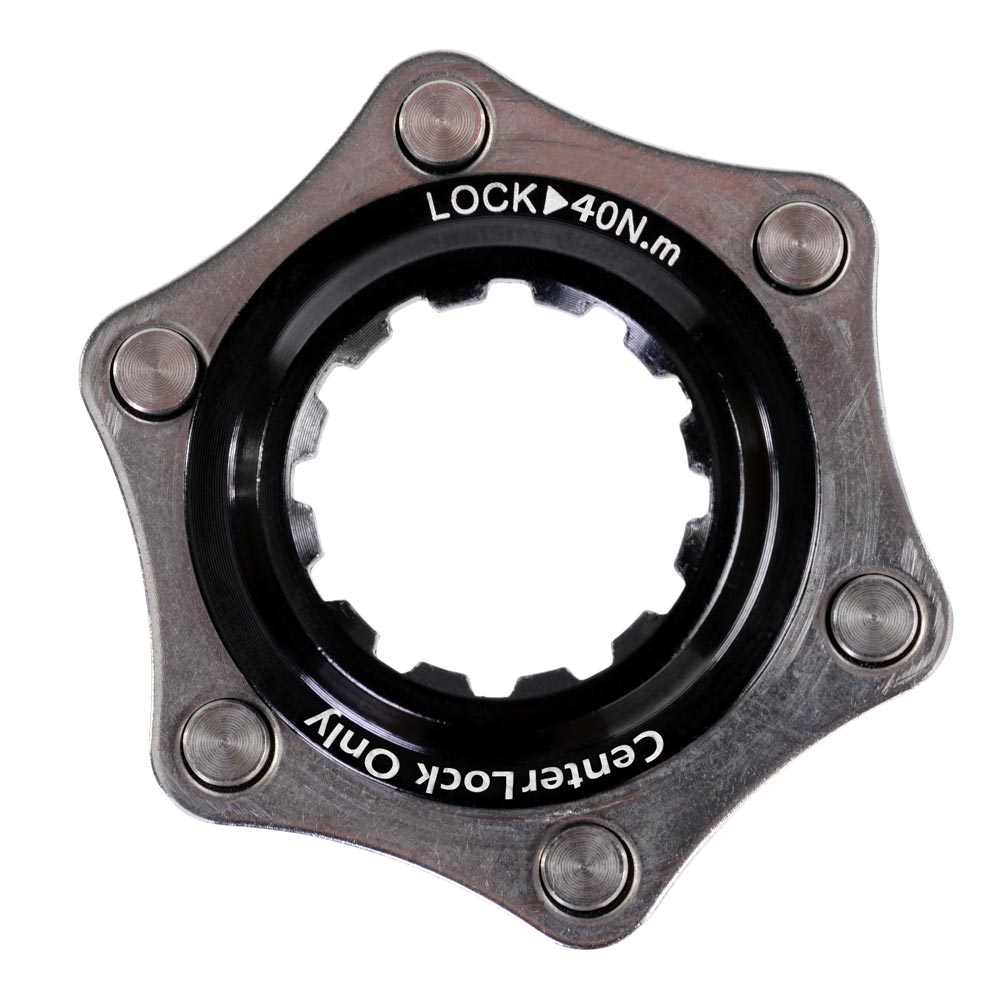

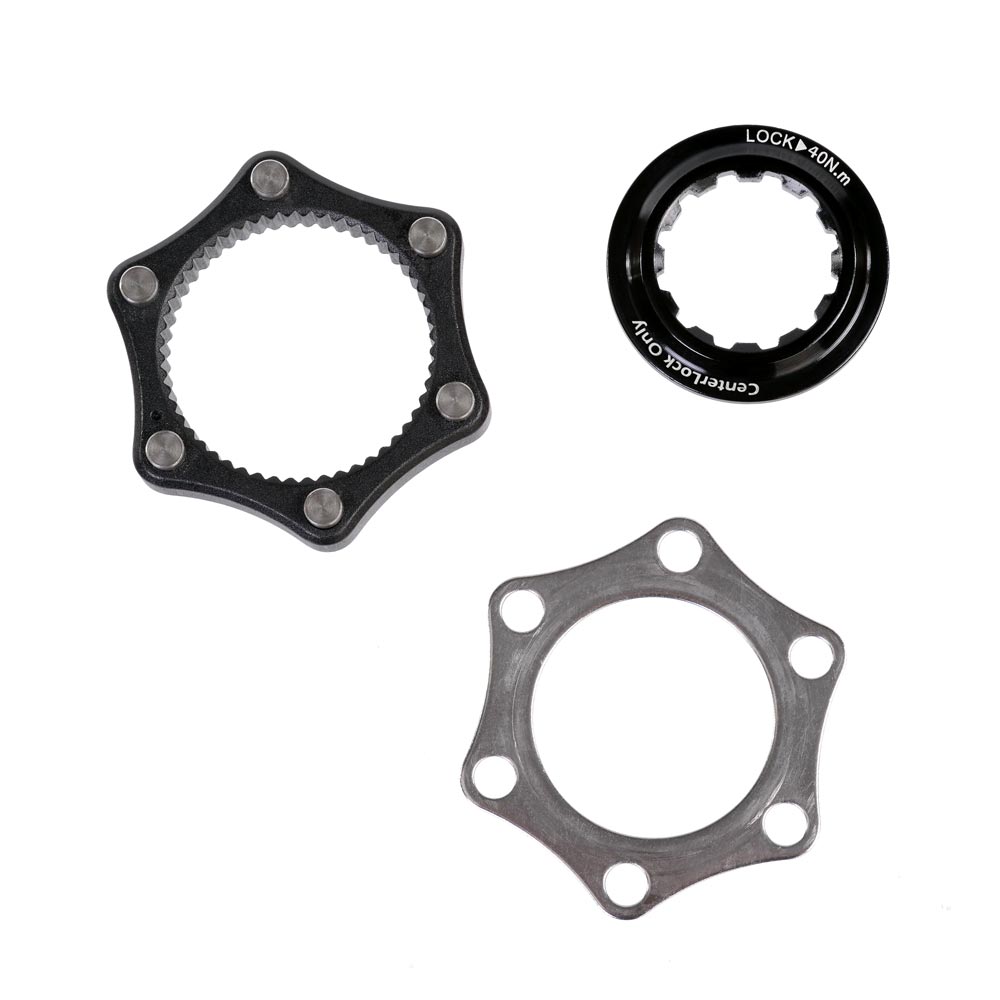

Lightweight alloy body with splined interface and 6 fitted stainless pins with a stainless washer and an alloy lockring allows the quick removal of the rotor simply by releasing the low-profile alloy lockring with a standard HG type cassette lockring tool.

Specifications

  • Material 6061 alloy body and CNC lockring, with stainless pins and washer.
  • Hub Fitting Shimano Centerlock splined.
  • Max hub axle 19mm outer axle diameter.
  • Tool required HG type cassette lockring tool.
  • Max Torque 40Nm.
  • Rotor Fitting IS (International Standard) 6 bolt type
  • Rotor required Stainless IS 1.8mm minimum to 2.3mm maximum.
  • Max rotor size 180mm Diameter.



Note:

To allow access for the conventional HG type lockring tool, this set is designed to only be used in conjunction with hub axle ends with a maximum outer diameter of 19mm.  (Halo RD2 and GXC hubs are compatible.)

IMPORTANT SAFETY NOTICE:

Although they may appear to be very similar - the threads on HG cassette lockrings are different to those on the Centerlock brake lockring threads. Both lockrings use the same HG tool for fitting but DO NOT attempt to interchange HG and Centerlock lockrings - as irreparable damage will be caused to threads and critical brake safety parts will fail.

Halo Centerlock Adaptor
Halo Centerlock Adaptor
Click image to enlarge

To find out where to buy  Click Here

Description Colour Size Wt(g) Part No. Stock Lvl RRP Pack Unit
Centerlock Converter, Centerlock disc hubs to IS 6-Bolt fitting. Alloy and Stainless.BlackCL to IS38BDHACLA£11.99Each
  • Good stock levels
  • +24h Please allow 24/48 hrs for assembly
  • Special Order Currently not in stock, contact us for details
  • Out of stock. Expected availability date will be displayed if known.
  • Discontinued. This product is no longer available.
Description Colour Size Wt(g) Part No. Stock Lvl RRP Pack Unit
Centerlock Converter, Centerlock disc hubs to IS 6-Bolt fitting. Alloy and Stainless.BlackCL to IS38BDHACLA£11.99Each
