Pro Air Lift Bike Repair Stand

Introducing the world’s first lightweight and portable air lift bike repair stand.

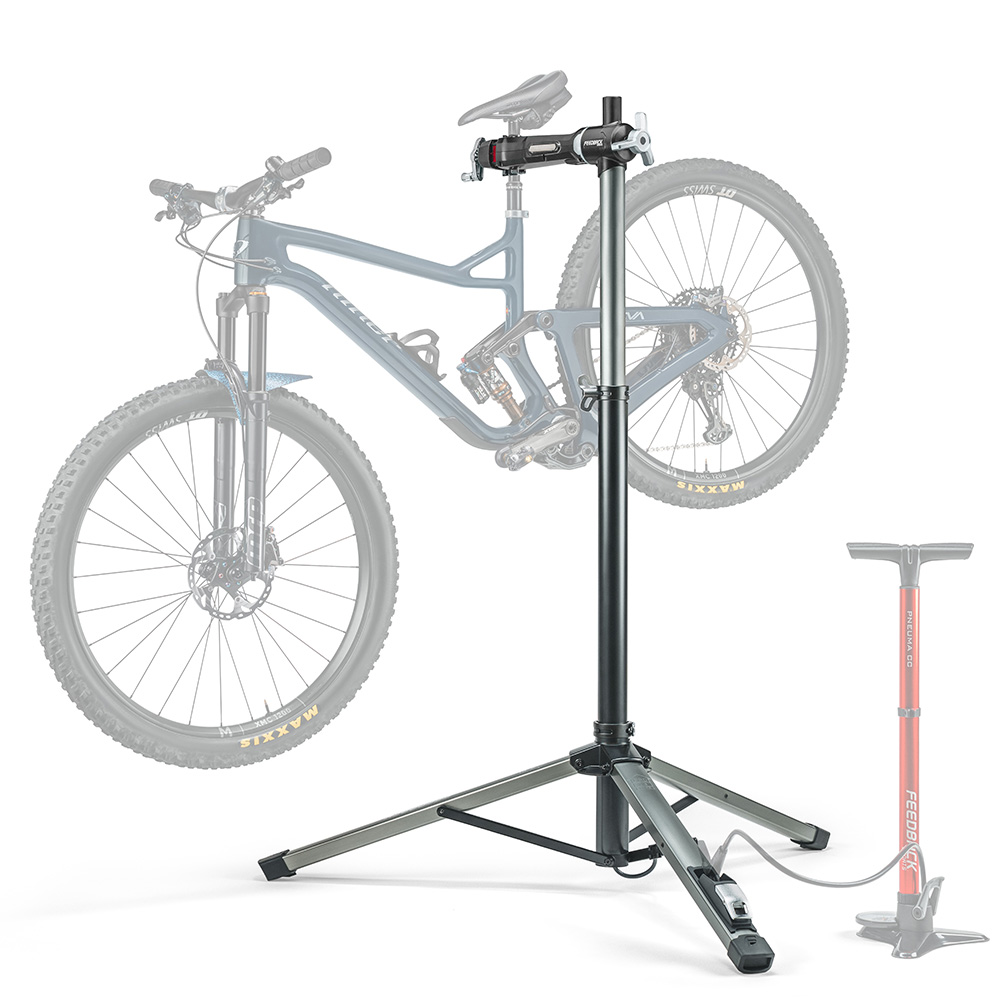

The Pro Air Lift features a pneumatic lift column that can be pressurised with any air source to lift bikes up to 100 lbs. – no power source or batteries required. Use a floor pump or air compressor to quickly and smoothly raise your heaviest projects, then use the foot-activated air release valve to safely lower the bike.

Based on our proven, professional-grade aluminium tripod chassis and Speed Ratchet + Spinner Knob clamp head, the Pro Air Lift is ready for duty at home or out on the road, in any environment, rain or shine.

Features

• Fully portable, lightweight pneumatic lift bike repair stand uses air pressure to lift bikes up to 100 lbs. (45kg).
• Pressurise the lift column with a floor pump, electric pump, or air compressor to raise the bike up to a maximum 66.5" (169cm) height.
• Lightweight – only 17.9 lbs. / 8.1 kg.
• Compact – folded dimensions 8.6" x 6.9" x 45.4" / 218mm x 175mm x 1154mm.
• Versatile – use as a lift stand with an air pressure source, or use as a traditional repair stand.

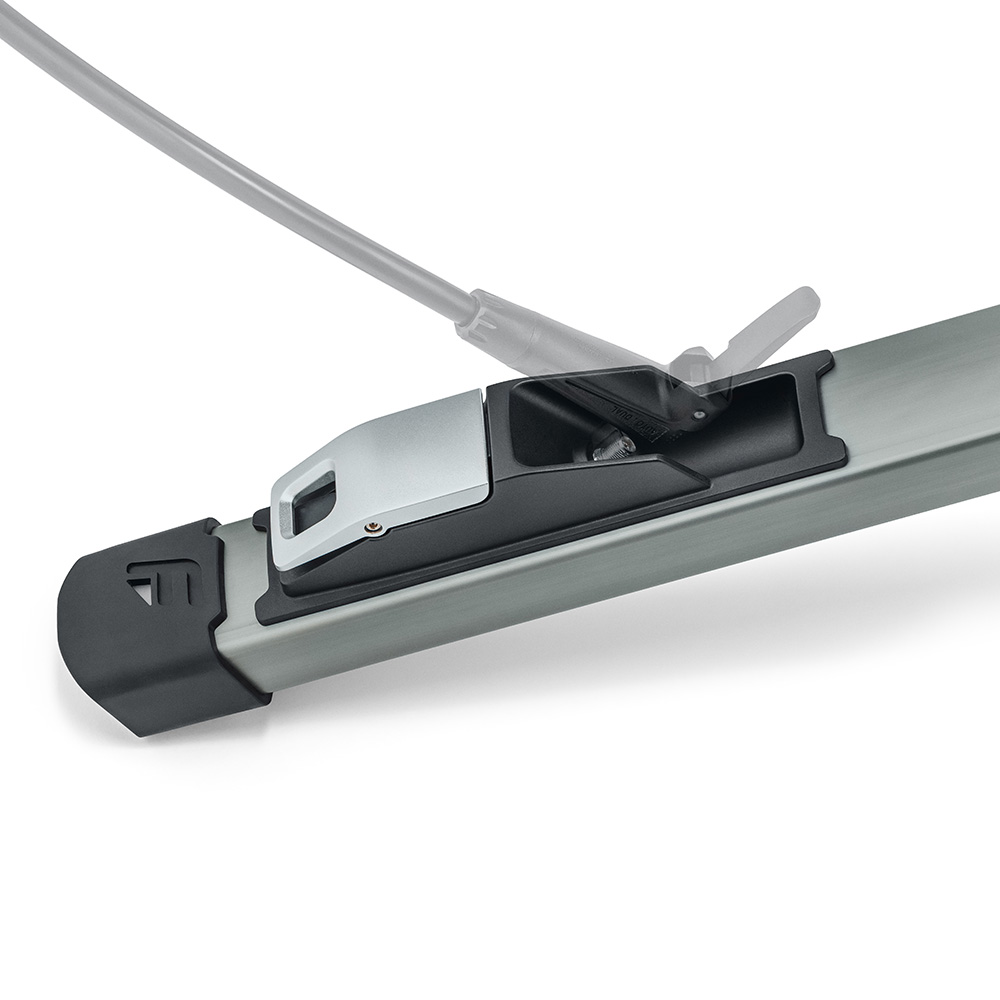

• Lower the bike with a foot-operated pressure relief valve integrated into the tripod leg.

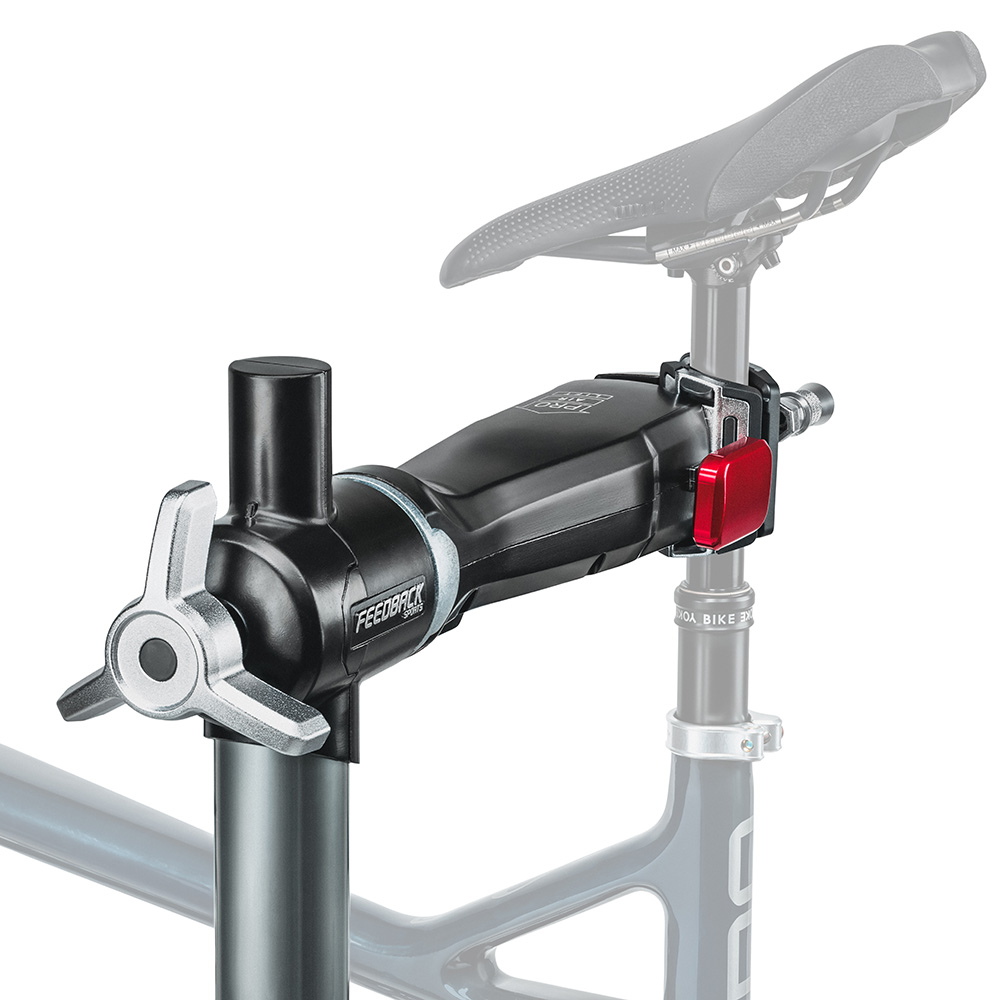

• Trusted and proven Speed Ratchet + Spinner Knob clamp jaw.
• Oversized rear tri knob and clutch body for secure 360-degree clamp arm rotation.
• Proven, oversized anodised aluminium chassis, metal fittings, and stable rubber tripod feet.
• Safety pressure relief ensures that the system cannot be over-pressurised.
• Compatible with floor pumps, electric pumps, and air compressors with a Schrader valve connection.
• Average lift time of a 60lb bike by pump type: Air Compressor at 90 PSI: 3 seconds; High Flow Floor Pump (600 CC volume per stroke): 12 seconds / 8 strokes; High Pressure Floor Pump (195 CC volume per stroke): 18 seconds / 24 strokes.
• No battery or electricity required to operate.
• Safe for use in wet environments, indoors and outdoors– ideal for washing bikes.
• Ships fully assembled.
• 3-Year Limited warranty.

_{*Maximum weight capacity assumes the stand is on level ground with the clamp jaw oriented directly over a tripod leg, and with the bike center of gravity positioned directly below the clamp head.}

Specifications

• Maximum Load Capacity 45Kg/100lbs
• Clamp Jaw Type Speed Ratchet + Spinner Knob w/Quick Release
• Clamp Jaw Capacity Maximum jaw opening 6.6cm
• Clamp Height Adjustment Range Minimum height 107cm, maximum height 170cm
• Maximum Clamp Height 170cm
• Tripod leg stance width 142cm
• Tube and Leg Fittings Quick release
• Materials Anodised aluminium clamp head, main tubes, and tripod legs
• Travel Bag Available separately
