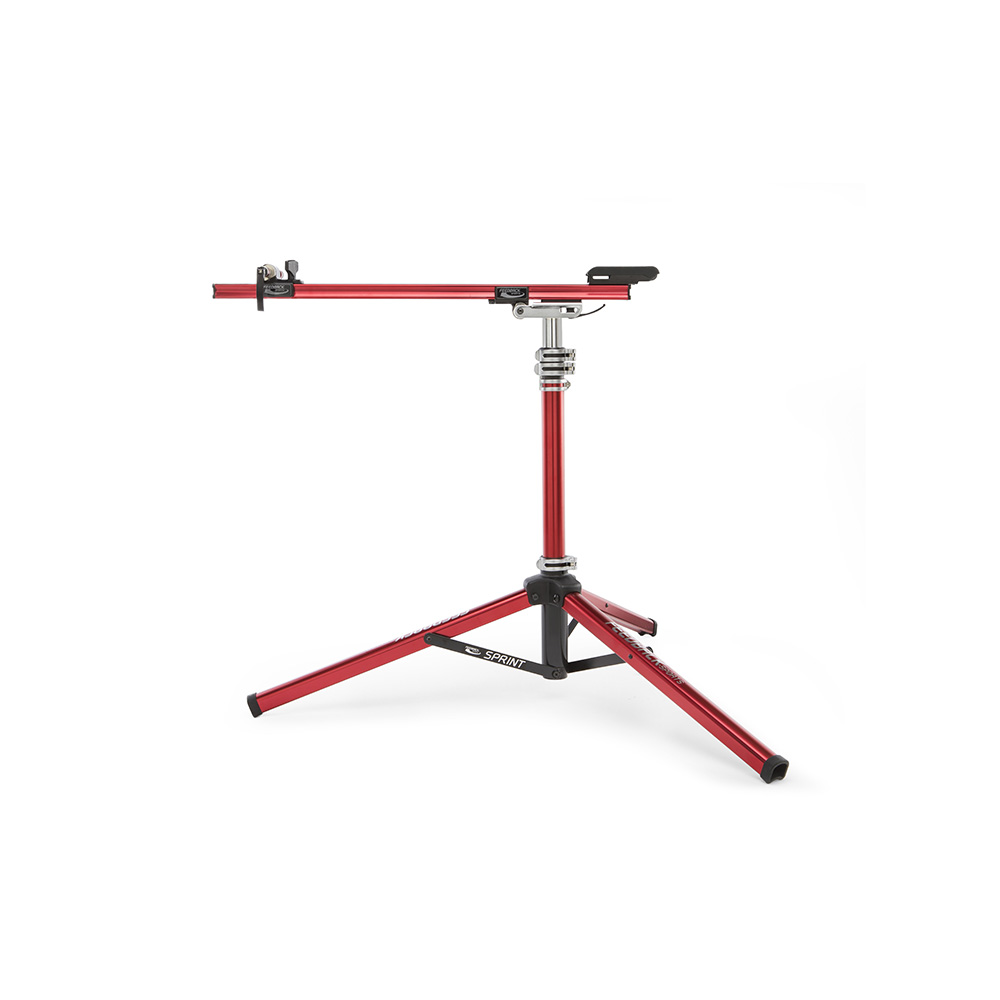

Sprint Bike Repair Stand

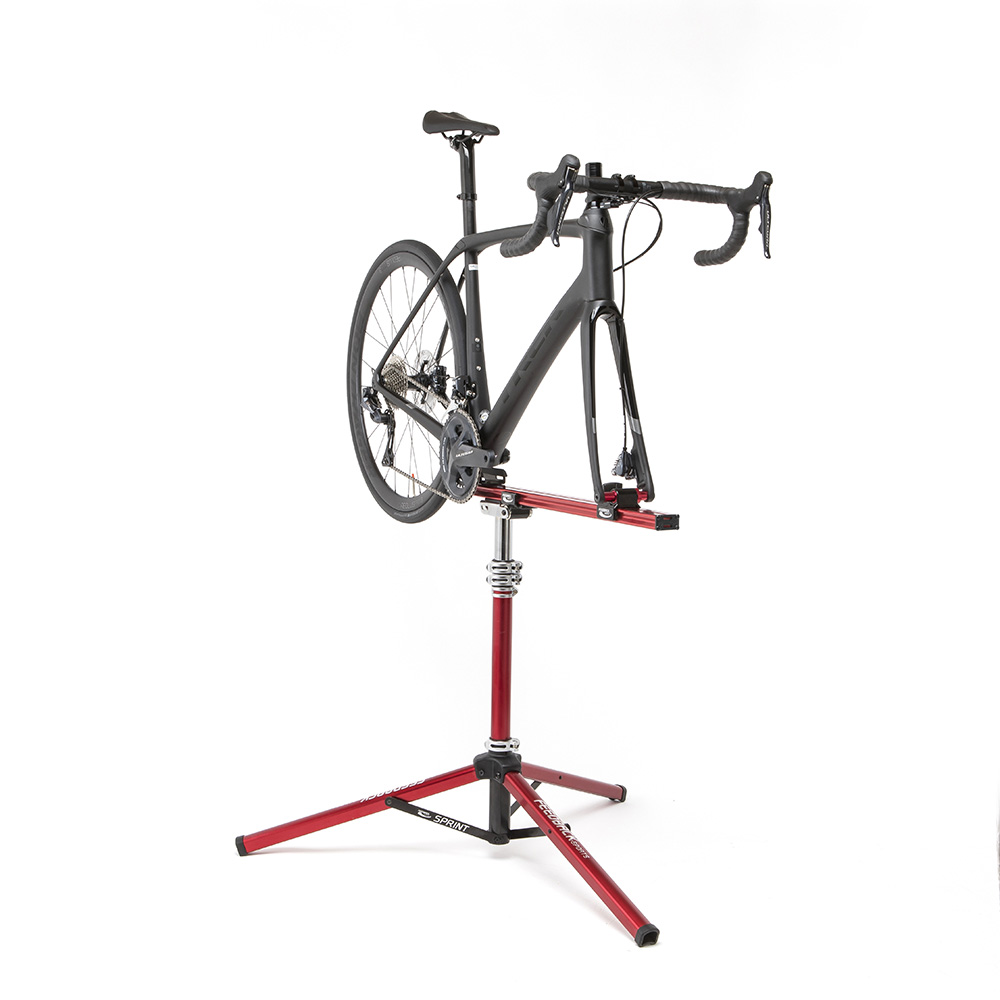

The Sprint dropout-style repair stand is simultaneously our most compact repair stand when folded and our most stable and versatile while in use. By fixing the bicycle by the dropouts, it holds the work project more securely than any other method. And, the mass of the bike is directly centred over the tripod base for exceptional stability.

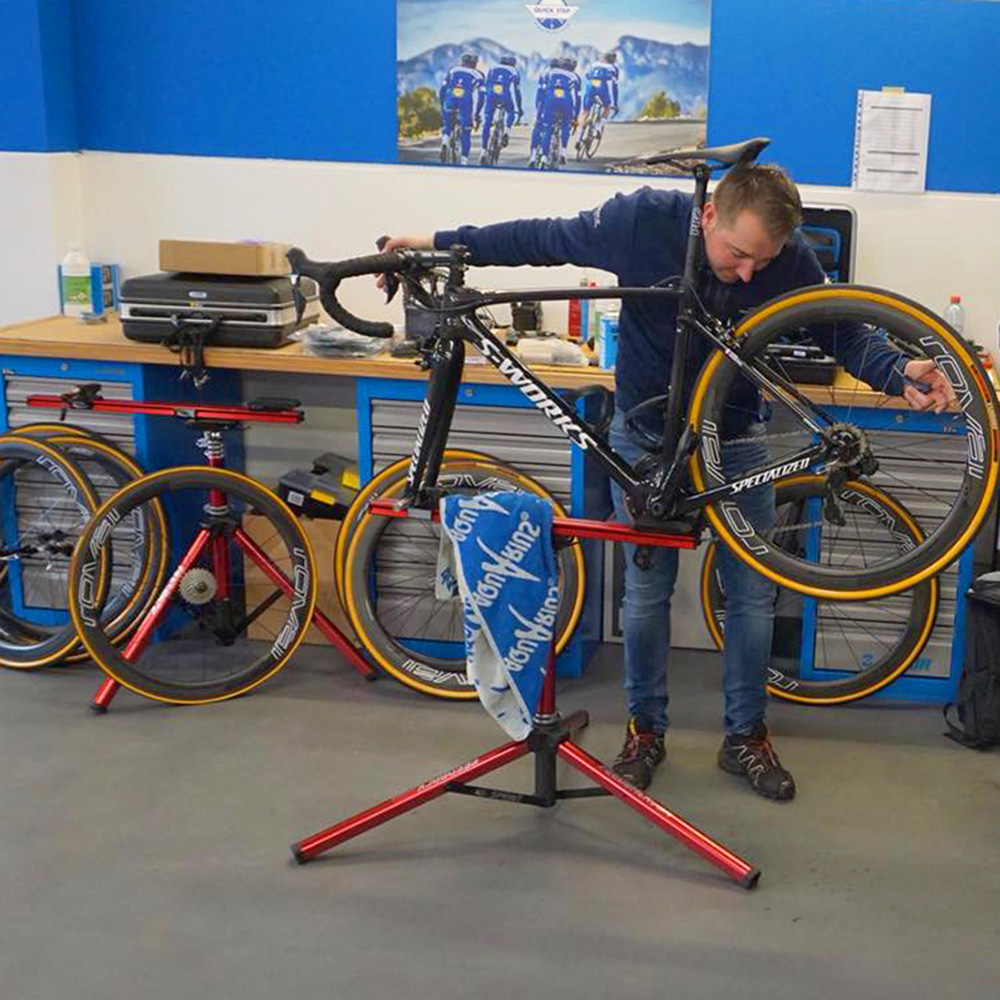

This is why so many Tour de France and professional mechanics rely on dropout-style bike repair stands. The Sprint quickly adapts to any bike, quickly and easily, and provides a wobble-free platform for precision work. Plus, the rotating platform means the bike moves while the mechanic stays put – the Sprint stand is all about efficiency for wrenching and washing.
Features

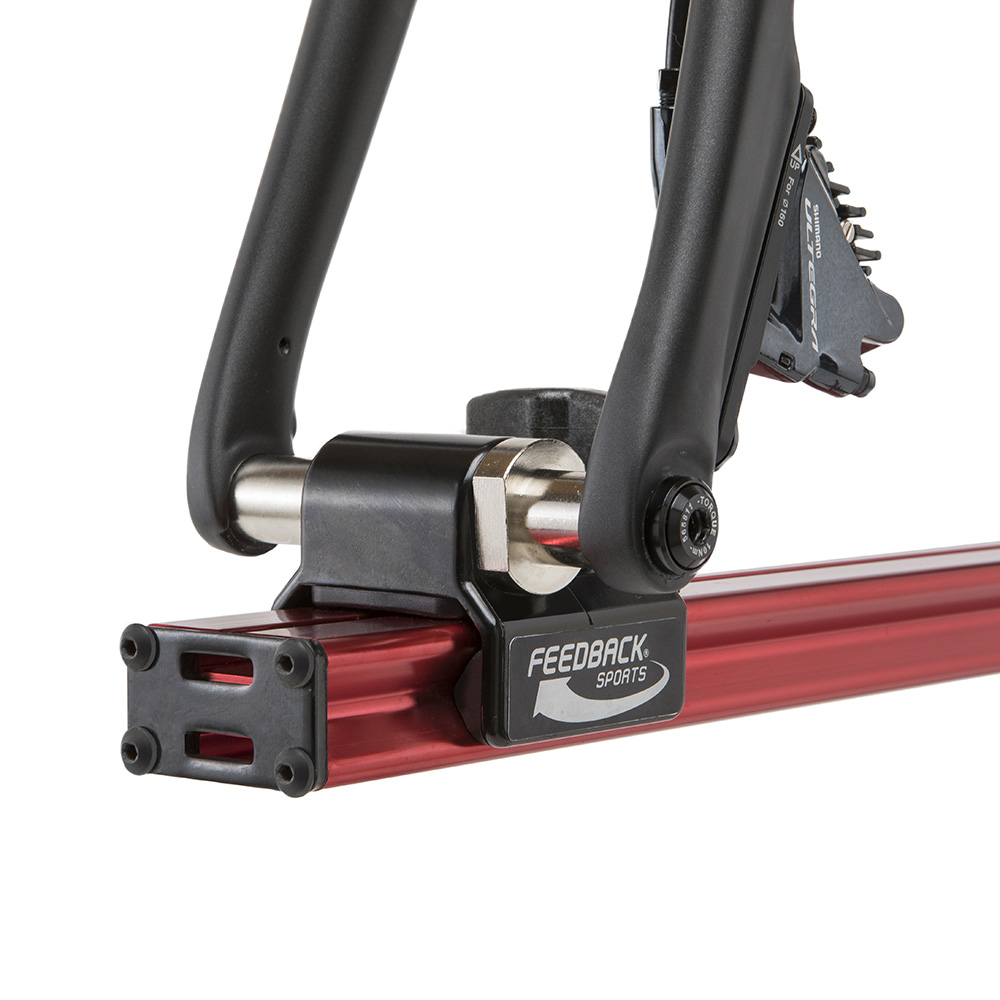

- Fork or rear dropout-style mounts create the most rigid bike-to-stand connection.
- Ideal for road and triathlon bikes with aerodynamic frame tubes and seatposts.
- 360-degree rotating platform provides quick and easy access to any aspect of your frame while you stay close to your tools.
- Adaptable to quick-release and thru-axle frame standards.
- Precision mounts protect the structural integrity of your frame and provide maximum stability.
- Included frame and fork adapters: Quick-Release: 9×100 / 130 / 135mm; Thru Axle: 12x100mm / 142mm / 148mm (Boost rear); Thru Axle: 15x100mm / 110mm (Boost Front)
- Anodised 6063 T6 aluminium construction is ultralight, corrosion-resistant and incredibly durable.
- Stiff tripod base and rubber-coated end caps create ultimate work stand stability, even on uneven surfaces.
- Optimised for bikes up to 40lbs (18.1kg) to accommodate service on road, cyclocross, mountain bikes, and some electric bikes. Maximum load capacity of 85lbs (39kg).

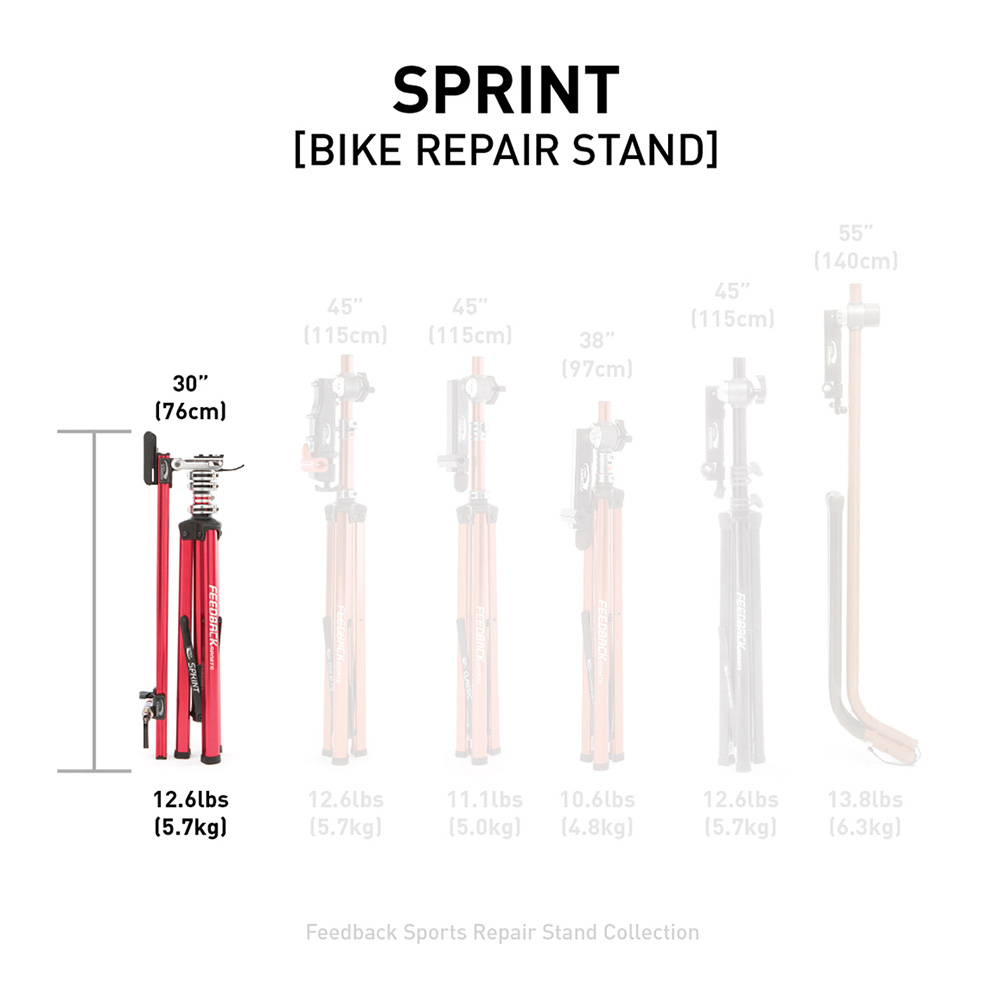

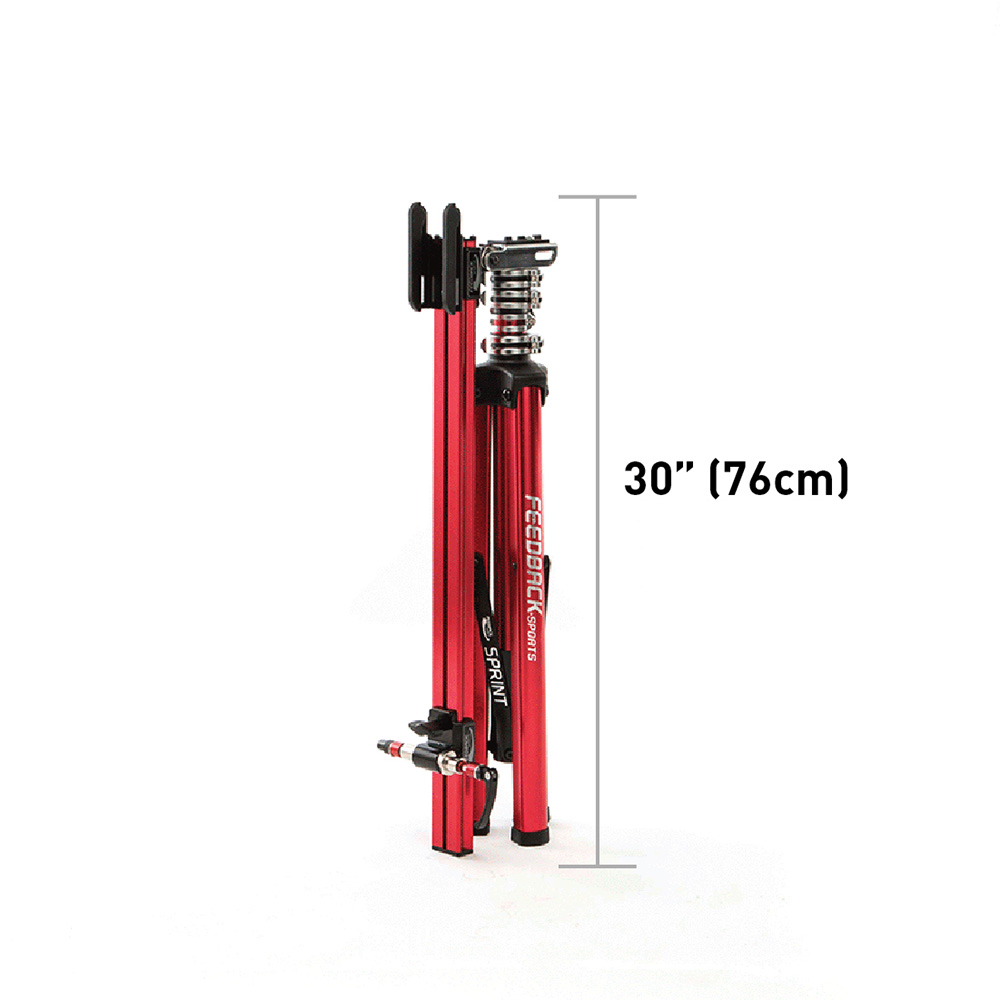

- Portable and compact construction creates a remarkably small folded footprint of 5" x 7.5" x 30" (13 x 19.1 x 76cm).
- Quick-release fittings make setup and storage fast and easy.
- At 12.0lbs (5.4kg), hitting the road with this stand is never in question.
- 3-year warranty.
Note - telescoping tube and tripod legs are not compatible or interchangeable with other Feedback stands, e.g., Pro Mechanic-style clutch bodies/clamp jaw arms.
Specifications
- Maximum Load Capacity 38.5Kg
- Clamp Jaw Type Dropout
- Clamp Jaw Capacity QR: 100/130/135mm T/A: 12x100/142/148, 15x100/110mm
- Clamp Height Adjustment Range 76cm-122cm/30"-48"
- Maximum Clamp Height 122cm
- Tripod leg stance width 115.5cm
- Tube and Leg Fittings Quick Release
- Materials 6063 Aluminum
- Travel Bag Optional
