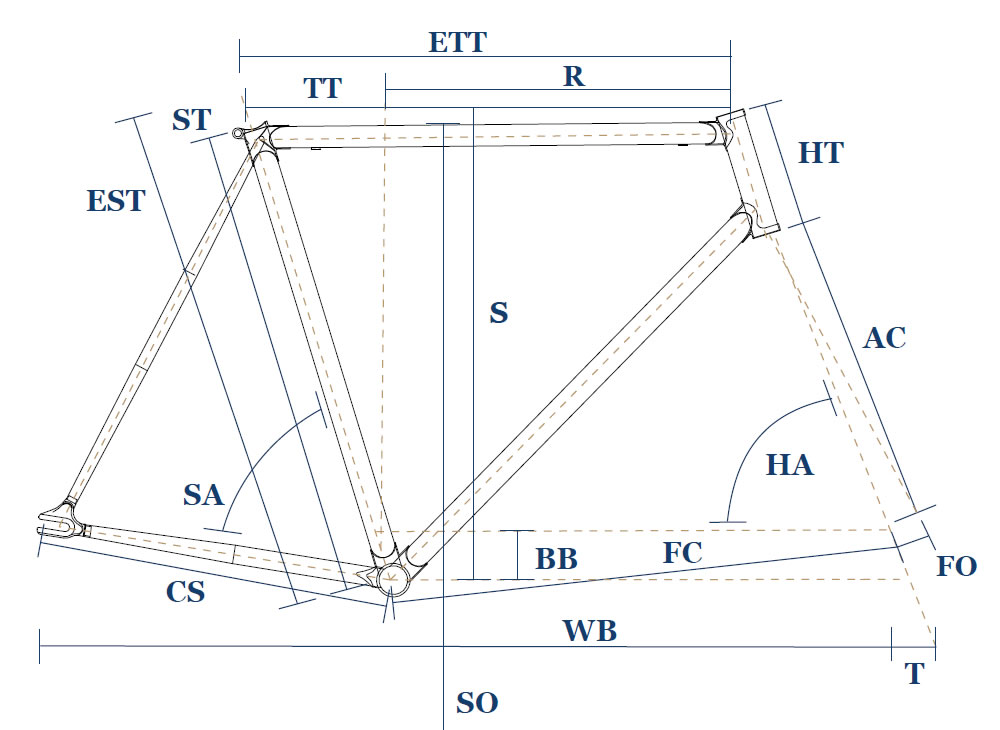

49cm | 53cm | 56cm | 59cm | 62cm | |
| Stack |
501
|
527
|
553
|
583
|
607
|
| Reach |
391
|
397
|
401
|
417
|
430
|
| Horizontal Top Tube (ETT) |
530
|
548
|
570
|
590
|
610
|
| Seat Tube (ST) |
490
|
530
|
560
|
590
|
620
|
| Effective Seat Tube (EST) |
519
|
548
|
578
|
608
|
633
|
| Actual Top Tube C2C (TT) |
527
|
547
|
569
|
589
|
610
|
| Chainstay (CS) |
410
|
410
|
410
|
410
|
410
|
| Bottom Bracket Drop (BB) |
63
|
65
|
65
|
70
|
70
|
| Seat angle (SA) |
74.5°
|
74°
|
73°
|
73.5°
|
73.5°
|
| Headtube (HT) |
100
|
120
|
145
|
170
|
195
|
| Headtube Angle (HA) |
71.5°
|
73°
|
73°
|
73.5°
|
73.5°
|
| Fork A-C (AC) |
50
|
50
|
45
|
45
|
45
|
| Fork Offset (FO) |
370
|
370
|
370
|
370
|
370
|
| Wheelbase (WB) |
996
|
995
|
1002
|
1020
|
1040
|
| Front Centre (FC) |
594
|
594
|
601
|
620
|
640
|
| Trail (T) |
59
|
50
|
55
|
52
|
52
|
| Standover (SO) |
747
|
773
|
806
|
831
|
858
|
| Max Tyre (without mudguards) |
28c
|
28c
|
28c
|
28c
|
28c
|
| Max Tyre (with mudguards) |
N/A
|
N/A
|
N/A
|
N/A
|
N/A
|
NB: Measurements in mm unless otherwise stated.
