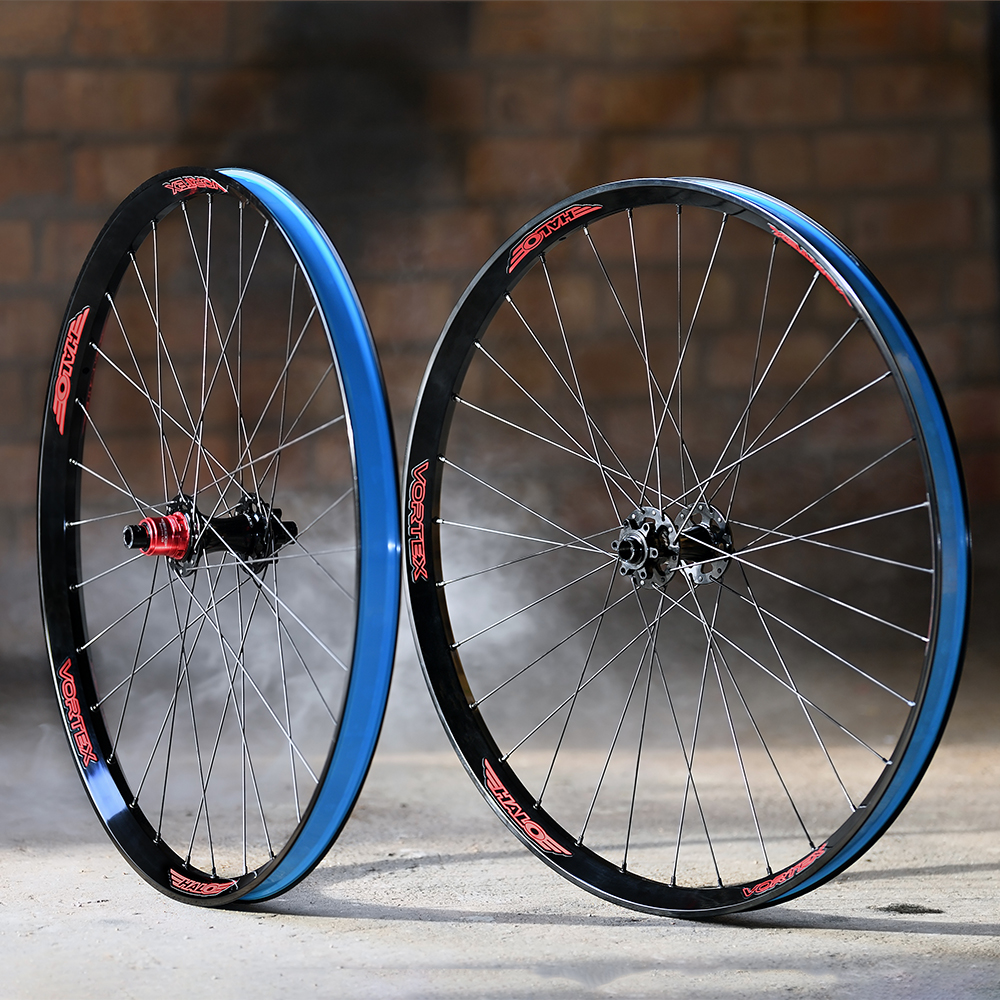

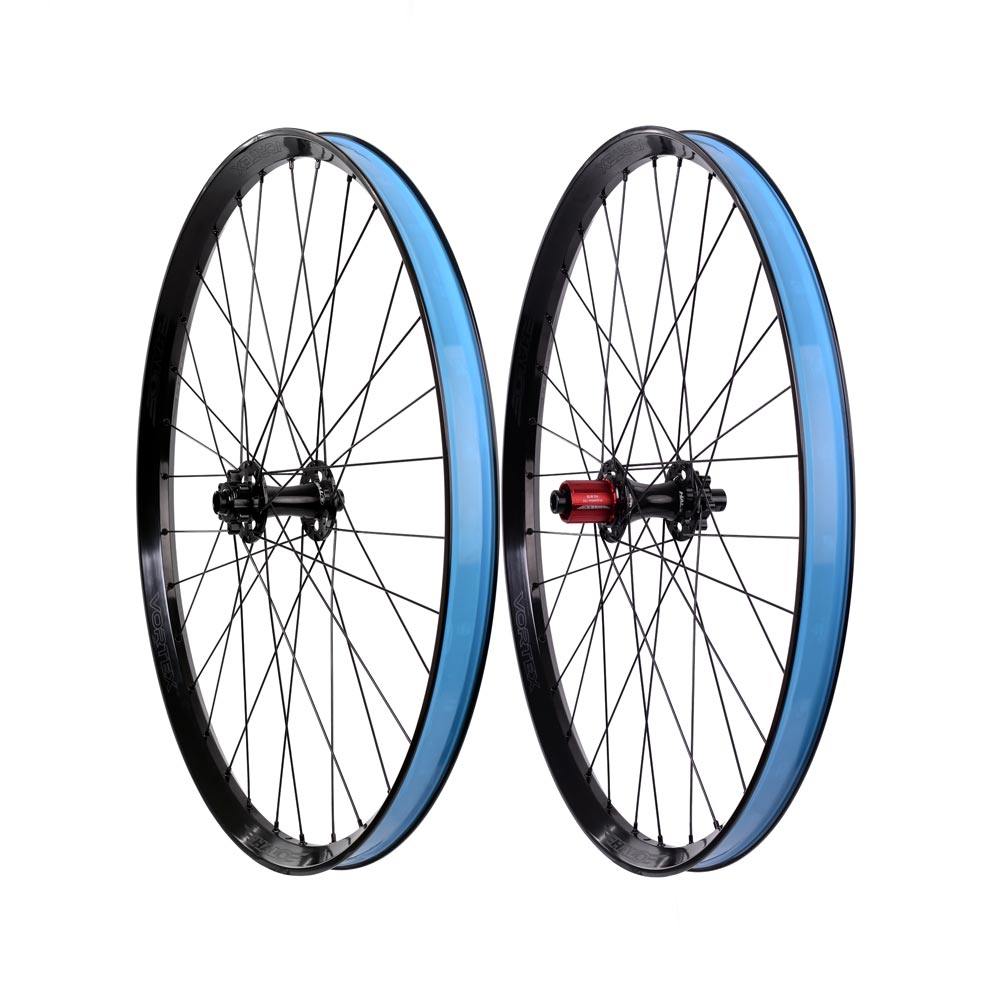

Vortex Wheels 27.5"

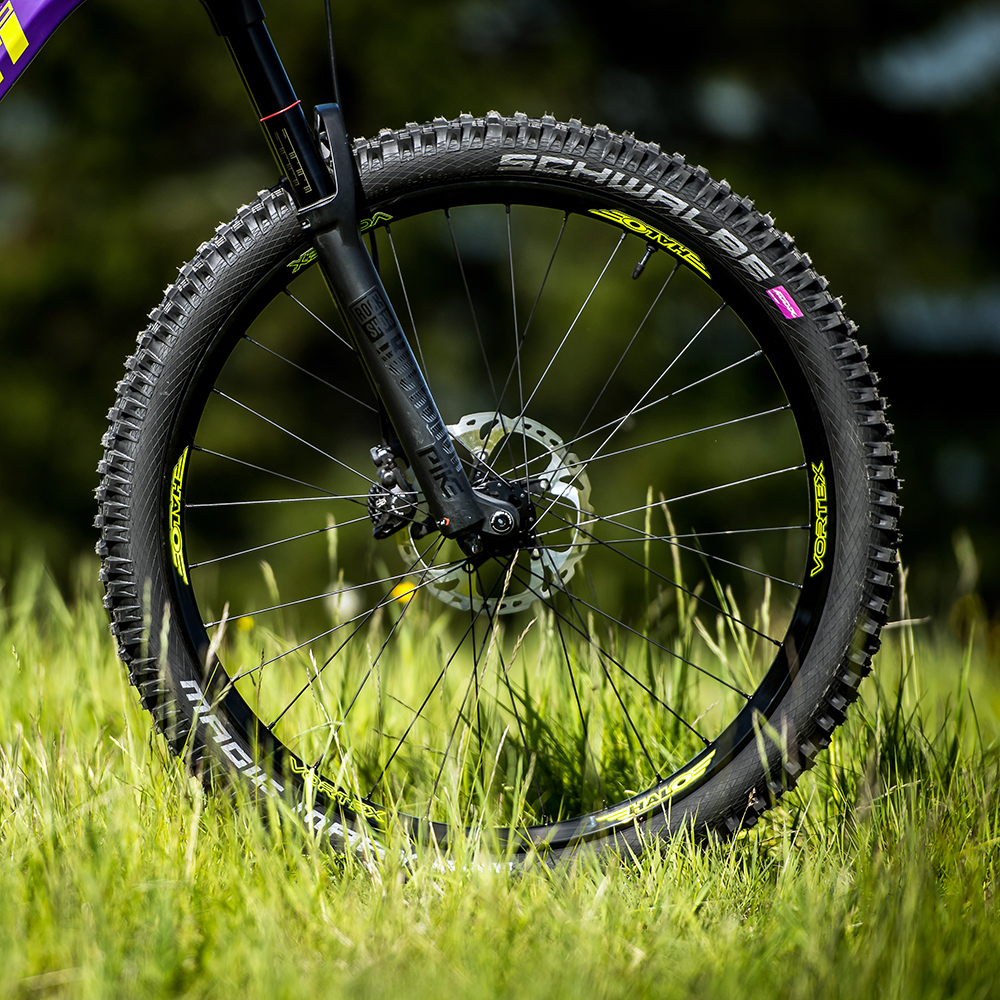

Built around the traverses of the Enduro World Series our Vortex wheels redefine what Enduro wheels are.

With a generous 33mm internal width Vortex wheels increase tyre volume and maximise the available grip on offer. Using an asymmetric design we have equalised spoke tensions and built a package that leaves descents in its wake, whilst cutting down weight where it isn’t needed for energy sapping climbs. To compensate for the differences in wall length and strength of an asymmetric design, the wall thicknesses have been proportioned to balance out impact forces equally. The Vortex offers offset wheel benefits, without compromise.

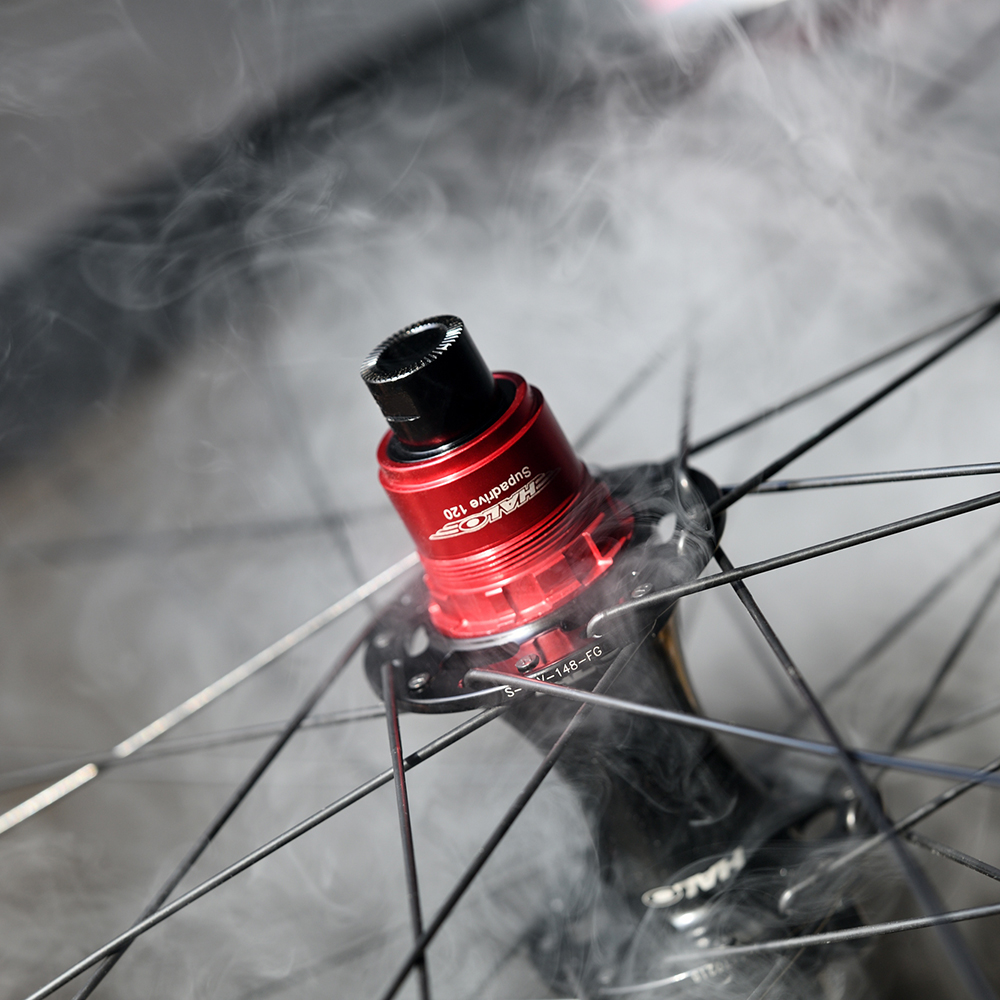

At the core of our Vortex wheels are our new and improved instantaneous 120 point pick up MT Supadrive and MT Front hubs, with sealed bearings and super wide spaced flanges for increased stiffness and durability.

100% hand built and pre fitted with tubeless tape, Vortex wheels are tubeless ready from the box.

Coloured decal kits available aftermarket.

Included Fittings

  • Front Standard 15mm x 100 thru, 9mm x 100 QR
  • Front Boost 15x110 thru
  • Rear Standard 12mmx142 thru, 9mm x 135 QR
  • Rear Boost 12mm x 148 thru
  • Rear Super Boost 12mm x 157 thru

Vortex Mini Site

Specifications

  • Spokes Black double butted stainless spokes
  • Nipples Black brass
  • Rim Depth 20.75mm
  • Internal Width 33mm
  • External Width 38mm
  • Front Hub Spacing 100mm or 110mm Boost
  • Rear spacing 135/142mm or 148mm Boost
  • Rim Joint type Sleeved
  • Drillings 32H
  • Freehub Shimano HG or SRAM XD versions
  • Drive System Supadrive
  • Freehub Body Alloy
  • Disc Mount 6 Bolt
  • Spoke pattern 3X
  • Recommended Tyre size 2.35-2.8"
  • Colour Stealth Black
Halo Vortex Wheels 27.5
Halo Vortex Wheels 27.5
Click image to enlarge
Information

To find out where to buy  Click Here

Description Colour Size Wt(g) PartNo Stock Lvl RRPPack
Units

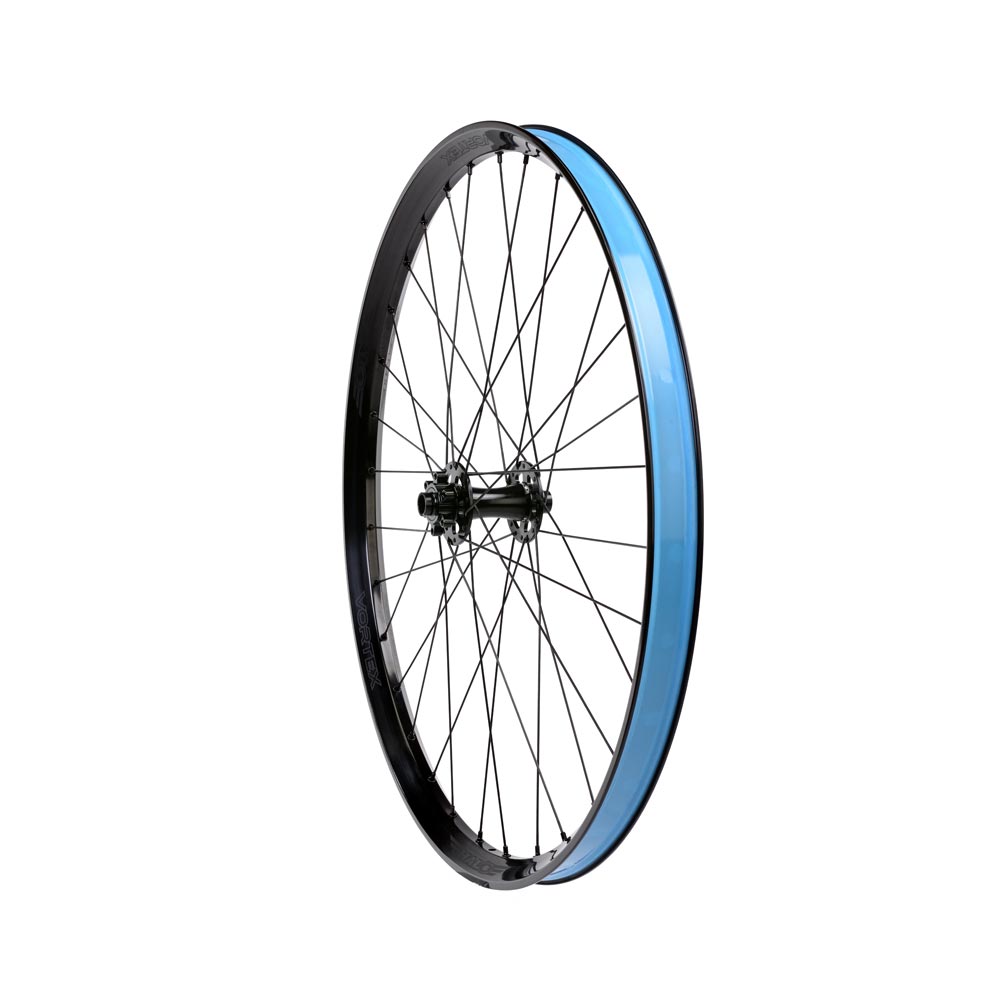

Vortex 27.5" Front Boost, MT Front Boost 110 - 15x110mm Disc Hub, 32H, Black DB Spokes Stealth Black 27.5"960WHHAVX7BZ
- ETA:
30/9
£155.00Each
Vortex 27.5" Front, MT Front Disc Hub, 32H (QR/15mm Ft), Black DB Spokes Stealth Black 27.5"1015WHHAVX7FZ
- ETA:
30/9
£165.00Each
Vortex 27.5" Supadrive, MT Supadrive 142Thru/135QR Disc Hub, 32H, Shimano HG, Black DB Spokes Stealth Black 27.5"1145WHHAVX7SZ
- ETA:
30/9
£255.00Each

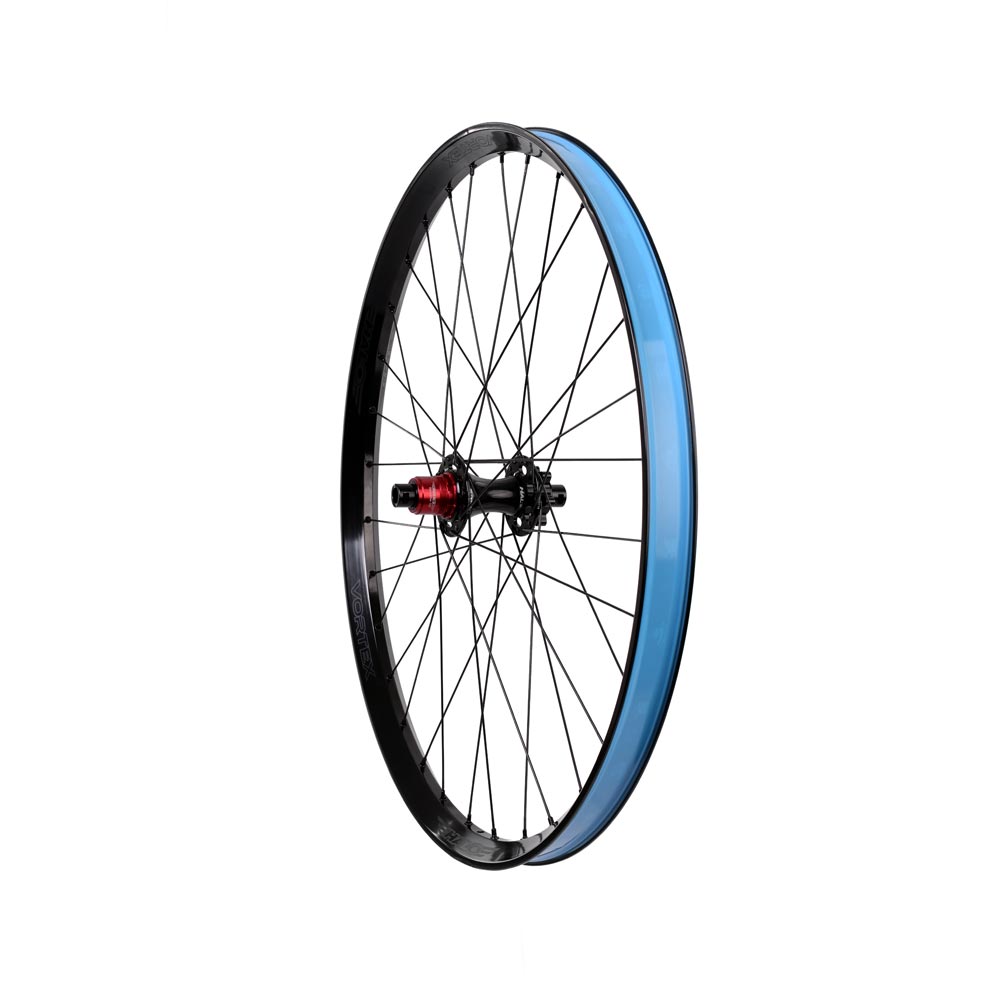

Vortex 27.5" Supadrive XD, MT Supadrive 142Thru/135QR Disc Hub, 32H, SRAM XD, Black DB Spokes Stealth Black 27.5"1145WHHAVX7SZX
- ETA:
30/9
£265.00Each
Vortex 27.5" Supadrive, MT Supadrive 157Thru Disc Hub, 32H, Shimano HG, Black DB Spokes Stealth Black 27.5"1165WHHAVX7UZ
£255.00Each
Vortex 27.5" Supadrive XD, MT Supadrive 157Thru Disc Hub, 32H, SRAM XD, Black DB Spokes Stealth Black 27.5"1165WHHAVX7UZX Low Stock£265.00Each

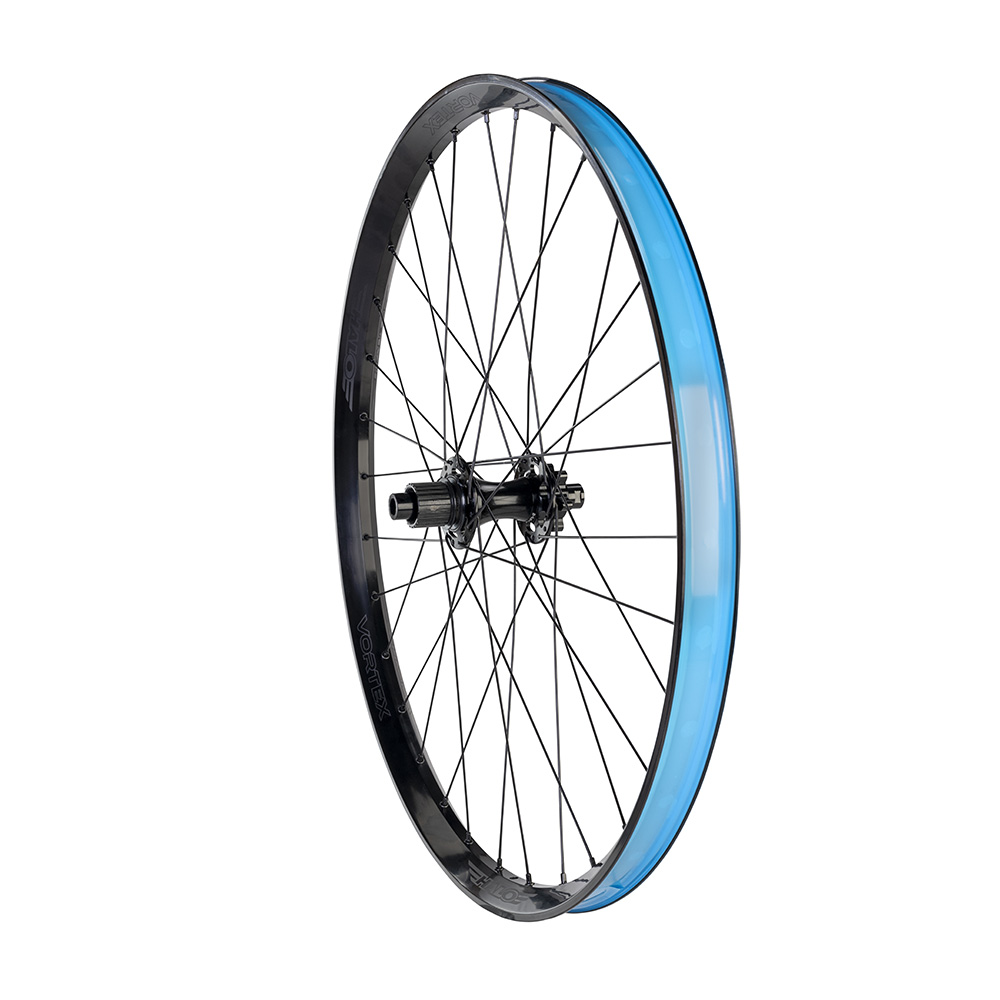

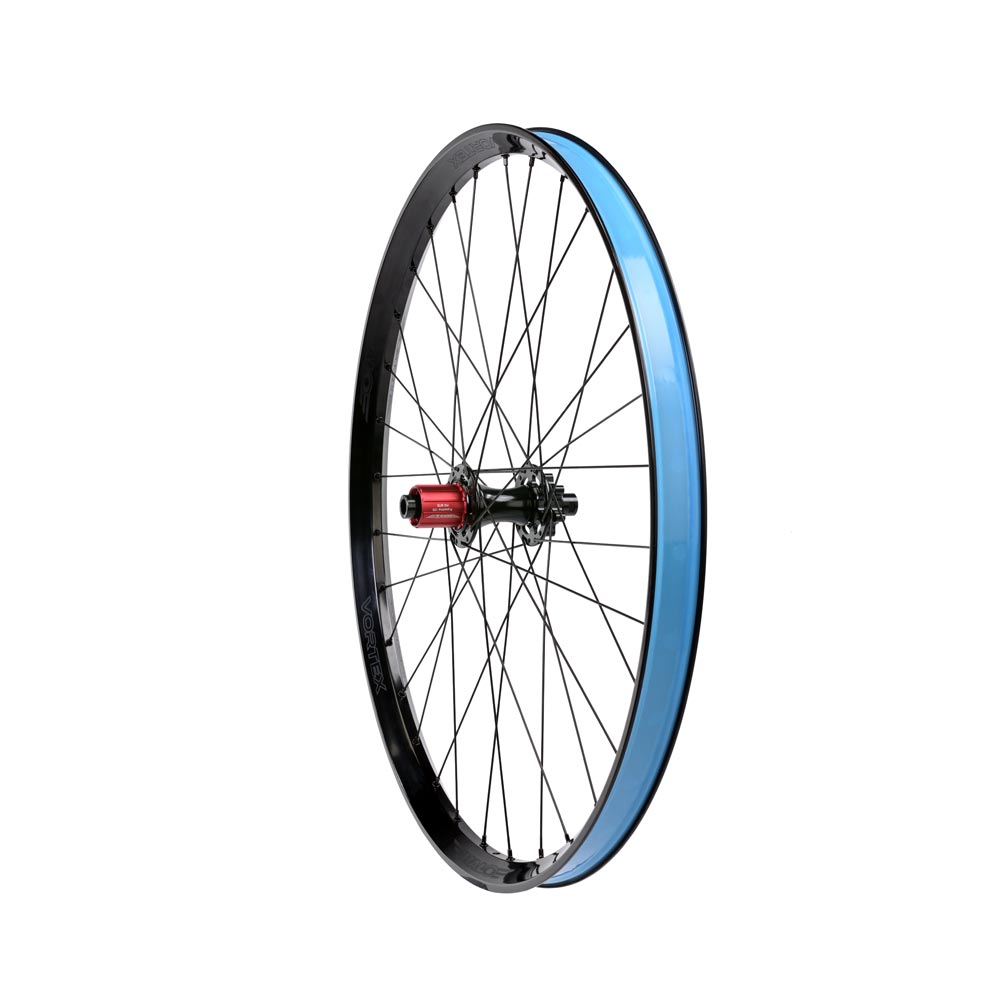

Vortex 27.5" Supadrive Boost, MT Supadrive Boost 148 Disc Hub, 32H, Shimano HG, Black DB Spokes Stealth Black 27.5"1150WHHAVX7VZ Low Stock£255.00Each
Vortex 27.5" Supadrive Boost XD, MT Supadrive Boost 148 Disc Hub, 32H, SRAM XD, Black DB Spokes Stealth Black 27.5"1150WHHAVX7VZX
- ETA:
30/9
£265.00Each
  • Good stock levels
  • Out of stock. Expected availability date will be displayed if known.
  • Discontinued. This product is no longer available.
  • Special Order Please contact us for delivery times.
