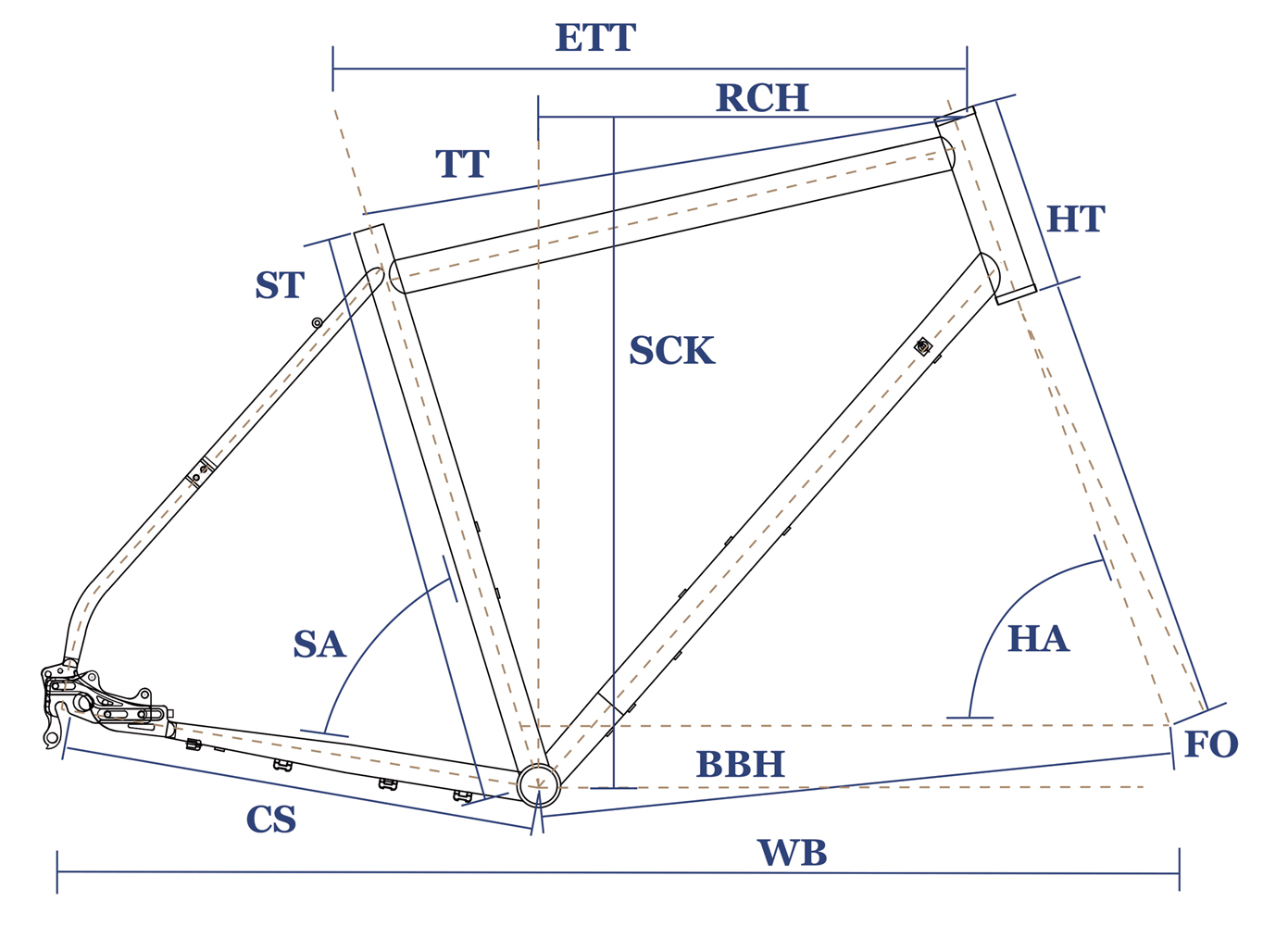

| Stack |
582
|
603
|
615
|
626
|
647
|
| Reach |
368
|
376
|
388
|
400
|
408
|
| Horizontal Top Tube (ETT) |
541
|
555
|
570
|
585
|
600
|
| Seat Tube (ST) |
500
|
520
|
535
|
550
|
570
|
| Actual Top Tube C2C (TT) |
521
|
534
|
548
|
564
|
575
|
| Chainstay (CS) |
445
|
445
|
445
|
445
|
445
|
| Adjustable to (with ADS3) |
463
|
463
|
463
|
463
|
463
|
| Bottom Bracket Height/Drop (BBH) |
-72
|
-72
|
-72
|
-72
|
-72
|
| Seat angle (SA) |
73.5°
|
73.5°
|
73.5°
|
73.5°
|
73.5°
|
| Headtube Angle (HA) |
70°
|
70.5°
|
71°
|
71.5°
|
72°
|
| Headtube (HT) |
150
|
170
|
180
|
190
|
210
|
| Wheelbase (WB) |
1047
|
1057
|
1067
|
1077
|
1075
|
| Max Tyre (without mudguards) |
45c
|
45c
|
45c
|
45c
|
45c
|
| Max Tyre (with mudguards) |
38c
|
38c
|
38c
|
38c
|
38c
|
